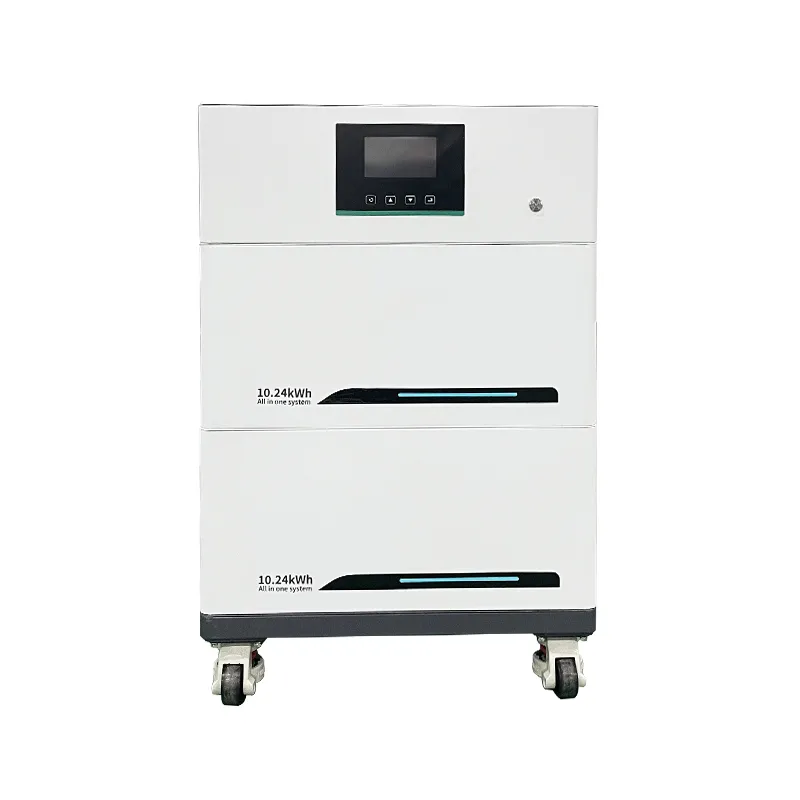

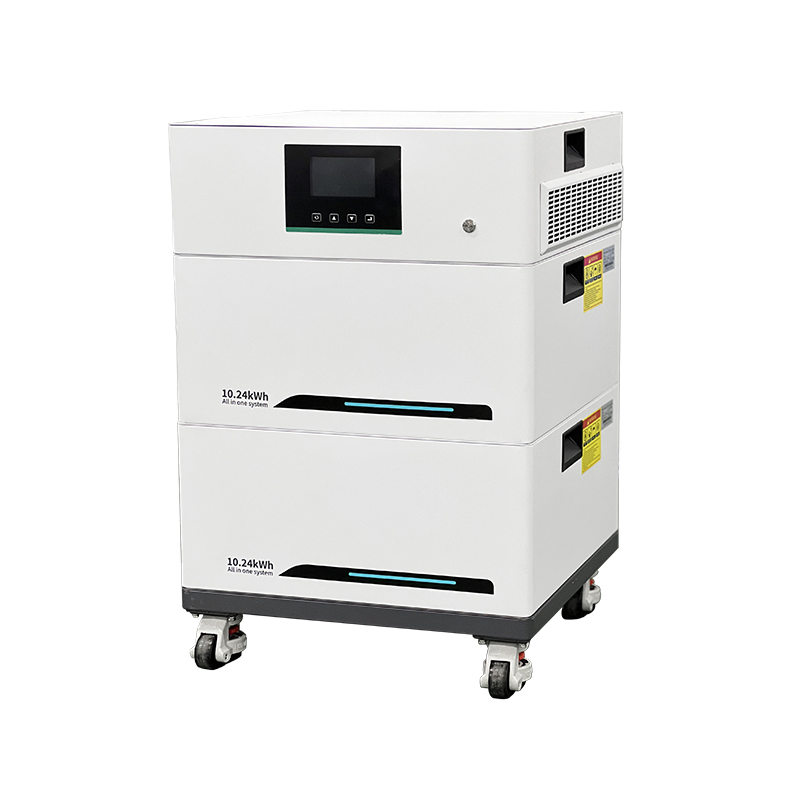

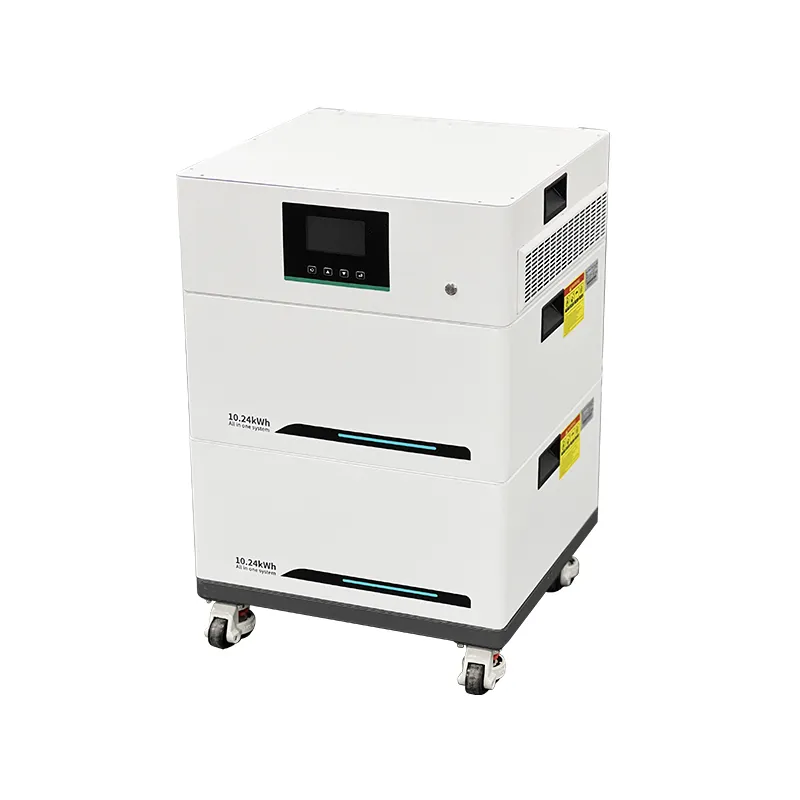

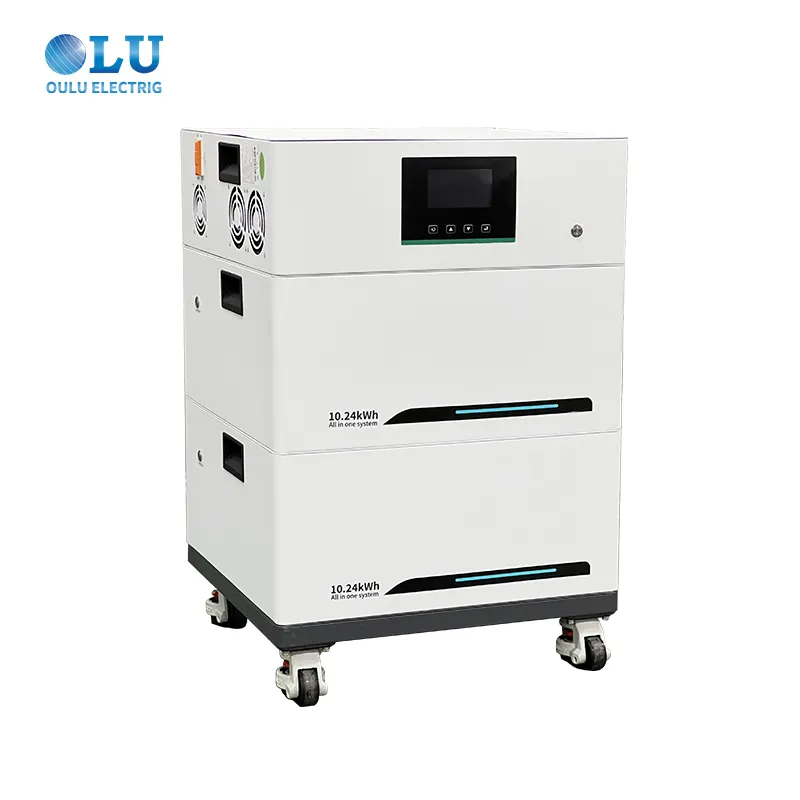

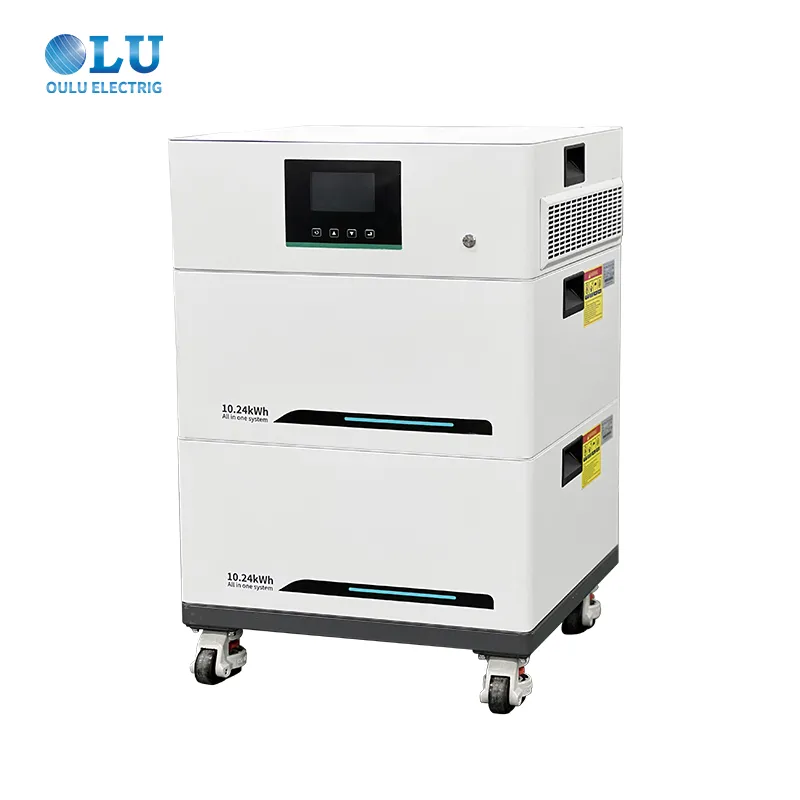

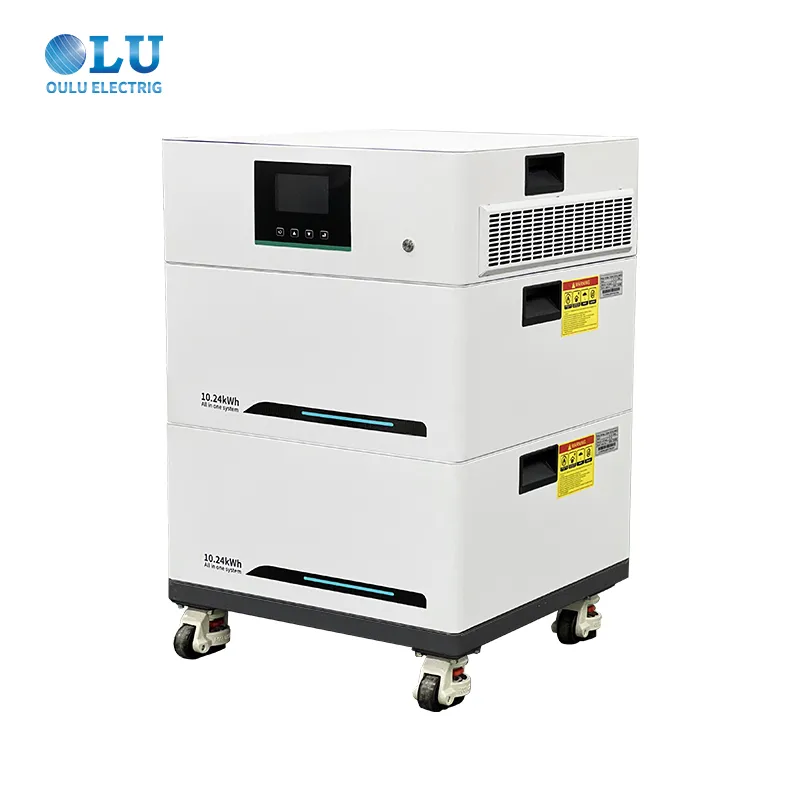

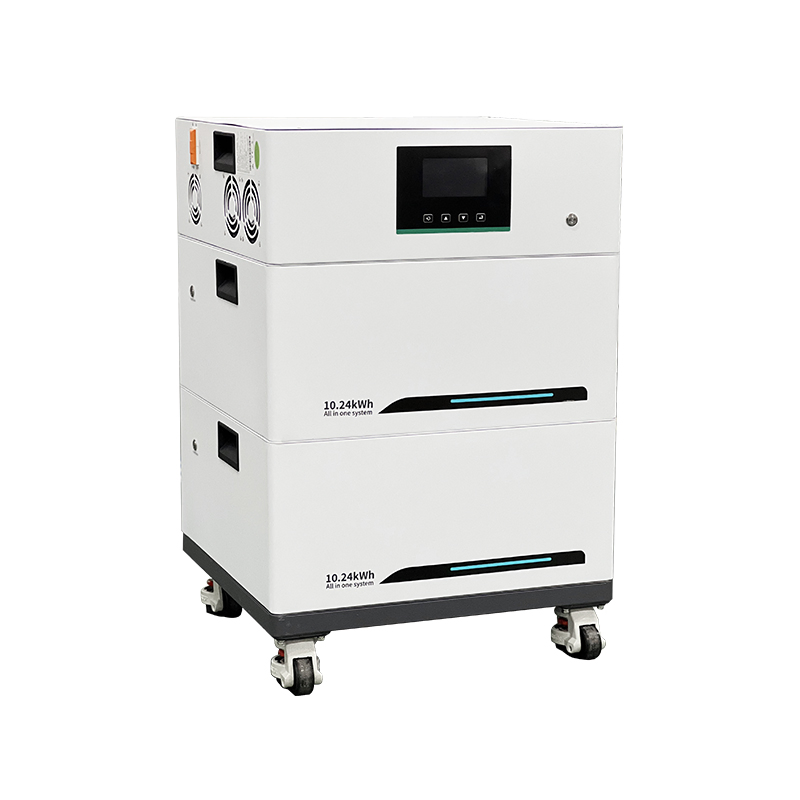

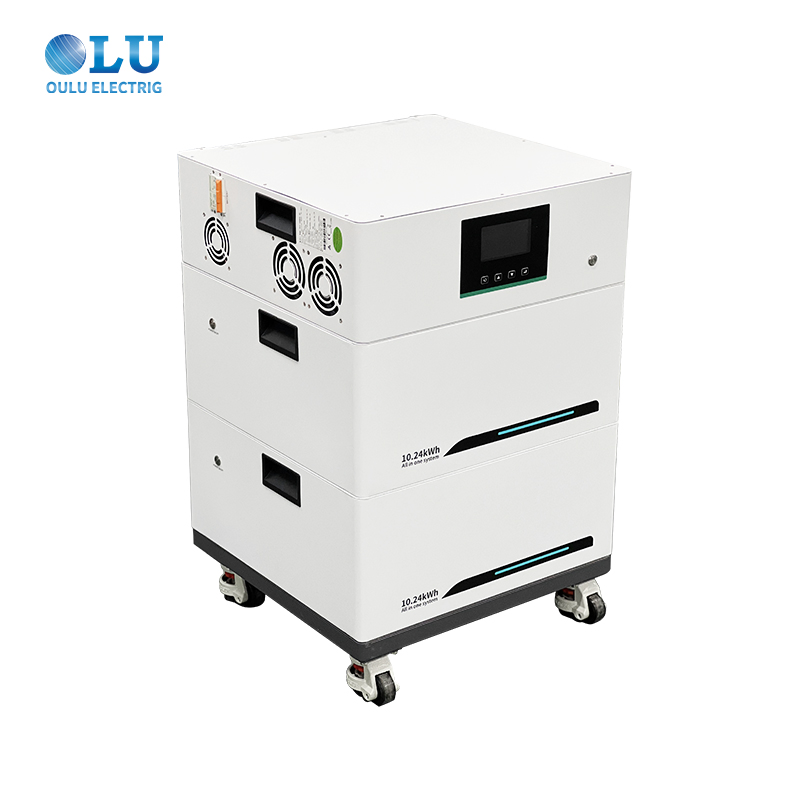

The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings for diverse applications.
A complete integrated system combines the inverter, battery, and control functions in a single unit, eliminating wiring and reducing installation time.
Designed for residential applications, providing backup power and energy independence with performance for household energy consumption.
High inverter compatibility and a broad input voltage range ensure seamless integration with various solar panel configurations.
| SYSTEM SPECIFICATIONS | |
|---|---|
| Model | OLU-10000A-20 |
| Rated Power | 10kW |
| Nominal Capacity | 20kWh |
| Cycle Life | ≥ 6000 cycles (25±2℃, 0.5C) |
| Rated Battery Voltage | 51.2V |
| AC Rated Voltage | 230VAC |
| Output Waveform | Pure Sine Wave |
| Max. Efficiency | 93.50% |
| Switchover Time | 10ms |
| Battery Type | Lithium (LiFePO4) |
| Max. PV Array Power | 11kW |
| MPPT Voltage Range | 90-450VDC |
| Communication | RS485 / RS232 / CAN |
| Working Temp | Charge: 0~60℃ / Discharge: -20~60℃ |
Advanced battery energy management system provides comprehensive protection and optimization for peak performance.
Built-in interfaces enable remote monitoring, system diagnostics, and smart grid integration.
