The solar photovoltaic power system connected to the public grid is called an on-grid photovoltaic power generation system. The system structure includes solar battery arrays, DC/DC converters, DC/AC inverters, AC loads, transformers, and other components.

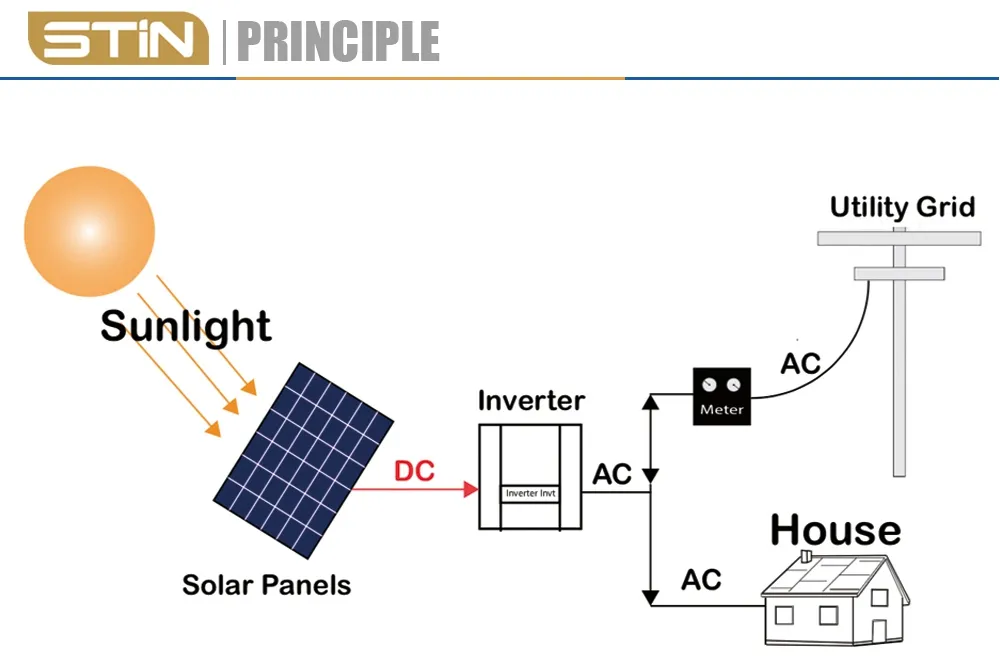

The grid-connected system converts DC power from solar arrays into AC power matching the grid voltage. When sunshine is strong, it supplies the load and feeds excess energy into the grid. When sunshine is insufficient, the grid compensates for the power requirement.

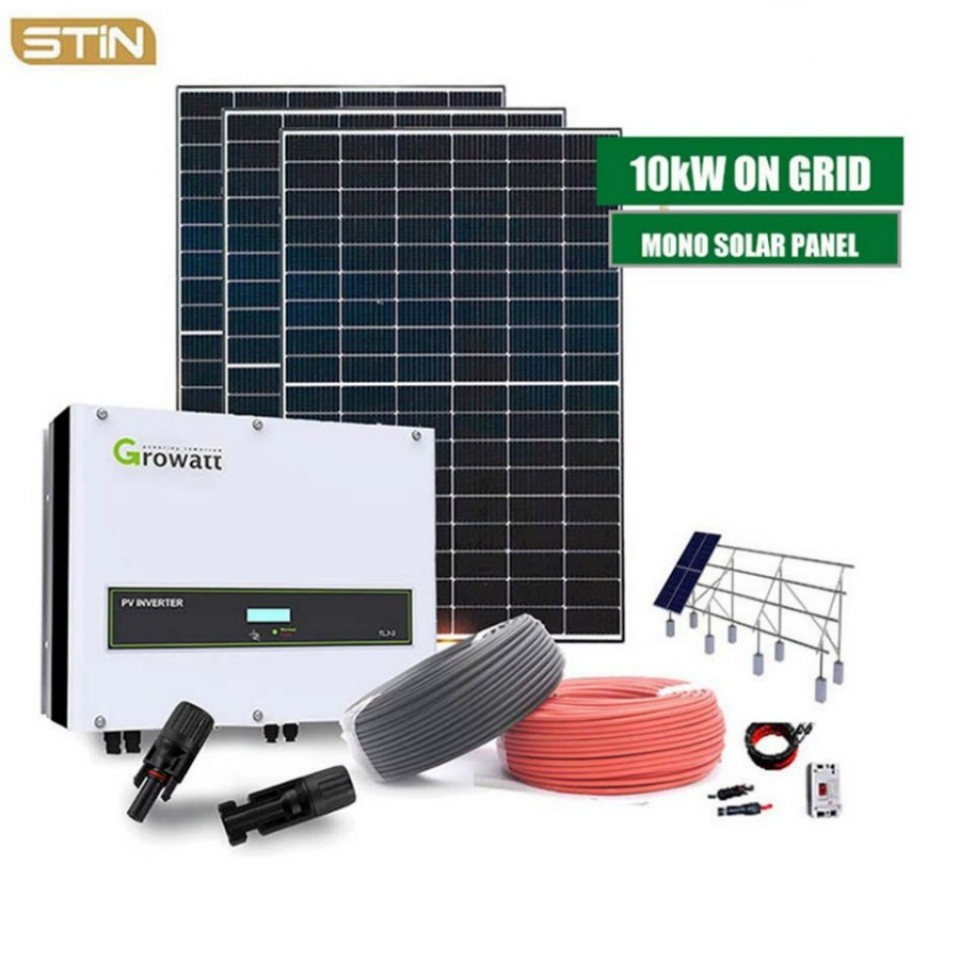

| Item | Part | Specification | Quantity | Remarks |
|---|---|---|---|---|
| 1 | Solar panel | Mono 410W | 26 PCS | 13 in string, 2 strings in parallel |

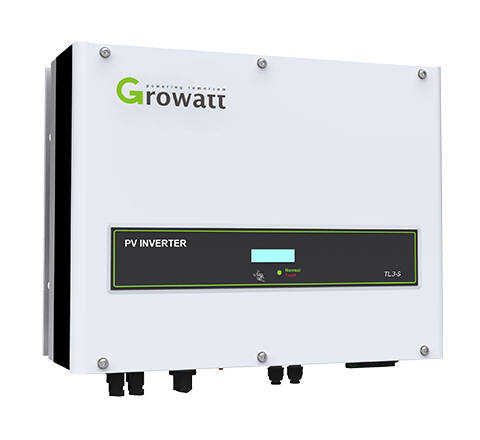

| 2 | Inverter | Growatt 10000TL3-S | 1 SET | Three phase output |
| 3 | Bracket | C-shaped steel | 1 SET | Hot-dip zinc |

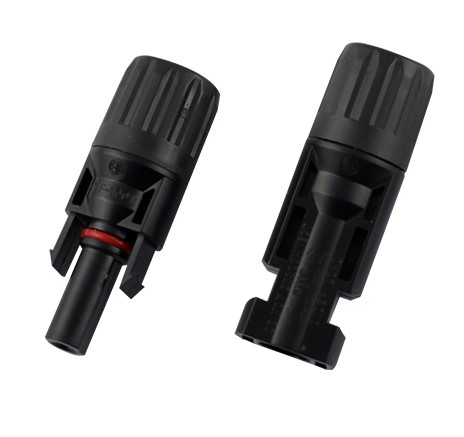

| 4 | Connector | MC4 | 3 pairs | - |
| 5 | GPRS Module | Monitoring Device | 1 PC | - |
| 6 | AC cables | 4*4mm² | 20M | - |

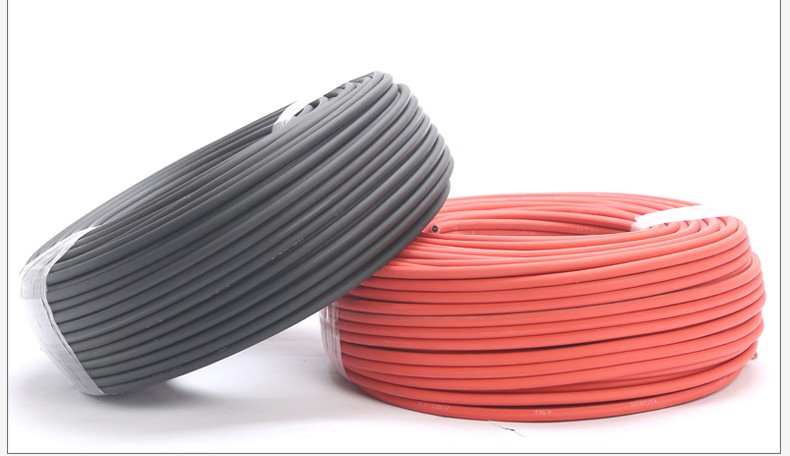

| 7 | PV cables | 4mm² | 200M | Solar panel to inverter |
| 8 | Distribution box | With breaker & SPD | 1 SET | AC type |
