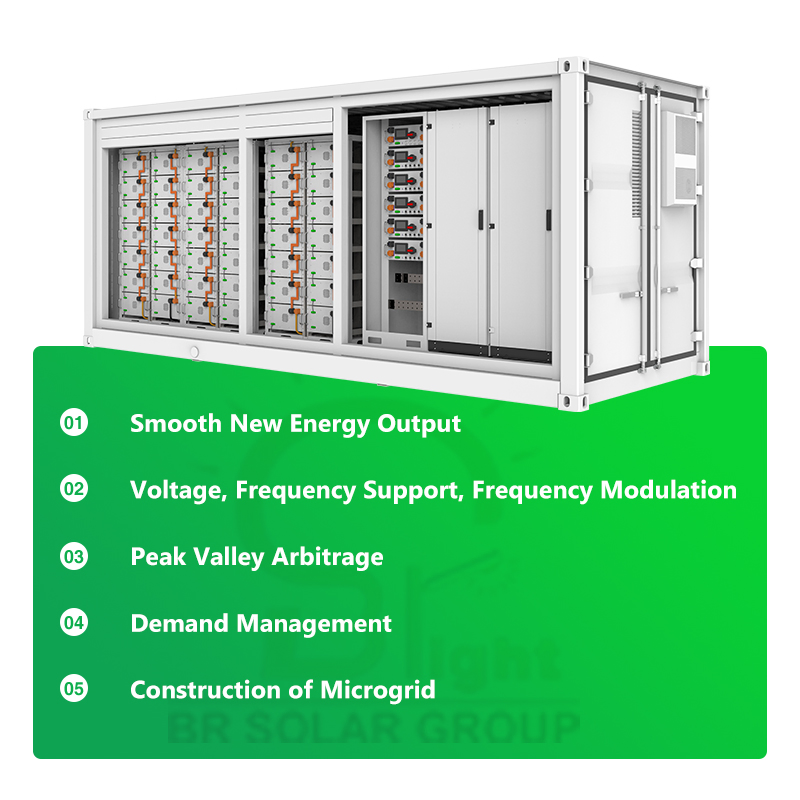

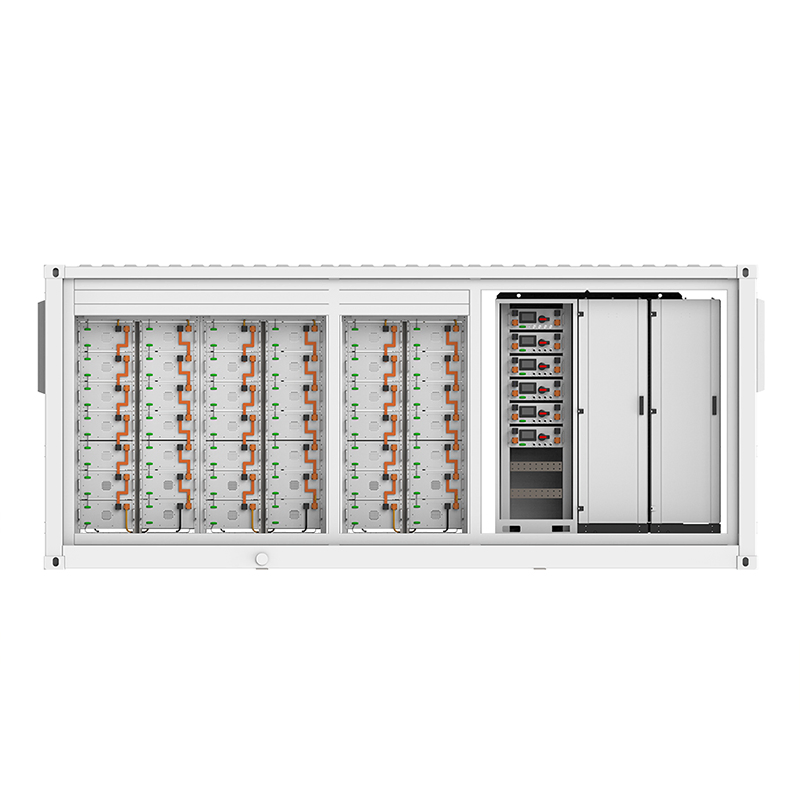

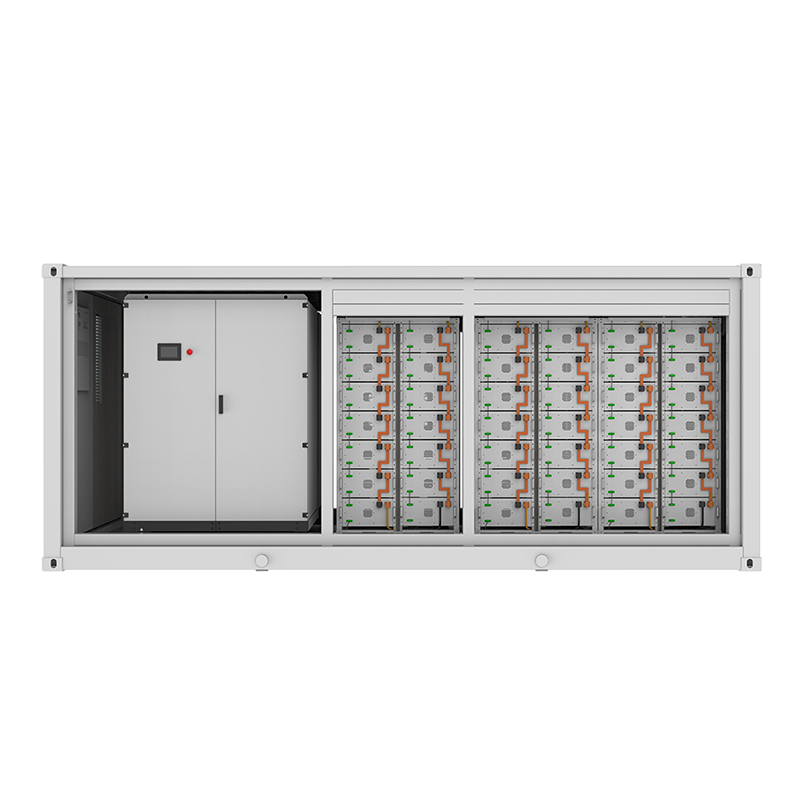

Home Br Solar Containerized Energy Hybrid Inverter Storage System with ISO

1 / 5

Home Br Solar Containerized Energy Hybrid Inverter Storage System with ISO

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Specifications

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial, School, Factory

Specification

100kwh, 233kwh

Cell Type

Lithium Iron Phosphate (LFP)

Cell Parameter

3.2V/314ah

Cooling

Liquid Cooling

Protection

IP55

Rated Capacity

5.01 Mwh

Rated Voltage

1331.2V

Origin

China

HS Code

8501310000

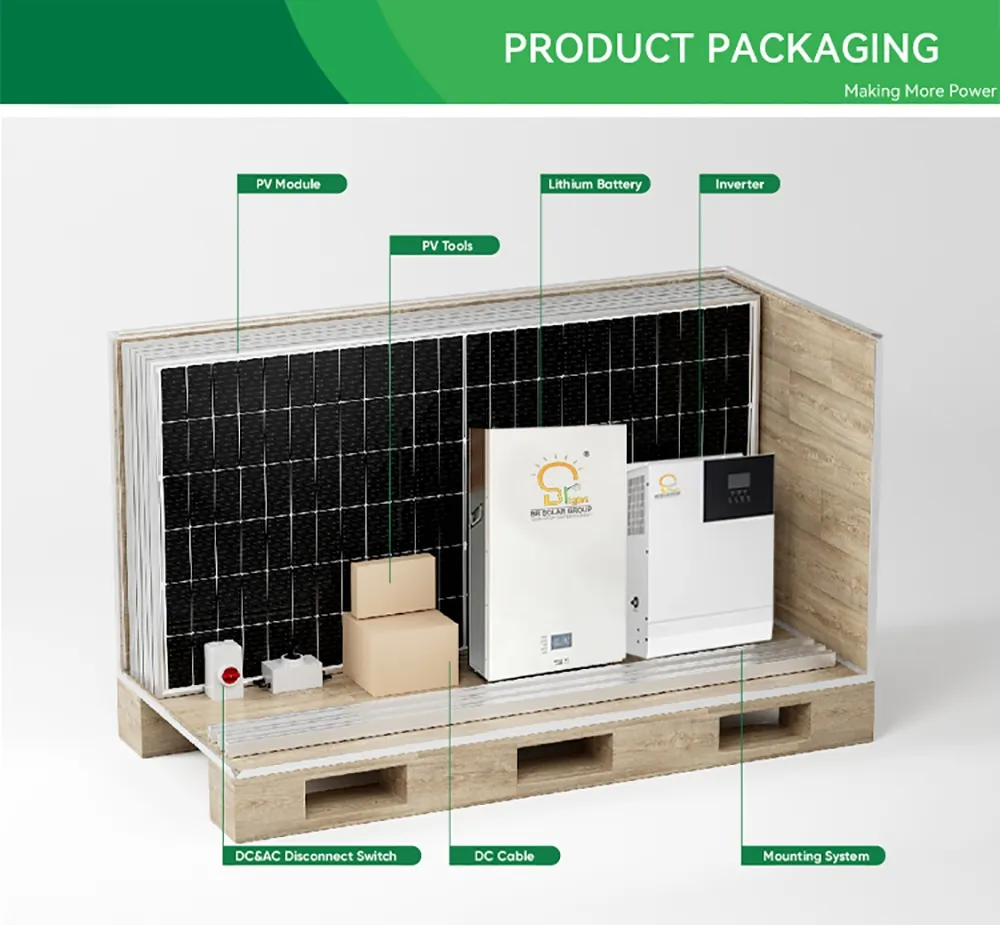

Packaging & Delivery

Package Size

110.00cm * 140.00cm * 238.00cm

Gross Weight

2000.000kg

Technical Parameters

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V

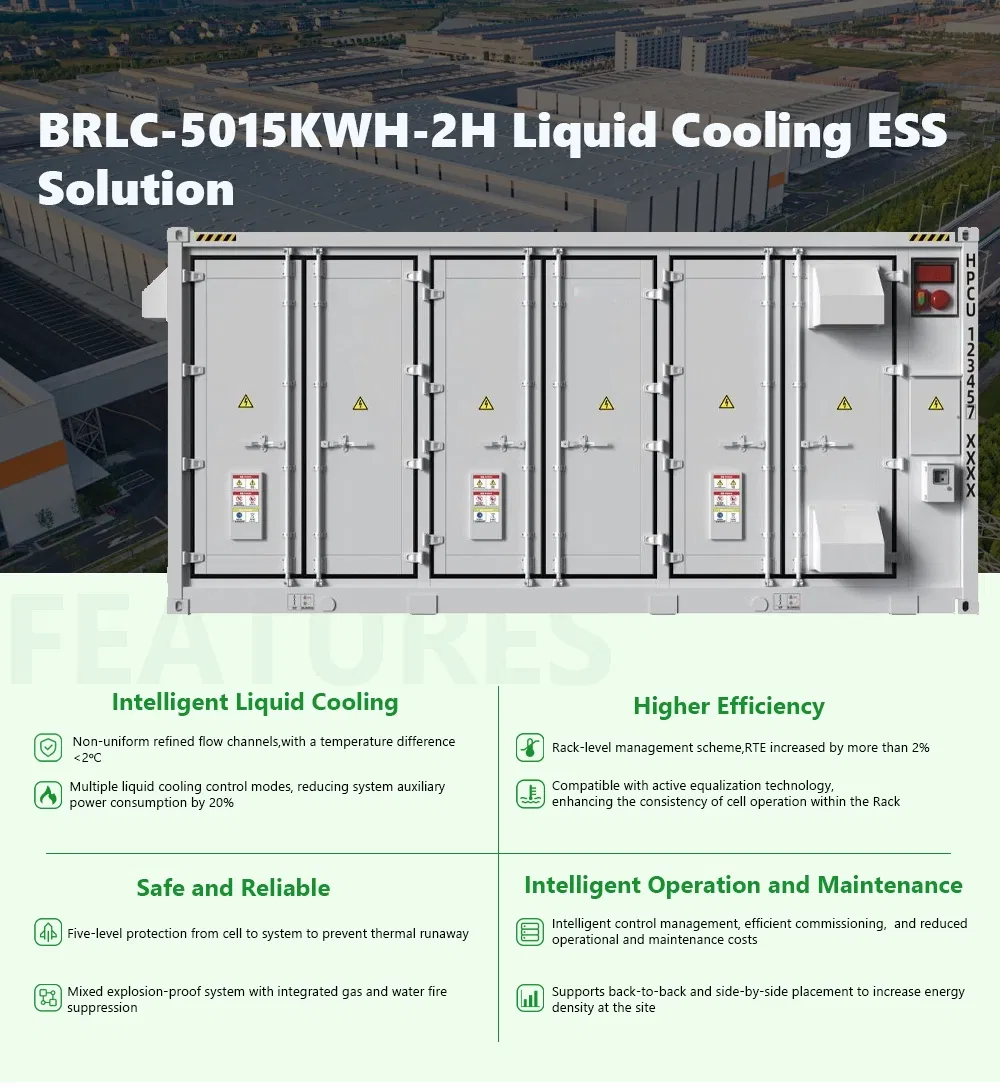

Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m
IP grade	IP55
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External interface	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

Product Visuals

Frequently Asked Questions

Q1: What is the primary battery technology used in this system?

The system utilizes high-quality Lithium Iron Phosphate (LFP) cells, specifically 3.2V/314Ah parameters, known for their safety and long cycle life.

Q2: How does the system manage heat during high-power operations?

This energy storage system employs an advanced Liquid Cooling method to ensure optimal operating temperatures and enhance battery longevity.

Q3: What safety certifications and fire protection measures are included?

The system is ISO and CE certified. It features a comprehensive fire protection suite including temperature/smoke/gas detectors, deflagration venting, and fire extinguishing gas.

Q4: Is the system suitable for outdoor industrial use?

Yes, with an IP55 protection grade and an operating temperature range of -30ºC to 50ºC, it is designed for demanding industrial, commercial, and outdoor environments.

Q5: What is the total energy capacity of the containerized system?

The rated capacity of this specific configuration is 5.01 MWh, with a system configuration of 1P416S×12.

Q6: What communication interfaces are supported for system monitoring?

The system provides multiple external communication interfaces, including Ethernet, CAN, and RS485 for seamless integration and monitoring.
