Basic Information Overview
ModelECO-B20FT5015LP
Configuration12p416s
Rated Energy5.015mwh
Voltage Range1165-1498VDC
Ingress RatingIP55 / IP65 (Pack)
Discharge Rate0.5p
CoolingChiller + Liquid Cooling
Weight45 T

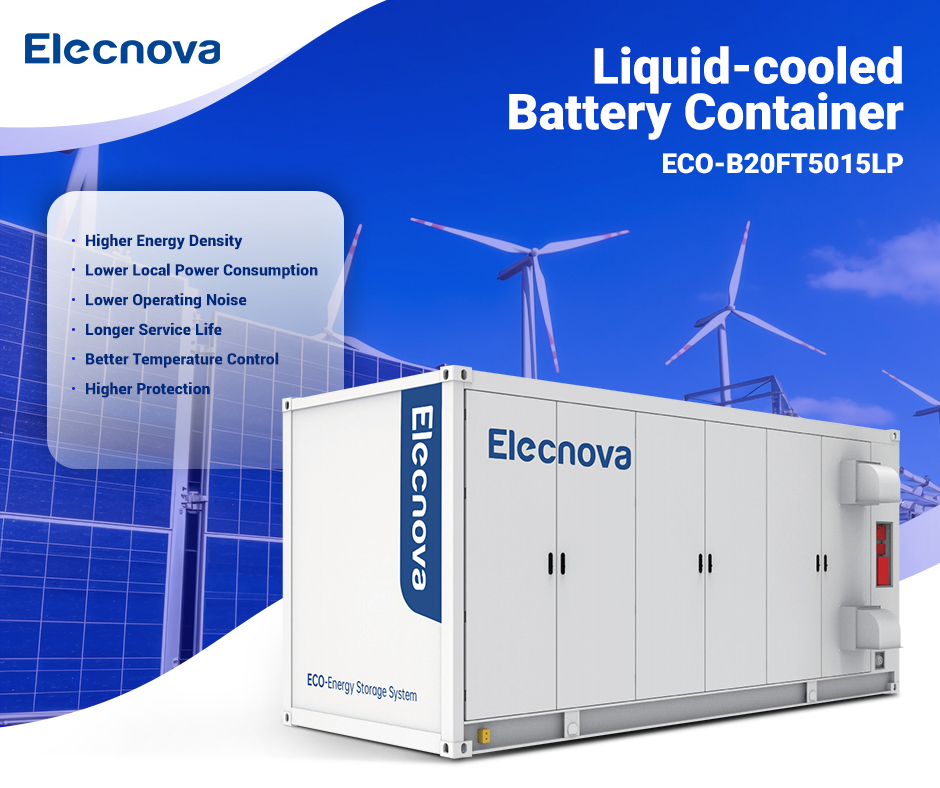

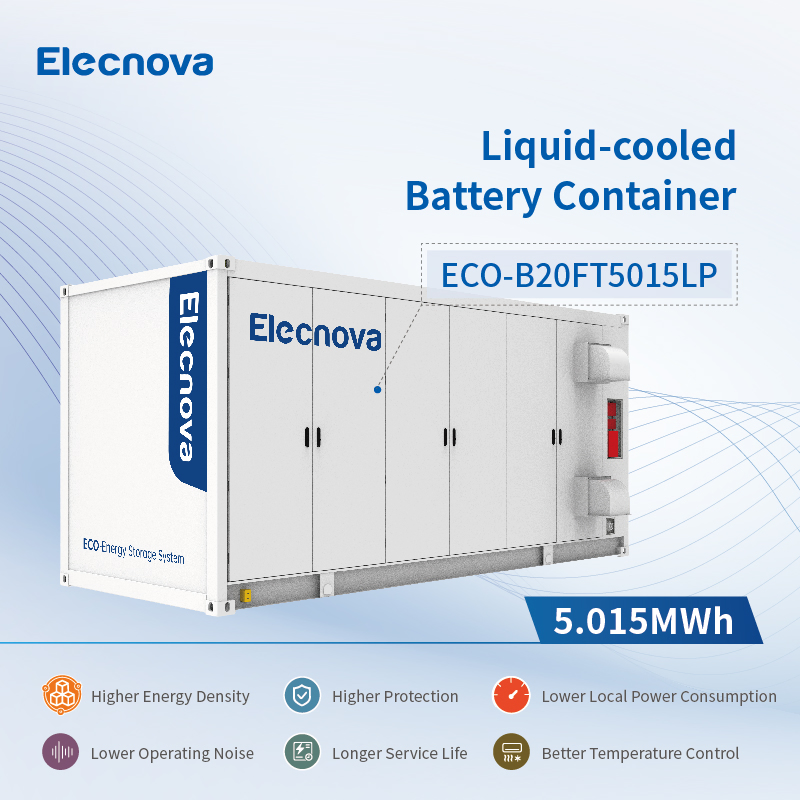

Product Introduction

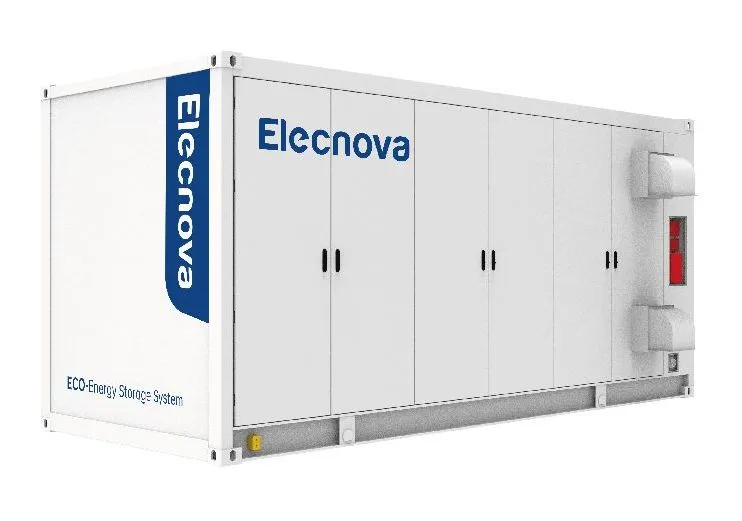

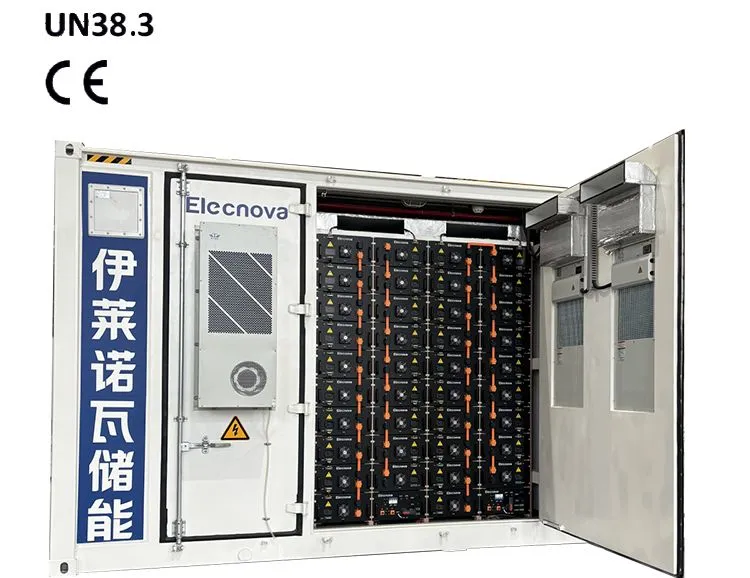

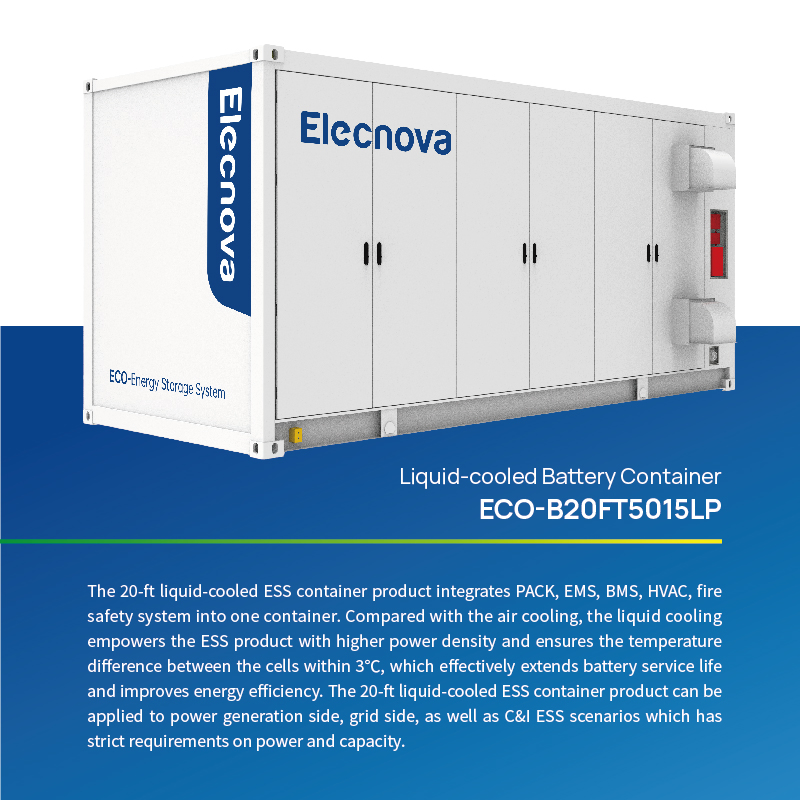

The 20-ft liquid-cooled ESS container product integrates PACK, EMS, BMS, HVAC, and fire safety system into one unit. Compared with air cooling, liquid cooling empowers the product with higher power density and ensures the temperature difference between cells stays within 3ºC, which effectively extends battery service life and improves energy efficiency.
Key Advantages
High voltage access and high power density
Ultra-long life and ultra-low loss
Multi-energy complementation of high voltage platform
High protection level and easy installation

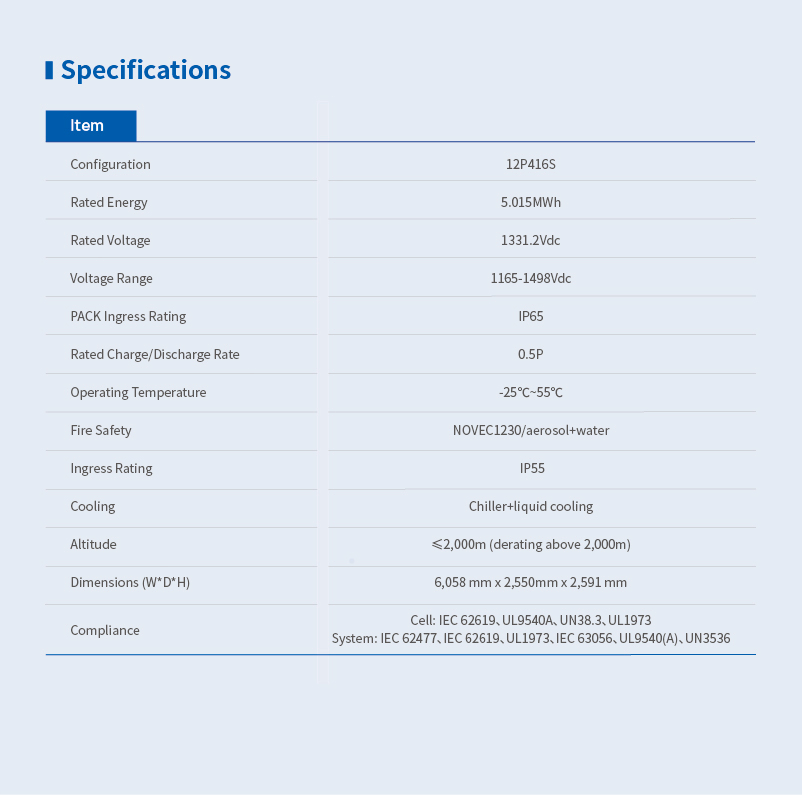

Technical Specifications
| Item |
Specification |
| Cell type | LFP314Ah |
| Configuration | 12P416S |
| Rated Energy | 5.015MWh |
| Rated Voltage | 1331.2Vdc |
| Voltage Range | 1165-1498Vdc |
| PACK Ingress Rating | IP65 |
| Operating Temperature | -25ºC~55ºC |
| Fire Safety | Aerosol + Water |
| Dimensions (W*D*H) | 6,058 mm x 2,550mm x 2,896 mm |
| System Compliance | IEC62477, IEC61000, IEC62619, IEC63056, UL9540A |

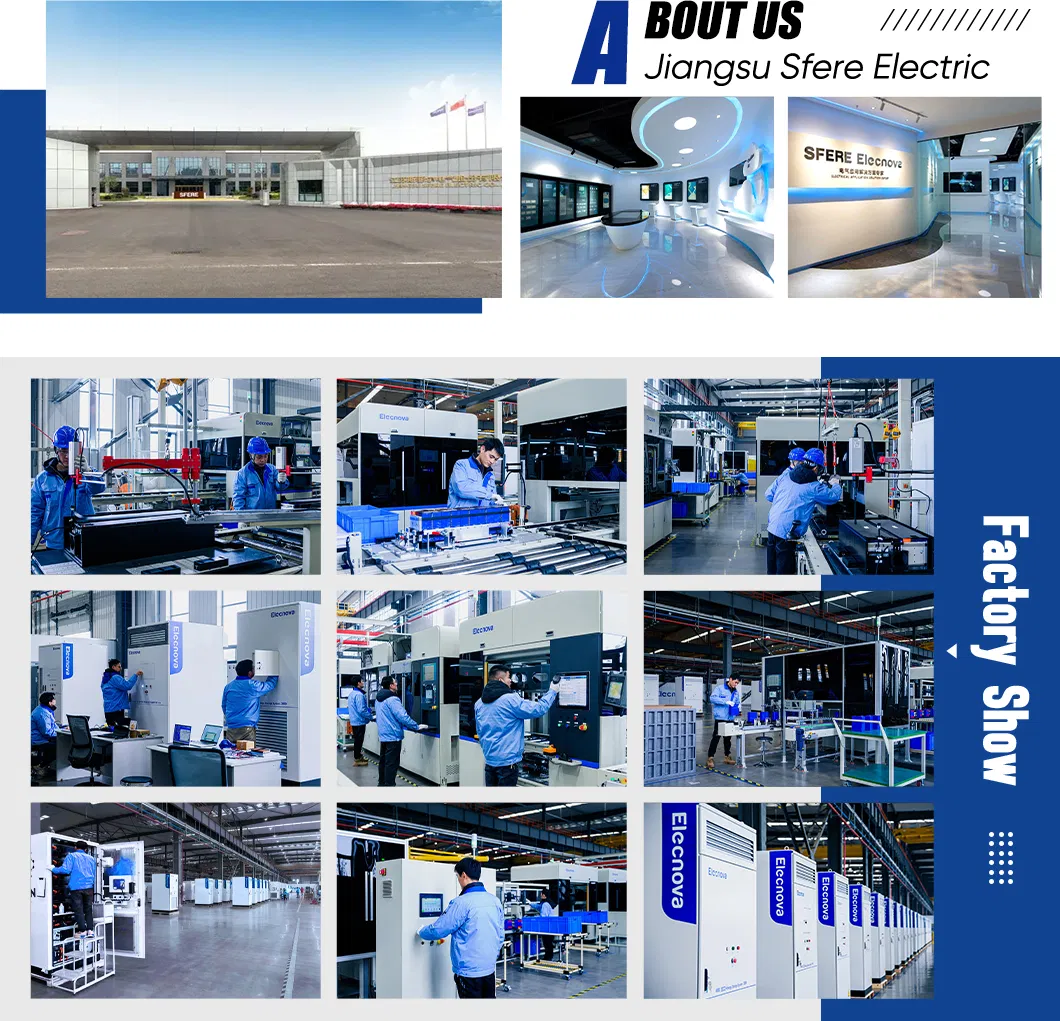

Industrial Capabilities
Our manufacturing facility integrates R&D, manufacturing, sales, and service, featuring a complete product ecosystem from smart terminal components to Internet of Things platforms. The electrical application solutions empower users with intelligent and digital energy management, providing reliable data services for energy saving, consumption reduction, and refined energy management.
We focus on power monitoring systems, power quality mitigation products, and energy storage systems. Our facilities are recognized with numerous certifications including High-tech Enterprise status, and we maintain over 100 invention patents and software copyrights. We aim to meet diversified energy requirements across power generation, grid side, and user side scenarios.
Certifications & Exhibition
Packaging & Shipping
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a leading manufacturer with centers located in China, employing over 600 staff and maintaining dedicated R&D centers and CNAS laboratories.
Q2: Do you provide OEM and ODM services for energy storage systems?
Yes, we welcome long-term strategic partnerships and have extensive experience in implementing both OEM and ODM projects.
Q3: How are battery products shipped internationally?
Our battery products have obtained the UN38.3 certification, ensuring they meet all safety requirements for international sea and air shipment.
Q4: What is the standard warranty period for your ESS products?
We offer flexible warranty options of 3, 5, or 10 years depending on the specific product requirements and conditions.
Q5: How do you handle after-sales maintenance?
We maintain a network of overseas affiliates and global business partners to provide professional on-site maintenance and technical support.
Q6: Can I request a sample or technical consultation?
Yes, please provide your requirements and a dedicated manager will contact you to discuss sample availability and technical details.
