High Efficiency MPPT Solar Pump Inverter Solution for Agriculture Irrigation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

KV90-PV

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC Variable-Frequency Drive

Function

Solar Pump Inverter

Output Frequency

0-400Hz

Protection Level

IP20

Installation

Wall-Mounted, Cabinet Installation

Origin

China

🚀 Product Description

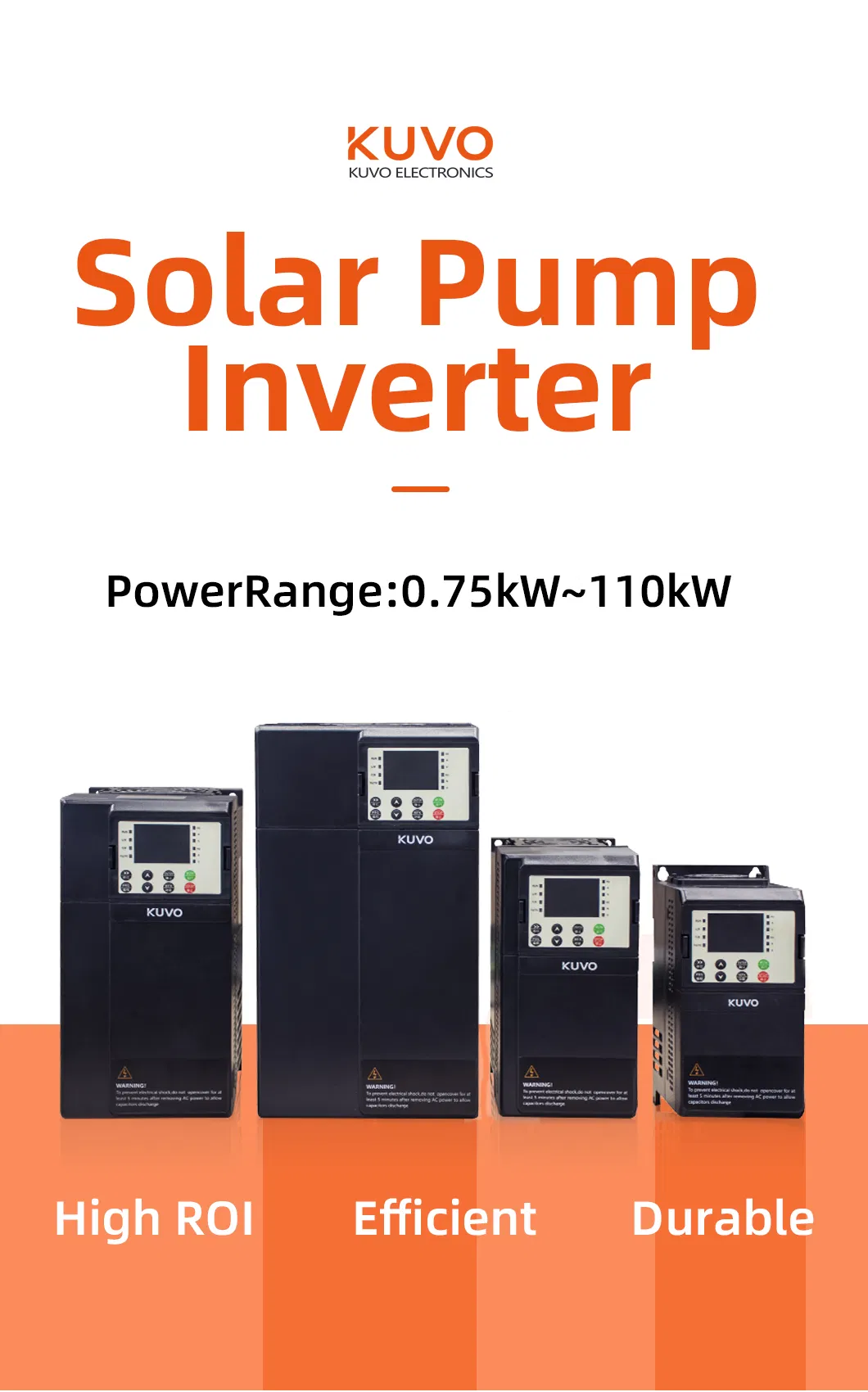

High Efficiency MPPT Solar Pump Inverter

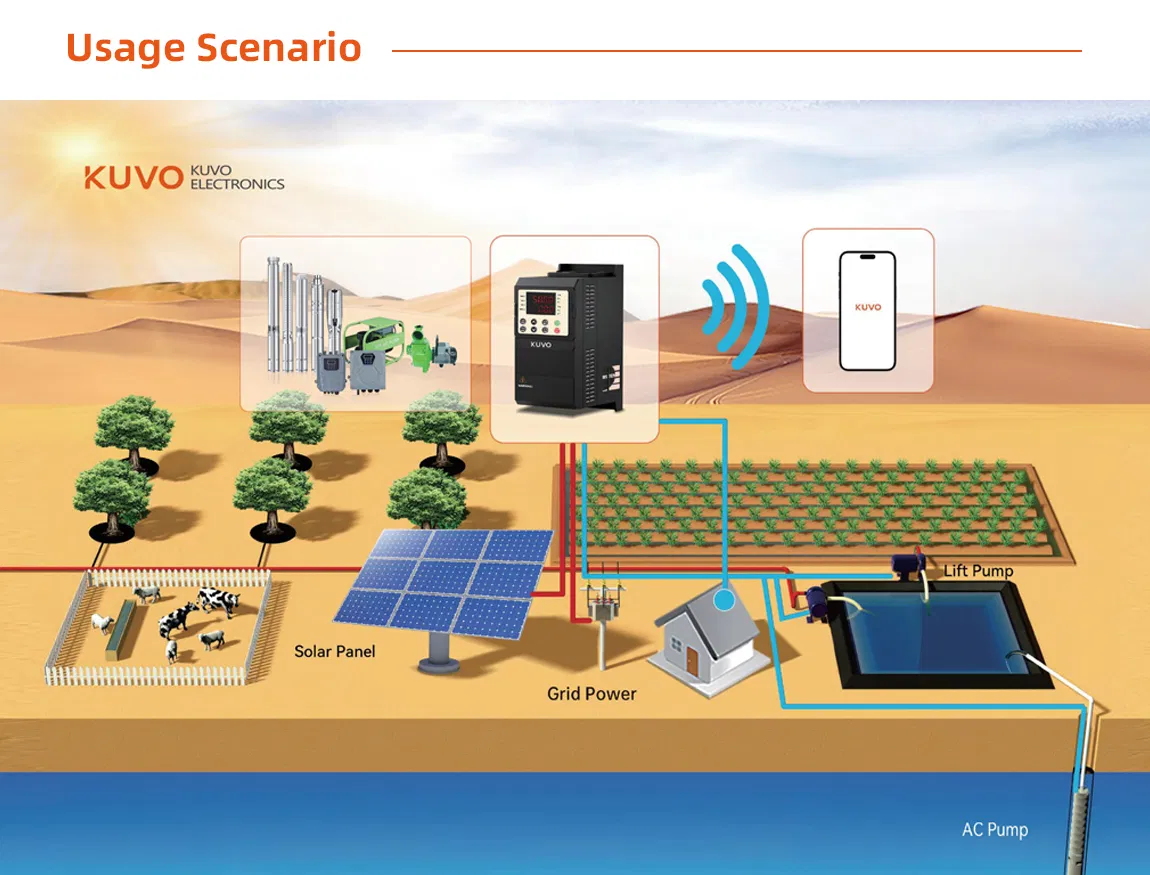

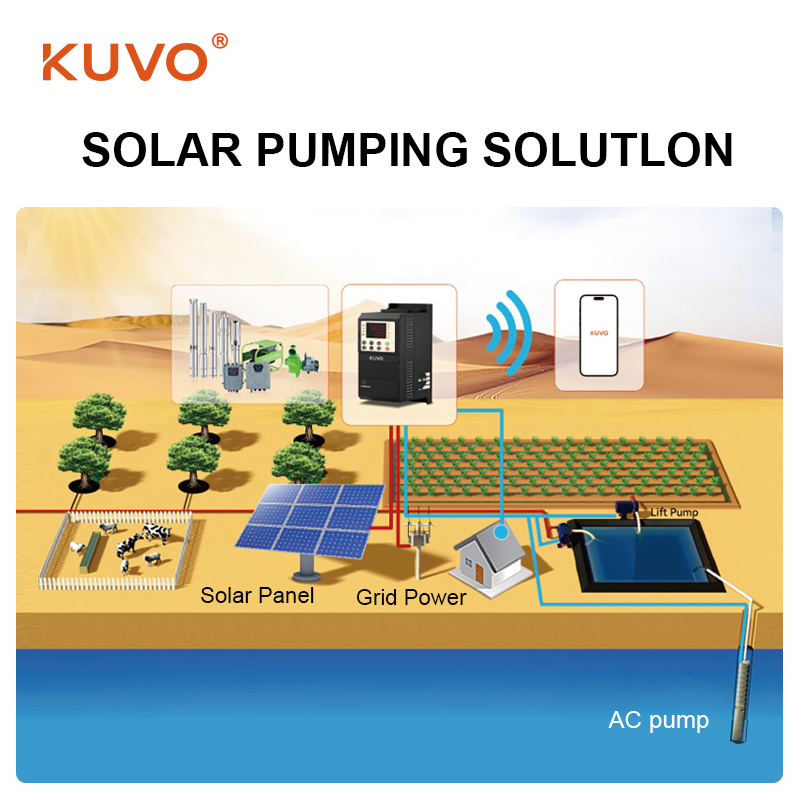

☀️ Solar Pump Solution

⚡

Power Source

Systems mainly use solar power. If configured correctly with water storage, it provides sufficient water supply. Can also run on grid electricity or generators if needed.

💧

Water Storage

Water storage helps handle peak demand and seasonal variations, ensuring water availability overnight without auxiliary power.

🧠

Pump Inverter

The controller acts as the brain of the system, managing various inputs and making constant adjustments to maximize water output.

🌊

Pump Choice

Compatible with submersible and surface pumps. Submersible pumps reach up to 1500 feet, while surface pumps handle flows up to 265 US GPM.

⭐ Key Selling Points

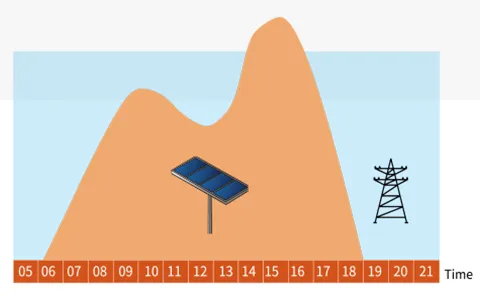

24/7 Operation

Hybrid AC/DC input (solar/grid). 900VDC max input for continuous pump operation.

Max Energy Efficiency

High-Efficiency MPP tracking. Cost-effective solution with a high return on investment.

Enhanced Durability

Multiple Protections: Over-voltage, Under-voltage, Over-current, Short-circuit, Over-temperature. Reduced maintenance.

Wide Applicability

Multiple Control Modes: Constant pressure, constant current, timing, liquid level, and flow control. Broad pump compatibility.

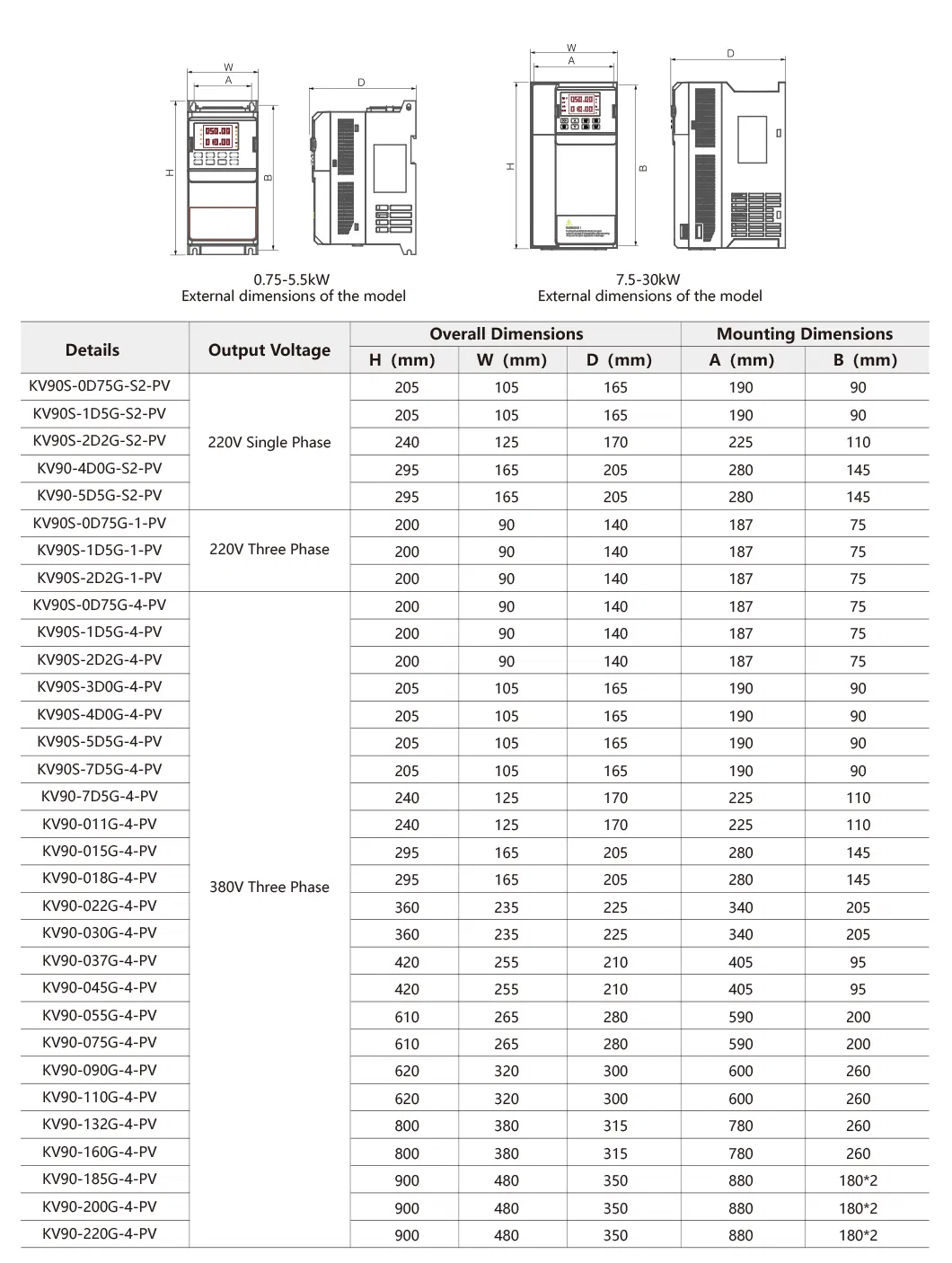

📊 Technical Specifications

Parameter	-S2 Series	-1 Series	-4 Series
PV Input Voltage Range	150-450V	60-450V	350-900V
Recommended Voc	300-380V	175-380V	620-750V
Optimum MPPT Voltage	345V	345V	575V
MPPT Efficiency	Up to 99%
AC Input Voltage	1PH 220-240V	1PH 220-240V	3PH 380V-480V
Output Power Range	0.75-4kW	0.75-4kW	0.75-185kW

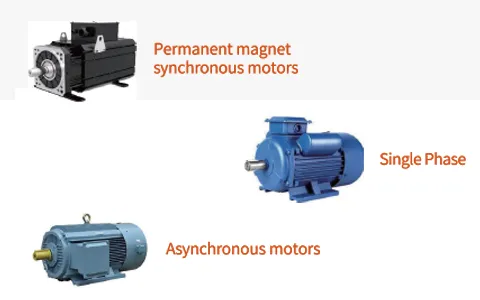

Motor Types	Single phase, Asynchronous, Permanent magnet synchronous motors

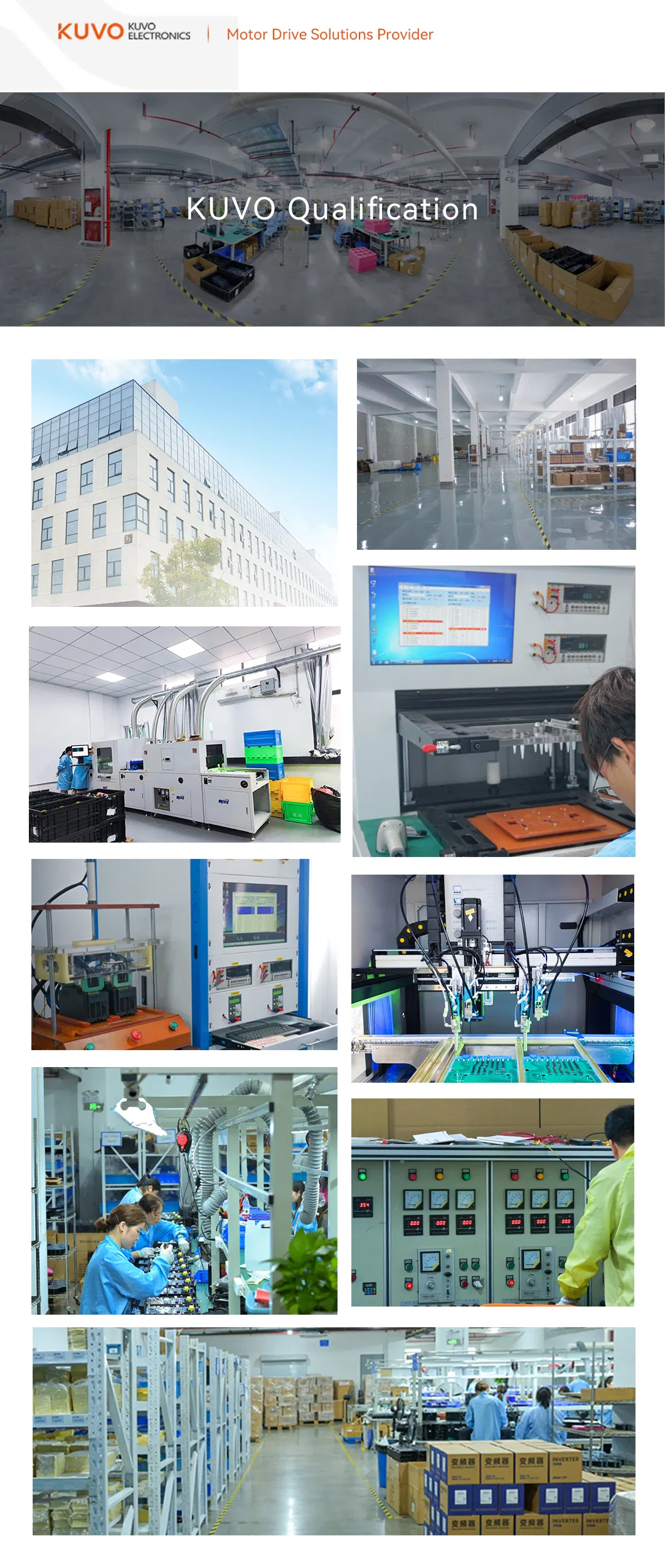

🏭 Factory & Production

❓ Frequently Asked Questions

Can I get some samples?

Yes, sample orders are available for quality checks and market testing. Please note that sample costs apply.

What is the delivery time?

In-stock items can be sent immediately. Otherwise, small orders typically take 3-5 working days, and large orders take 10-15 days.

What are your payment terms?

We usually accept T/T (Telegraphic Transfer), Western Union, and Cash.

Can I mix different power ratings in one container?

Yes, different models and power ratings can be mixed in one container or even within a single order.

How does your factory handle quality control?

Quality is our priority. Every product is fully assembled and carefully tested before packing and shipping to ensure performance from start to finish.

Can the inverter connect to a computer?

Yes, all inverters feature a built-in RS485 port and support the Modbus communication protocol for computer connectivity.
