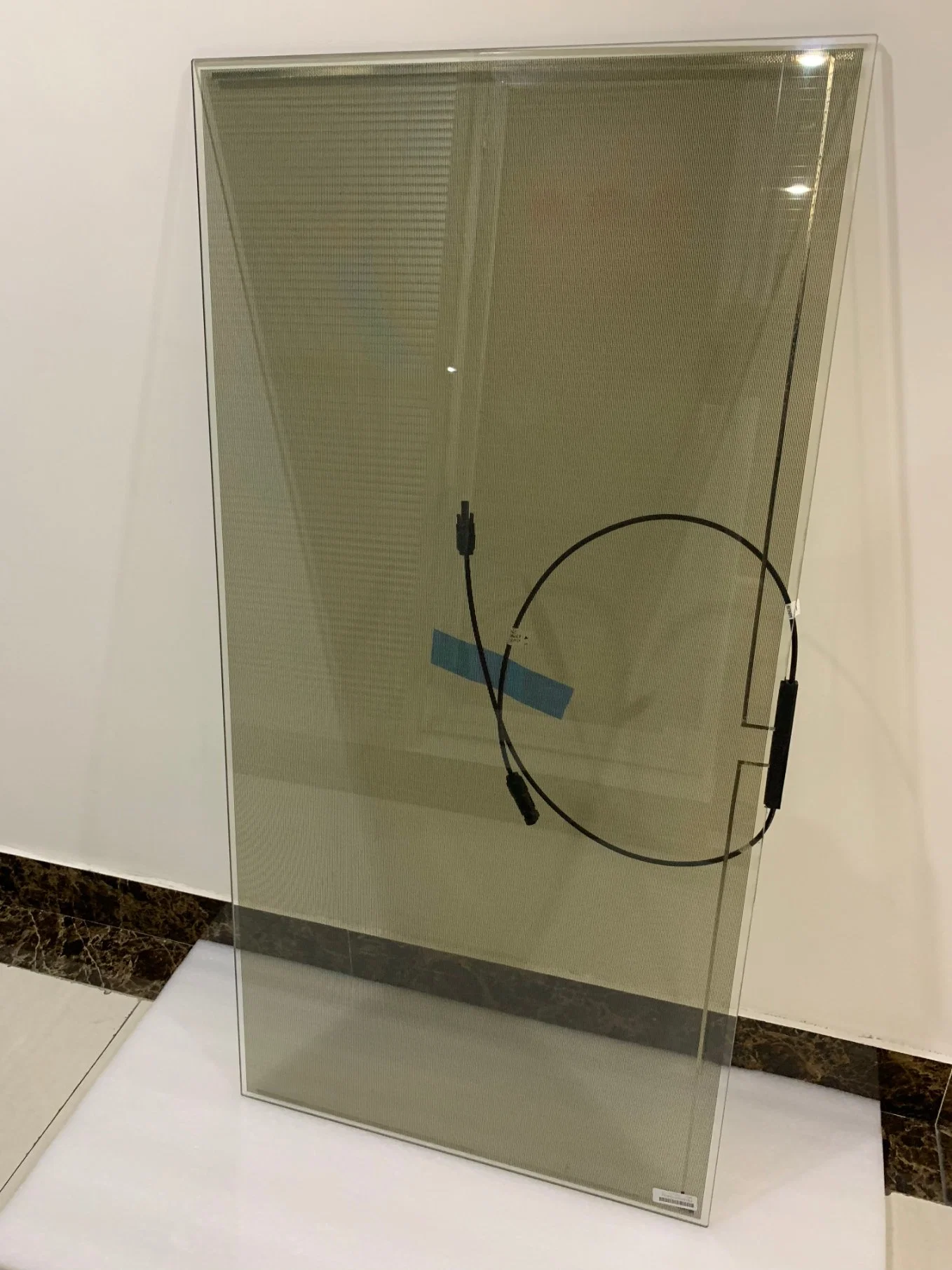

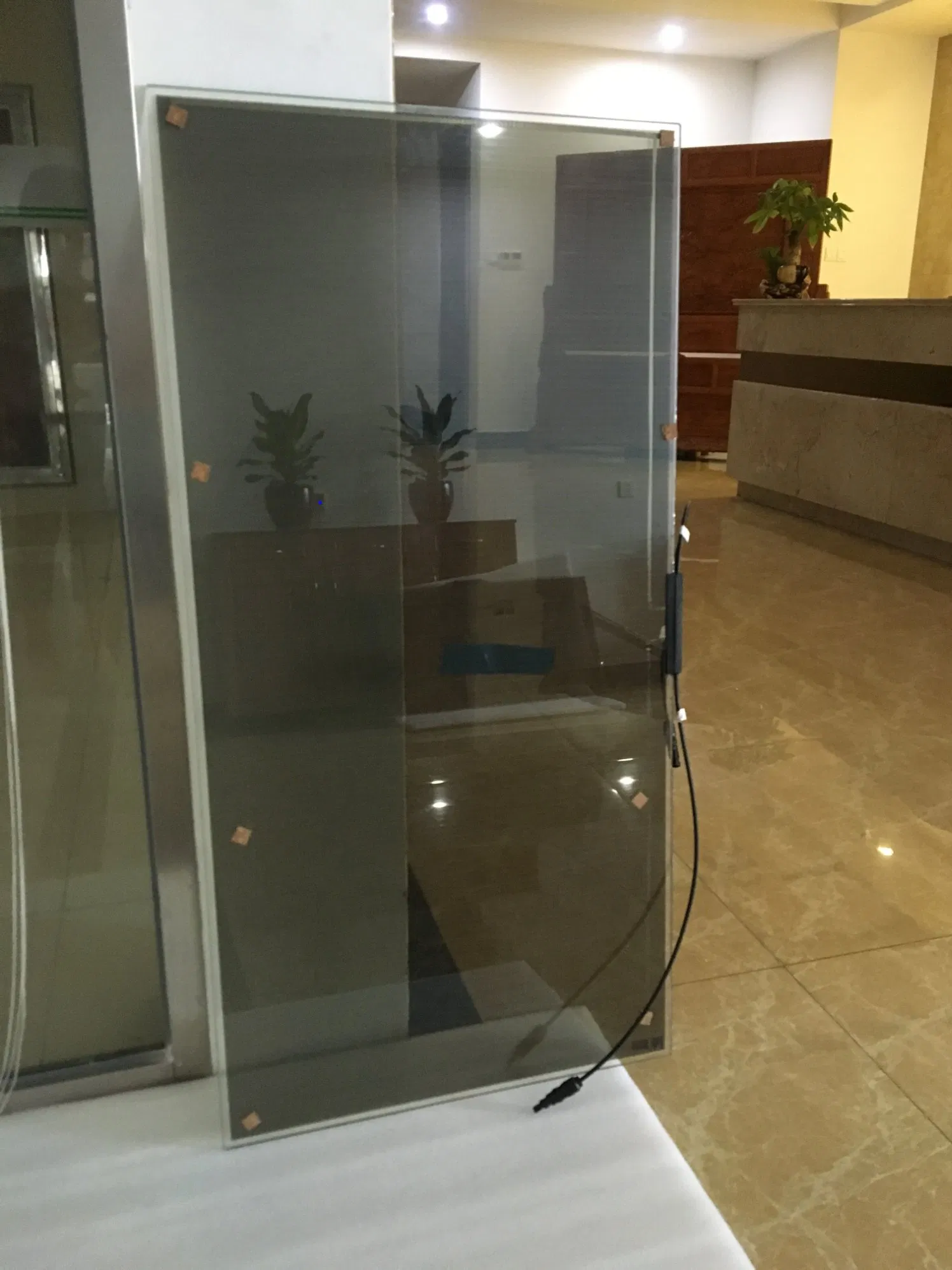

80% High Efficiency Cdte Transparent Thin Film Solar Panel

1 / 5

80% High Efficiency Cdte Transparent Thin Film Solar Panel

Customization:	Available
Material:	Thin Film, Cdte
Application:	Industrial

Send Inquiry

Product Description

📊

Basic Information

Model NO.

SF-ST1-16w

Warranty

10 Years

Condition

New

Certification

ISO, CE

Number of Cells

Electric Line

Transport Package

Plywood Box

Specification

1400*1100*6.8mm

Origin

China

Capacity

100000 Watts / Per Week

💡

Product Description

Thin Film Solar Panels have different power and different transparency, it can generate electricity in cloudy days. As a new type solar panels, it is have higher efficiency, can be installed in window and roof both.

⚙️

Technical Details

Comprehensive specifications for ST1 and ST2 series transparent modules.

Item	Transparency	Size	Weight	Pmax	Voc	Vmpp	Isc	Impp
ST1-72	10%	12006006.8mm	11.8Kg	72w	116V	90.5V	0.88A	0.8A
ST1-64	20%	12006006.8mm	11.8Kg	64w	116V	90.5V	0.78A	0.71A
ST1-56	30%	12006006.8mm	11.8Kg	56w	116V	90.5V	0.68A	0.62A
ST1-48	40%	12006006.8mm	11.8Kg	48w	116V	90.5V	0.59A	0.53A
ST1-40	50%	12006006.8mm	11.8Kg	40w	116V	90.5V	0.49A	0.44A
ST1-32	60%	12006006.8mm	11.8Kg	32w	114V	88.9V	0.39A	0.36A
ST1-24	70%	12006006.8mm	11.8Kg	24w	114V	88.9V	0.29A	0.27A
ST1-16	80%	12006006.8mm	11.8Kg	16w	114V	86.6V	0.2A	0.18A
ST2-80	No	12006006.8mm	11.8Kg	80w	58.8V	47.4V	1.90A	1.68A
ST2-85	No	12006006.8mm	11.8Kg	85w	60.2V	48.3V	1.97A	1.76A

🎨

Visual Specifications

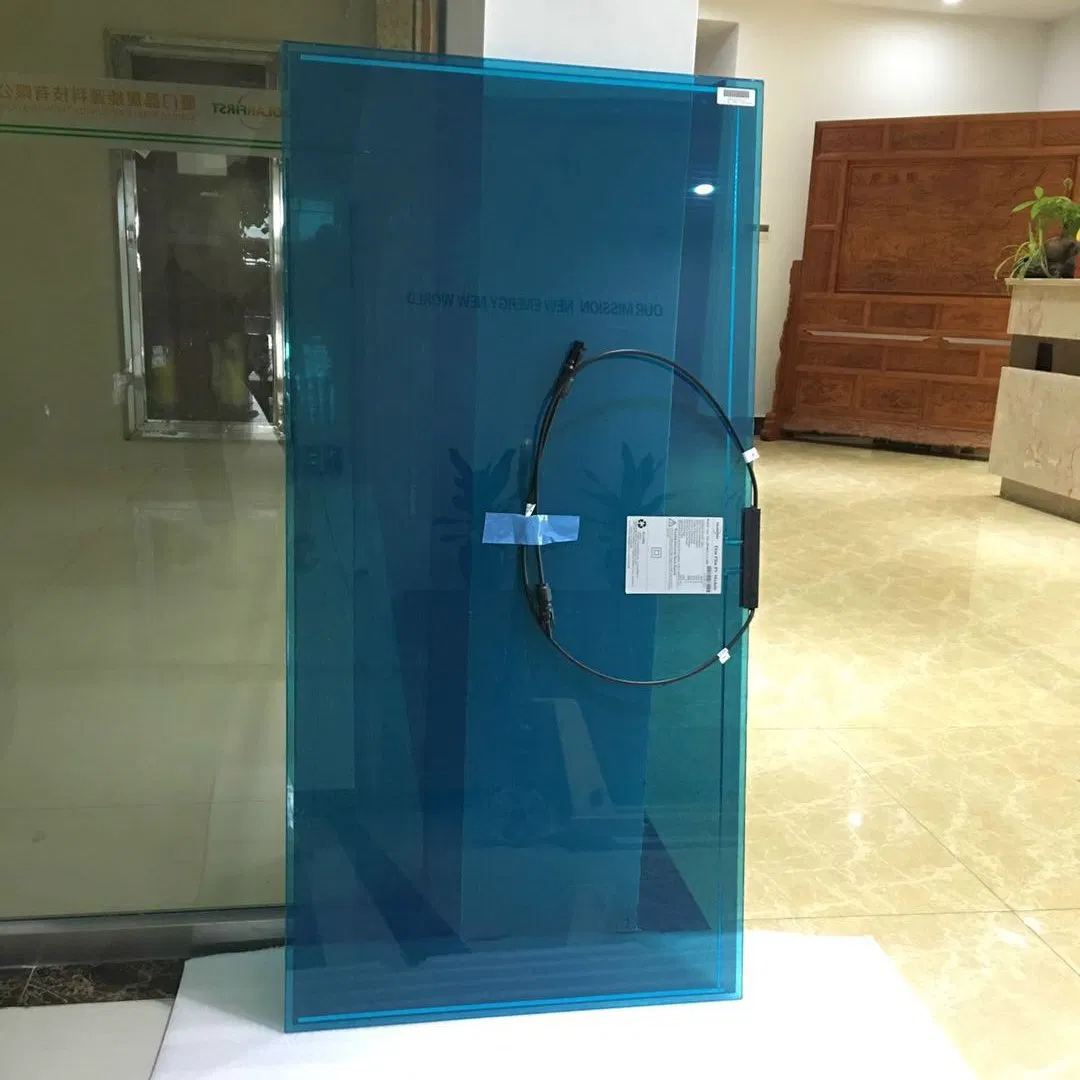

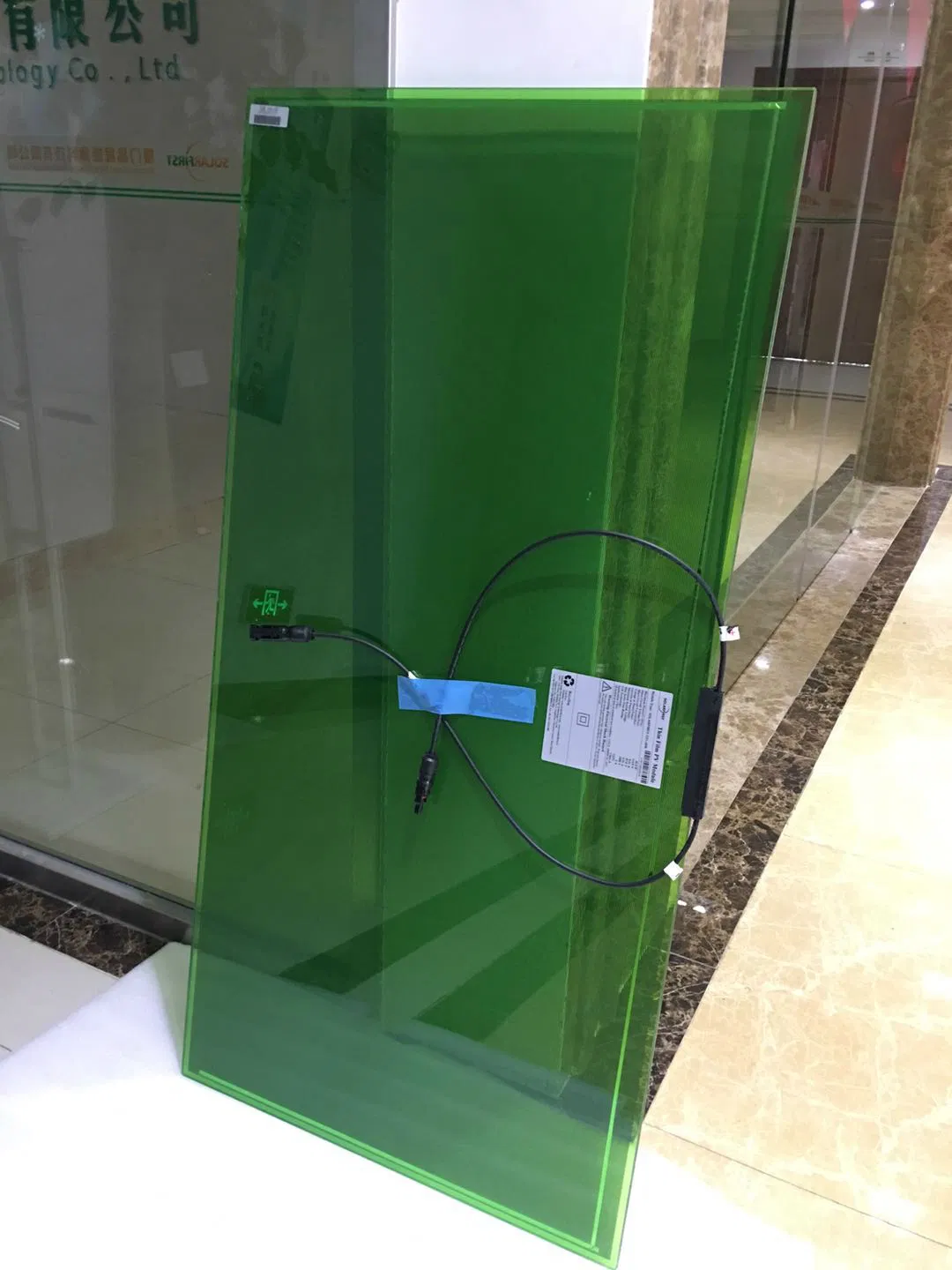

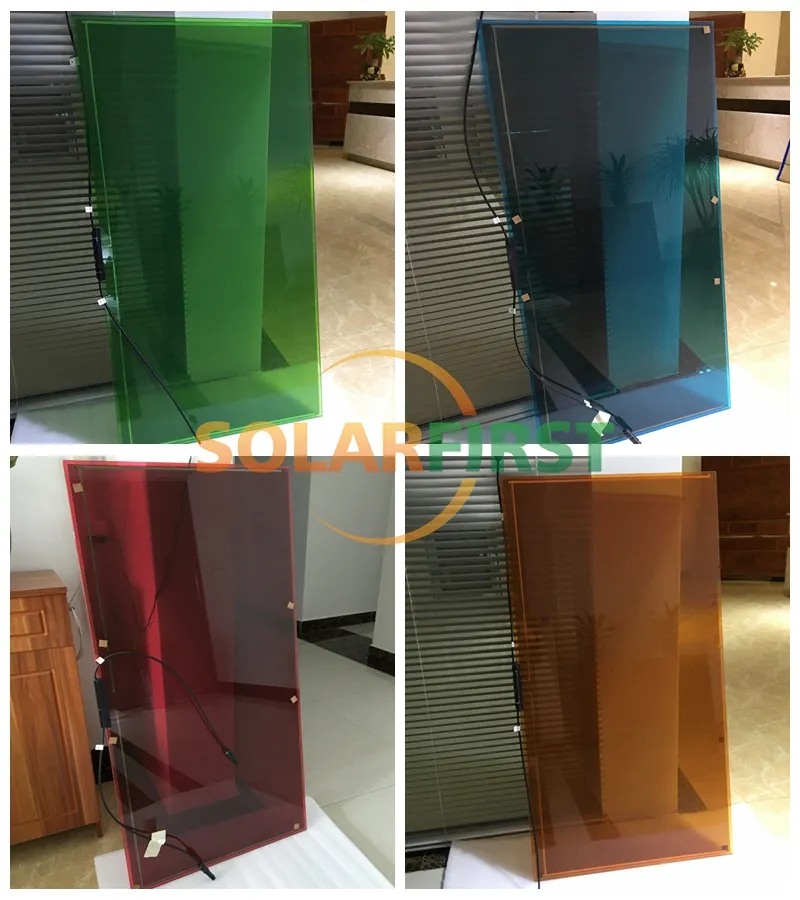

Different Colour Options:

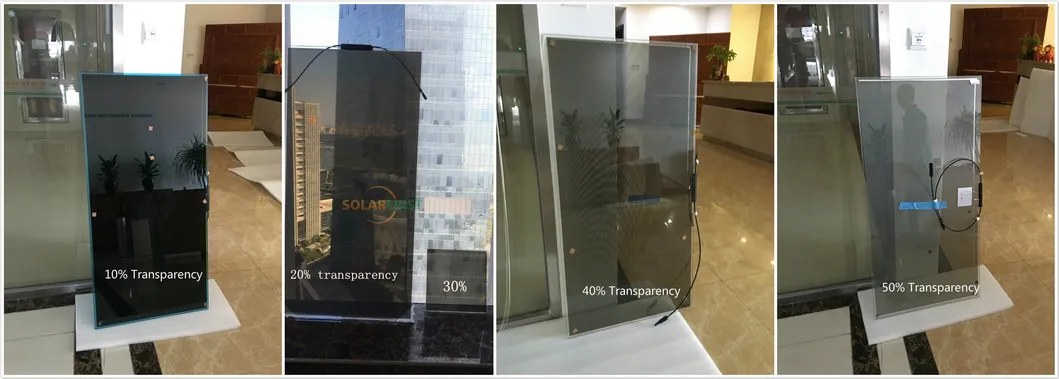

Transparency Levels:

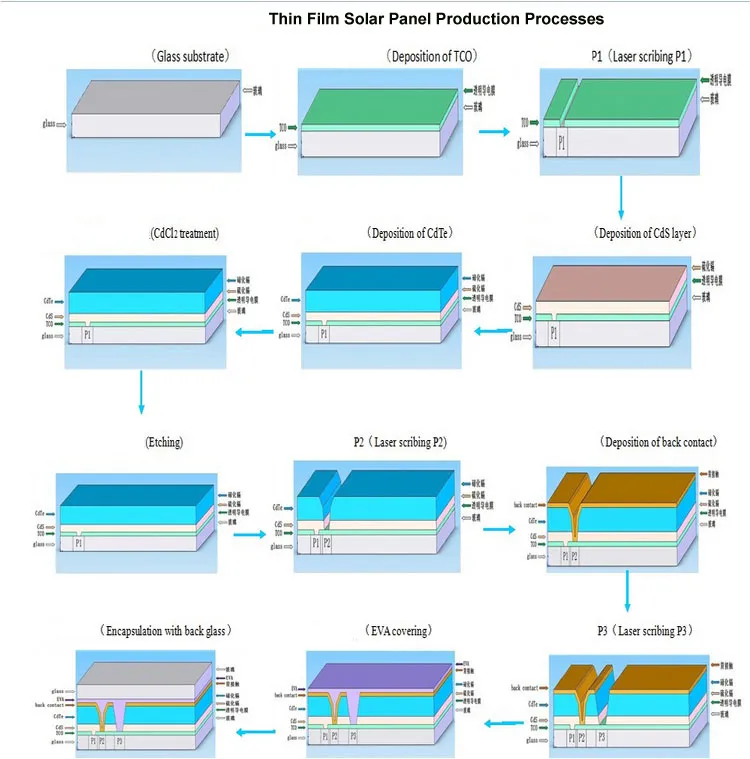

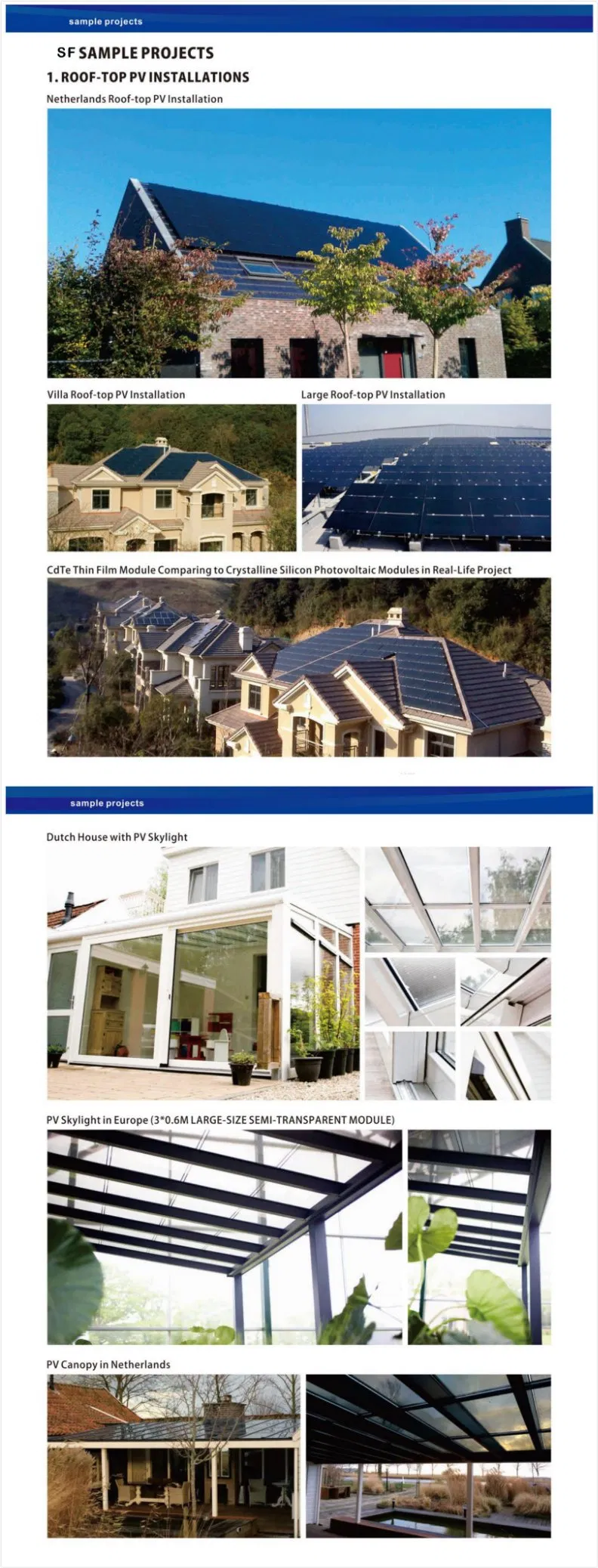

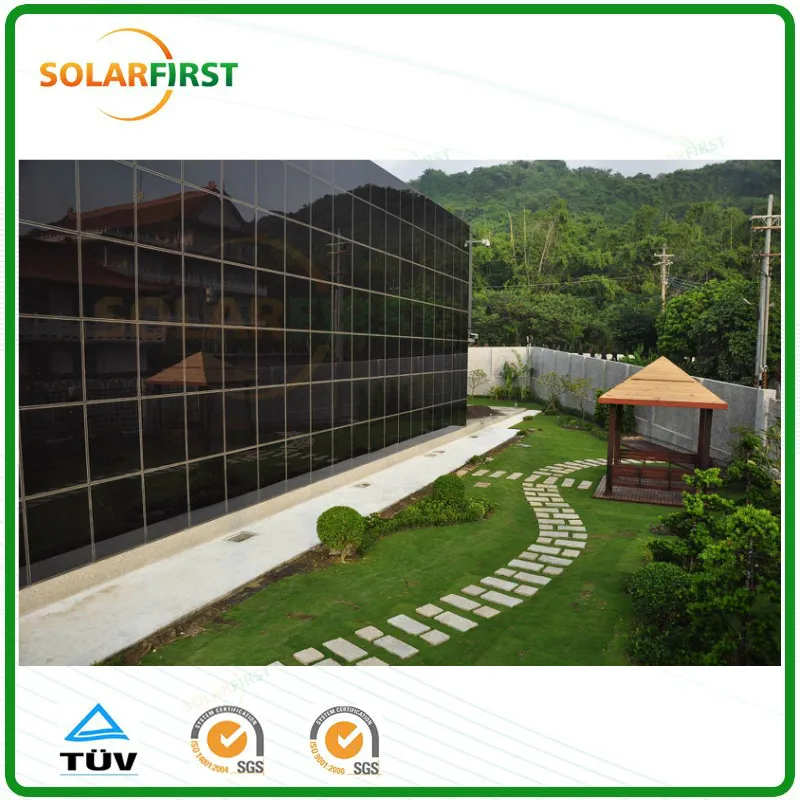

Application Case & Production:

🛠️

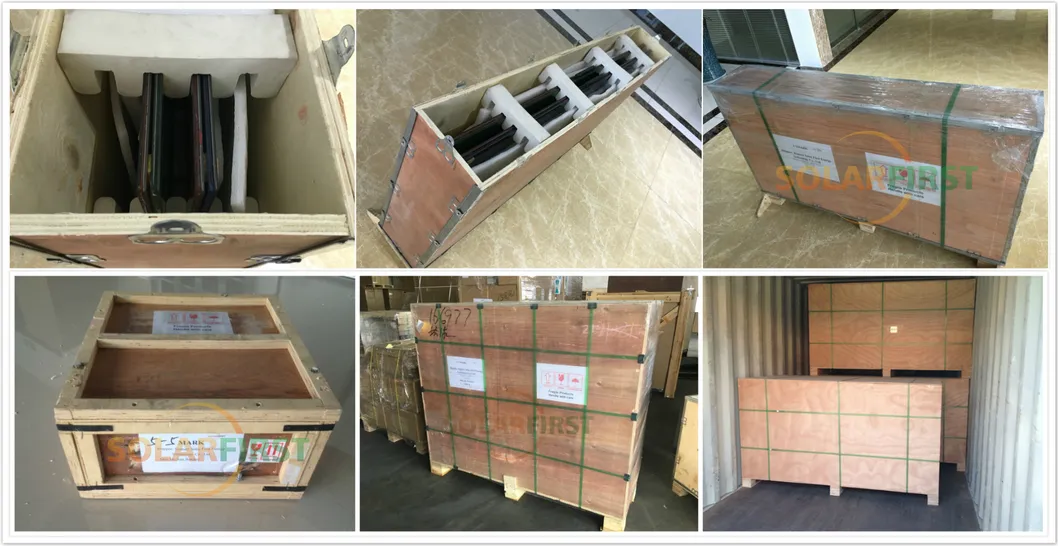

Packaging & Service

🛡️

Warranty Terms:

10-year product warranty
12-year warranty at 90% power output
25-year warranty at 80% power output

We offer 24 hours service for all our clients worldwide.

Frequently Asked Questions

❓ What are the advantages of CdTe thin-film solar panels?

CdTe (Cadmium Telluride) panels perform exceptionally well in low-light and high-temperature conditions compared to crystalline silicon, making them ideal for diverse climates.

❓ Can these panels be used as windows?

Yes, with transparency levels ranging up to 80%, these thin-film panels are perfect for BIPV (Building Integrated Photovoltaics) applications like windows, skylights, and facades.

❓ How do cloudy days affect energy production?

Thin-film technology has a better spectral response, allowing it to generate electricity more efficiently than traditional panels during overcast or cloudy weather.

❓ What is the thickness and weight of the modules?

The standard modules are 6.8mm thick and weigh approximately 11.8kg, providing a sleek, lightweight profile for easy integration into building structures.

❓ Are there different color options available?

Yes, we offer various color options to meet architectural aesthetic requirements without compromising significantly on power generation.

❓ What kind of maintenance is required?

These panels require minimal maintenance. Regular cleaning of the glass surface to remove dust and debris is usually sufficient to maintain optimal performance.
