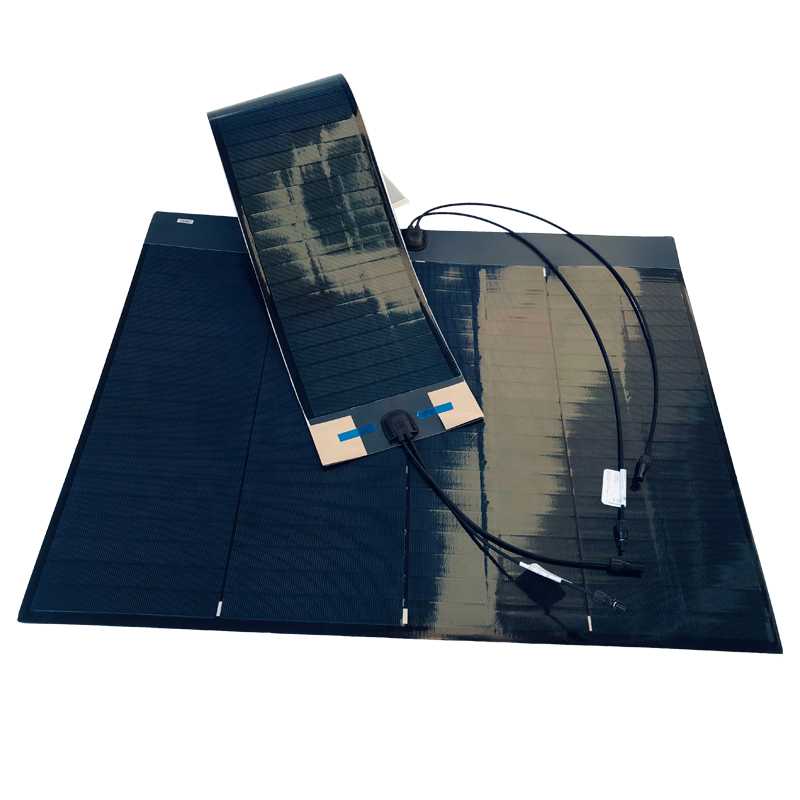

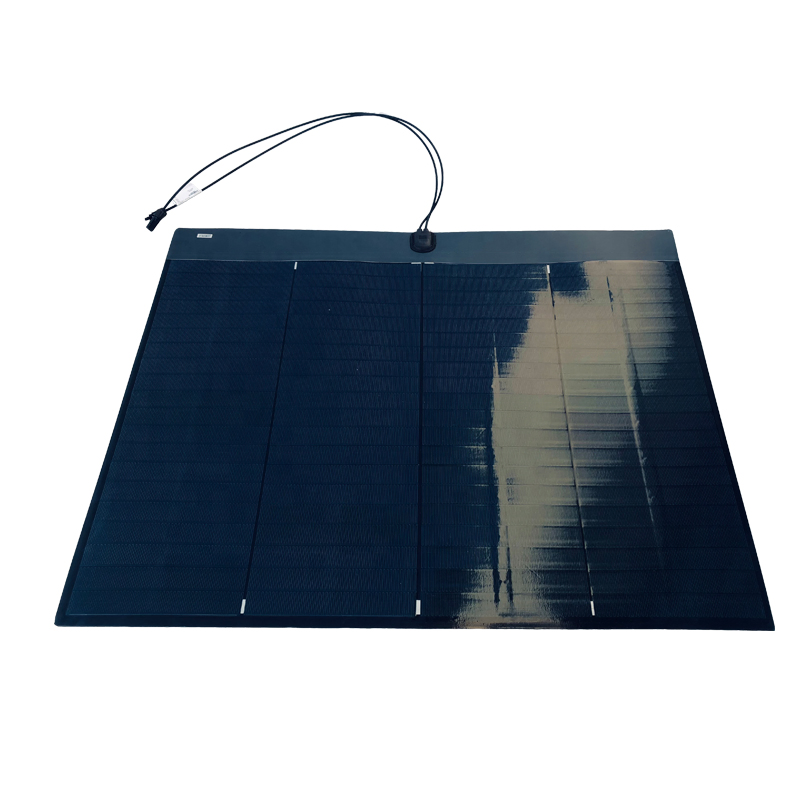

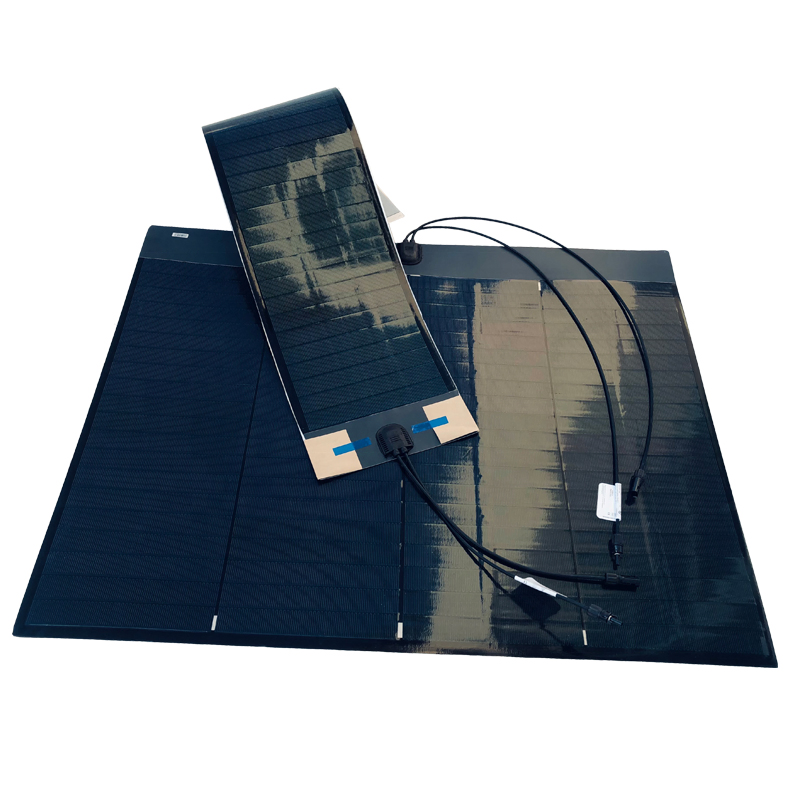

Flex-03ms 250W Adhesive Thin Film Flexible CIGS Solar Panel off Grid System

1 / 5

Flex-03ms 250W Adhesive Thin Film Flexible CIGS Solar Panel off Grid System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Product Information

Model NO.	FLEX-03MS-250
Number of Cells	11
Application	Residential, Industry, Carport, Landfill, Marine
Condition	New
Certification	CE
Material	Amorphous Silicon / CIGS
Peak Power	240W
Tolerance of Pmax	+10 / -0%
Module Aperture Area Efficiency	16.3%
Maximum Power Voltage	20.0V
Maximum Power Current	12.0A
Open Circuit Voltage	24.7V
Short Circuit Current	13.6A
Length	1710mm
Width	973mm
Thickness (Maximum at J-Box)	17mm
Weight (Module Without Adhesive)	3.4 Kg
Weight (Module with Adhesive)	4.0 Kg
Production Capacity	30MW/Year

💡 Product Description & Technology

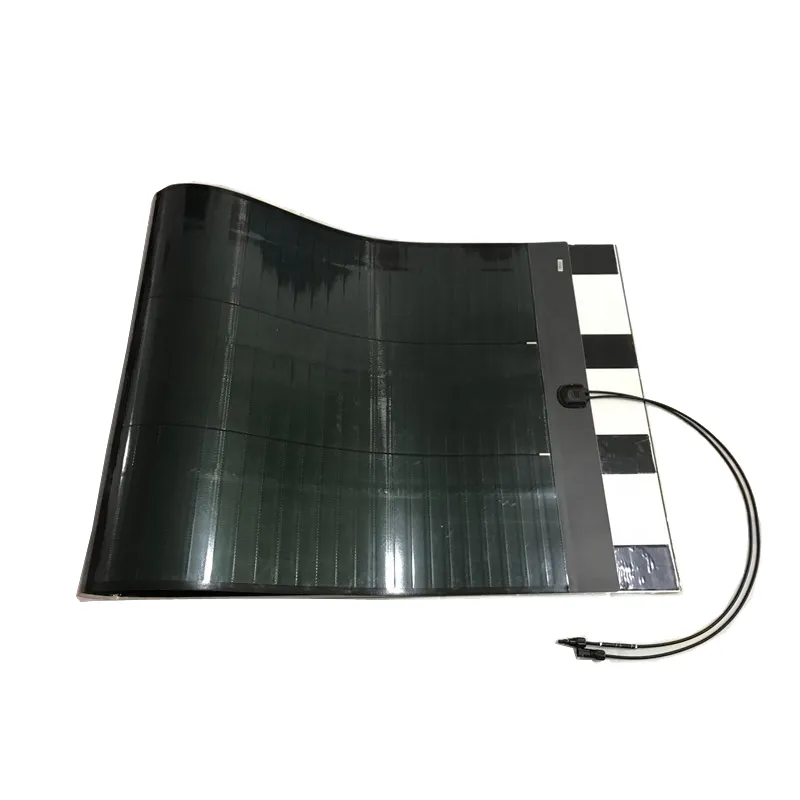

1710CM Length Flex-03MS 250W Adhesive Thin Film Flexible CIGS Solar Panel

Our flexible solar panel adopts CIGS technology, which achieves an aperture efficiency as high as 17%, rivaling that of traditional rigid glass panels. It uses high-grade stainless steel foil and an advanced semiconductor deposition process (PVD) to produce a stable and powerful flexible cell.

✔ Key Benefits & Features

Lightweight Less than 2.4 kg/m². Ideal for structures with low dead load limitations and vehicles like trucks or RVs.

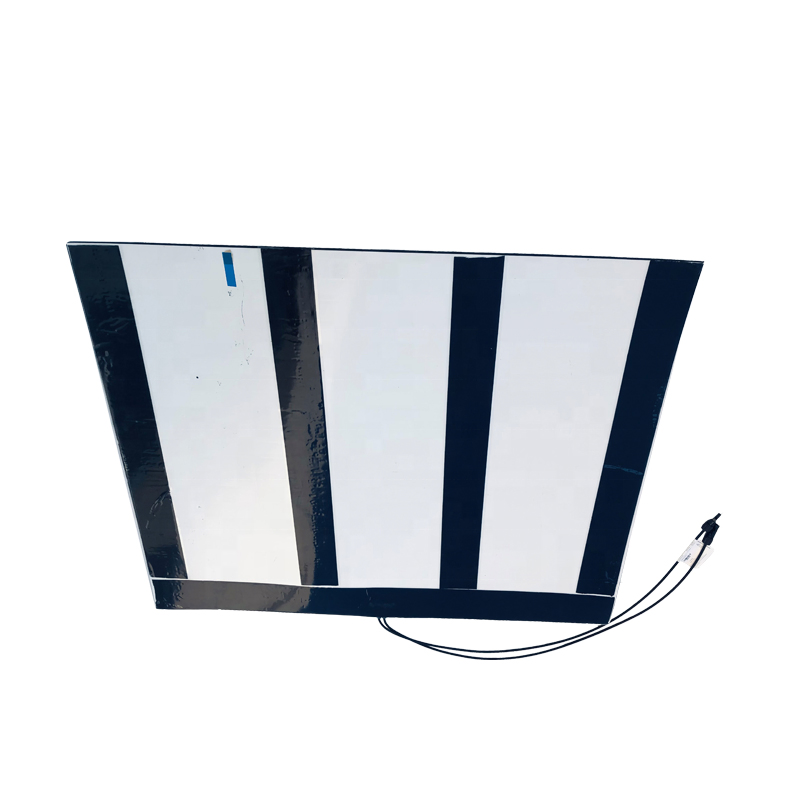

Easy to Install Peel-and-stick application. Eliminates roof penetrations, reducing the risk of leaks and lowering installation costs.

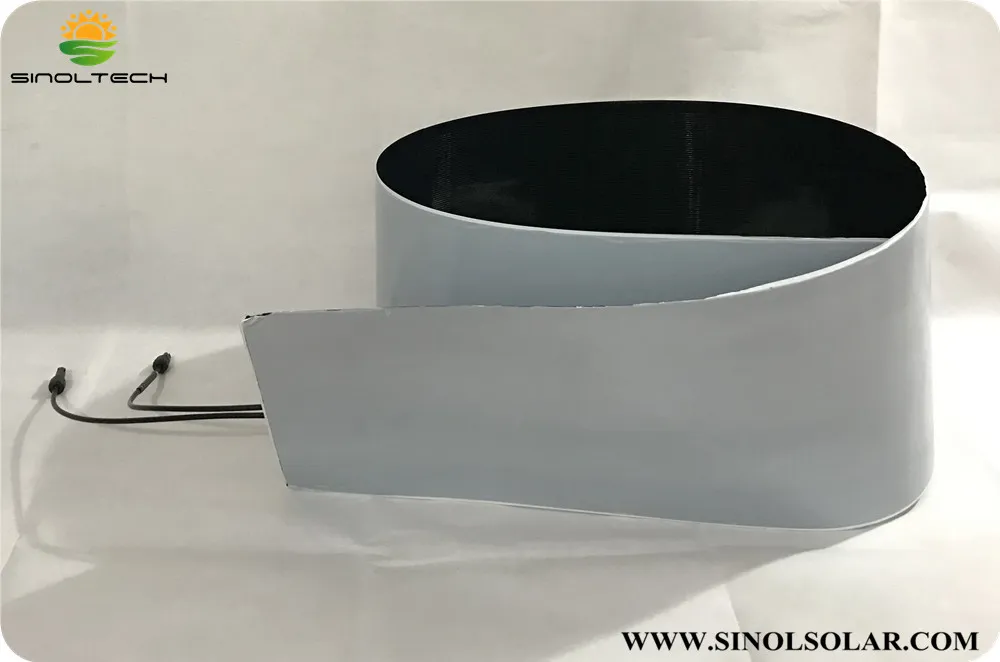

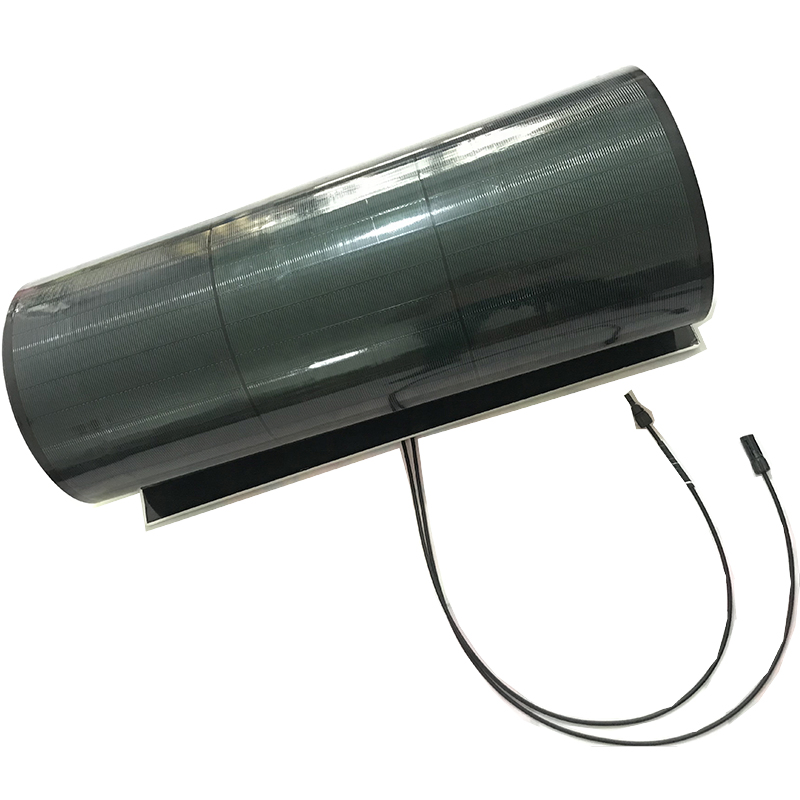

Flexible Form Factor Conforms to curved surfaces, enabling power generation where rigid panels cannot be mounted.

Disaster Resistant Shatterproof and resistant to high wind and seismic activity. Only 2.5mm thin.

High Efficiency CIGS technology provides over four times the power generation per kilogram compared to standard silicon.

Reliable Design Features unique redundant interconnects and bypass diodes to reduce system shading losses.

📊 Electrical and Mechanical Data

Capacity Rating (Pmax)	210W	220W	230W	240W	250W
Aperture Efficiency	14.2%	14.9%	15.6%	16.3%	16.9%
Max Power Voltage (Vmpp)	18.1V	18.8V	19.4V	20.0V	20.0V
Max Power Current (Impp)	11.6A	11.8A	11.9A	12.0A	12.52A
Open Circuit Voltage (Voc)	23.2V	23.7V	24.2V	24.7V	24.7V

Junction Box Type	IP68
Cable Connections	Amphenol H4
Cell Type	Copper Indium Gallium Diselenide (CIGS)
Warranty	5-year workmanship; 10/25-year power loss warranty

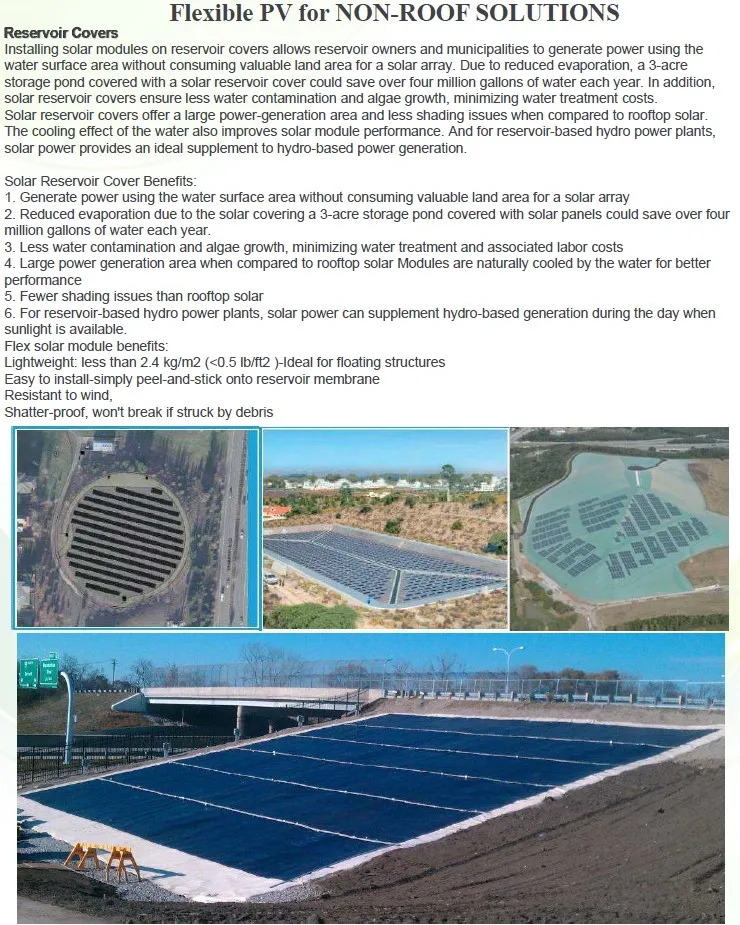

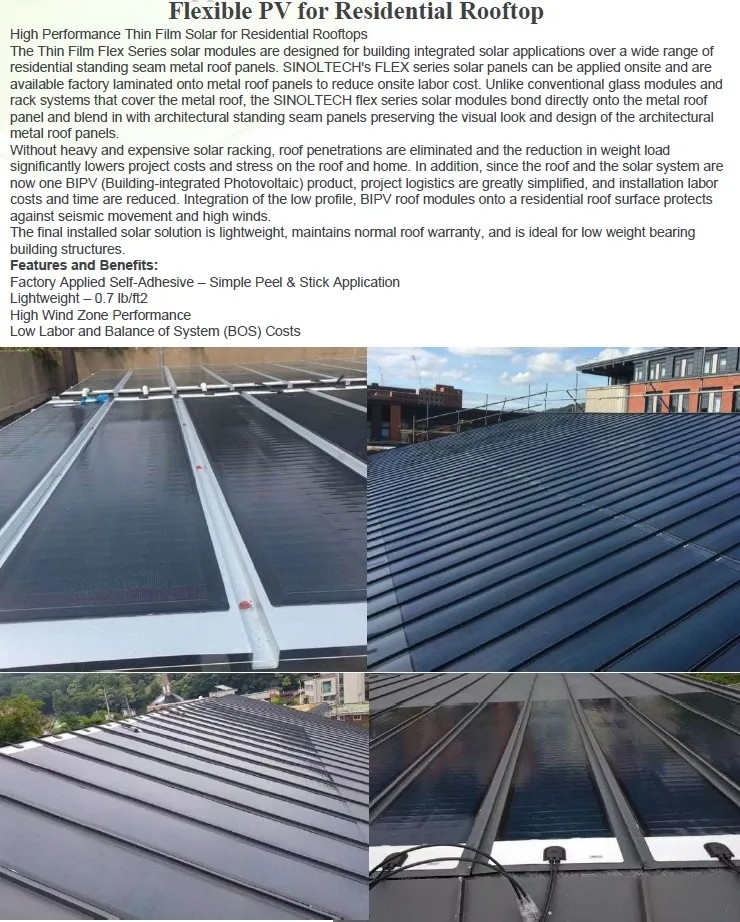

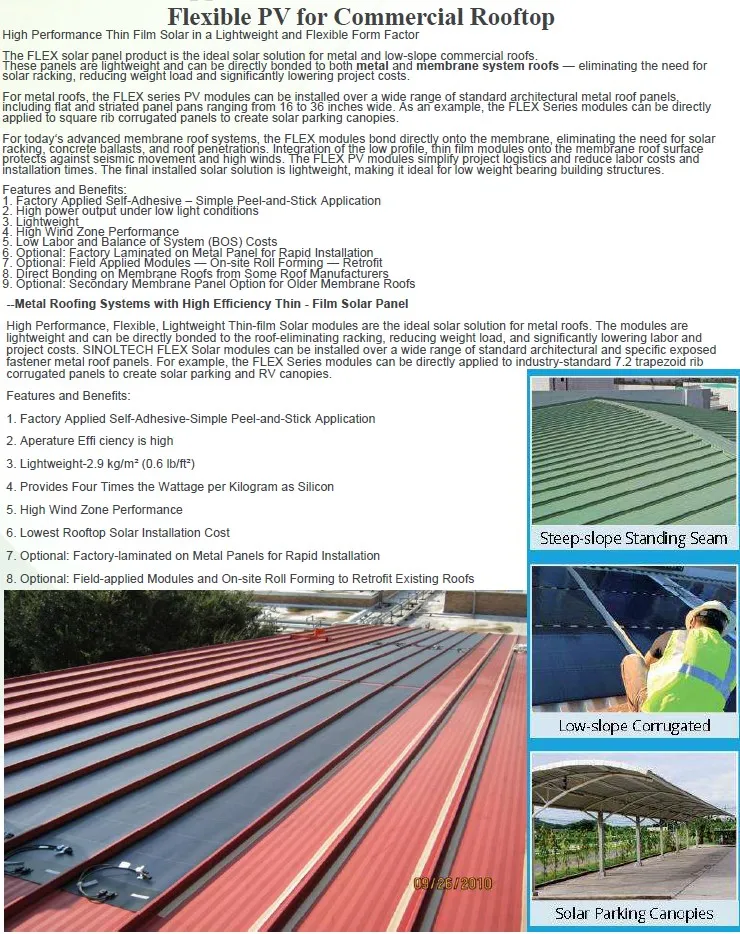

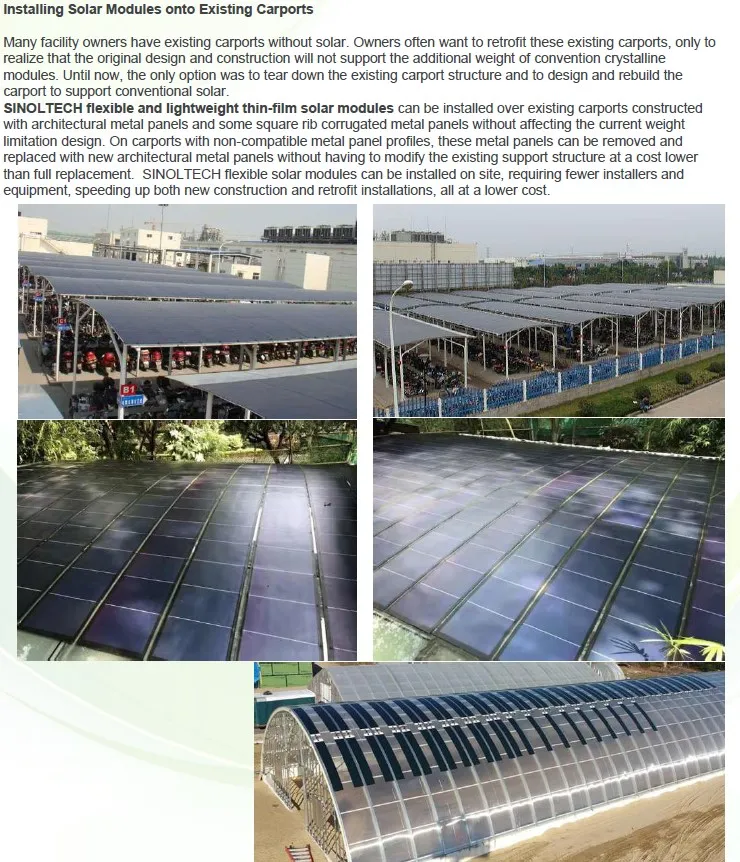

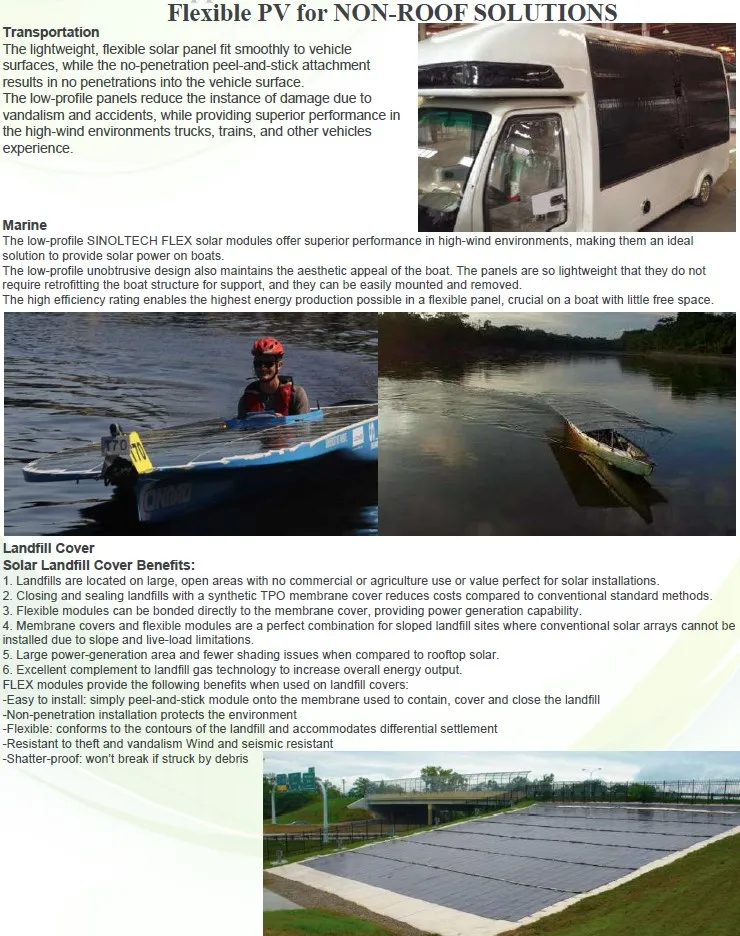

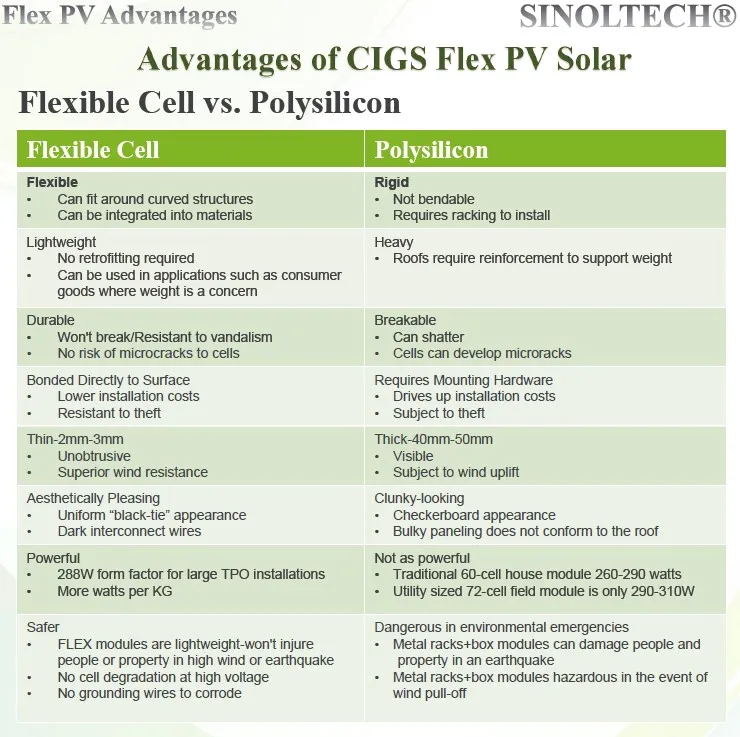

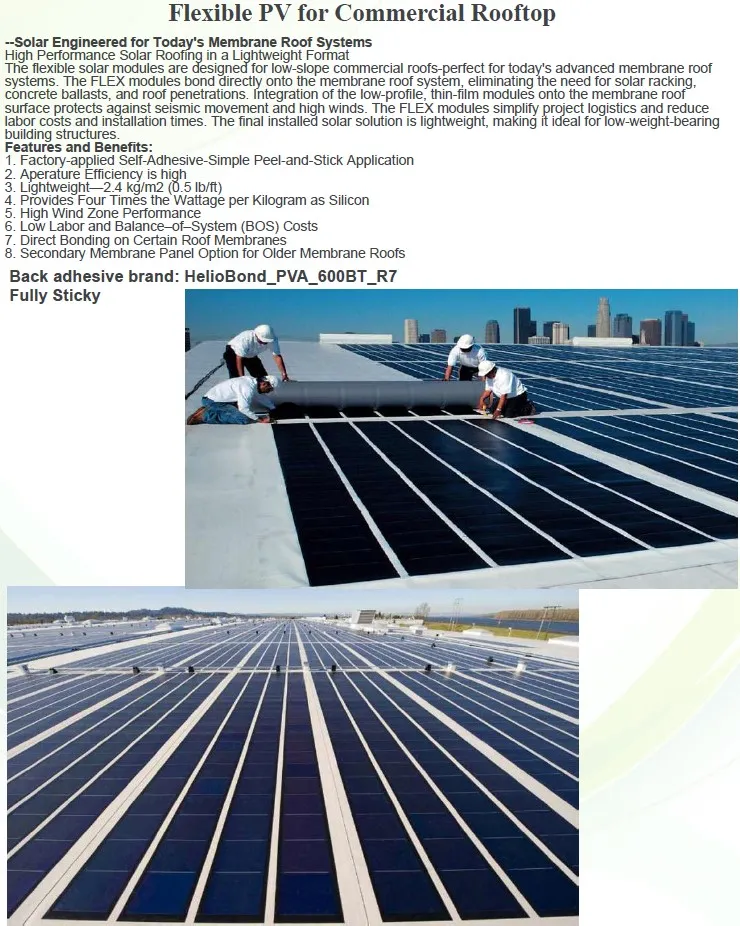

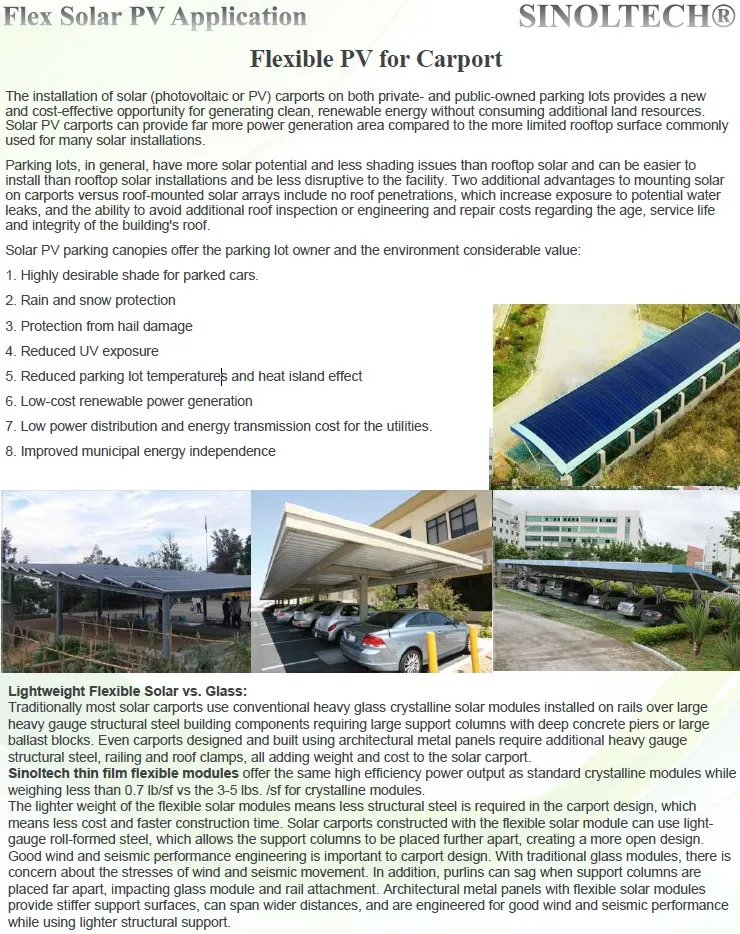

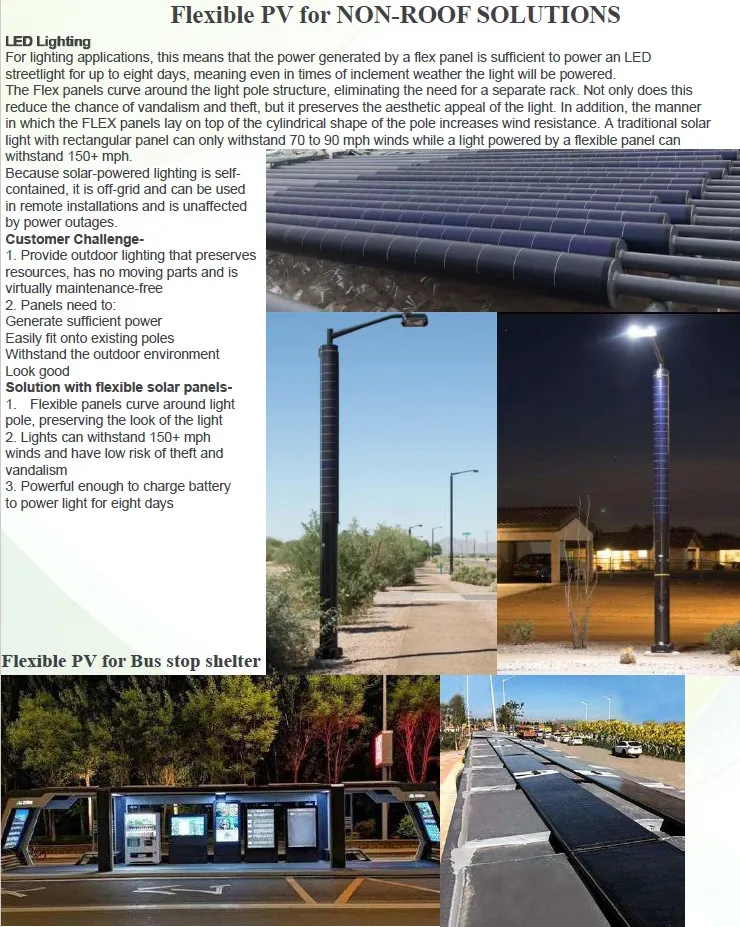

📸 Technical Gallery & Data Sheets

❓ Frequently Asked Questions

What makes CIGS solar panels better than traditional panels?

CIGS panels are flexible, extremely lightweight, and have high efficiency in a thin-film format. They perform better in low light and are more shadow-tolerant due to integrated bypass diodes.

How is the Flex-03MS panel installed?

These panels feature a "peel-and-stick" adhesive backing. You simply clean the surface and bond the panel directly to the roof or structure, eliminating the need for heavy mounting racks.

Are these panels durable enough for extreme weather?

Yes. Because they are shatterproof and adhere directly to the surface, they offer excellent resistance to high winds and seismic hazards. They will not break even if struck by debris.

Where can I use these flexible solar panels?

They are ideal for residential and industrial rooftops with low weight-bearing capacity, carports, RVs, trucks, marine vessels, and curved architectural surfaces.

What is the thickness and weight of the module?

The module is only about 2.5mm thick (17mm at the junction box) and weighs only 4.0 kg including the adhesive, making it significantly lighter than glass panels.

What kind of warranty is provided?

The Flex-03MS series comes with a 5-year workmanship warranty and a 10 to 25-year warranty against power loss.
