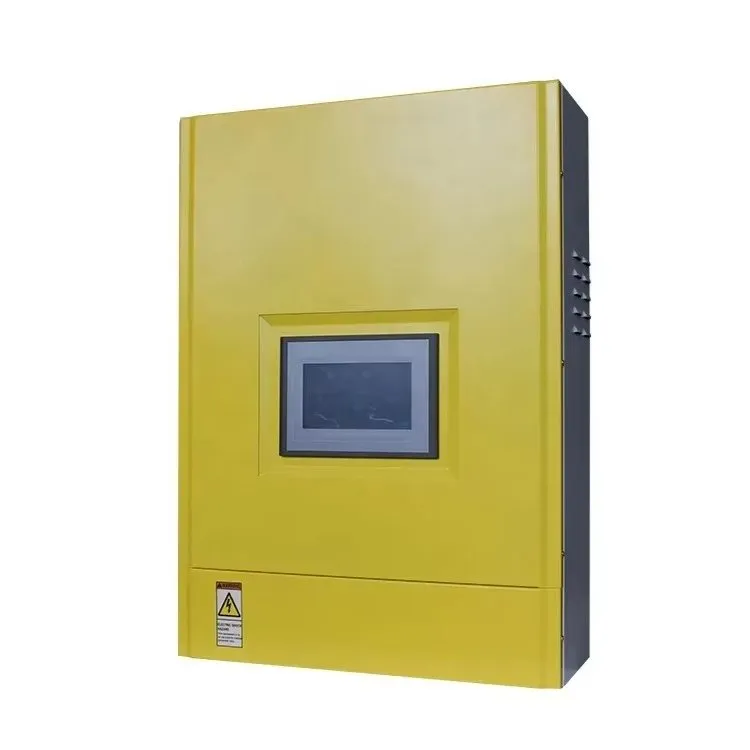

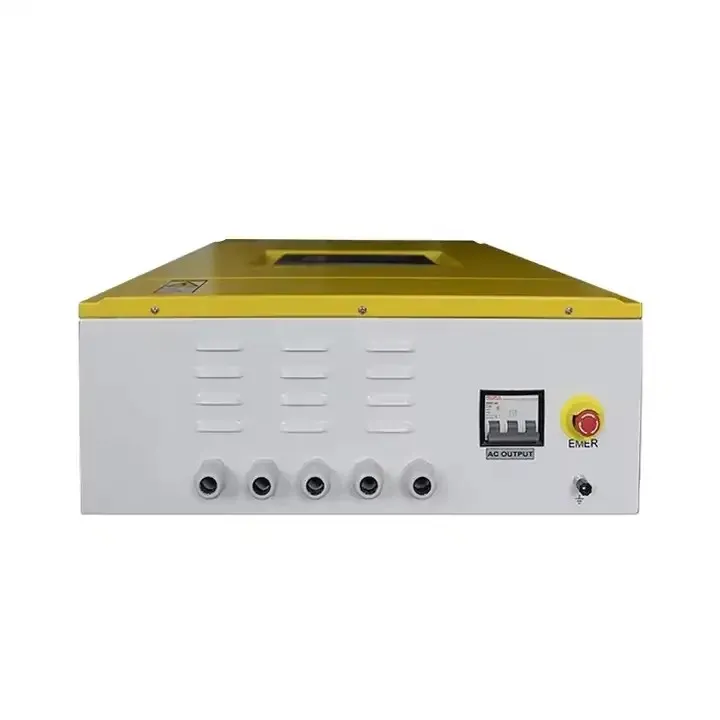

5KW 10KW 15KW On Grid Tie MPPT Wind Turbine Solar Hybrid Controllers.

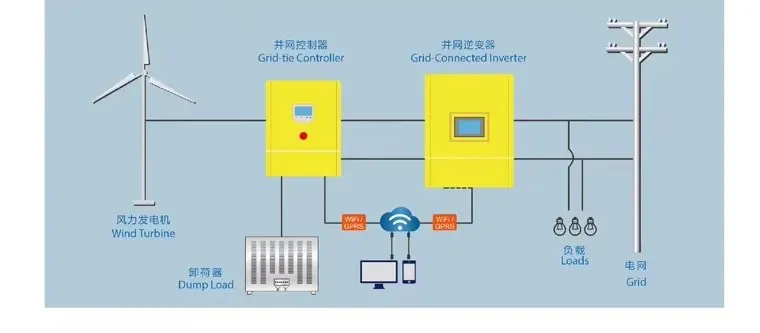

The On grid wind turbine system is composed of wind turbine, on grid controller, on grid inverter, metering device, and power distribution system. Wind energy is converted into AC electrical energy by the wind turbine, and then converted into DC electrical energy by the on grid controller, and then DC electrical energy is converted into AC electrical energy of the same frequency and phase as the grid by the on grid inverter, and part of the power is supplied to the local load. Surplus power is fed into the grid.
| Type | FKJ-GT5KW | FKJ-GT5KW (High V) | FKJ-GT20KW (Mid) |
|---|---|---|---|
| Wind turbine rated power | 5KW | 5KW | 10KW |
| Wind turbine Max. power | 10KW | 10KW | 20KW |
| Wind turbine rated voltage | AC220V | AC380-400V | AC380-400V |
| Solar panels power(optional) | 1.5KW | 1.5KW | 10KW |
| Automatic protection | Over voltage, network cut off, regulated supply, arrester | ||
| Display content | Wind turbine/Solar voltage, current, power; DC output metrics | ||
| Cooling method | Forced air cooling | ||
| Protection Degree | IP20 (Indoor) / IP65 (Outdoor) | ||
