| MECHANICAL DATA | |
|---|---|
| Module Dimensions | 2278*1134*35mm |
| Weight | 27.3kg |
| Glass | 3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass |

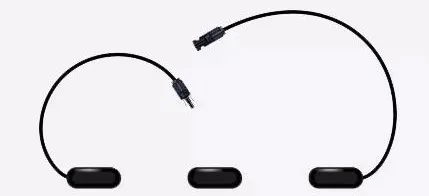

| Junction-Box | IP 68, three diodes |
| Cables | 4.0mm² , 300mm in length |
| Cell Orientation | 144cells(6*24) |
| ELECTRICAL SPECIFICATIONS (STC) | ||||||
| Module Type | MY-430 | MY-435 | MY-440 | MY-445 | MY-450 | MY-455 |
|---|---|---|---|---|---|---|
| Maximum Power (Pmax) | 430W | 435W | 440W | 445W | 450W | 455W |
| Module Efficiency STC(%) | 19.46% | 19.69% | 19.92% | 20.14% | 20.37% | 20.60% |
| Operating Temperature | -40°C~+85°C | |||||
| Maximum System Voltage | 1500VDC(IEC) | |||||

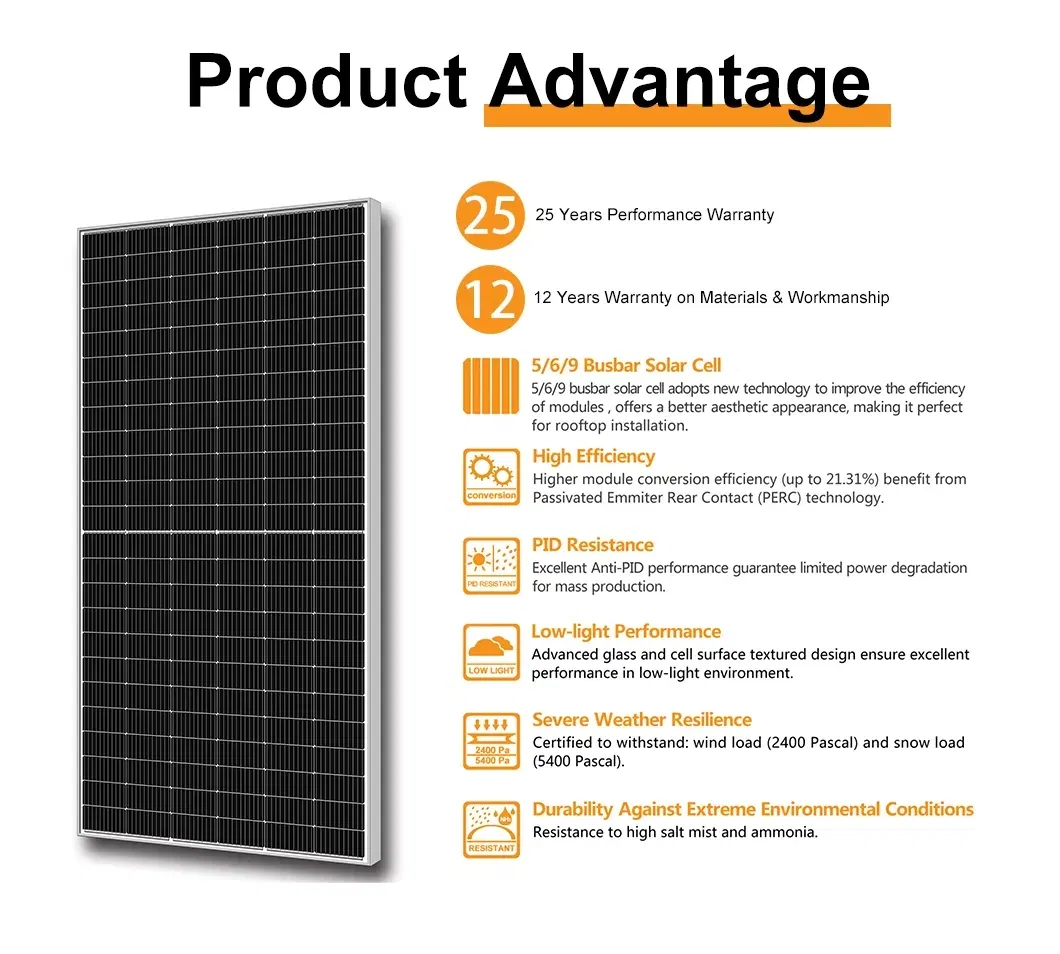

1. Module efficiency up to 17.2% achieved through advanced cell technology.
2. Color sorting ensures consistent appearance.
3. High Efficiency PV Cells with high PID resistance.
> Excellent light transmittance and transparency.

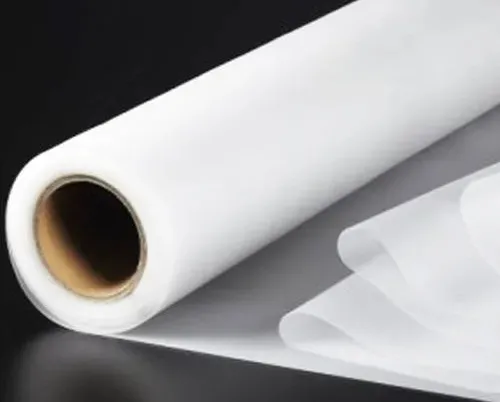

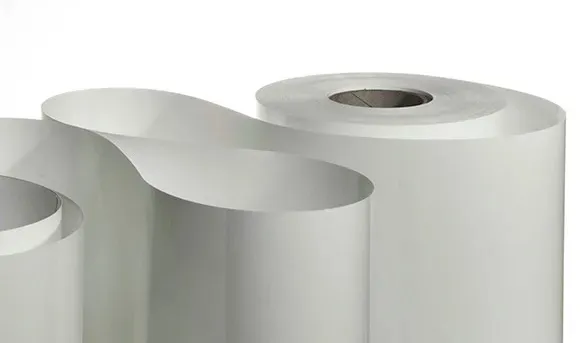

> Superior long-term adhesion to glass and backsheet.
> High durability against weather, humidity, and UV light.
> Precise edge processing and cutting.
> Physically tempered ultrathin glass for durability and flexibility.
> Higher light transmittance for maximized power output.
> Anti-aging outer casting for adverse outdoor conditions.
>> Internal irrigation rubber seal with ultrathin structure design.
