Technical Overview
Model NO.
Evo 5N 120cells 480-500W
Number of Cells
120 (6*20)
Application
Industrial & Residential
Material
Monocrystalline Silicon
Solar Cells
HJT Mono 182*91mm
Glass
2.0mm Coated Semi-Tempered Glass
Frame
Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Wind/Snow Load
2400PA / 5400PA
Dimensions
1910 * 1134 * 35mm

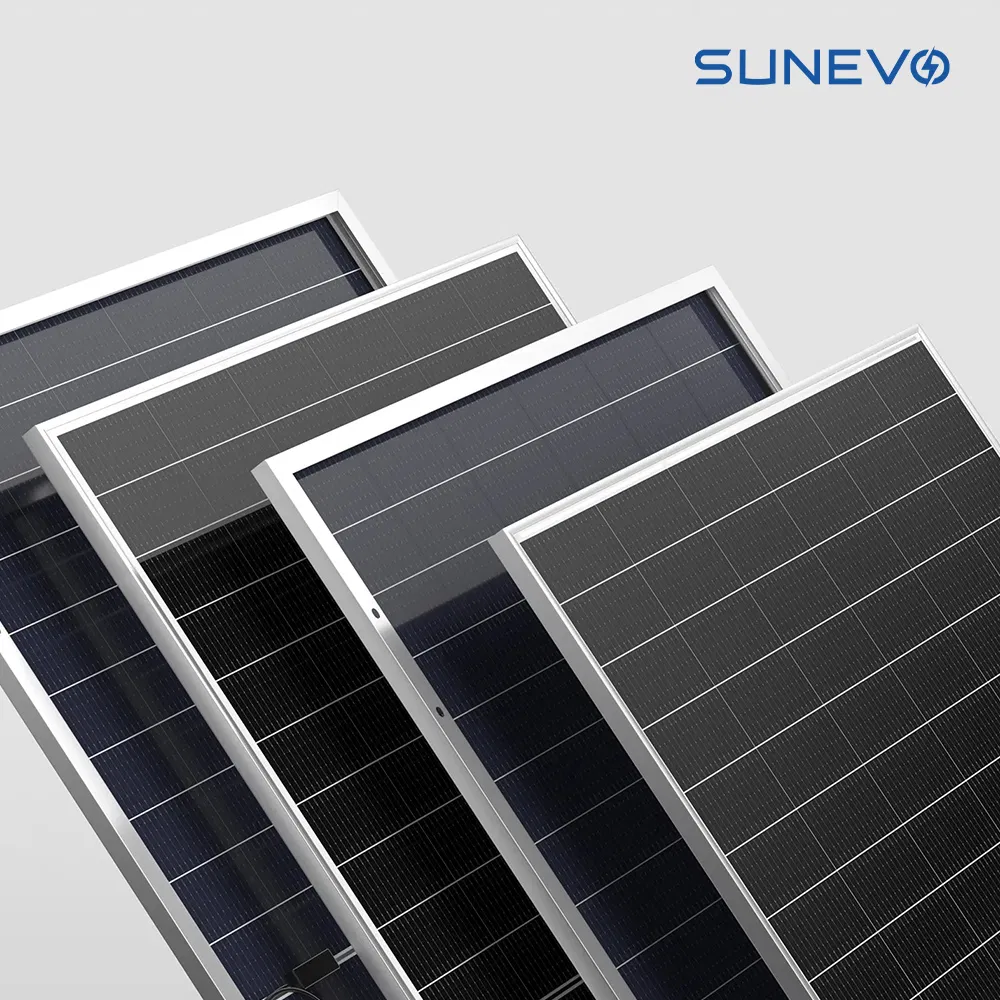

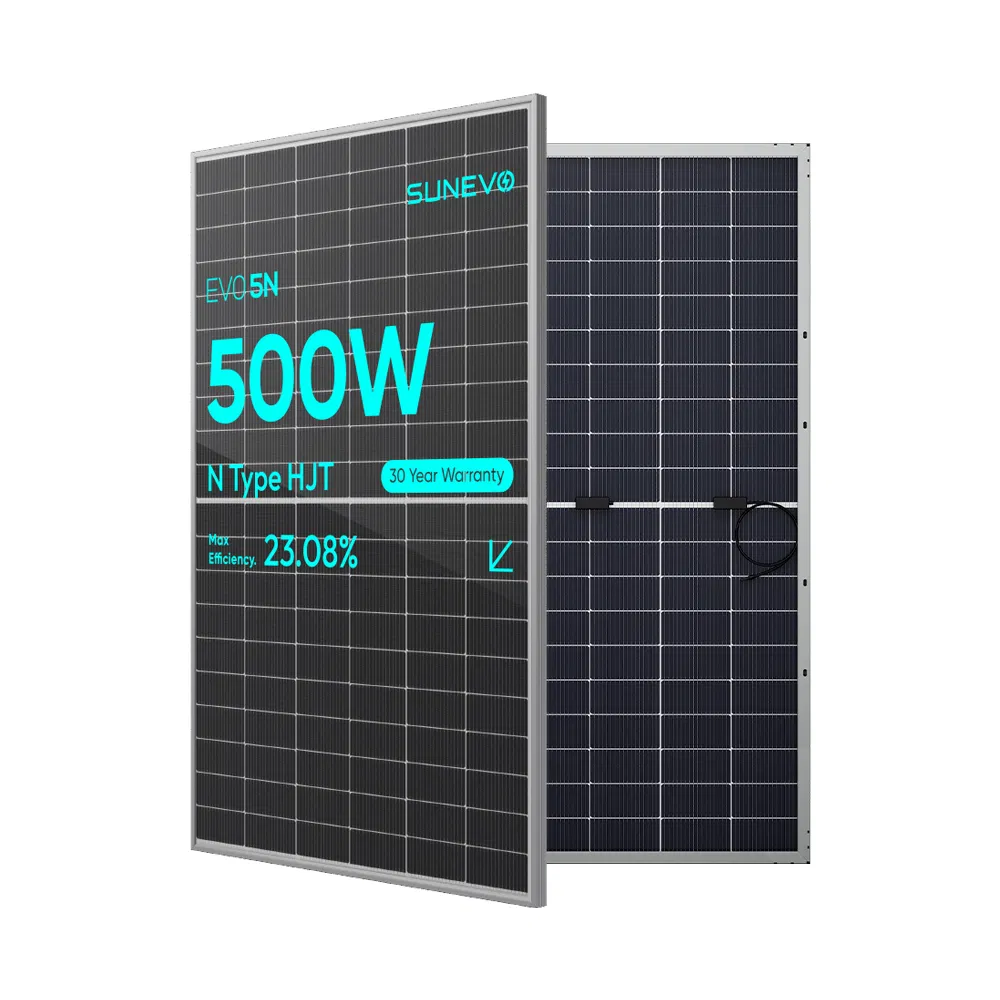

Product Description
High-efficiency HJT N-Type solar panels featuring bifacial technology for maximum energy yield. Designed for flexible PV module applications, these panels offer superior performance in various environmental conditions.
| Module Type |
480W |
485W |
490W |
495W |
500W |
| Module Efficiency (%) |
22.16 |
22.39 |
22.62 |
22.85 |
23.08 |
| Operating Voltage (Vmp/V) |
37.50 |
37.68 |
37.85 |
38.03 |
38.20 |
| Operating Current (Imp/A) |
12.80 |
12.87 |
12.95 |
13.02 |
13.09 |
Products Series

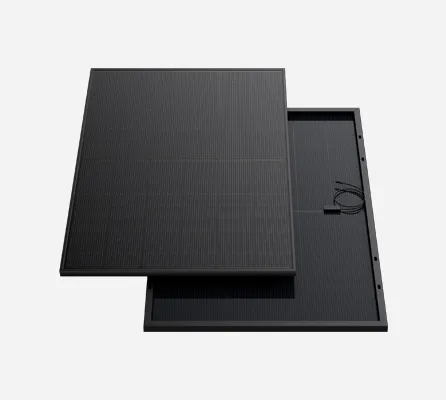

430 - 450 Watt
Cells: 108 Half Cells
Dim: 1722 x 1134 x 30/35mm
Weight: 23.5kg

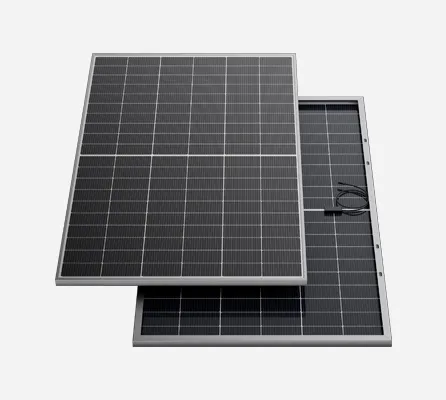

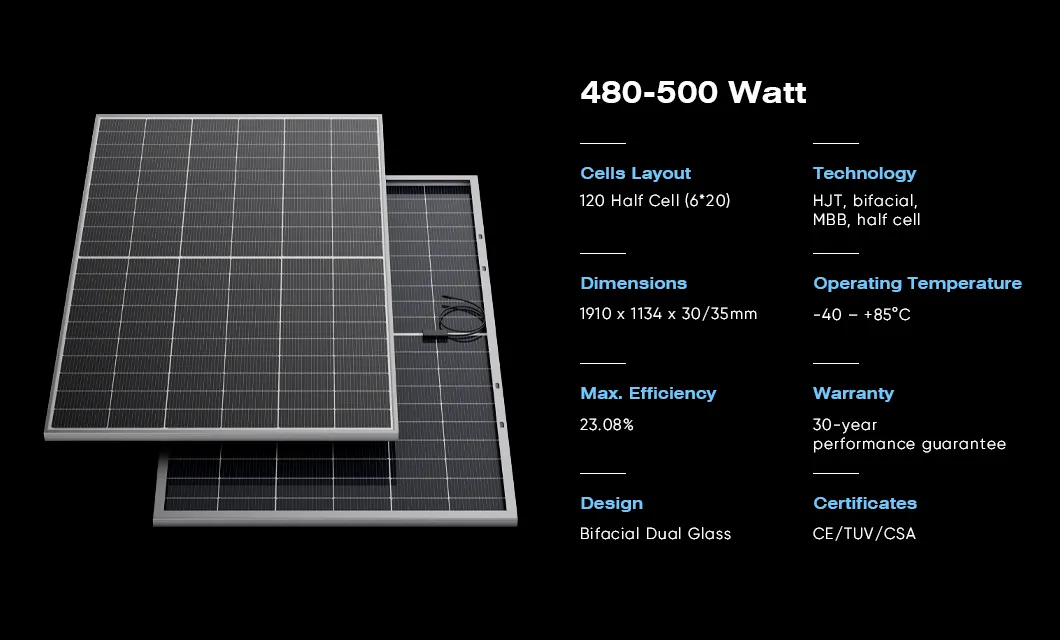

480 - 500 Watt
Cells: 120 Half Cells
Dim: 1910 x 1134 x 30/35mm
Weight: 26.0kg

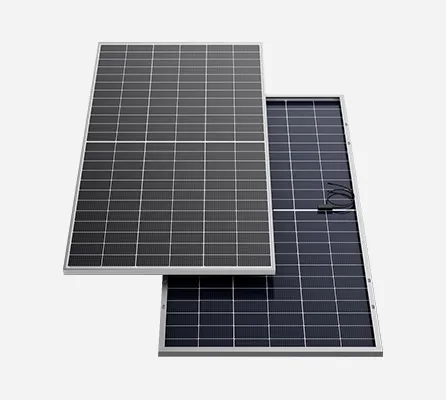

580 - 600 Watt
Cells: 144 Half Cells
Dim: 2279 x 1134 x 30mm
Weight: 31.5kg

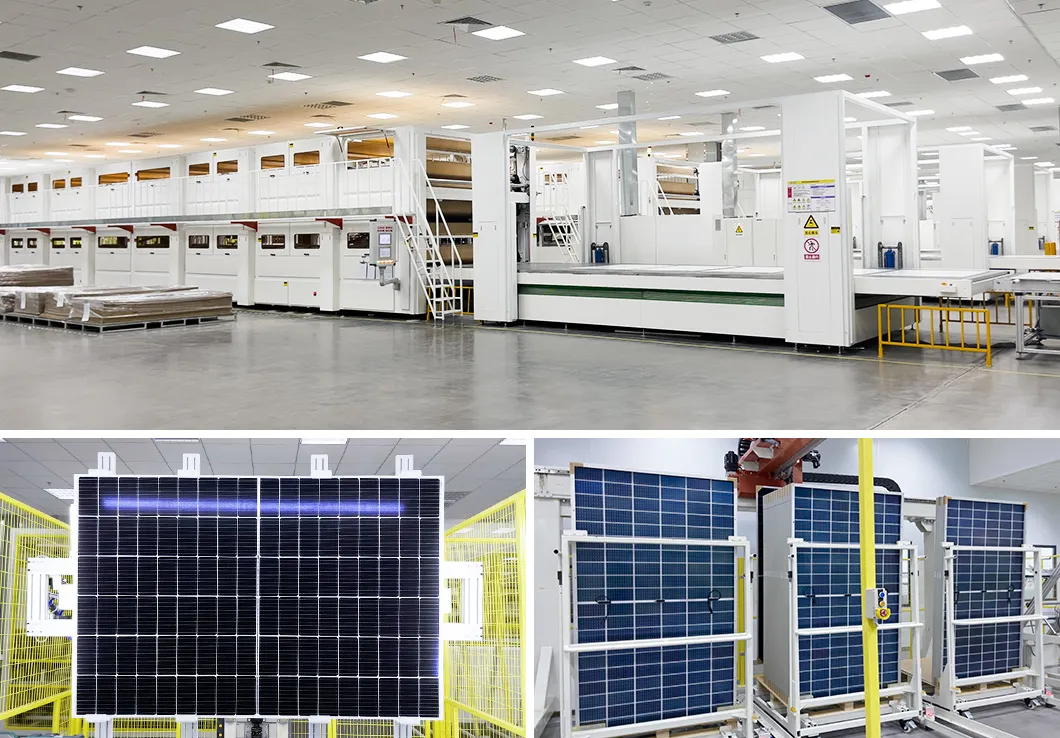

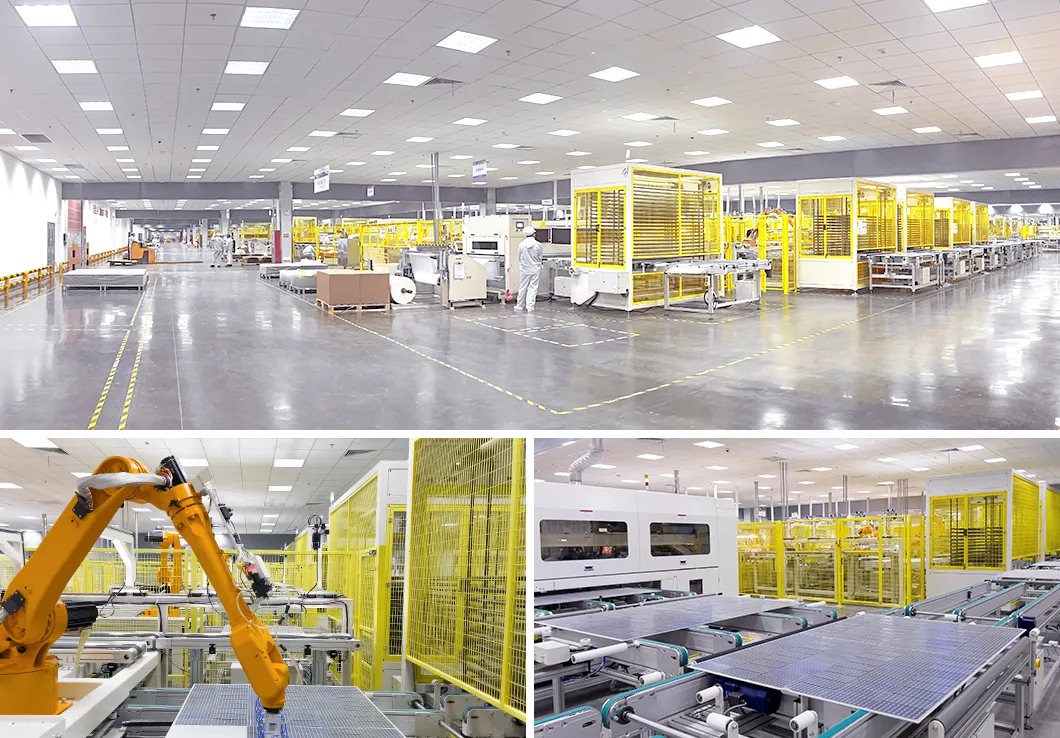

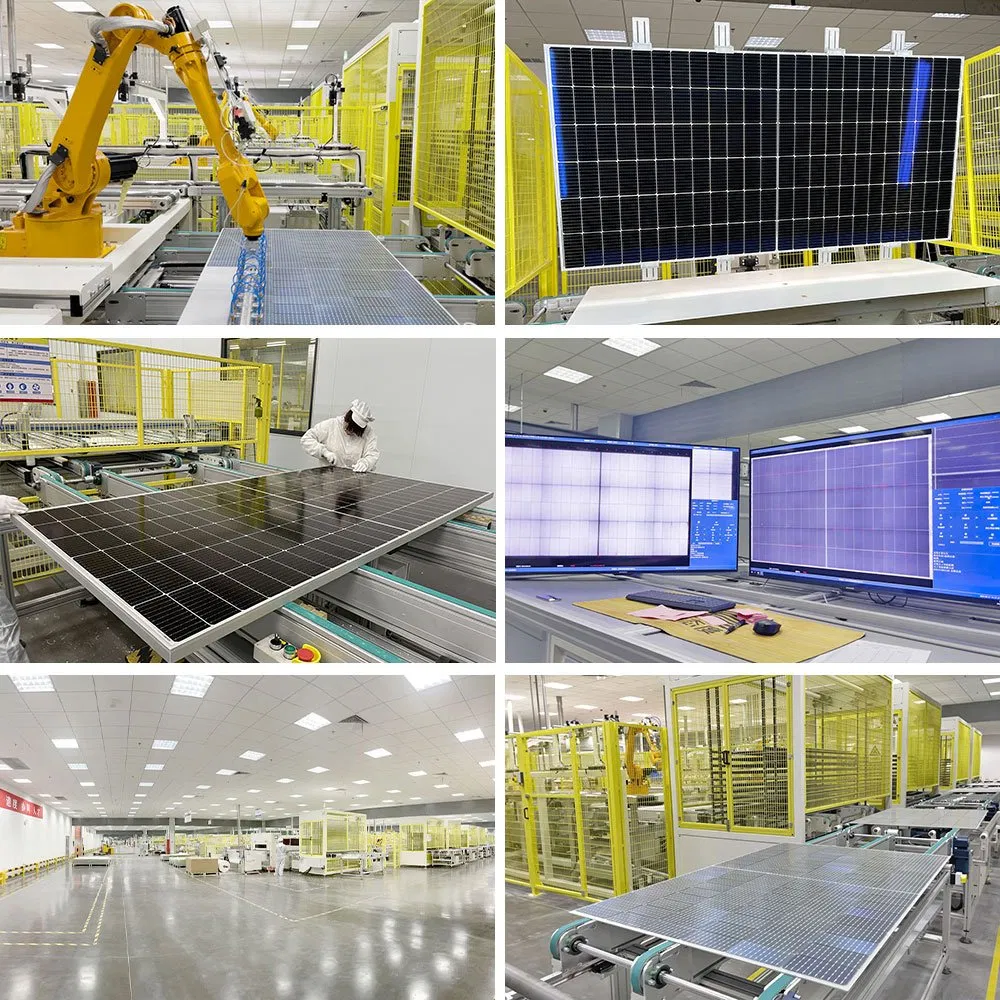

Smart Manufacturing

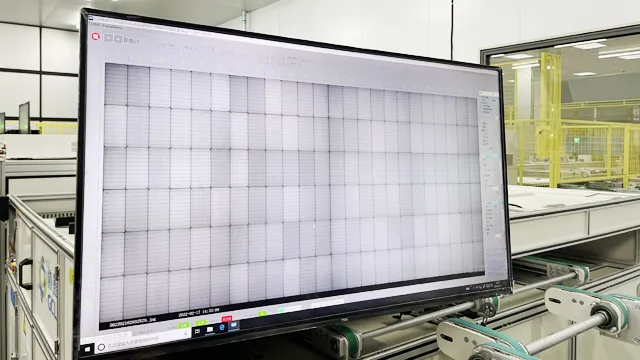

Modularized fully automated production lines enable fast delivery and cost savings. Over 40 patents are applied on production process optimization, which effectively avoids manual errors. Every process from raw material inspection to packing is monitored online.

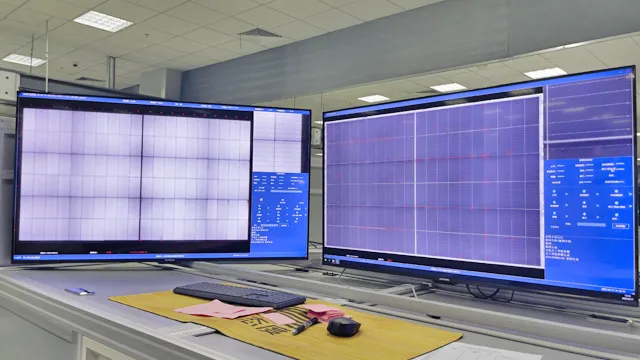

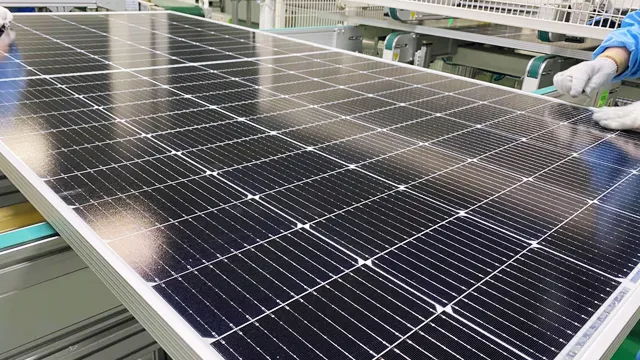

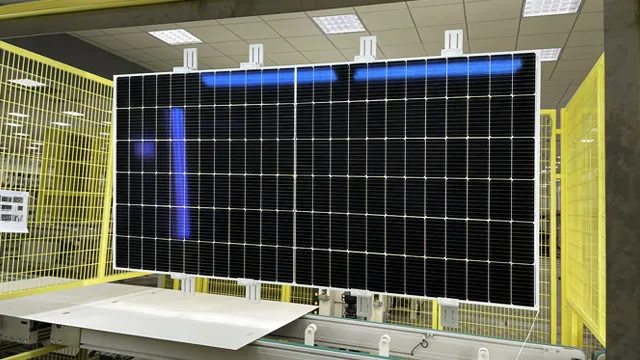

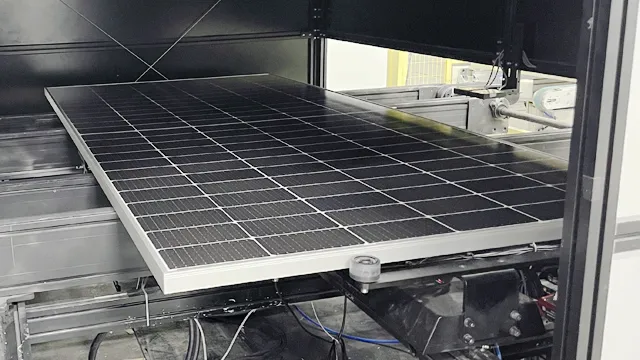

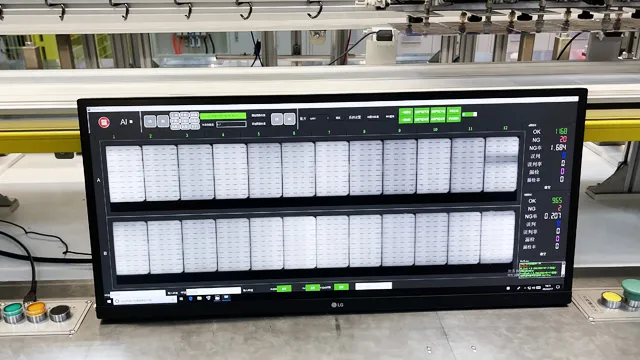

Quality Control Cornerstone

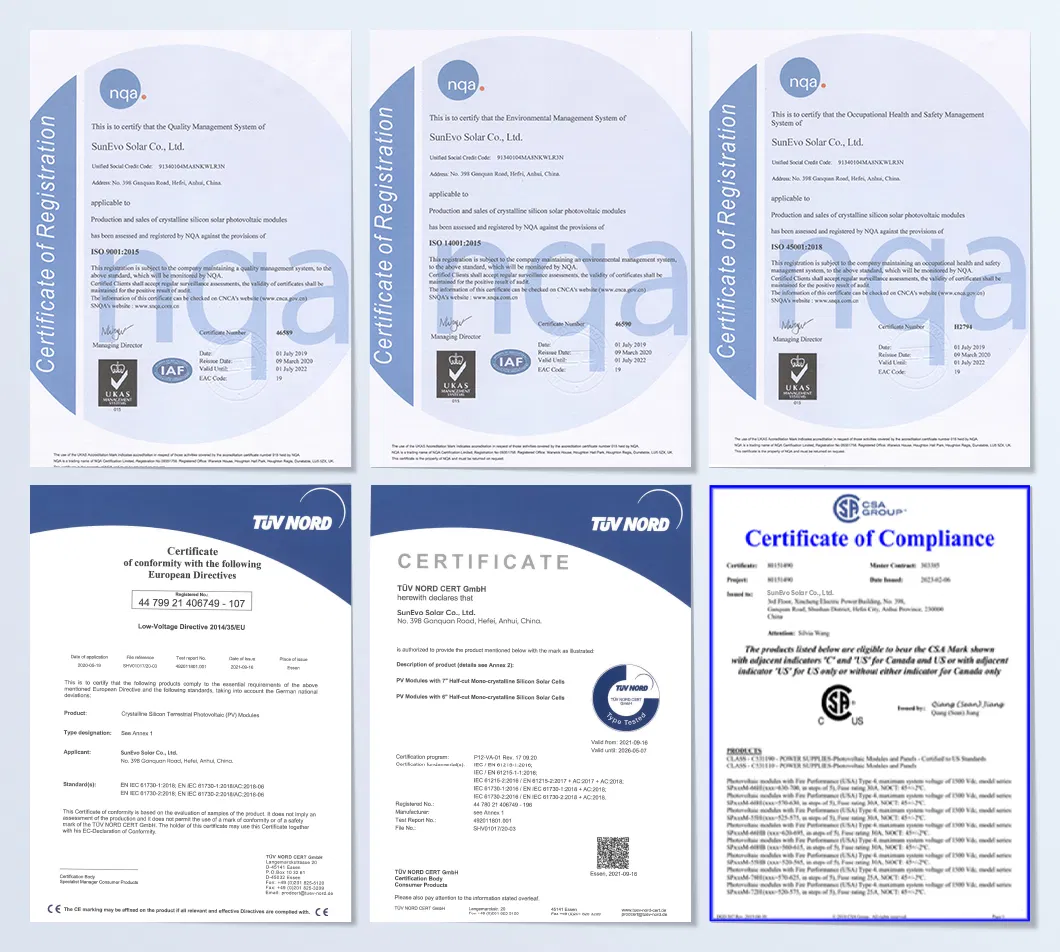

Uncompromising quality standards are met through continuous investment in state-of-the-art equipment. Systems are certified under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.

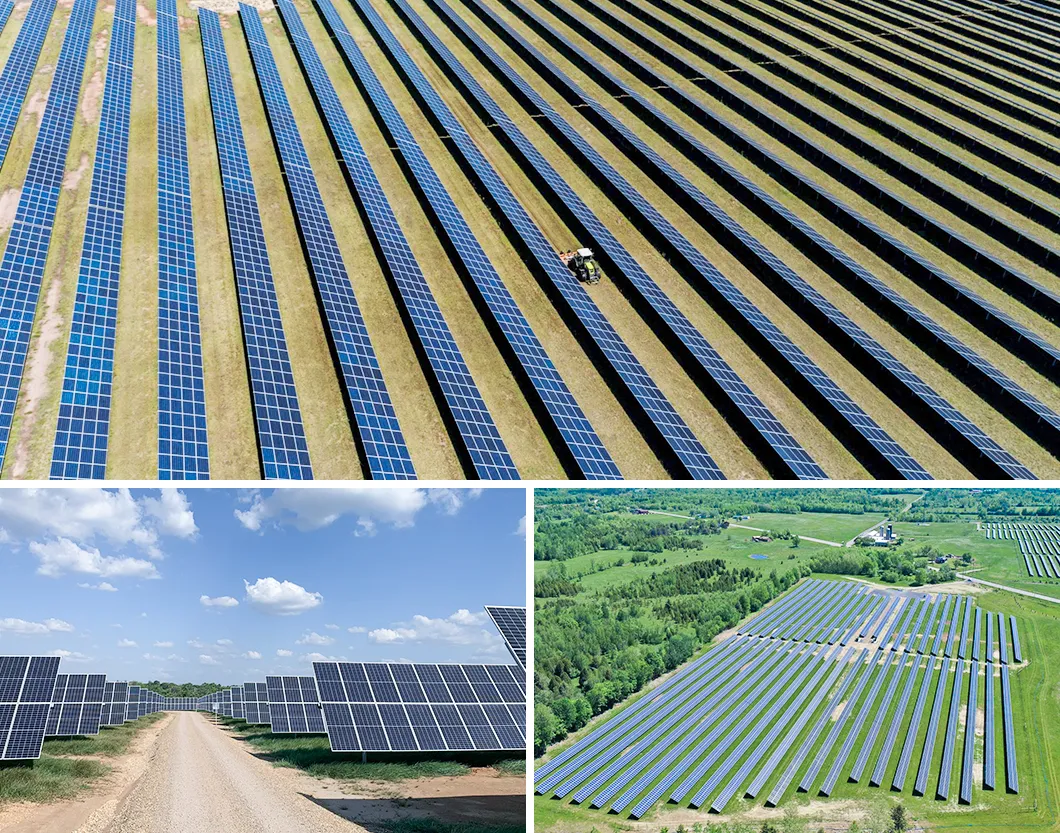

Global Solar Projects

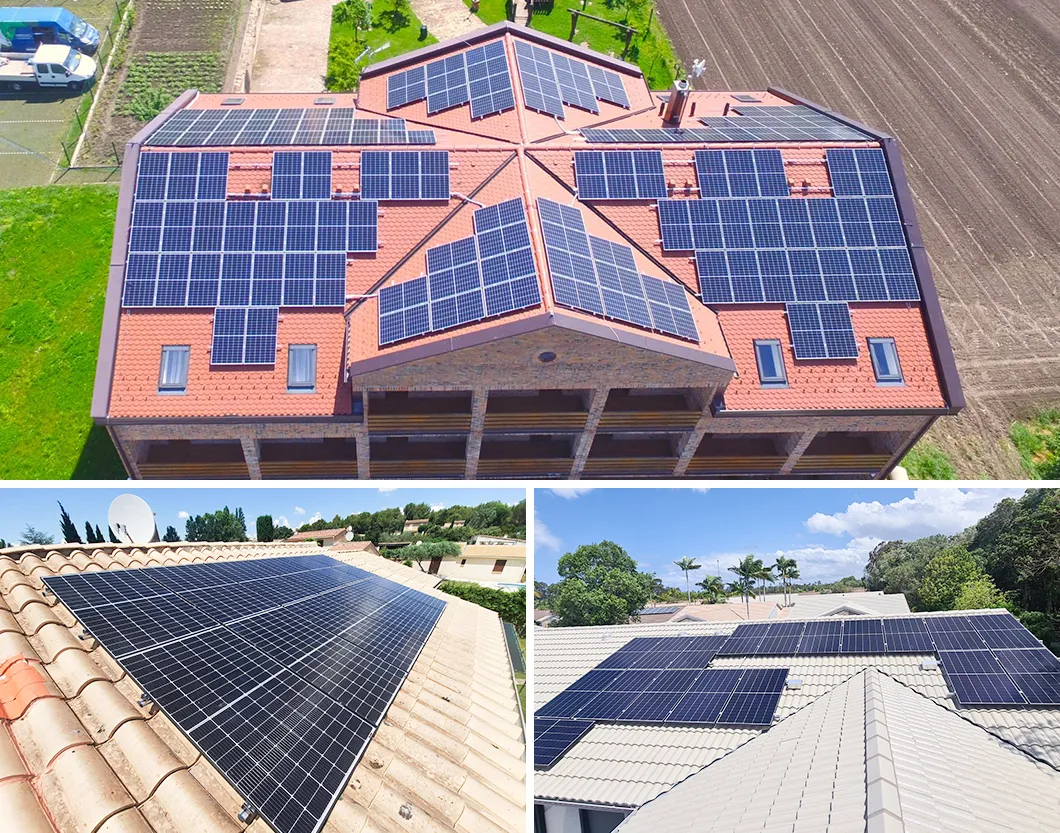

Residential: Thousands of households enjoy clean power with lower electricity bills and sustainable energy.

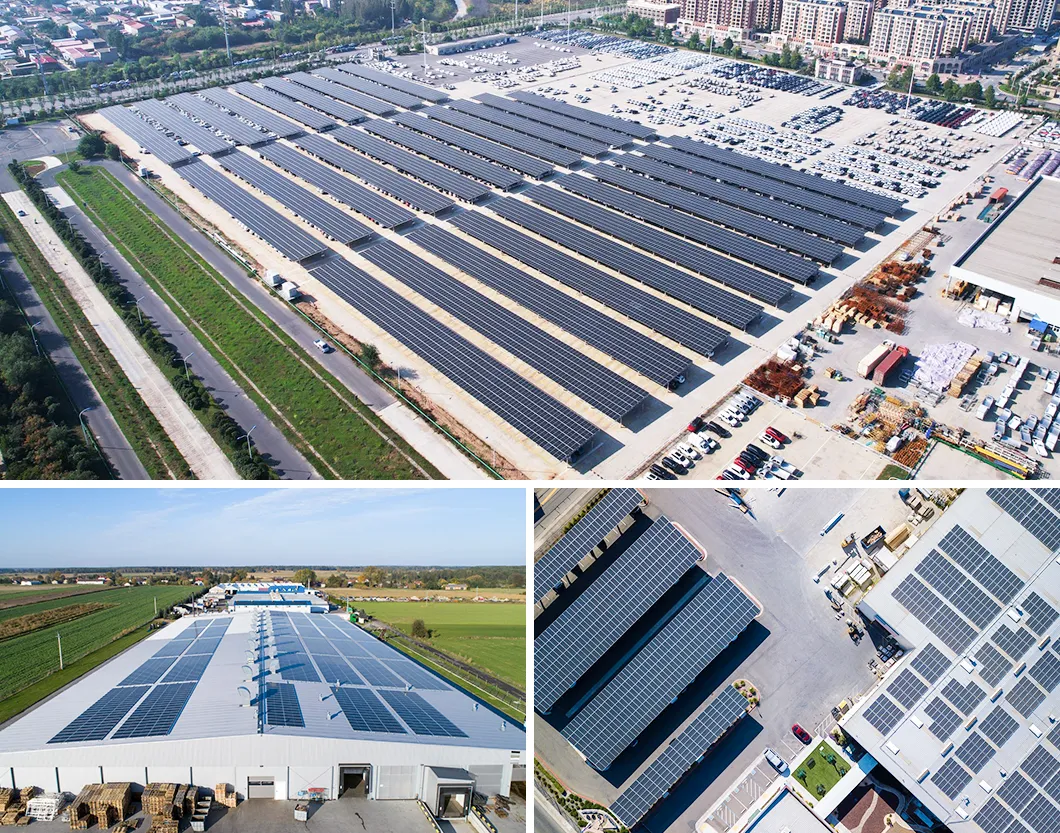

Commercial & Utility: Reliability and high ROI for large scale installations, either for self-consumption or selling back to the grid.

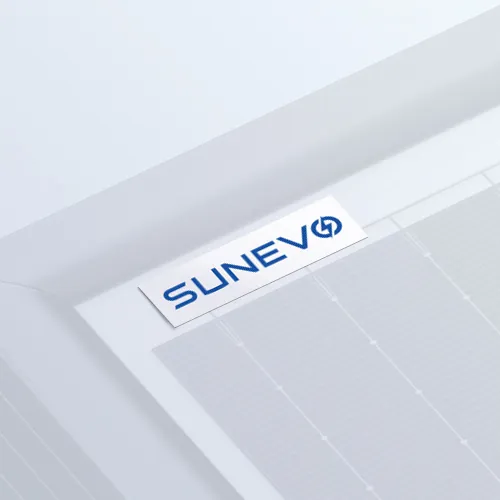

OEM & ODM Service

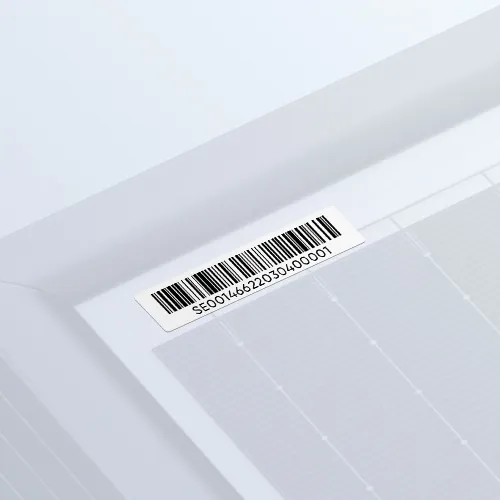

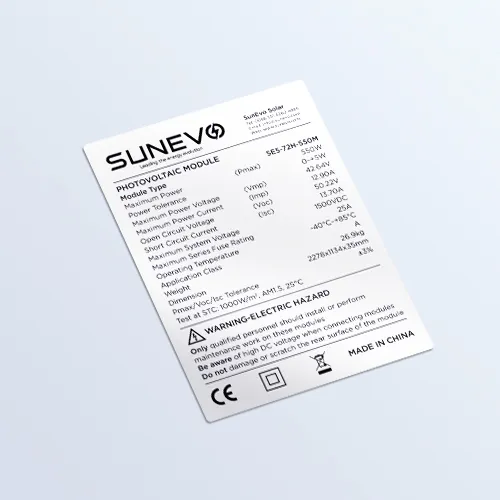

Comprehensive customization options including laminated logos, specialized barcodes, and unique product labeling to meet specific site and application requirements.
Frequently Asked Questions
Can the product be shipped to my area?
We export to most countries and regions including Central/South America, EMEA, SEA, SSA, and Australia. We will confirm based on your specific location.
What is the expected lead time?
For requirements under 200kW, the lead time is approximately 10 working days. For larger projects above 200kW, timelines are subject to negotiation.
What are the available payment terms?
We accept 100% TT, or a 30% TT advance payment with the remaining 70% due upon goods being ready for shipment.
What kind of warranty is provided?
We provide a 12-year enhanced product warranty on materials and workmanship, and a 25-year linear power output warranty.
Are these panels bifacial?
Yes, the Evo 5N series utilizes bifacial HJT technology, allowing for energy collection from both sides to increase overall efficiency.
Which certifications do these modules hold?
Our modules are fully certified with ISO, CB, CE, and TUV standards, ensuring global compliance and reliability.
