Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
1 / 5
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter
Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter

Esavior Full Set 5kw off-Grid Portable Solar Power System Inverter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
PSS-8000Li-211126C
Condition
New
Certification
ISO, CB, CE
Application
Home, Industrial, Commercial
Specification
Normal, 530*310*400mm
System Capacity
300va
Rated Power
5000W
Battery Voltage
12V
Full Charge Time
6hrs
Package
Cartons/Palywoods
Origin
China (Mainland)
Capacity
500,000 Sets/Year
Product Description

150W-5KW Portable Solar Power System / Hybrid Solar Power System

Off-grid Portable Solar Panel Power System with Pure Sine Wave Power Inverter for Home use.

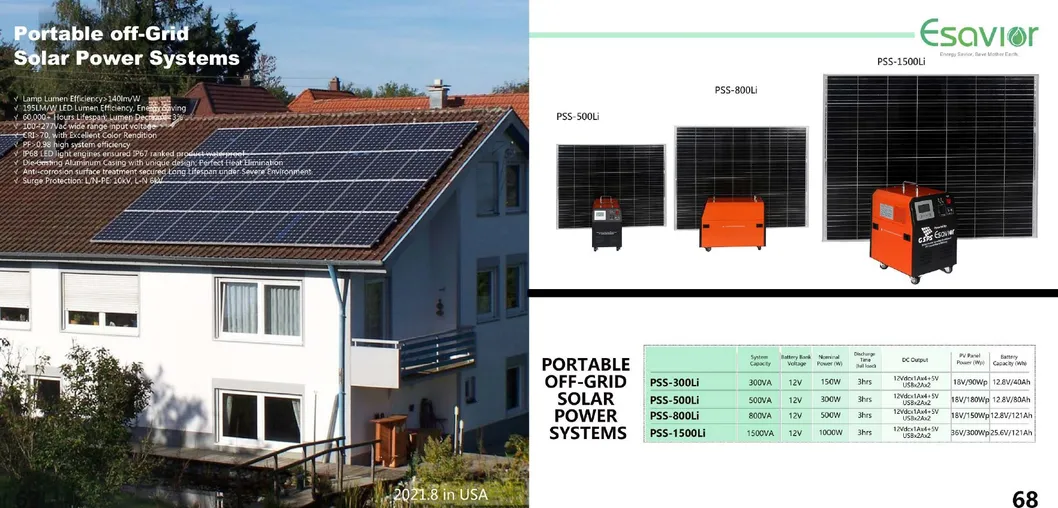

Solar System View 1

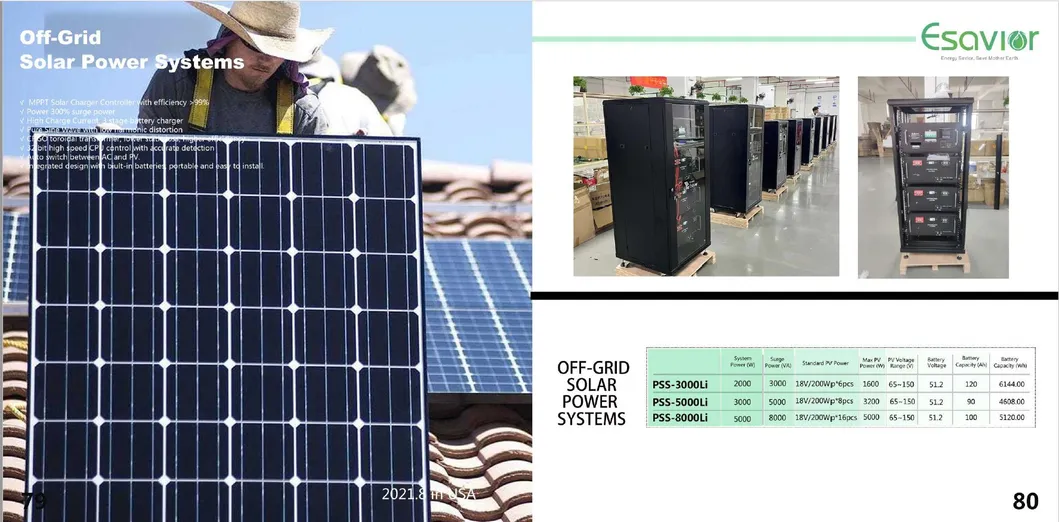

Solar System View 2
💎 CORE ADVANTAGES
  • MPPT Solar Charger Controller with efficiency >99%
  • Power 300% surge power capabilities
  • High Charge Current, 3 stage battery charger
  • Pure Sine Wave with low harmonic distortion
  • CRGO toroidal transformer: lower static loss, higher efficiency
  • 32 bit high speed CPU control with accurate detection
  • Auto switch functionality between AC and PV
  • Integrated design with built-in batteries, portable and easy to install
Key Features
System Capacity
300VA/150W
Battery Bank
12V
Discharge (Normal)
12hrs
Discharge (Full)
3hrs
DC Output
12Vdc x4 + 5V USB x2
AC Output
AC Sockets x2 (100~240Vac)

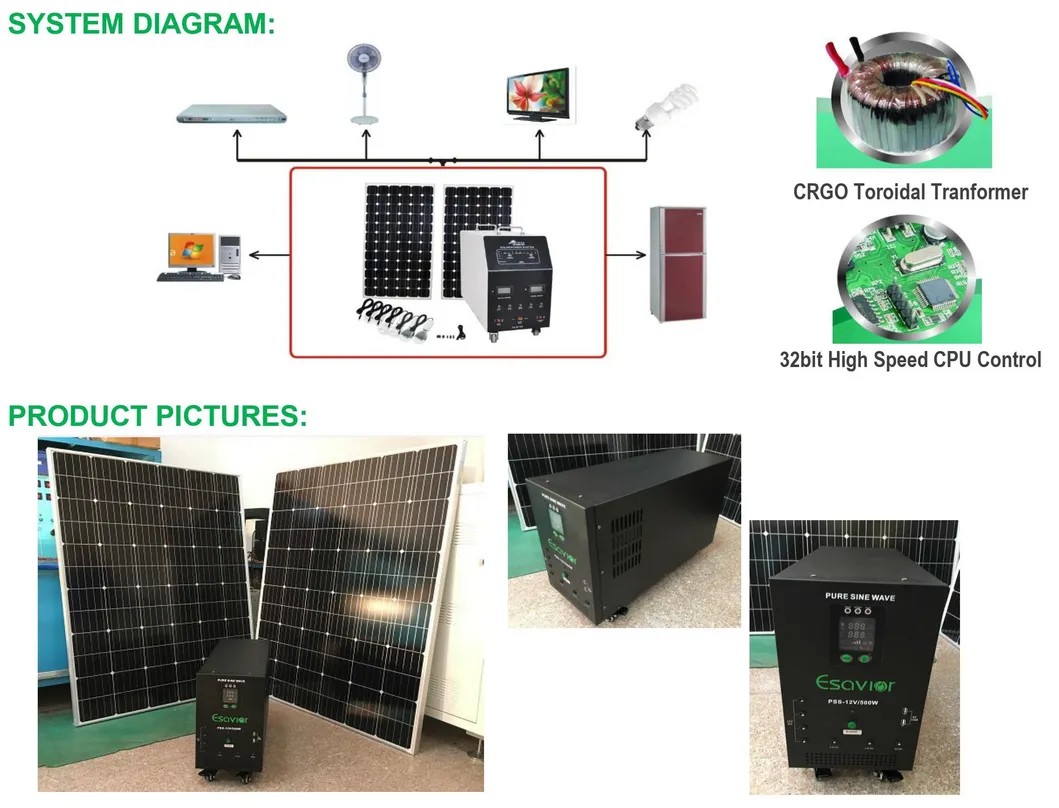

Features Detail
Typical Applications
MODEL NO. CAPACITY RATED POWER TYPICAL APPLICATIONS
PSS-300300VA150WLightings, Fan, LED TV, Laptop
PSS-500500VA300WLightings, Fan, LED TV, Laptop, electric cooker
PSS-800800VA500WLightings, Fan, LED TV, Laptop, cooker, fridge
PSS-15001500VA1000WLightings, Fan, LED TV, Laptop, cooker, fridge
Safety Protections

Equipped with comprehensive protection mechanisms: Overload, high temperature, output high/low voltage, short circuit, over-charge, and over-discharge.

The system intelligently cuts off battery output when protection is triggered and resumes based on charge status.

Protection Diagram
Internal Design
Inverter View
Quality Certifications
  • Multiple patents for Solar Street Lights and IoT Monitoring Systems.
  • ISO 9001/14001 certificates awarded by TUV-SUD.
  • Full compliance with IEC 60598, IES TM-21, and IES RP-27.3-07.
  • Project implementations praised by UNDP, UNHCR, and The World Bank.
  • Global R&D and Inspection Center with advanced QA systems.
Manufacturing Center
Frequently Asked Questions
1. What can the 500W-1000W solar system power?
These systems are ideal for lightings, fans, LED TVs, laptops, electric cookers, and even small fridges depending on the specific model capacity.
2. How efficient is the built-in solar controller?
The system utilizes an MPPT Solar Charger Controller with an efficiency rating of over 99%.
3. Does the system provide clean power for sensitive electronics?
Yes, it uses a Pure Sine Wave inverter with low harmonic distortion, making it safe for laptops and other sensitive digital equipment.
4. How long does it take to fully charge the battery?
Under optimal conditions, the system can reach a full charge in approximately 6 hours.
5. What safety features are integrated into the design?
The system includes protections against overload, high temperature, voltage fluctuations, short circuits, and over-charging or over-discharging.
6. Is the installation process complicated?
No, the system features an integrated design with built-in batteries, making it portable and easy to install for off-grid applications.
