Wing Solar
Wing Solar
We manufacture and design mini solar panels for a wide range of applications. Our custom shapes and dimensions are utilized in:

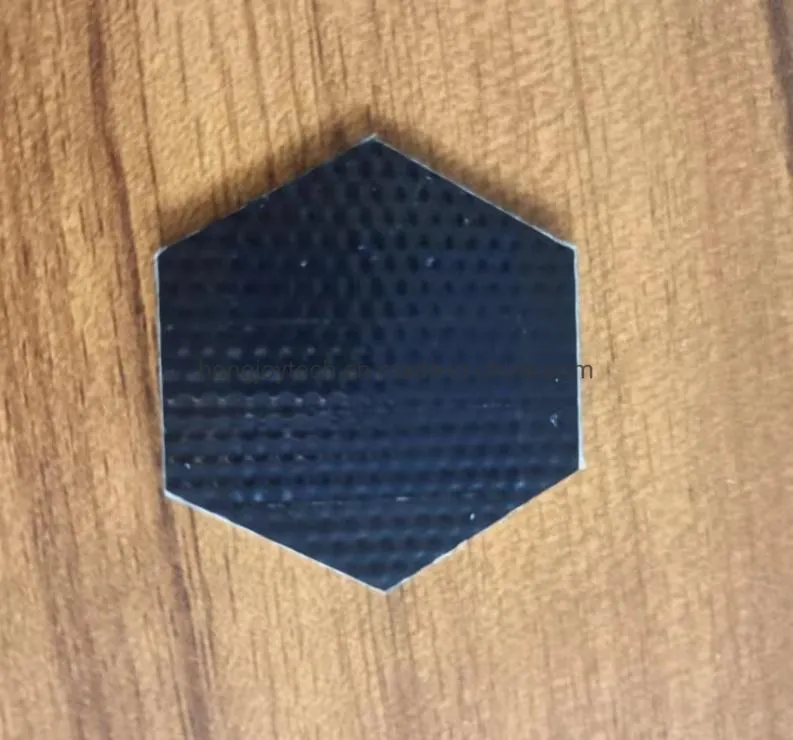

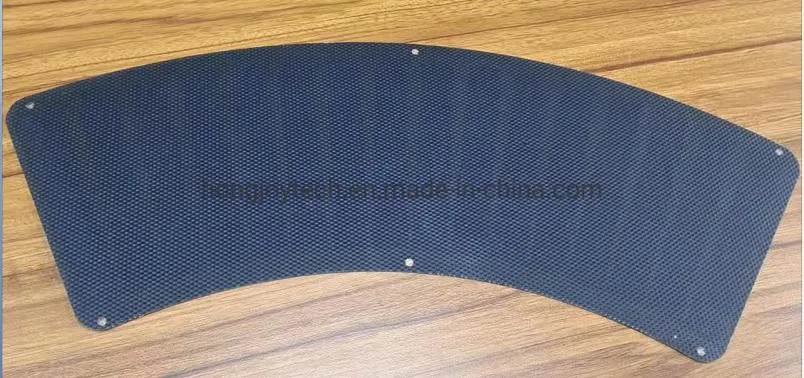

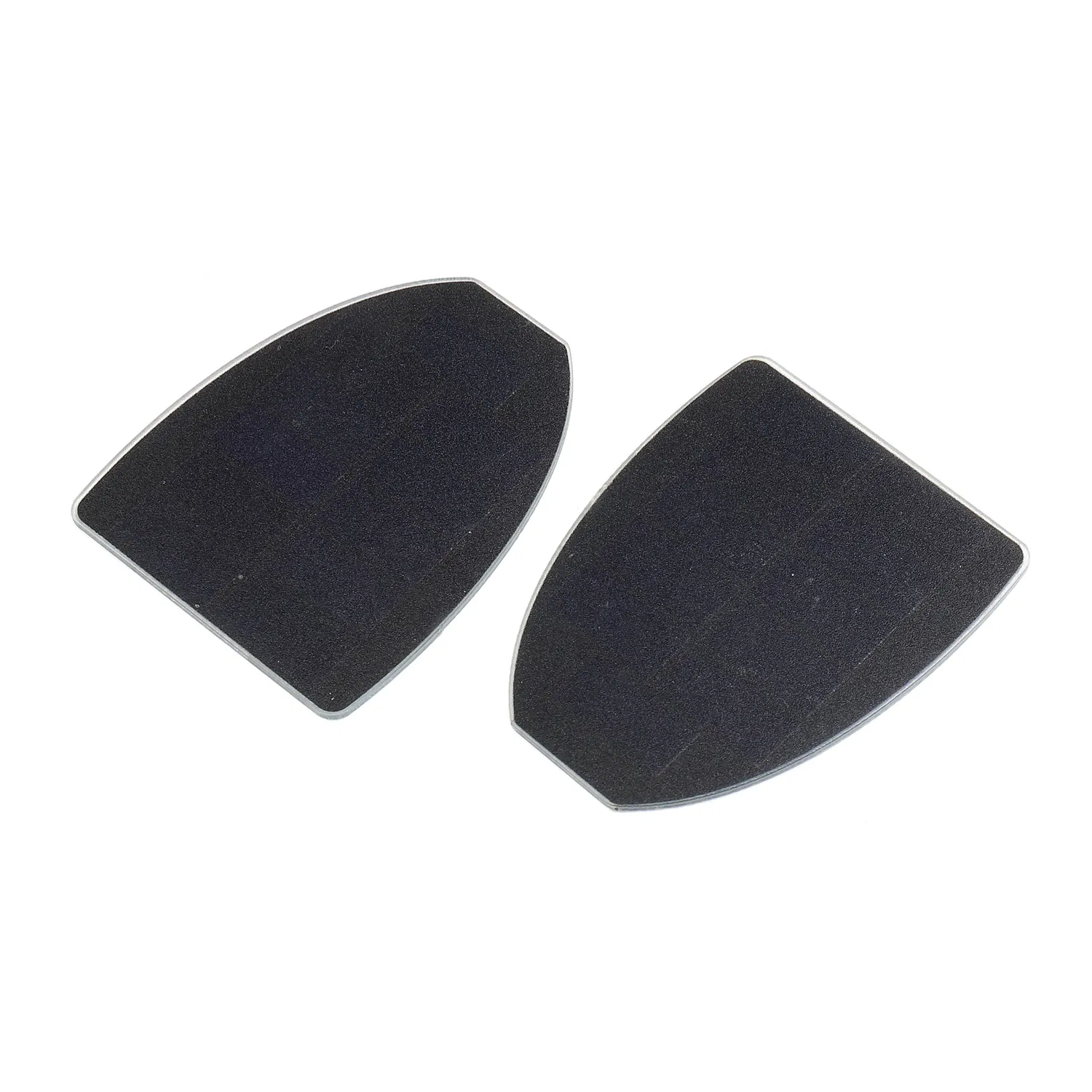

Custom Shapes Supported: Square, rectangle, triangle, tetragonum (parallelogram, rhombus, trapezoid), round, fan-shaped, arch, circle, and polygon. High efficiency cells range from 19% to 23%.
| To proceed with your custom demand, we require: |
| • Power watts of the panel |
| • Voltage and current |
| • Dimension and shape size |
| • Assembly details and application environment |
| • Any special requirements |

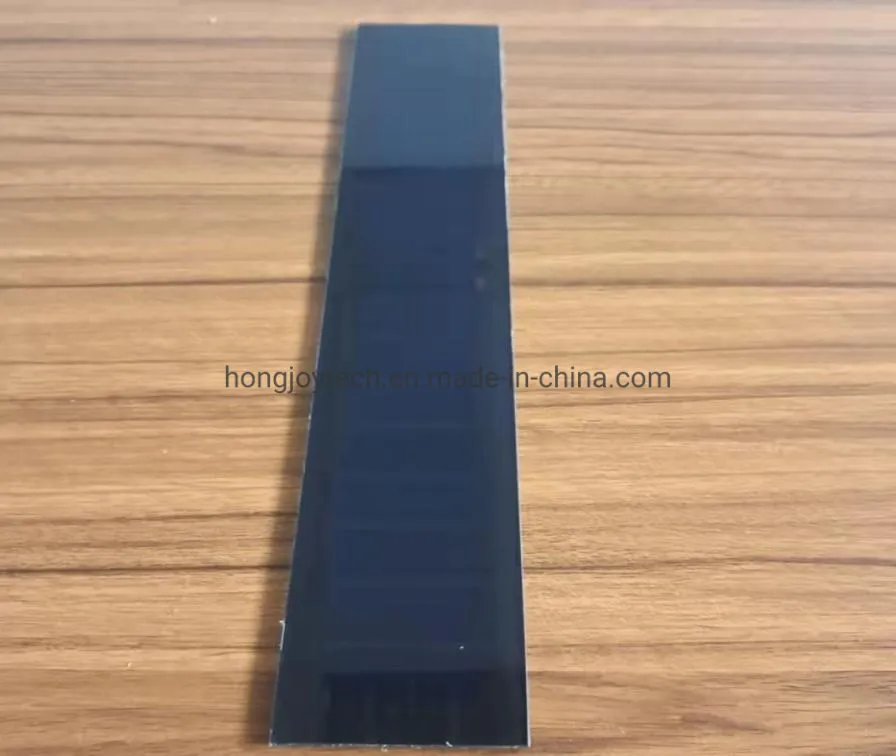

Surface Film Options: ETFE film, PET, and Glass.
Specifications:
Rated Power: 0.11W | Voc: 5.4V | Isc: 26.2V
Vm: 4.5V | Im: 24.5mA
Dimension: Diagonal 40mm x 1.8mm
Protection: IPX6 | Weight: 3g
Specifications:
Rated Power: 1.1W | Voc: 14.4V | Isc: 100mA
Vm: 12V | Im: 92mA
Dimension: 130mm * 80mm * 2mm
Protection: IPX6 | Weight: 25.7g
Specifications:
Rated Power: 8.2W | Voc: 24V | Isc: 440mA
Vm: 20V | Im: 410mA
Dimension: 473mm * 150mm * 2mm
Protection: IPX6 | Weight: 140g
Specifications:
Rated Power: 2.8W | Voc: 20.4V | Isc: 178mA
Vm: 17V | Im: 165mA
Dimension: 380mm * 70mm * 5mm
Protection: IPX6 | Weight: 182g

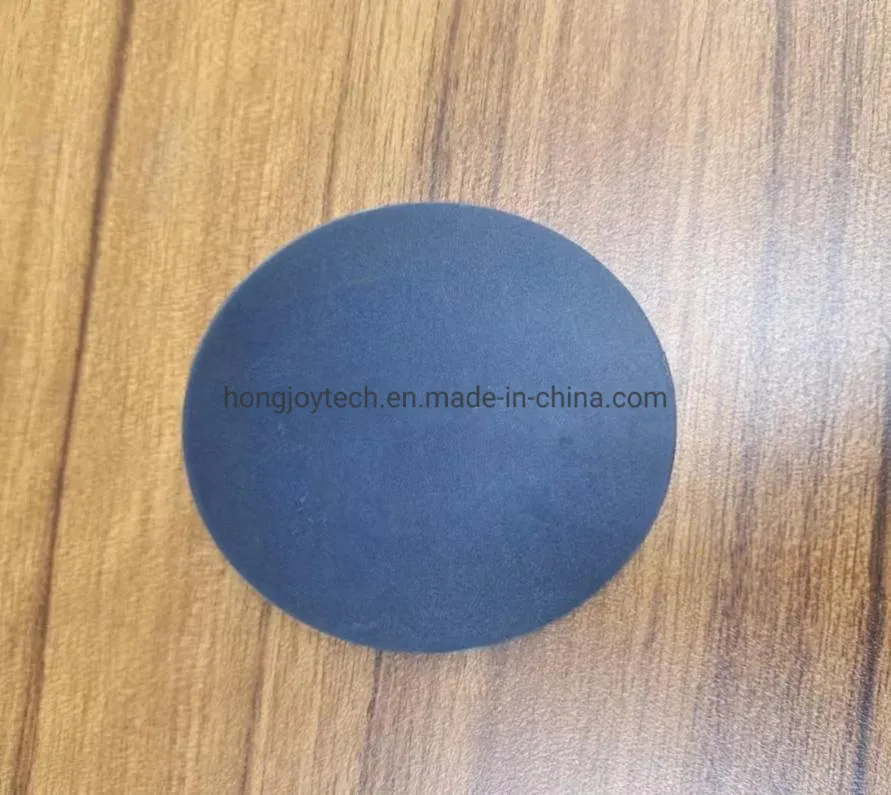

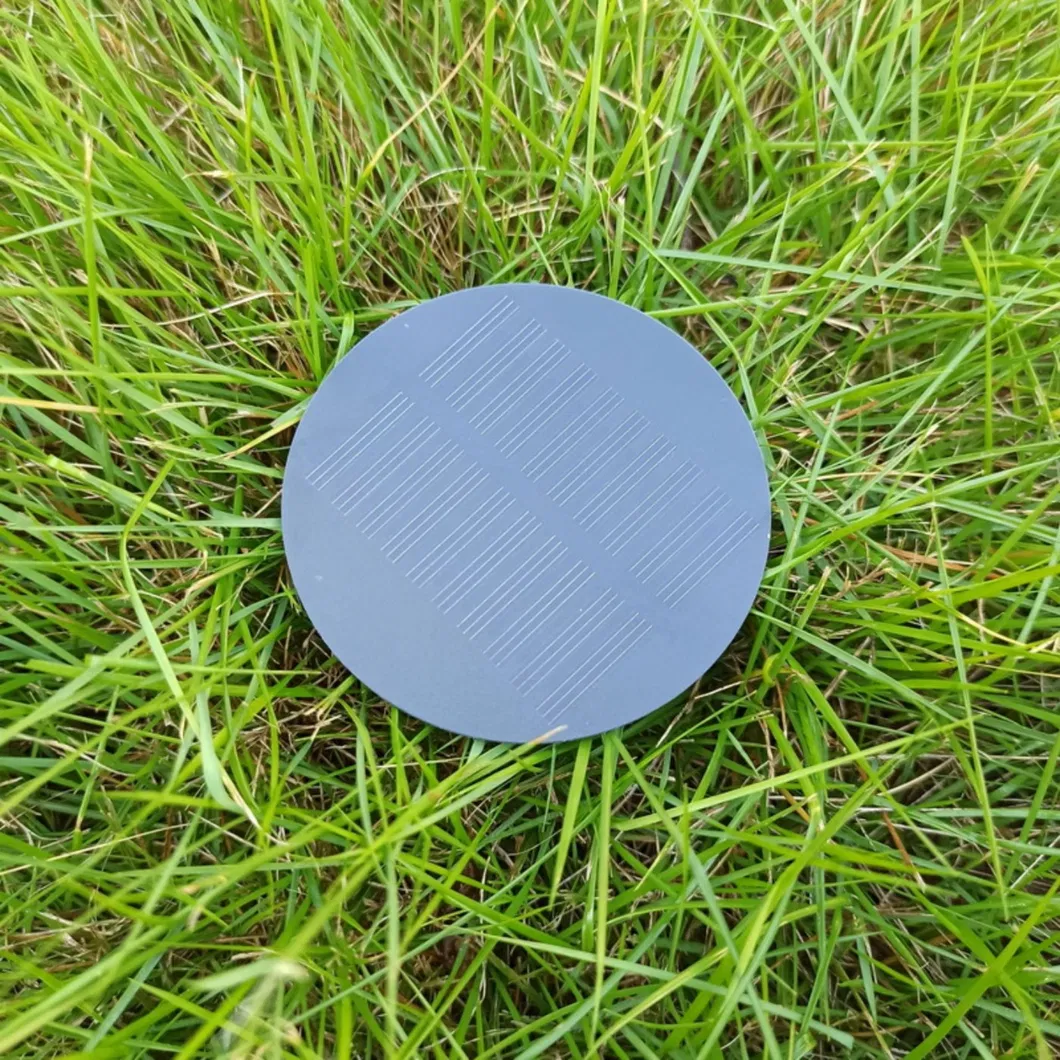

Round Shape (1W)
100mm Diameter

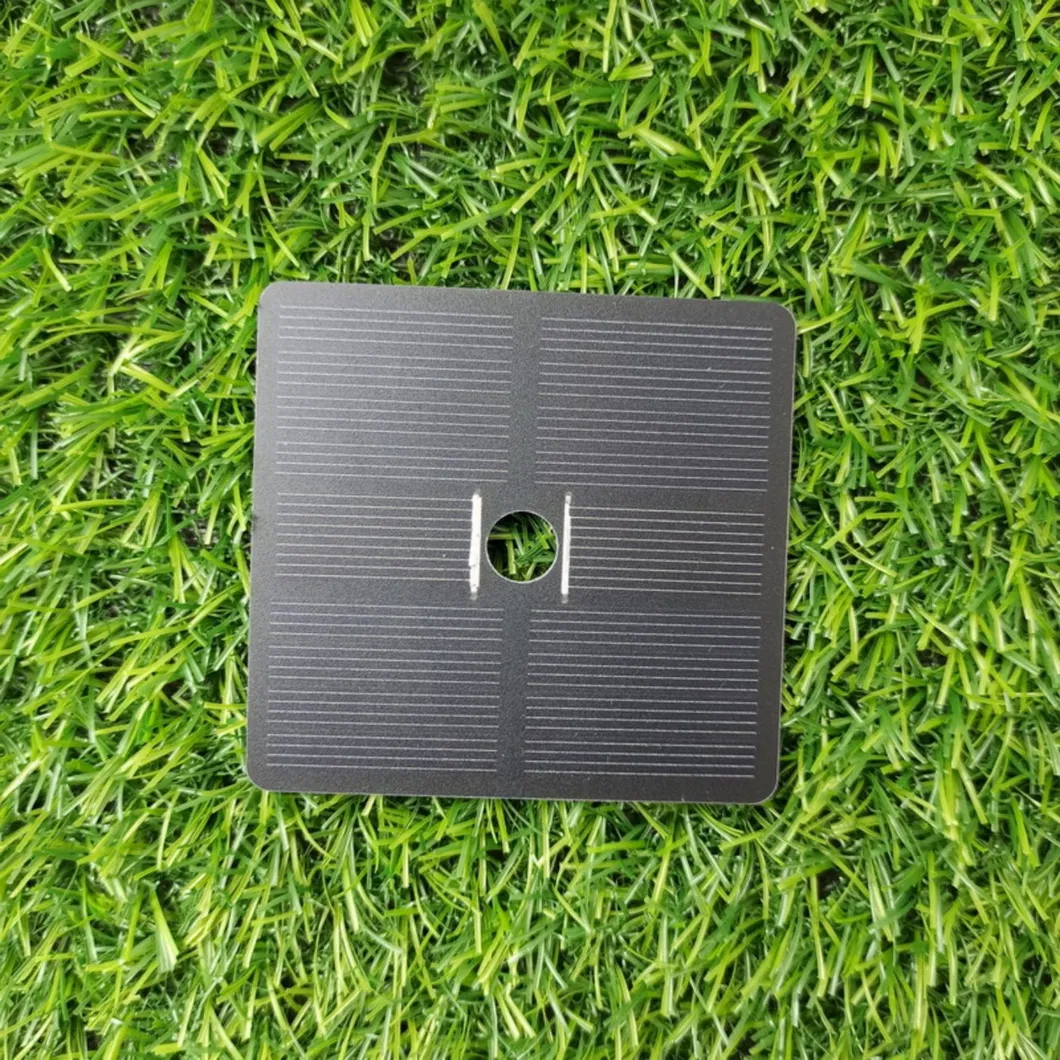

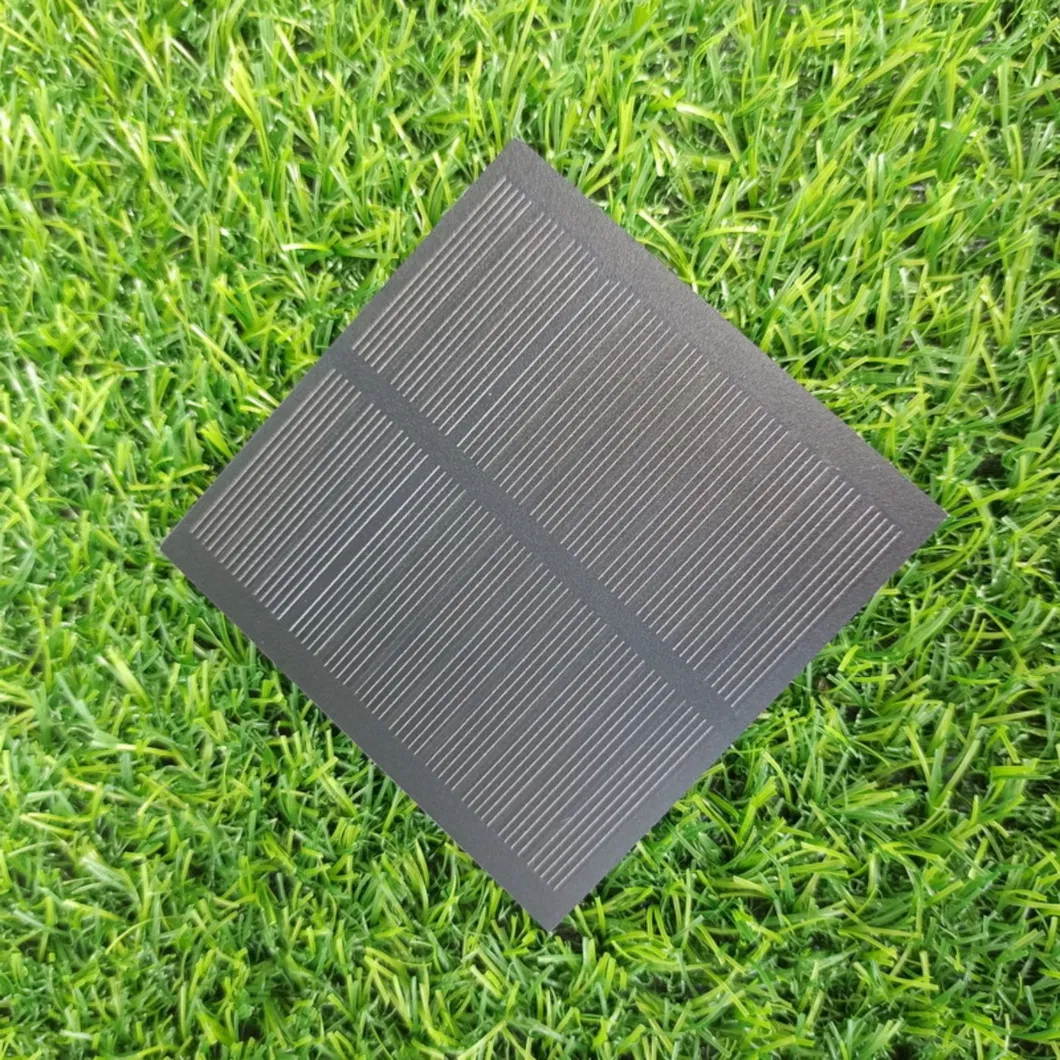

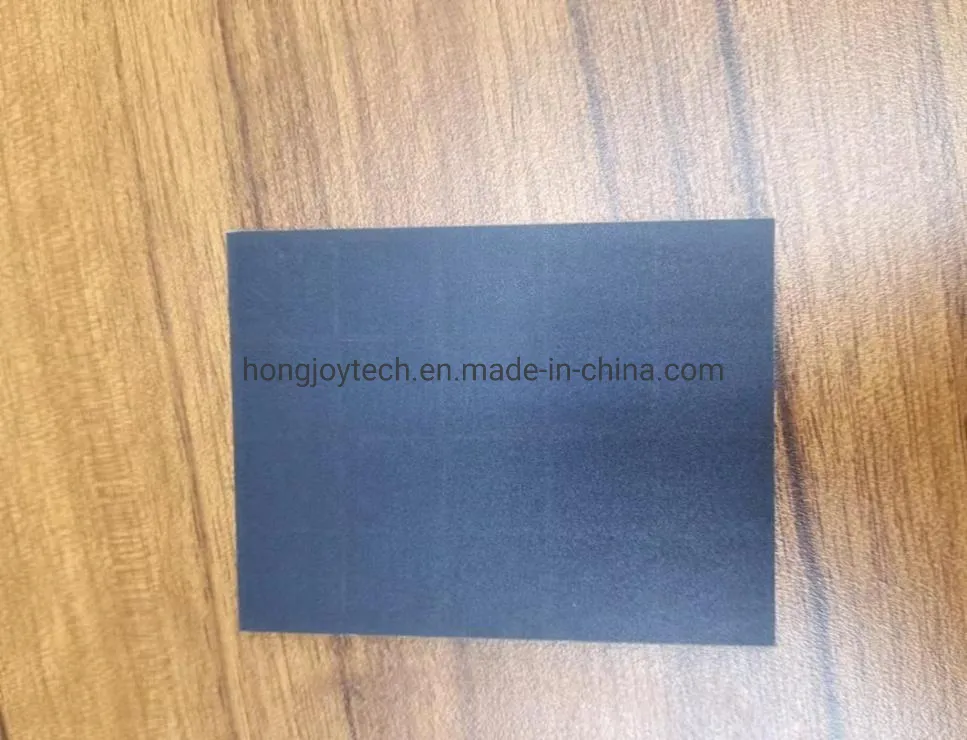

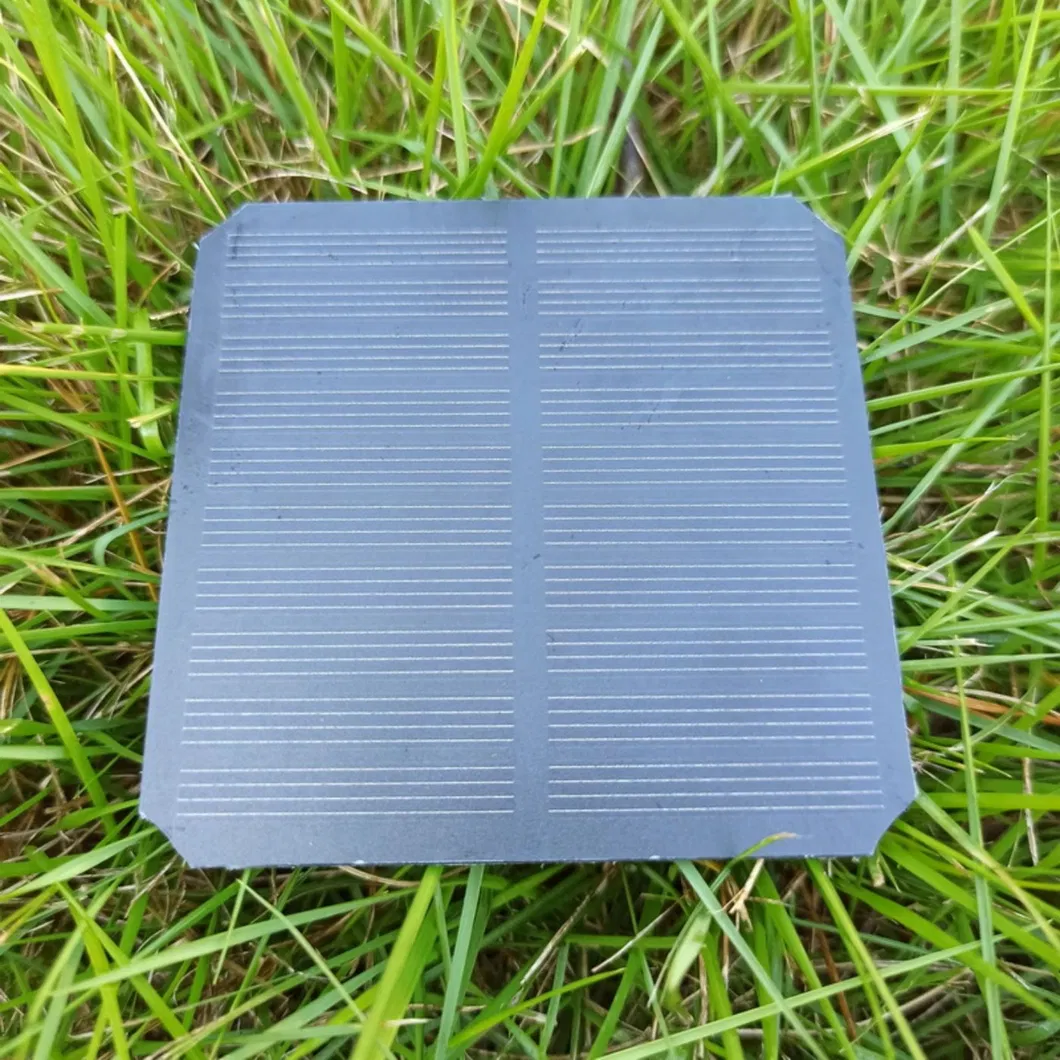

Square Shape (1.1W)
80mm * 80mm

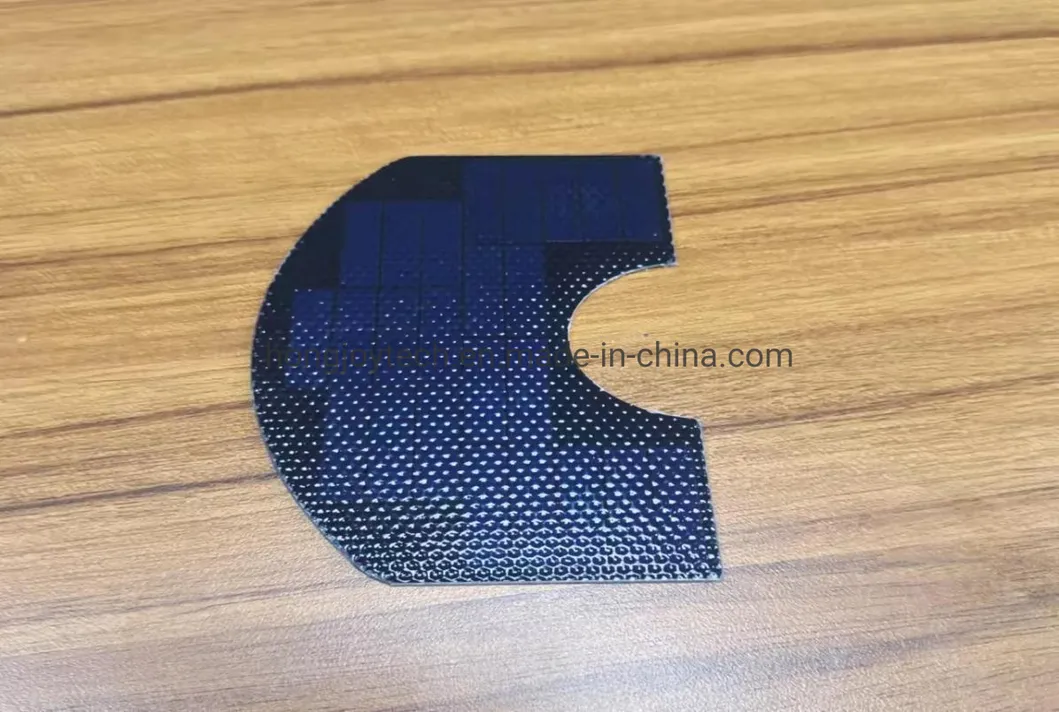

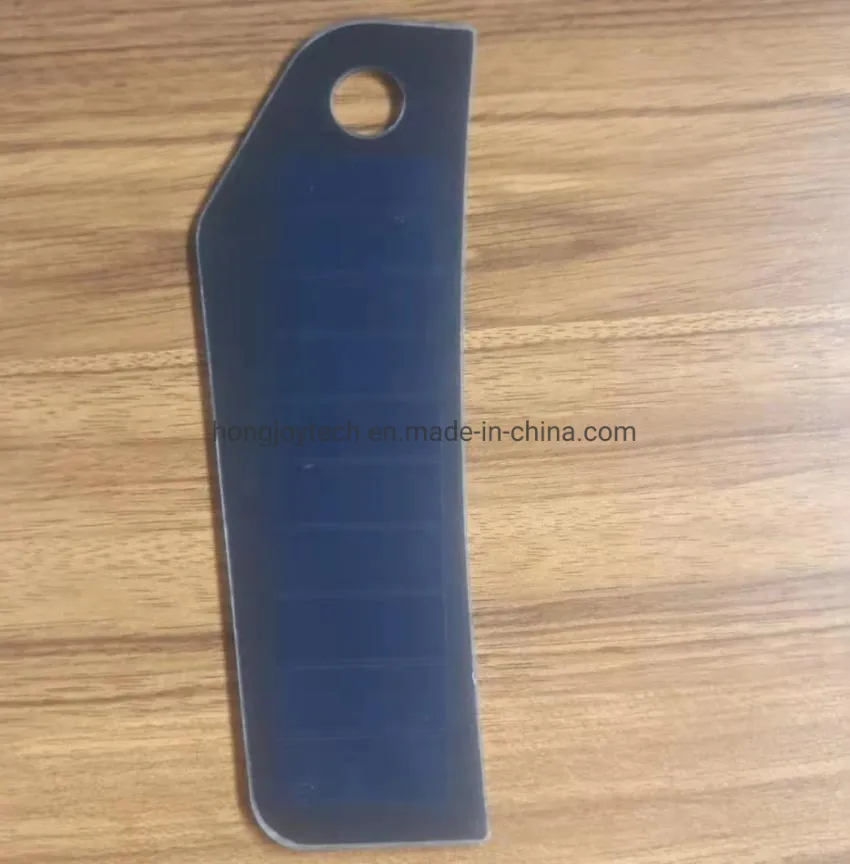

Abnormal Frosting (0.9W)
183mm * 65mm

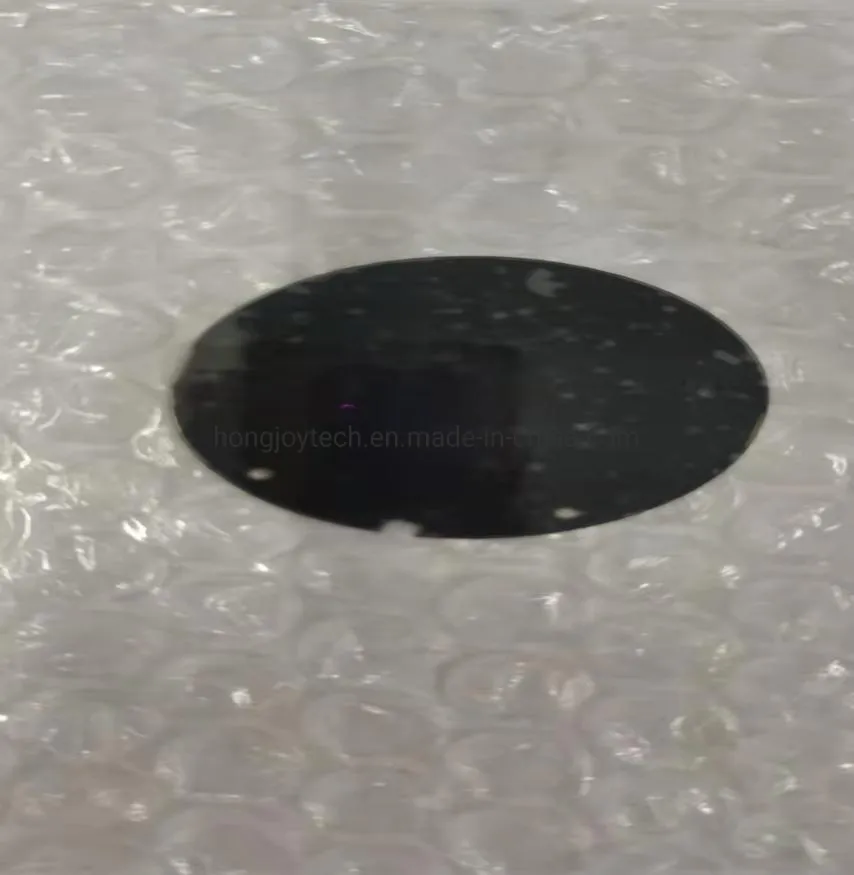

Transparent Round (0.11W)
39.5mm Diameter
