Wing Solar
Wing Solar
We manufacture and design mini solar panels for:
Usage/Function: our clients use our custom shape and dimension mini solar panels for solar lighting-solar lamps, solar garden lights, solar lantern, solar charger, LED Lights, Toys, Mobile Chargers, marine equipment, drones, camera, IOT devices, GPS and thousands of solar applications to get power from sunshine energy.
Custom Shapes & custom dimensions supports: square, rectangle, triangle, tetragonum (parallelogram, rhombus, trapezoid), round, fan-shaped, arch, circle and polygon by solar cells of normal mono efficiency or mono high efficiency of 19%-23% High Efficiency cell, etc.
| To proceed your custom demand mini solar panels, we need to know following: |
| • Power watts of the panel |
| • Voltage and current |
| • What is the dimension and shape size |
| • Where will you put the panels on (product work with and assembly method) |
| • Special requirements |
Options for the surface film: not just the ETFE film, but also PET and glass.
Technical of some of our custom shapes of high efficiency mini solar panels for reference:

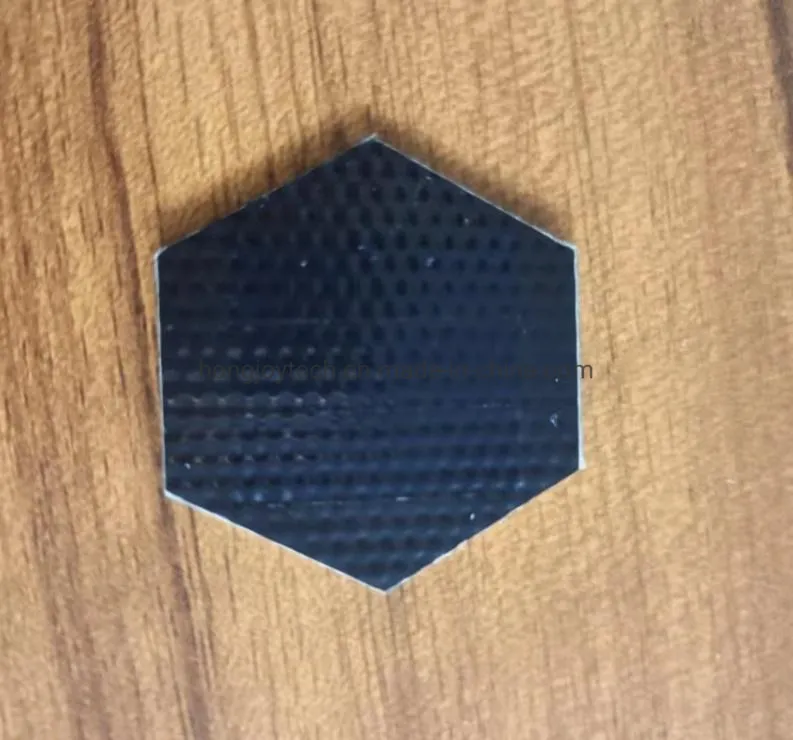

Hexagon Shape ETFE Embossed Solar Panel
Rated Power: 0.11W | Tolerance: ±5%
Voc: 5.4V | Isc: 26.2V
Vm: 4.5V | Im: 24.5mA
Dimension: Diagonal 40mm x 1.8mm
Water Protection: IPX6 | Weight: 3g

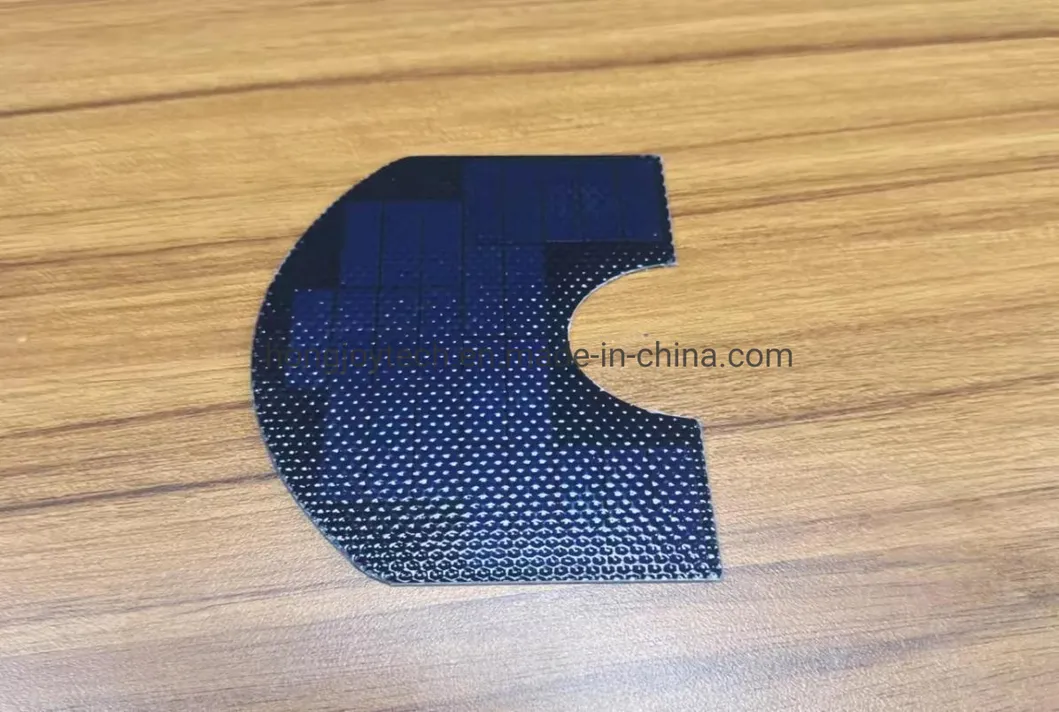

Abnormal Shape ETFE Embossed Solar Panel
Rated Power: 1.1W | Tolerance: ±5%
Voc: 14.4V | Isc: 100mA
Vm: 12V | Im: 92mA
Dimension: 130mm*80mm*2mm
Water Protection: IPX6 | Weight: 25.7g

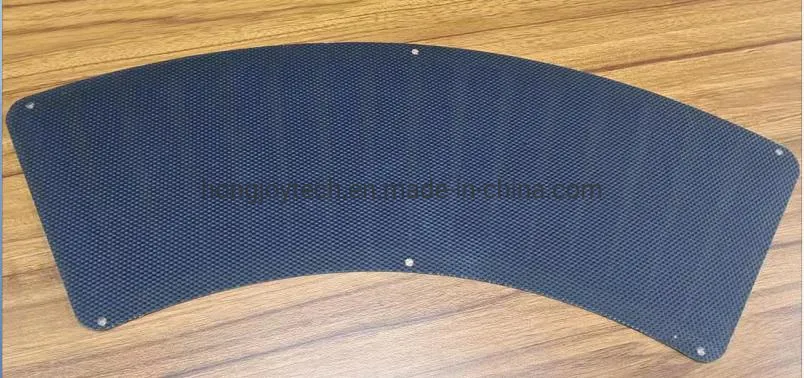

Fan Shape ETFE Embossed Solar Panel
Rated Power: 8.2W | Tolerance: ±5%
Voc: 24V | Isc: 440mA
Vm: 20V | Im: 410mA
Dimension: 473mm*150mm*2mm
Water Protection: IPX6 | Weight: 140g

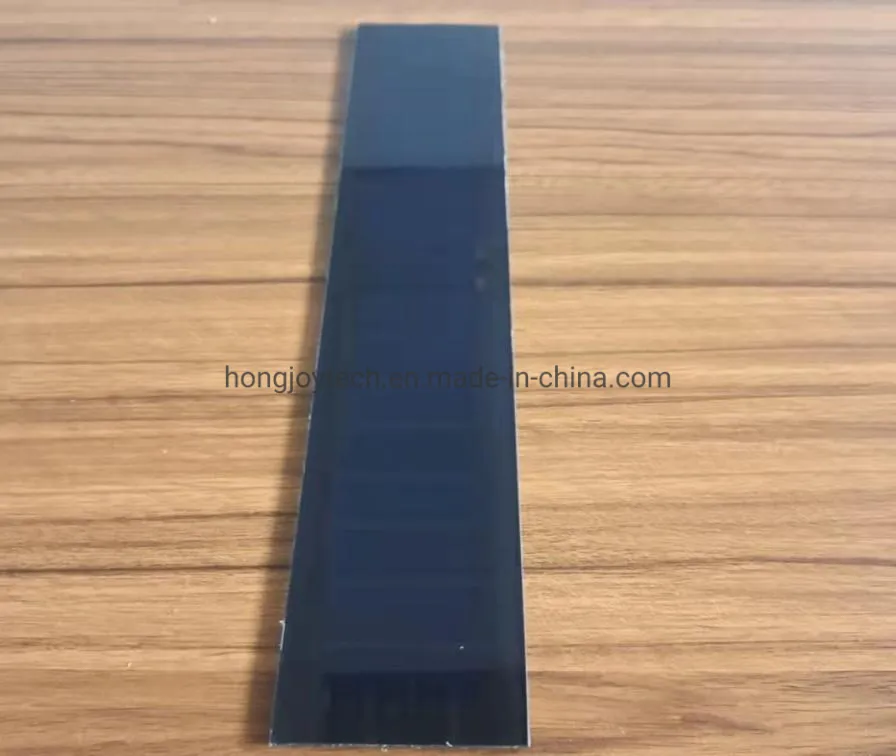

Glass Plane Shape Solar Panel
Rated Power: 2.8W | Tolerance: ±5%
Voc: 20.4V | Isc: 178mA
Vm: 17V | Im: 165mA
Dimension: 380mm*70mm*5mm
Water Protection: IPX6 | Weight: 182g

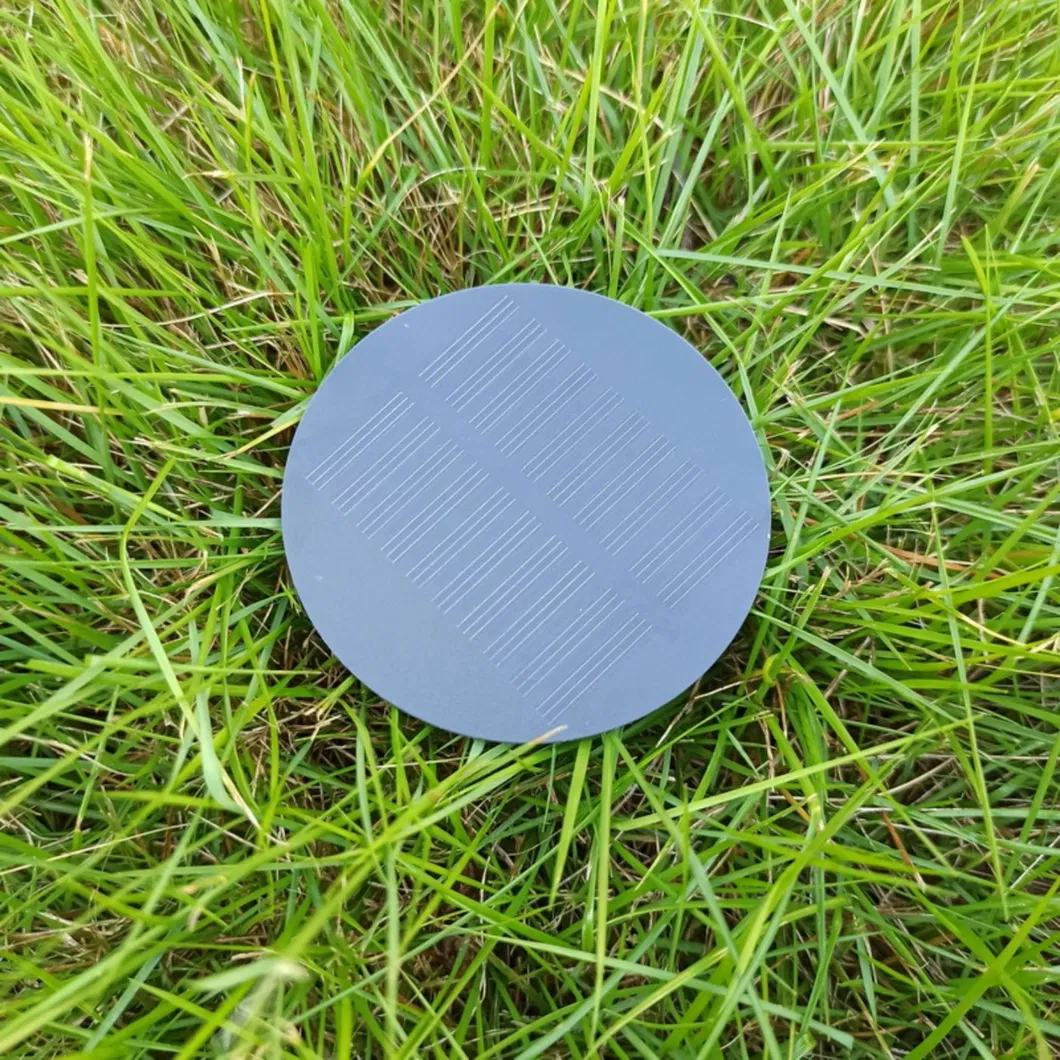

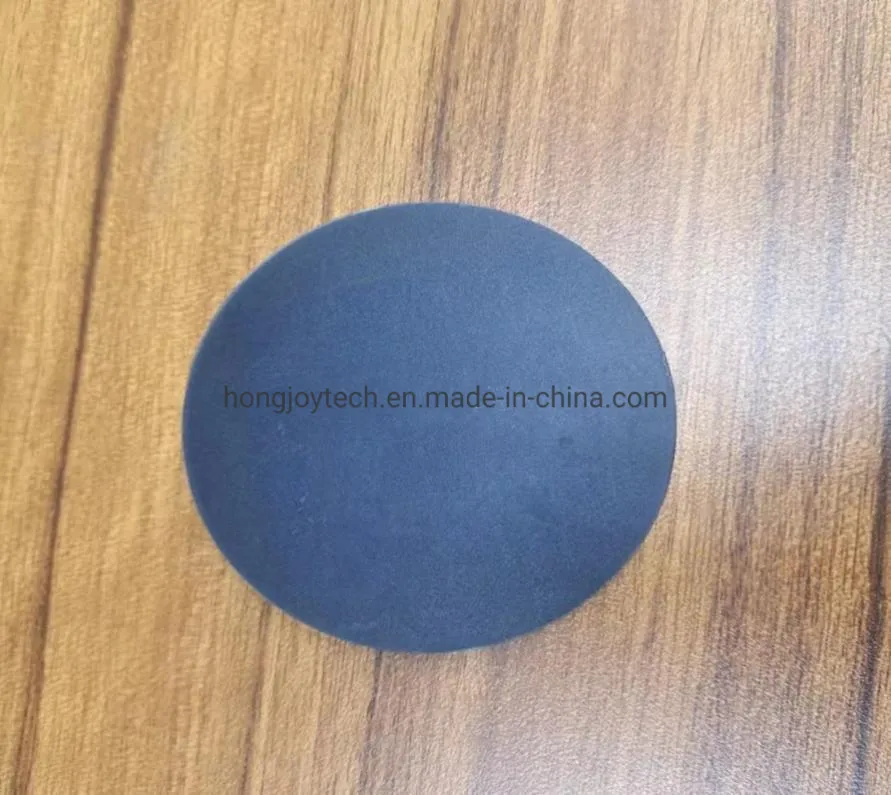

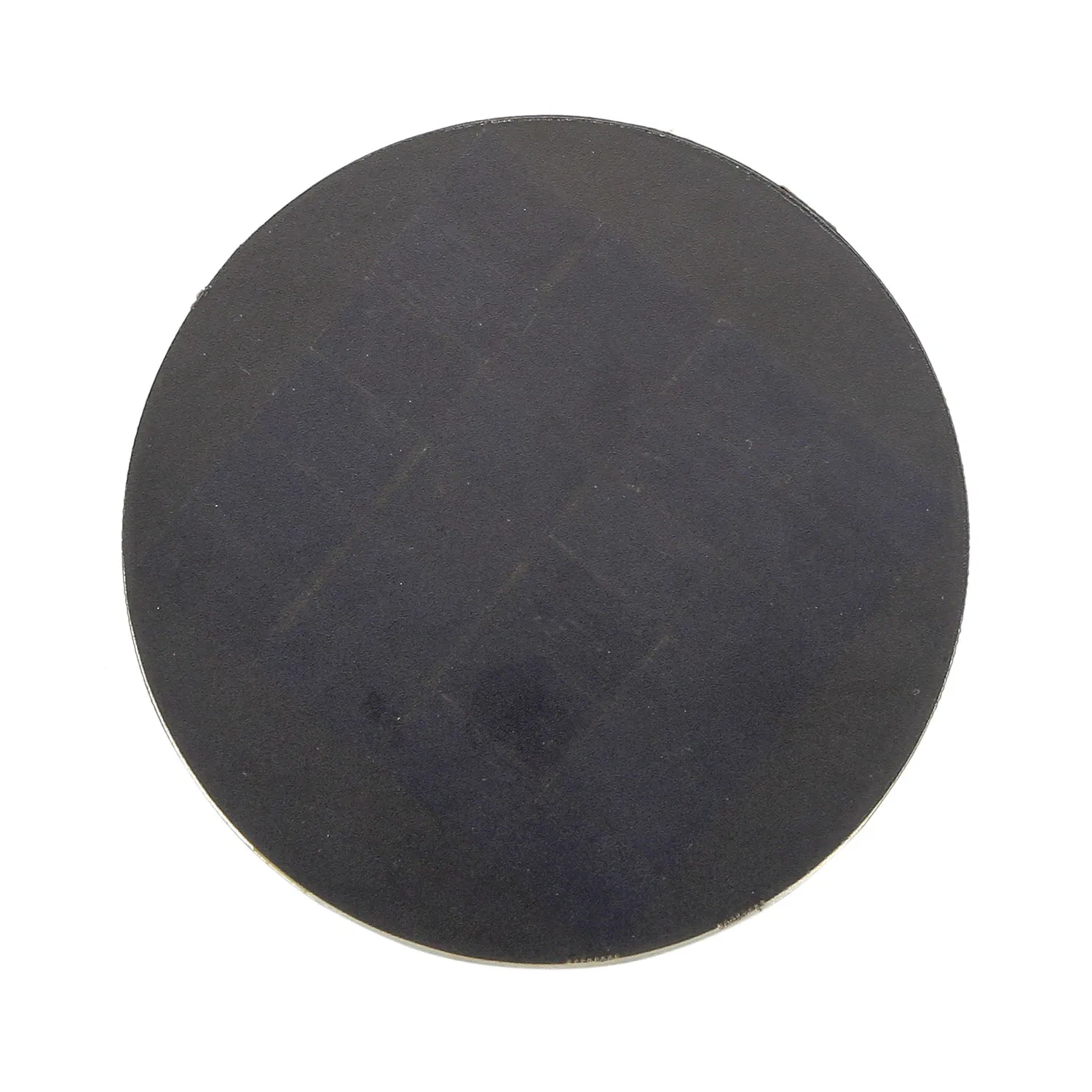

Round Shape Frosting PET Solar Panel
Rated Power: 1W | Tolerance: ±5%
Voc: 14.4V | Isc: 90mA
Vm: 12V | Im: 84mA
Dimension: Diameter 100mm*2mm
Water Protection: IPX6 | Weight: 24.2g

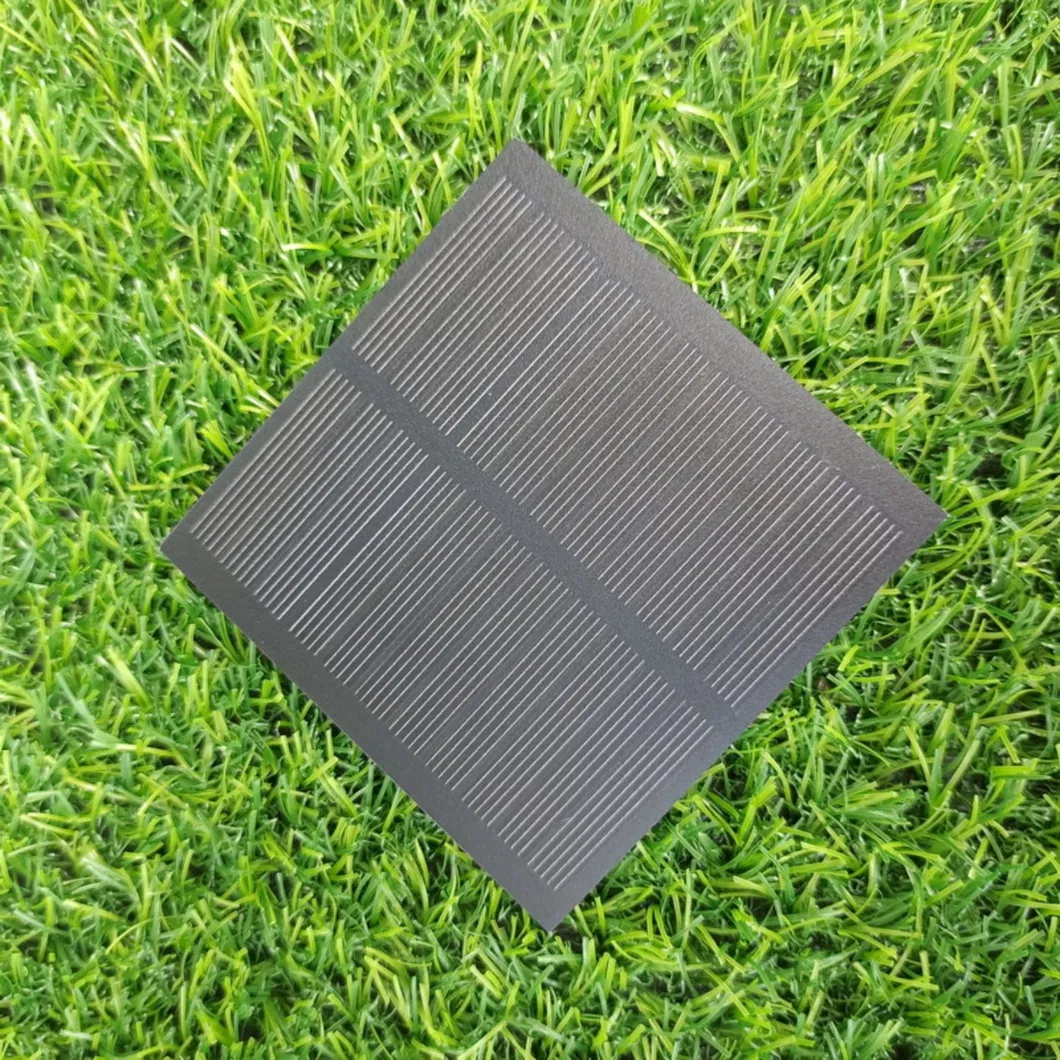

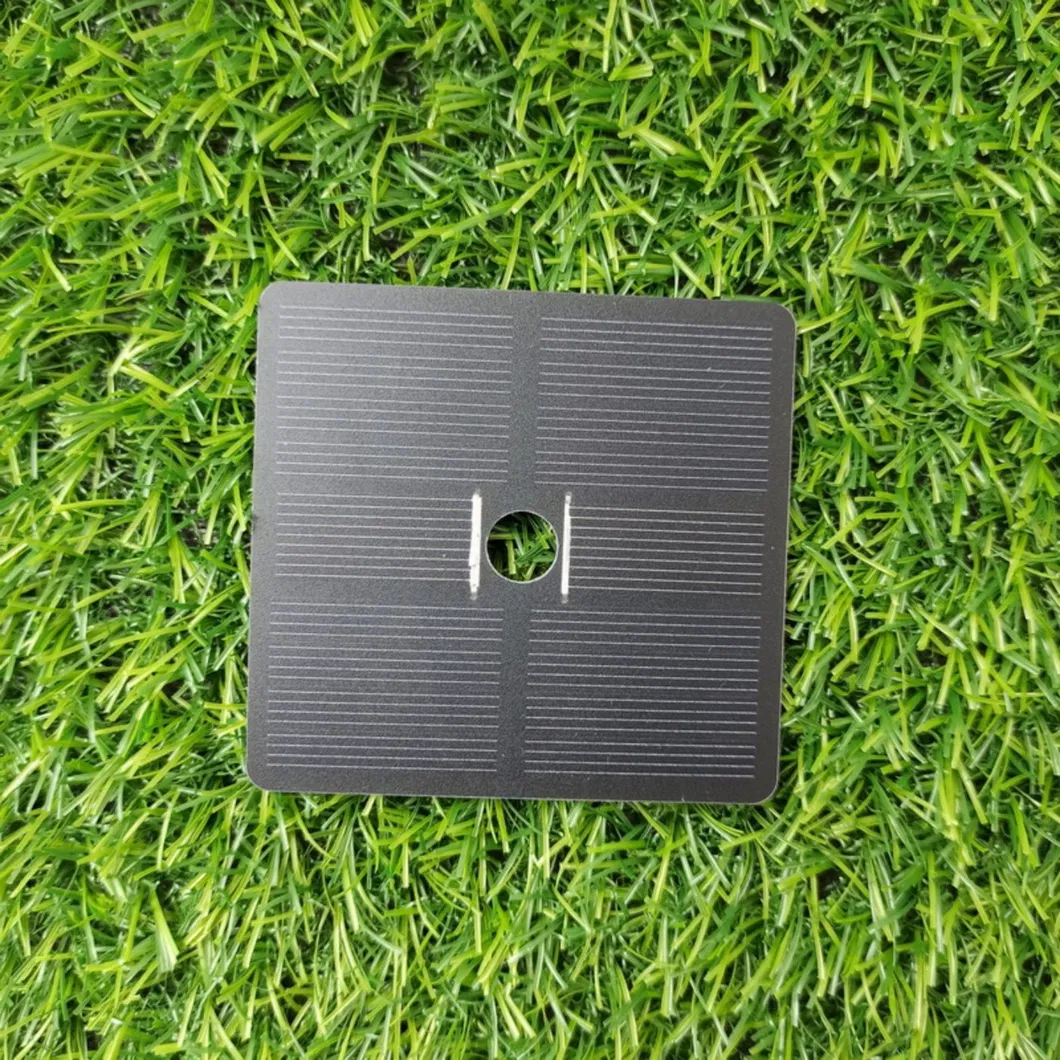

Square Shape Frosting PET Solar Panel
Rated Power: 1.1W | Tolerance: ±5%
Voc: 6V | Isc: 235mA
Vm: 5V | Im: 220mA
Dimension: 80mm*80mm*2mm
Water Protection: IPX6 | Weight: 20.2g

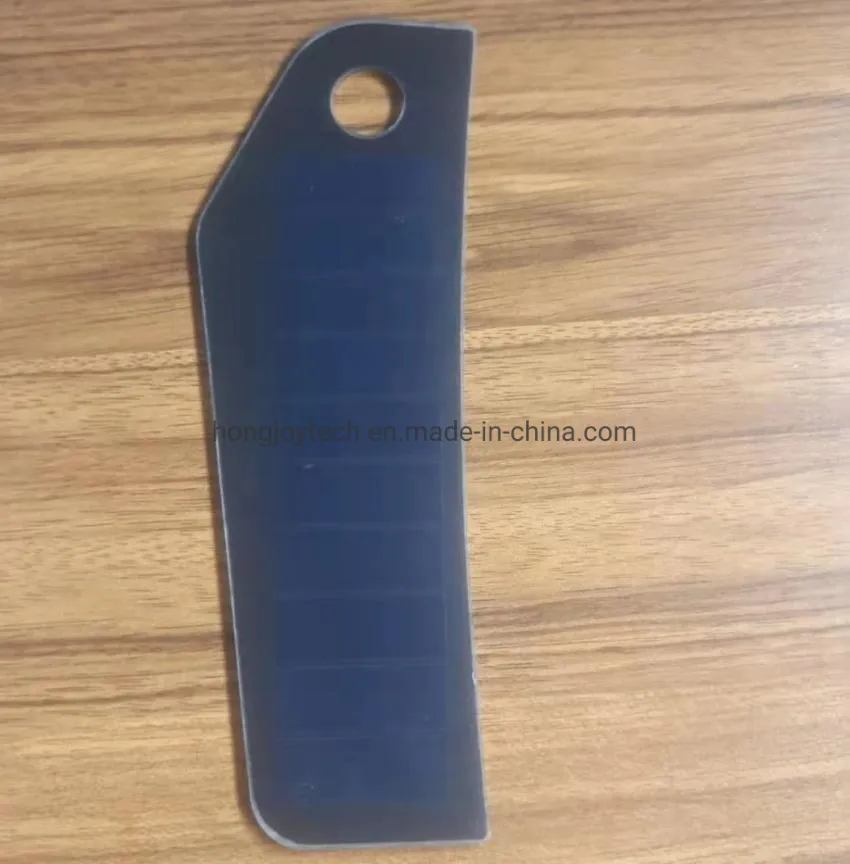

Abnormal Shape Frosting Solar Panel
Rated Power: 0.9W | Tolerance: ±5%
Voc: 6V | Isc: 193mA
Vm: 5V | Im: 180mA
Dimension: 183mm*65mm*2mm
Water Protection: IPX6 | Weight: 28.4g

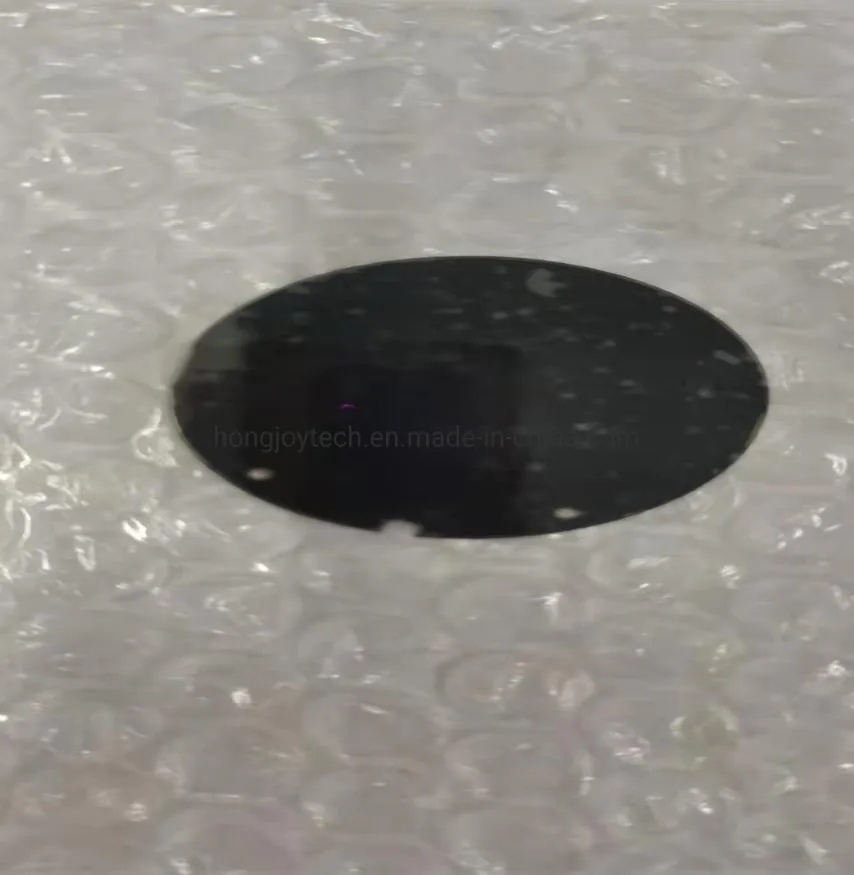

Round Shape Transparent PET Solar Panel
Rated Power: 0.11W | Tolerance: ±5%
Voc: 5.4V | Isc: 24mA
Vm: 4.95V | Im: 22mA
Dimension: Diameter 39.5*1.8mm
Water Protection: IPX6 | Weight: 2g

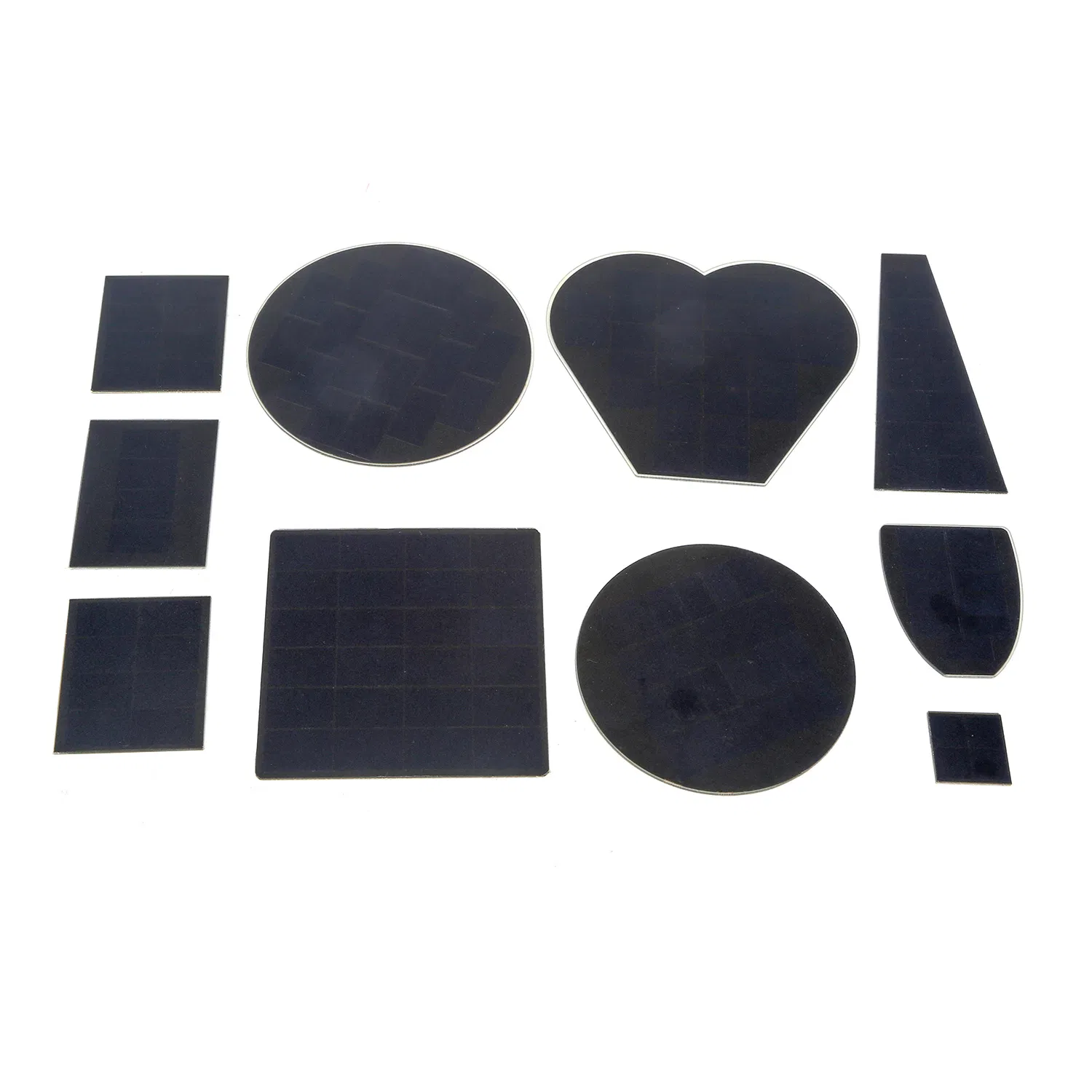

Some of our custom shapes normal mono silicon cells mini solar panel:
