Complete off Grid Solar Energy System 10kw off Grid Home Solar System

Overview - Basic Information

Model NO.

15KW solar system

Nature of Source Flow

Passive inverter

Phase

Single

Output Power

>1000W

Certification

CE, ROHS, ISO9001

Type

DC/AC Inverters

Power Source

Solar Power

Circuit Topologies

Push-pull Type

Nature of Wave String

Sine Wave Inverter

DC

48V/5.5kw

AC

230V

Hz

50Hz/60Hz

MPPT Current

Maximum 100A

AC Current

Maximum 80A

PV Voltage

120-500V

Communication

with BMS

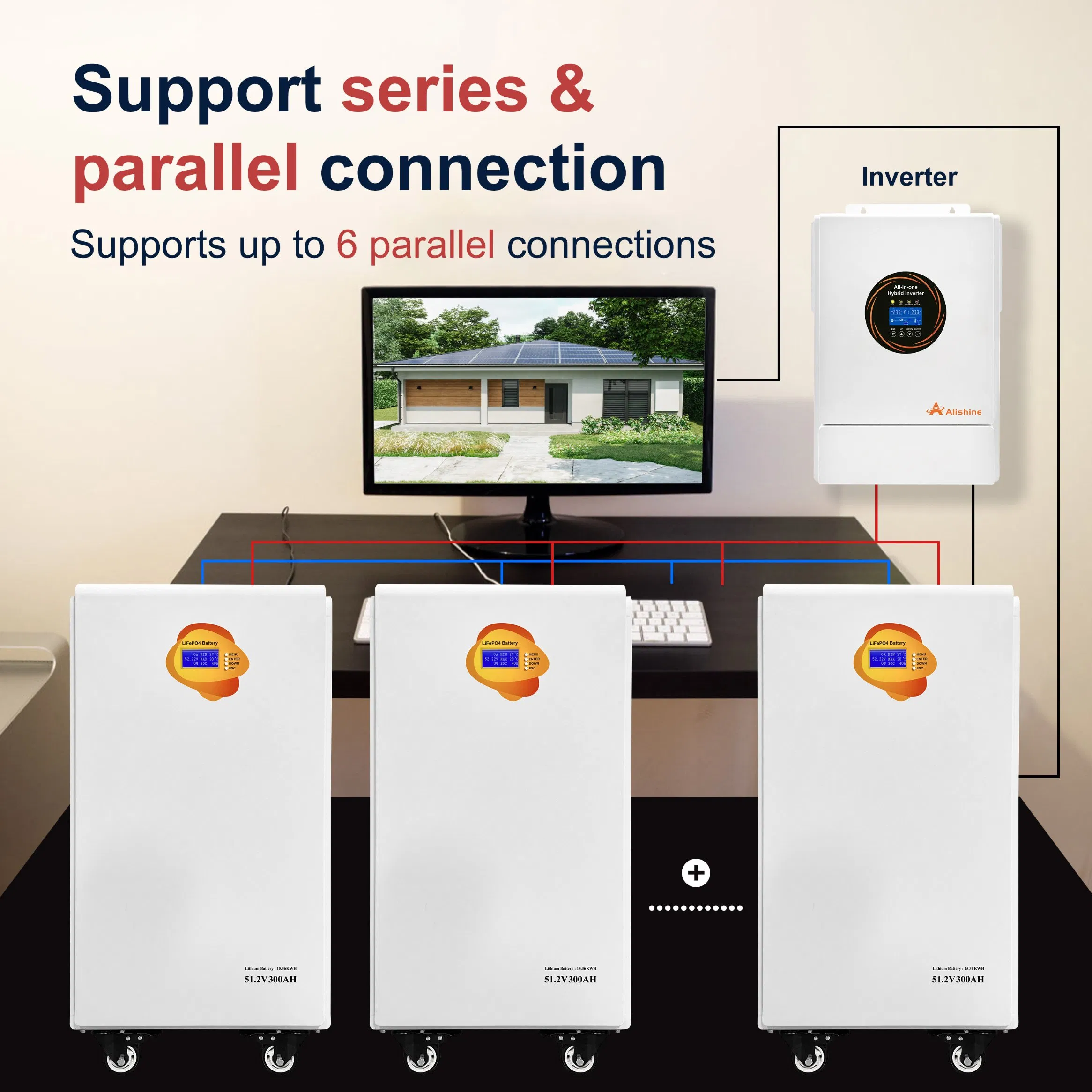

Parallel

Supports 6 Parallel Machines

Package Size

590*435*210mm

Communication Interface

RS232/RS485/Dry Contact

Packaging & Delivery

200.00cm * 130.00cm * 50.00cm (850.000kg)

Product Description

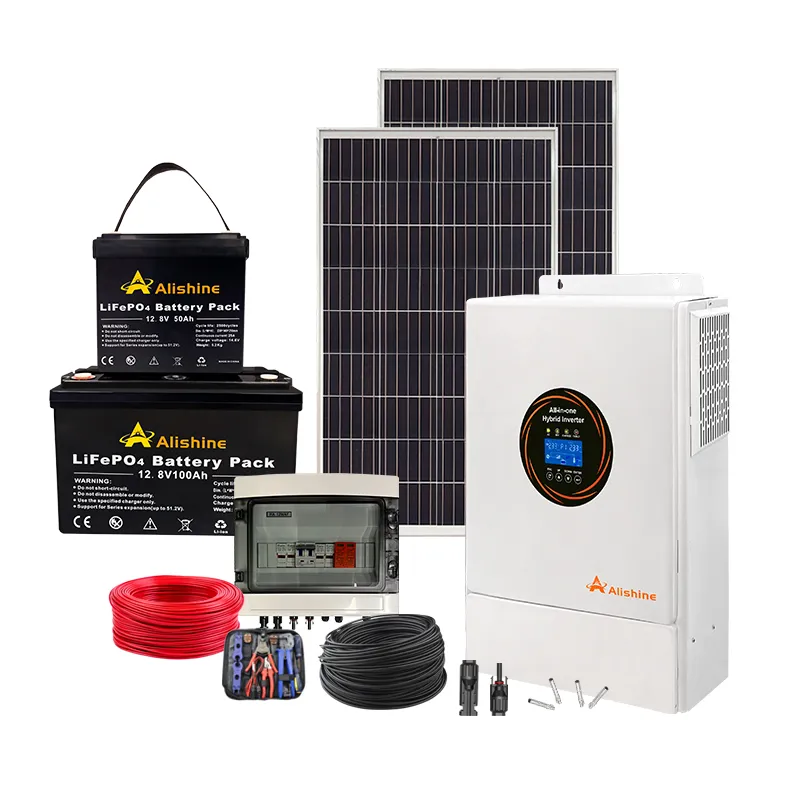

Off Grid Home Hybrid Solar System 5KW 10KW Complete Parallel Solar Inverter

Product Advantages

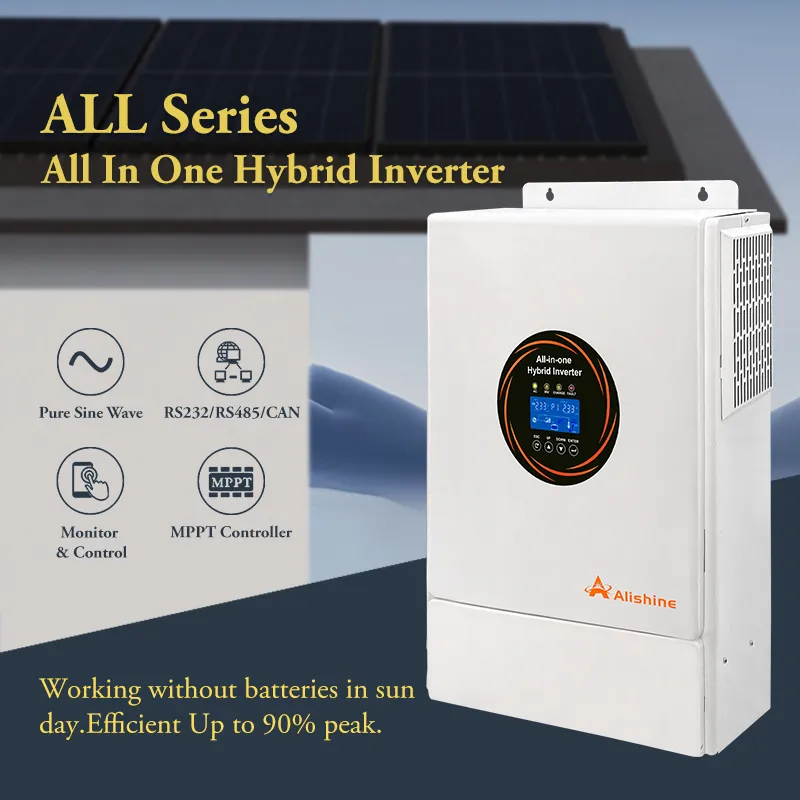

Off-grid hybrid solar inverter: 3 in 1 design (Inverter + MPPT controller + Grid Charger)
Working without battery during daytime
Support lithium activation wake-up and cold start function
Auto restart while AC is recovering
Adjustable Charge Current & Voltage (Lead acid / Lithium battery selectable)

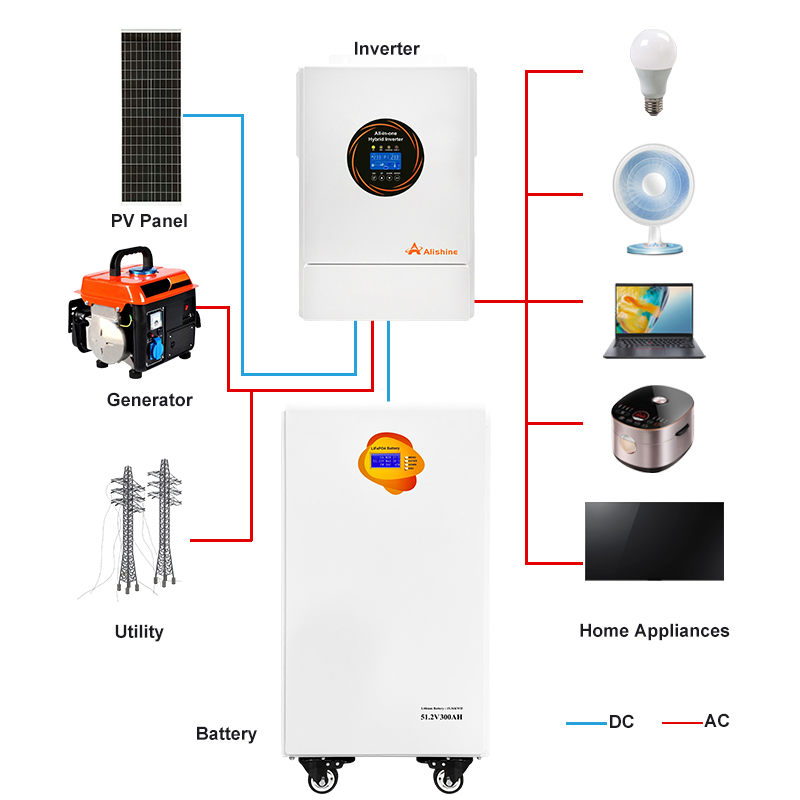

Solar, Grid, and Battery Energy priority selectable

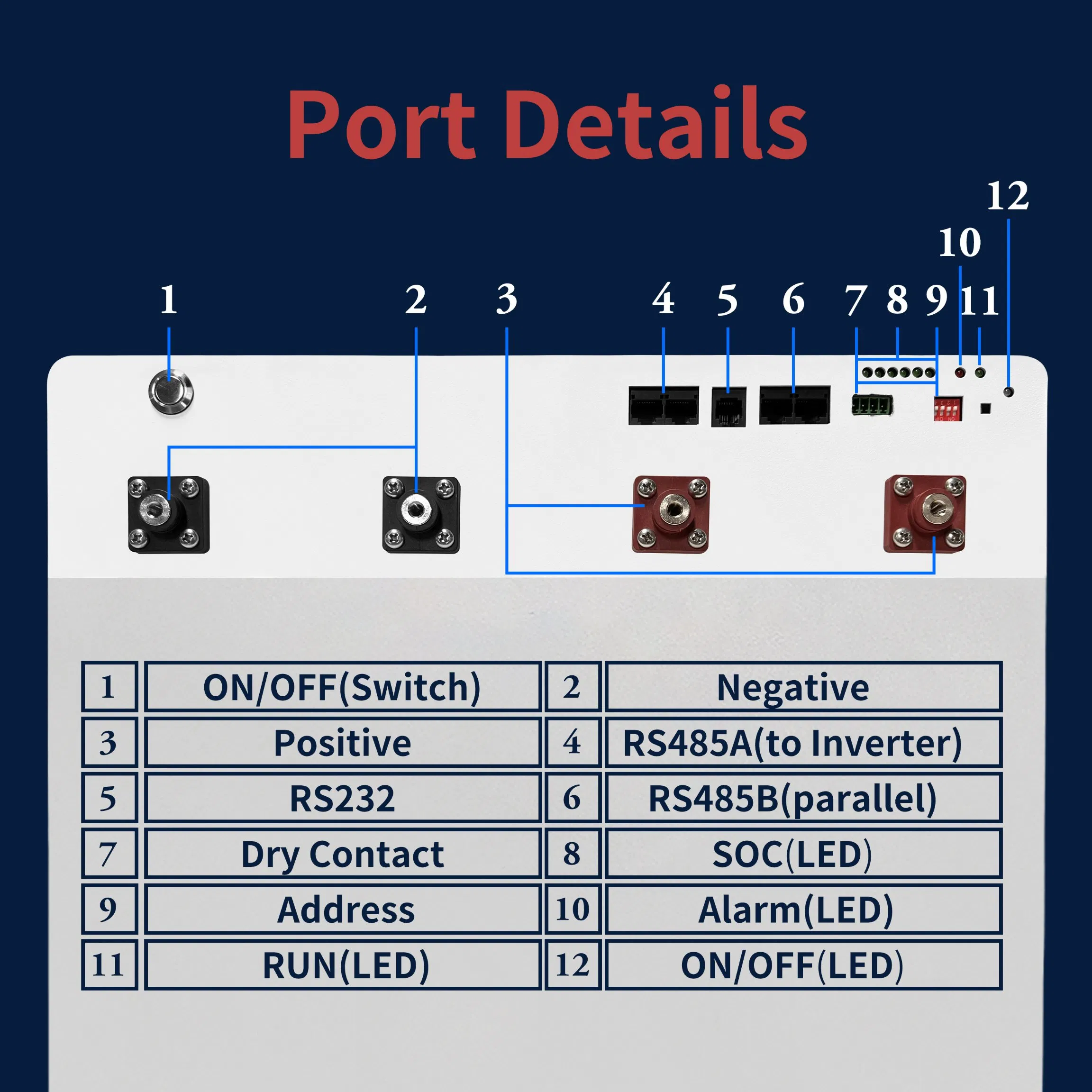

RS232, BMS/RS485, Dry Contact Communication

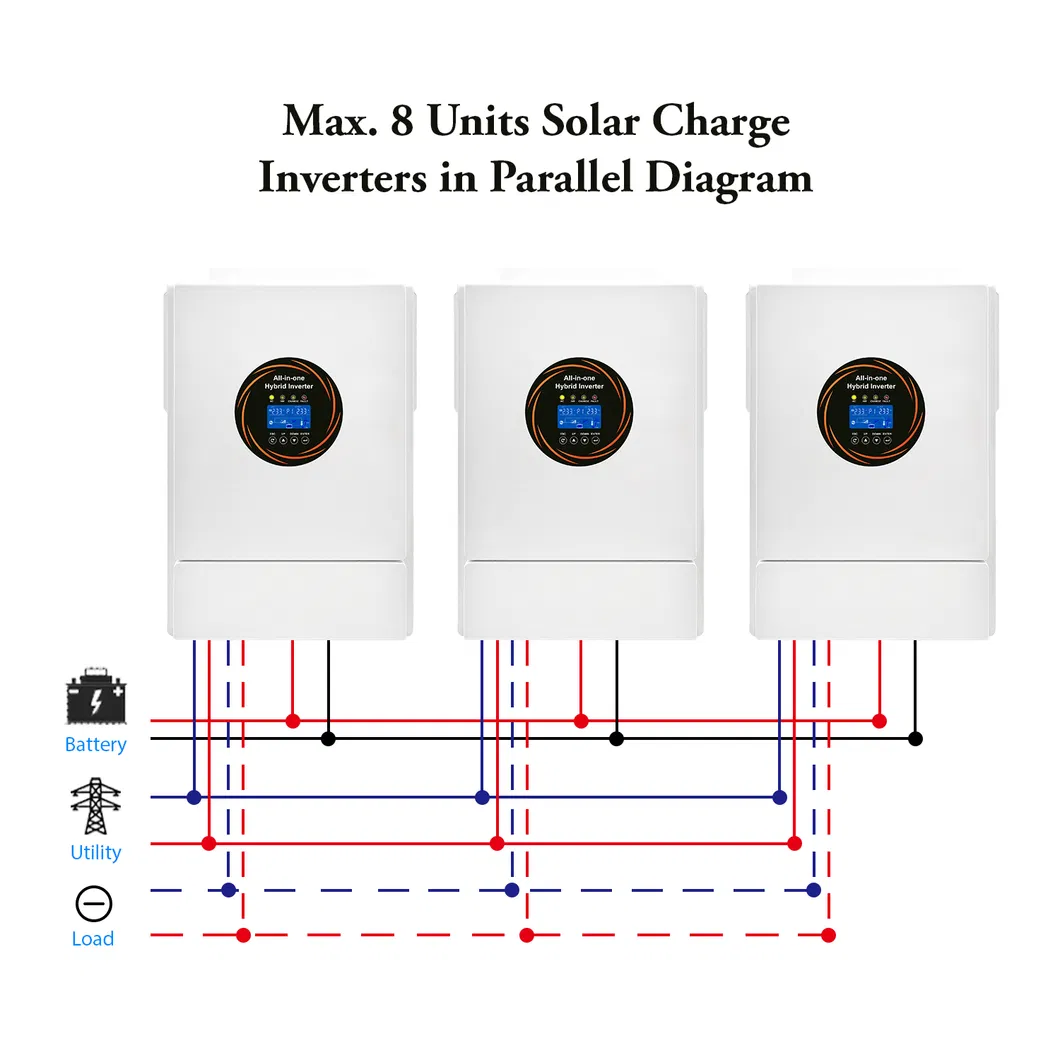

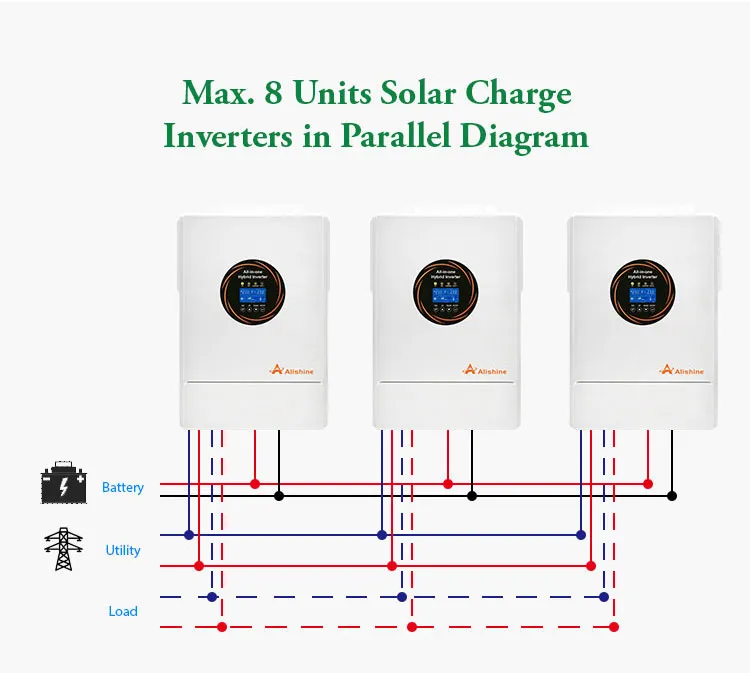

Parallel function: supports up to 9 units
Pure sine wave output suitable for various loads
Comprehensive protection: overload, over temperature, short-circuit, battery reverse connection

Product Parameters

Product Model	Electrical Parameters	Package & Capabilities
AL-5.5KW	DC48V/5.5KW AC230V 50HZ/60HZ MPPT: Max 100A PV Voltage: 120-500V	Stand-alone use Size: 536350135mm
AL-5.5KWPro	DC48V/5.5KW AC230V 50HZ/60HZ MPPT: Max 100A PV Voltage: 120-500V	With BMS communication Supports 9 parallel machines
AL-11KW	DC 48V 11KW AC I/O: 220VAC MPPT Rated Current: 150A PV Array Power: 5500W * 2	Standard BMS, 232 communication Compatible with Lithium/Lead-acid

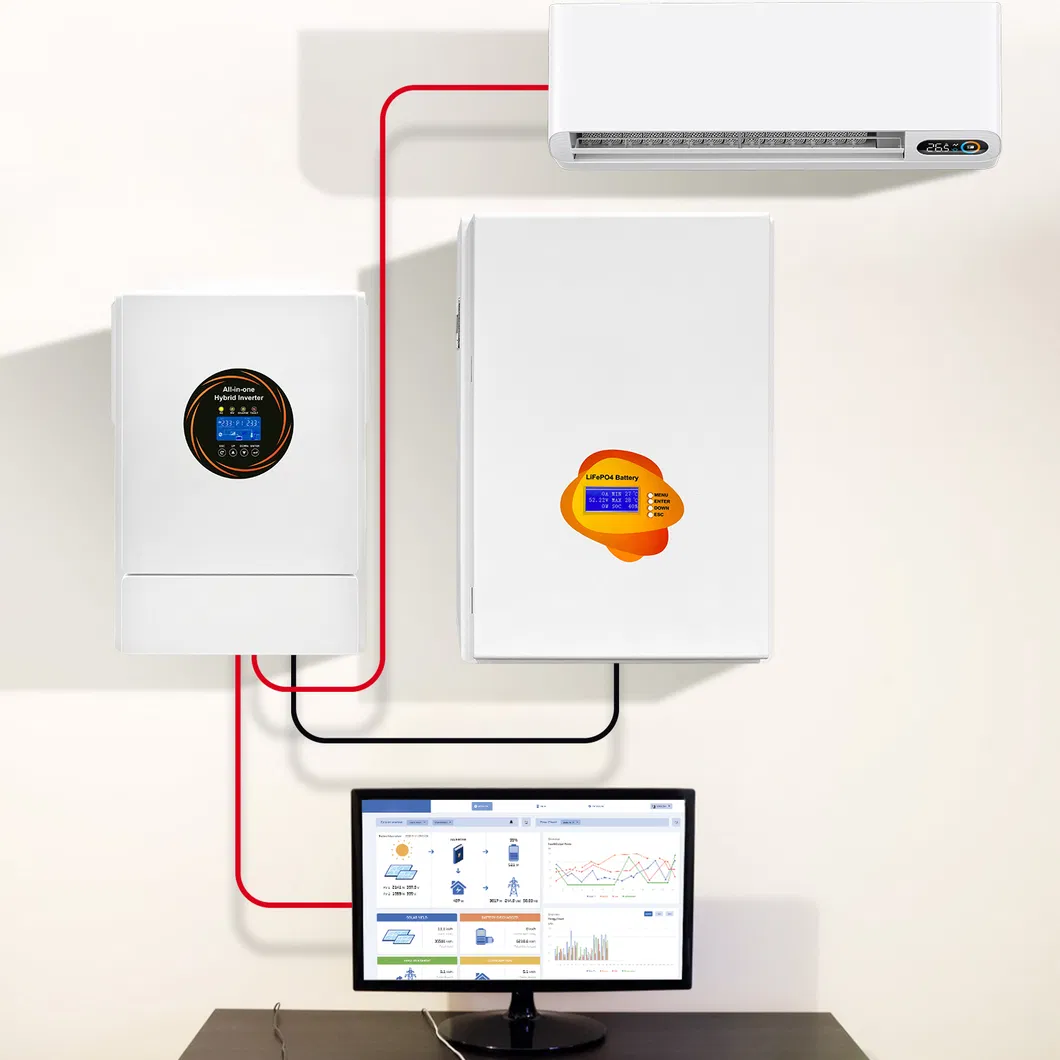

Installation Instructions

● Do not mount the inverter on flammable construction materials. Mount on a solid surface.

● The recommended installation position is to be adhered to the wall vertically.

● Ensure adequate distance from other objects for heat dissipation and wiring access.

Manufacturing & Quality Control

Frequently Asked Questions

Q1: What certificates do your products have?

A: Our manufacturing process is ISO9001, ISO14001, and ISO45001 certified. All products carry CE certificates, and additional certifications can be customized upon request.

Q2: Are you a factory or a trading company?

A: We are a professional battery and inverter manufacturer with our own factory. We provide comprehensive OEM/ODM services for global clients.

Q3: Can I request samples for testing before a bulk order?

A: Yes, we provide sample products for quality and performance evaluation. Please contact our team for sample request procedures.

Q4: What is the typical delivery timeframe?

A: Sample orders are typically processed within 7-10 days, while bulk production usually takes 15-20 days.

Q5: How do you guarantee product safety?

A: Safety is our priority. Over 16 years of lithium battery manufacturing, we have maintained a record of zero explosion or fire accidents through rigorous quality control.

Q6: Do you provide technical support for installation?

A: Yes, we provide 24-hour online technical assistance. You can reach us for support regarding installation or after-sales service.
