Wing Solar
Wing Solar

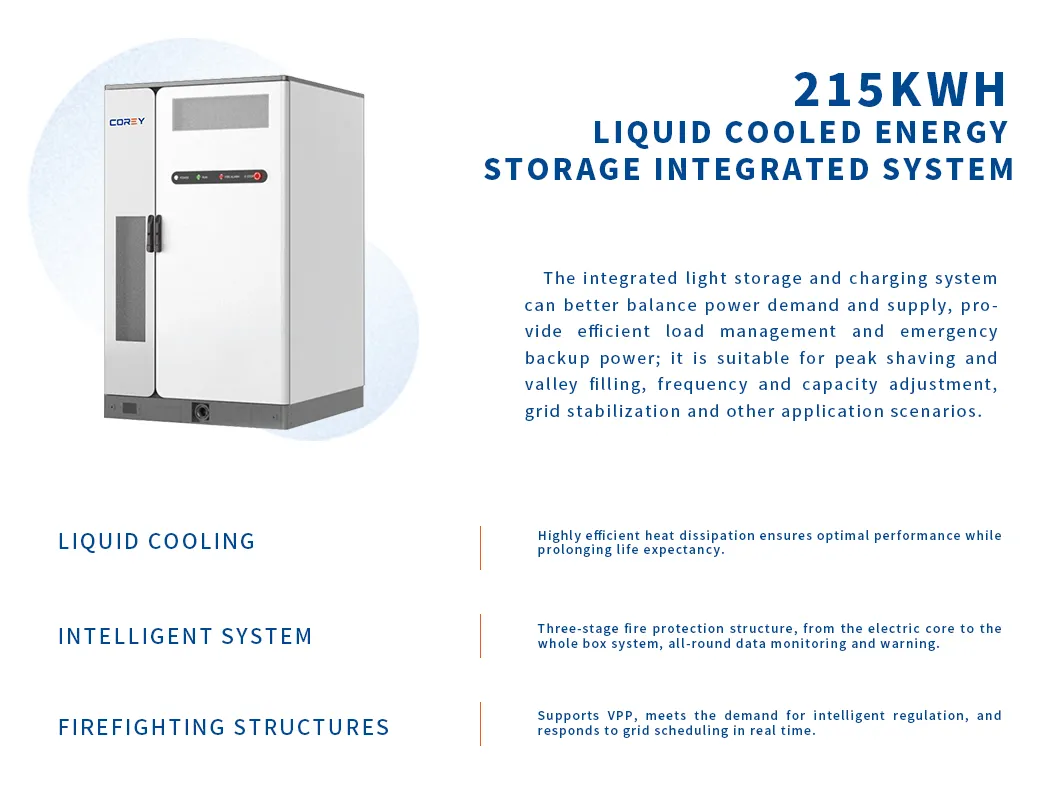

The commercial and industrial storage cabinet system utilizes a multi-stage protection design of battery packs and clusters to effectively isolate faults and prevent spread. The divided system design and three-tier intelligent fire safety design minimize fire risks, ensuring maximum safety for personnel and assets.
Functions as an emergency backup power source to ensure continuous operation.

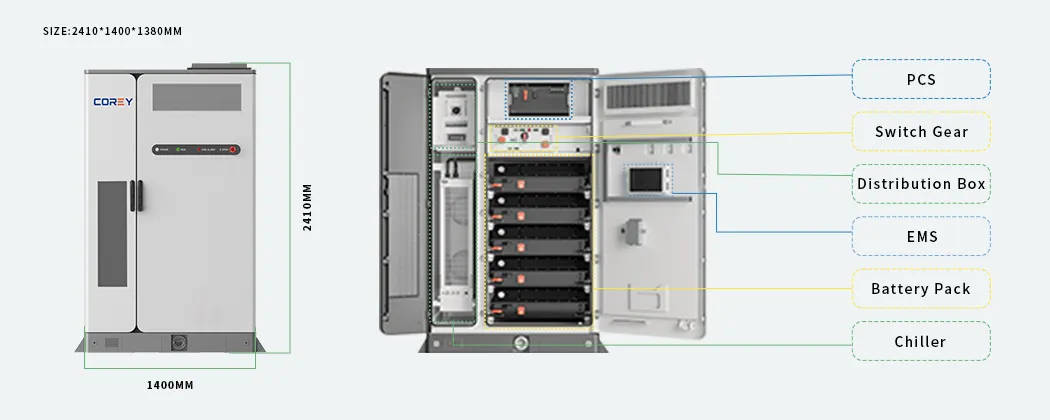

Modular design allowing for expansion and customization with convenient installation.
Optimizes energy usage and significantly reduces operational costs.
Fast grid-connected/off-grid switching with multiple protection layers.
| Category | Specifications (Model: 215CE) | |
|---|---|---|
| System Parameters | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 215kWh | |
| Rated Power | 105kW | |
| Communication | CAN/RS485/Ethernet/4G | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol (Pack + Cluster) + Water (Cabinet) | |
| Operating Temp | -20ºC to 50ºC (Discharge) | |
| Protection / Anti-corrosion | IP54 / C4 | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Maximum Current | 167A | |
| Switching Time | < 20ms (Optional) | |
| THDi / THDu | < 2% / < 3% | |
| DC Side | Rated Voltage | 768V |
| Voltage Range | 682~864V | |
| Discharge Depth | 95% DOD | |

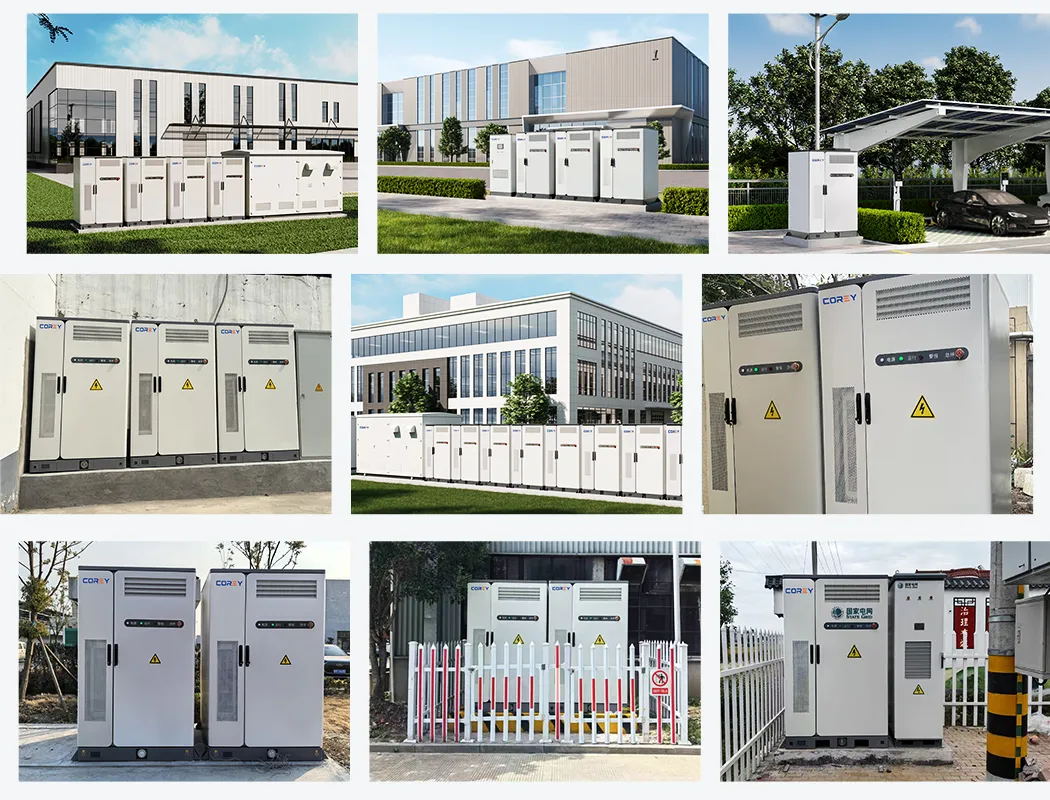

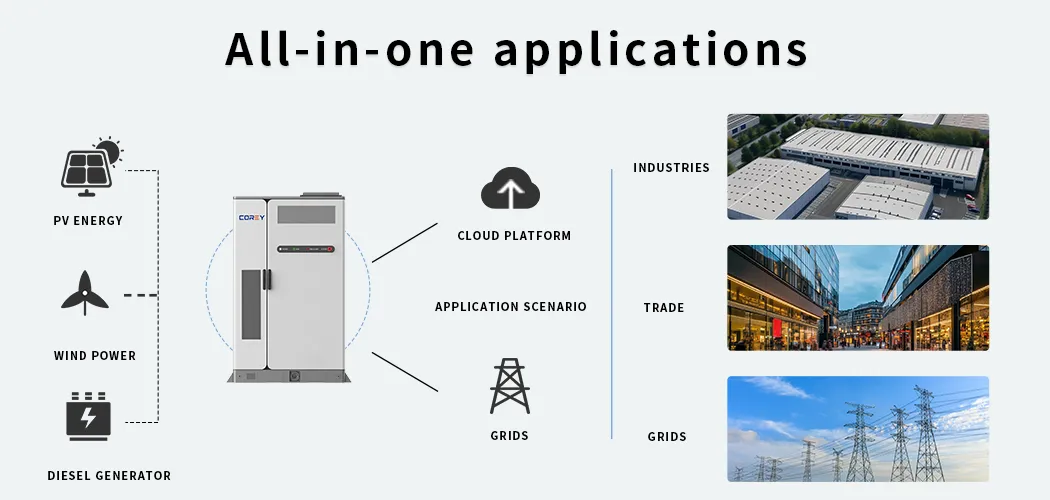

Ideal for commercial buildings, factory complexes, remote areas, and regions experiencing frequent power shortages.

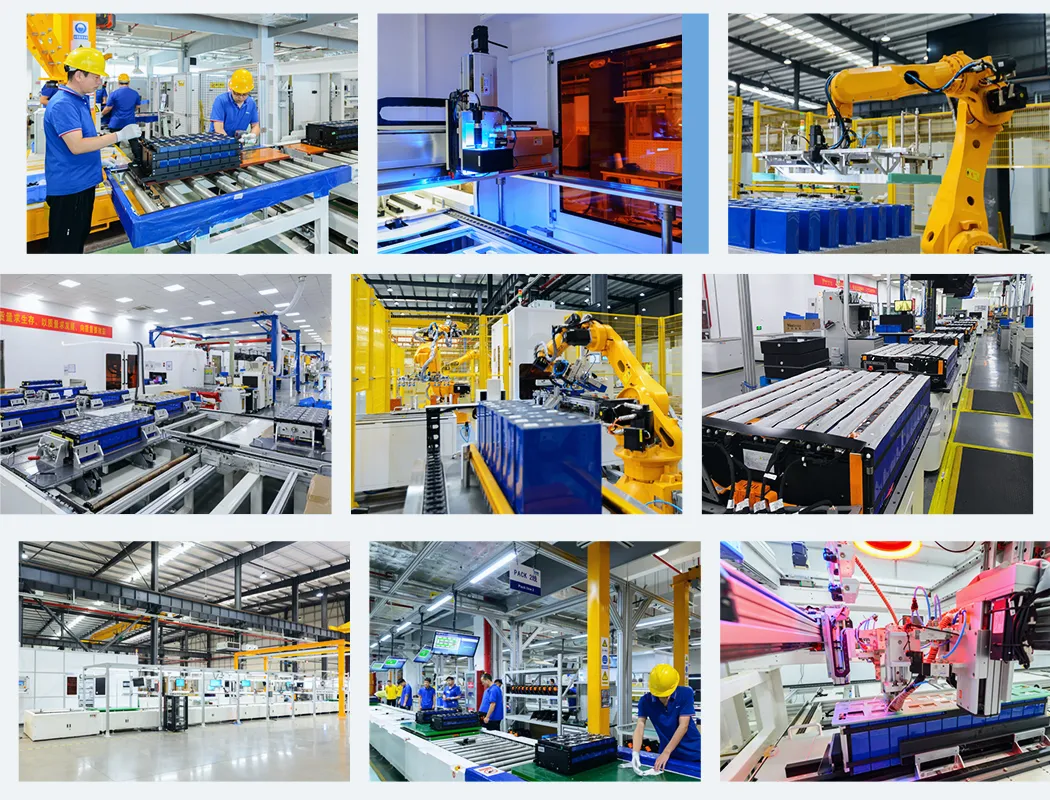

Specializing in automated intelligent equipment and laser welding technologies for lithium battery modules since 2014, the group provides high-intelligence manufacturing solutions. We offer one-stop green power station solutions including turnkey services, microgrid solutions, and energy storage projects. Our mission is to lead energy transformation through clean, stable, and safe power systems.
