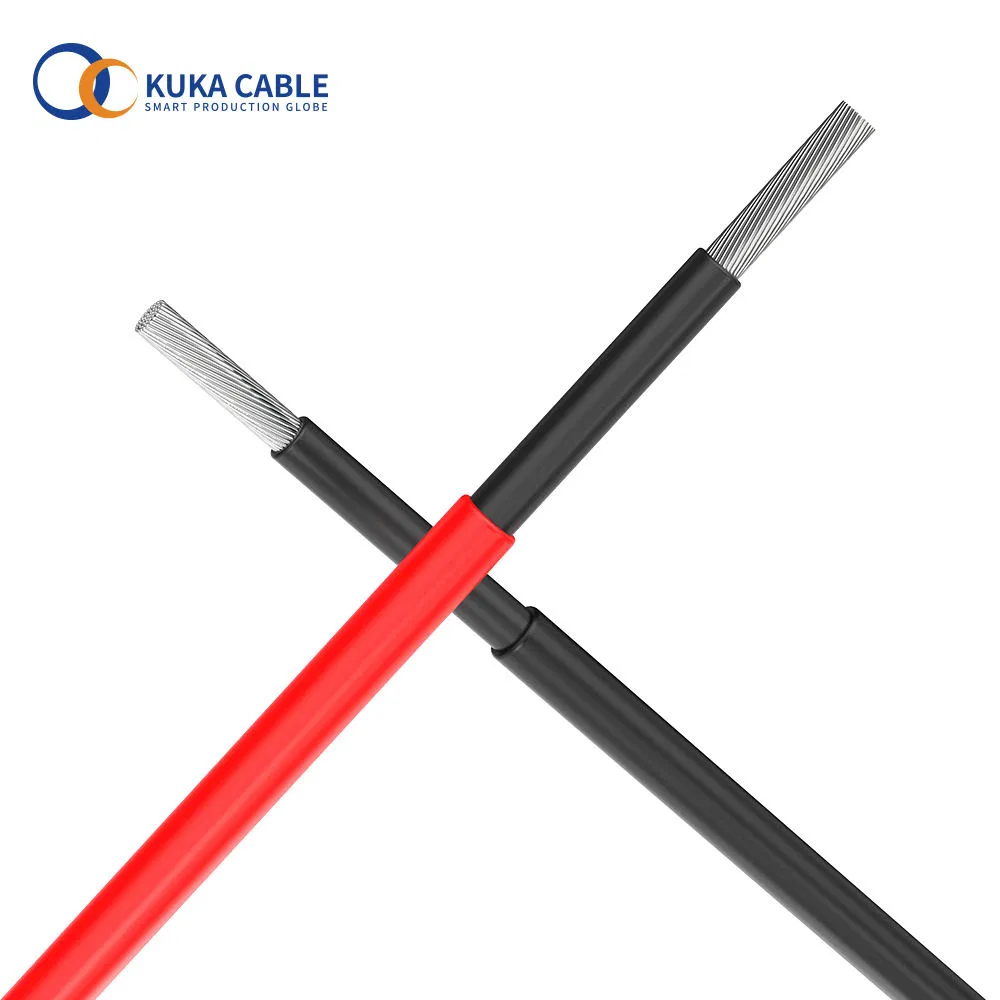

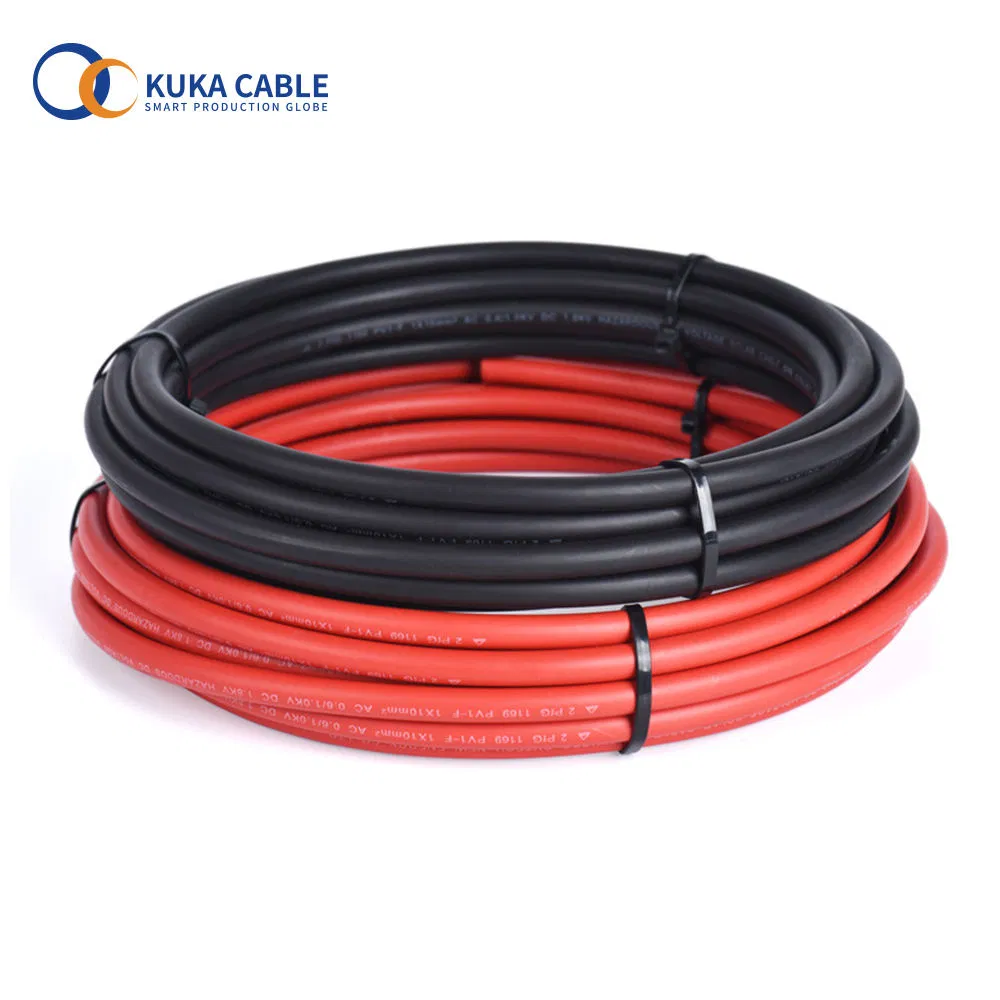

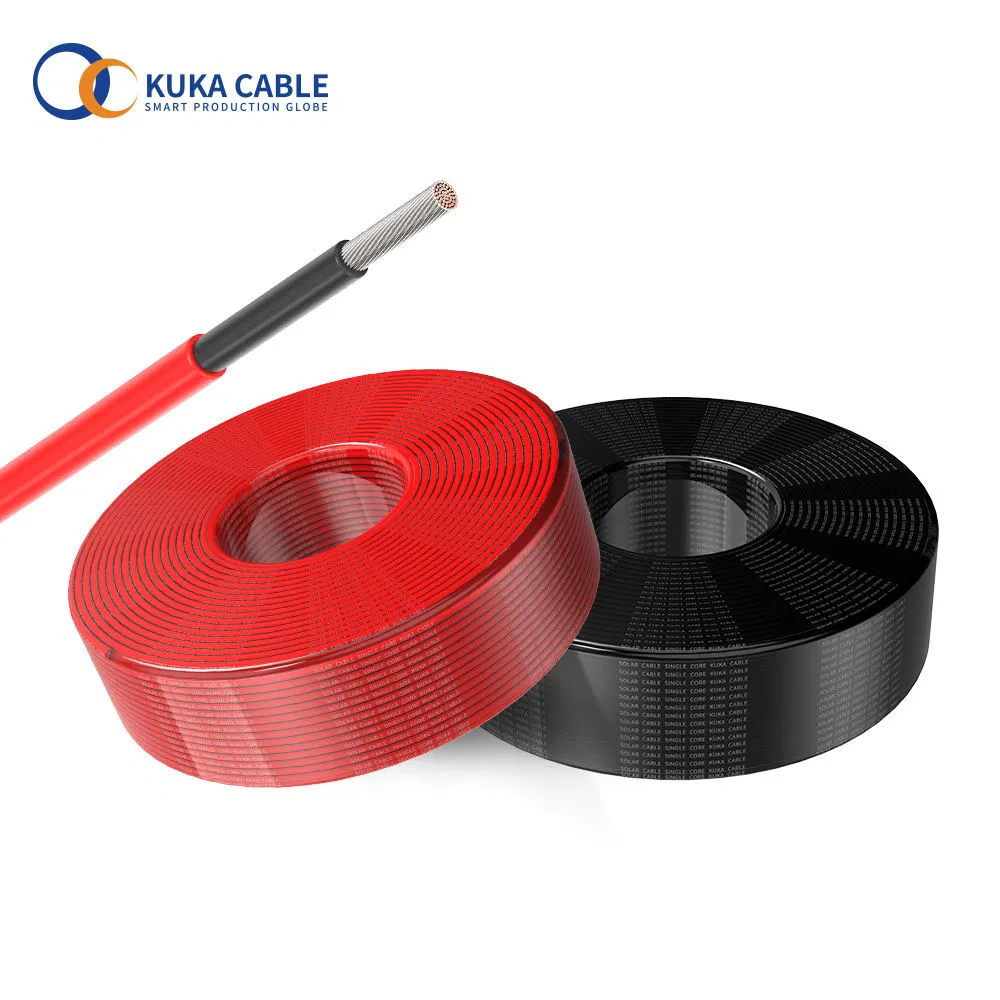

Solar Cable H1Z2Z2-K

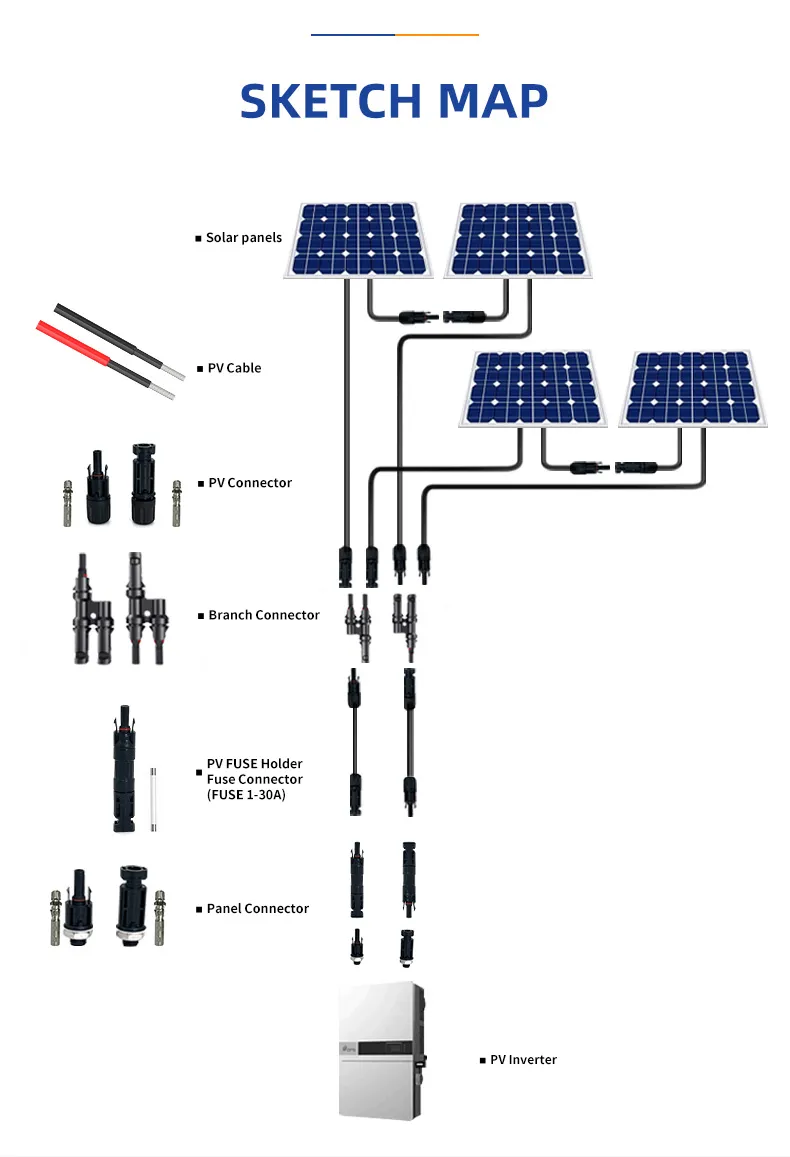

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.

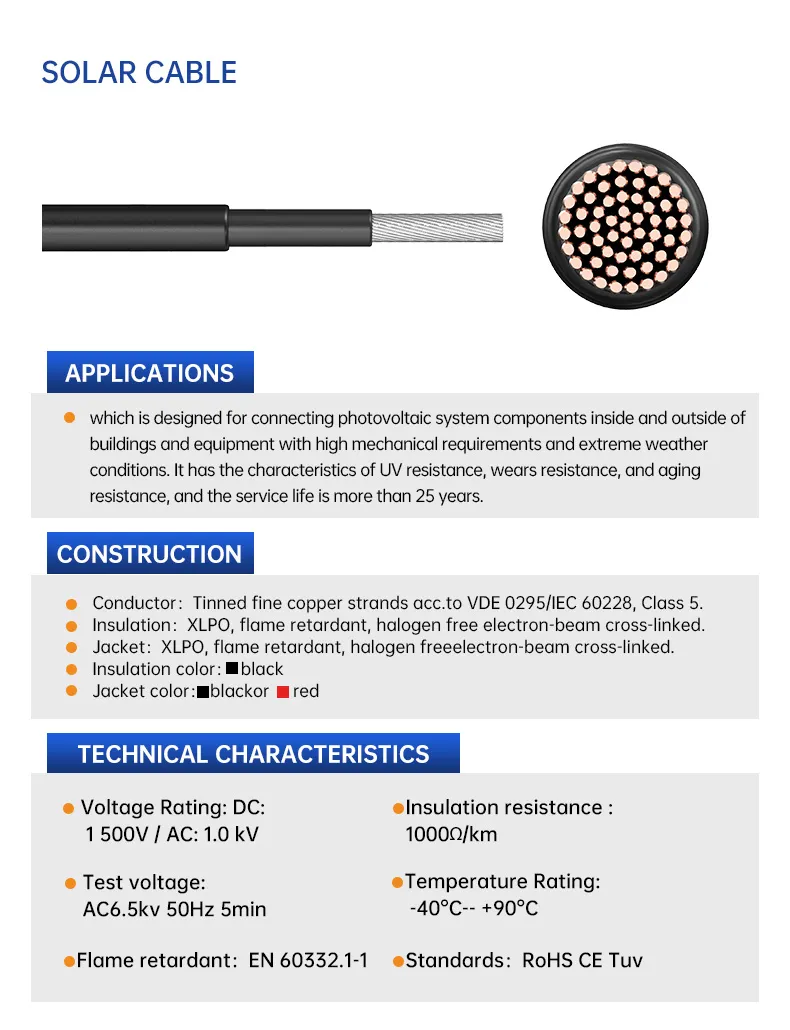

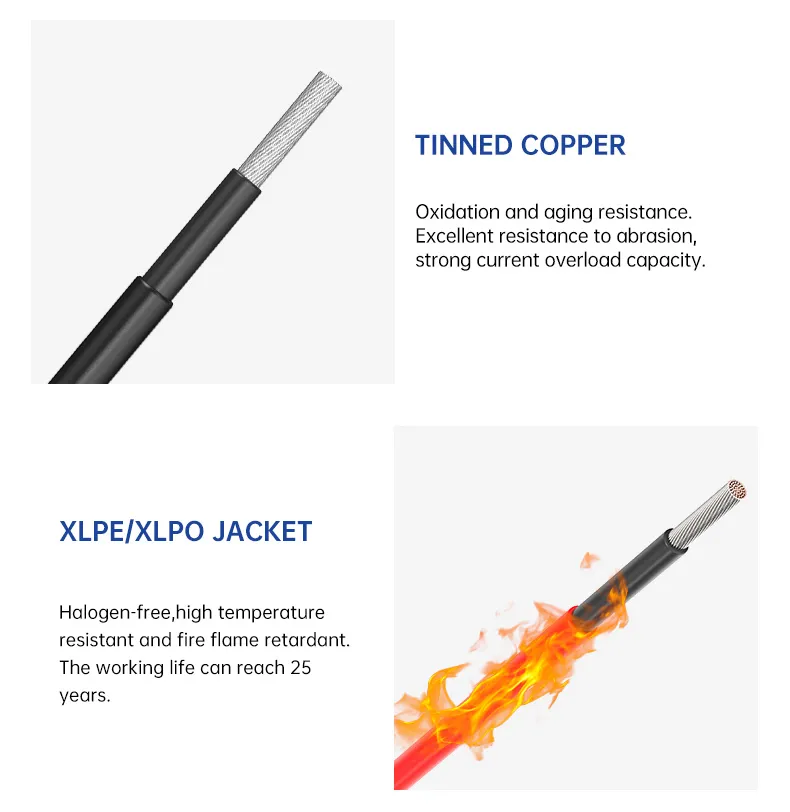

| Conductor | Class 5 flexible annealed Stranded Tinned Copper Acc. to EN-IEC 60228 |
| Insulation | Low Smoke Zero Halogen(LSZH) E-beam Cross-linked Compound(XLPO) |
| Jacket | Low Smoke Zero Halogen(LSZH) Flame Resistant E-beam Cross-linked Compound(XLPO) |
| Jacket color | Black or Red |
| Rated Voltage | 1000VAC, 1500VDC |
| Test Voltage | 6500V, 50Hz, 5Min |
| Temperature Rating | -40°C-120°C, More than 25 Years |
| Fire Performance | IEC 60332-1 |
| Standard | EN50618 & IEC62930 |
