China 10V 20W Solar Panel Portable Home Kits

Customization: Available
Condition: New
Application: Home, Camping and So on

Product Description

Basic Information

Model NO.:SS-M04
Specification:Normal
Flexibility:Portable
Sample:Available
Battery:6.4V6000mAh LiFePO4
Warranty:2 Years
Solar Panel:10V 20W Polycrystalline
Life:50000 Hrs
HS Code:8507600090

Product Description

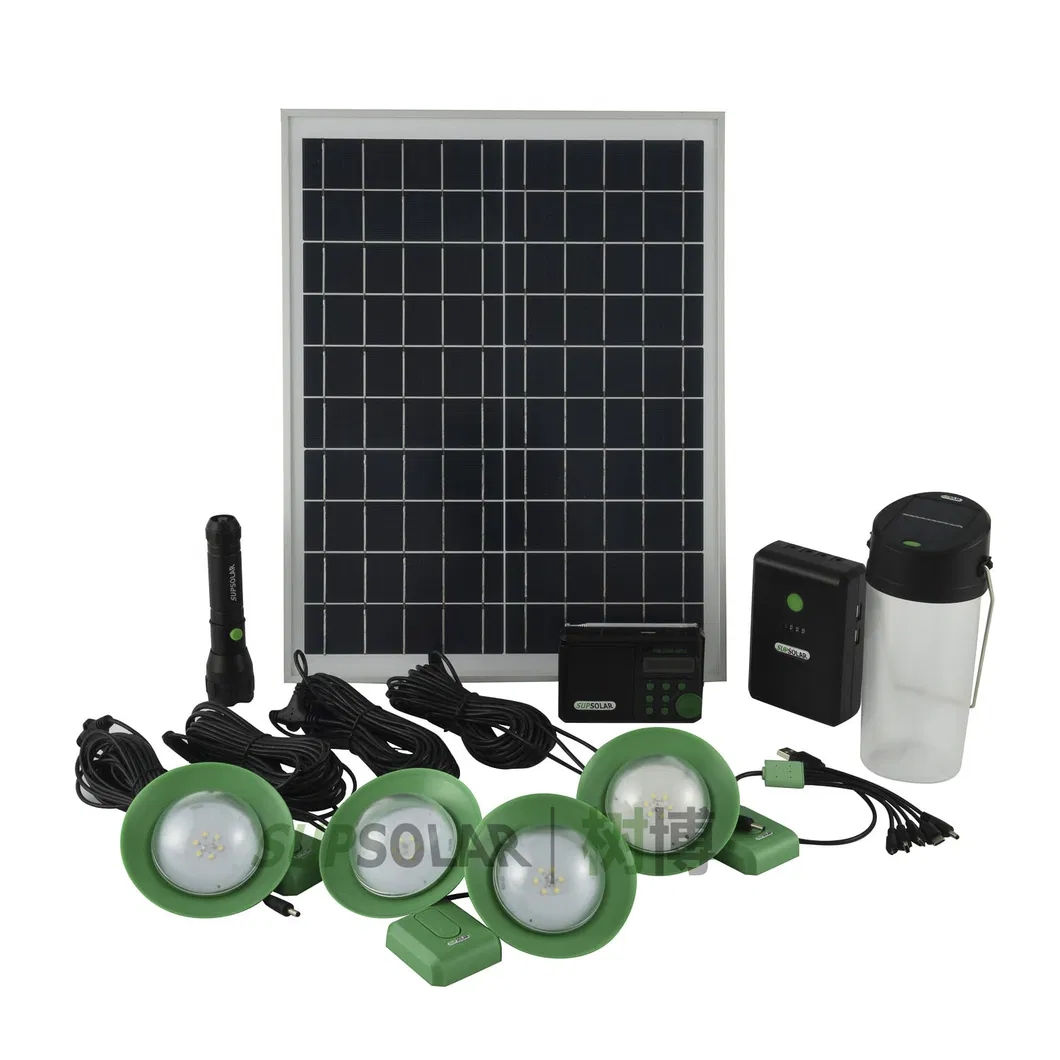

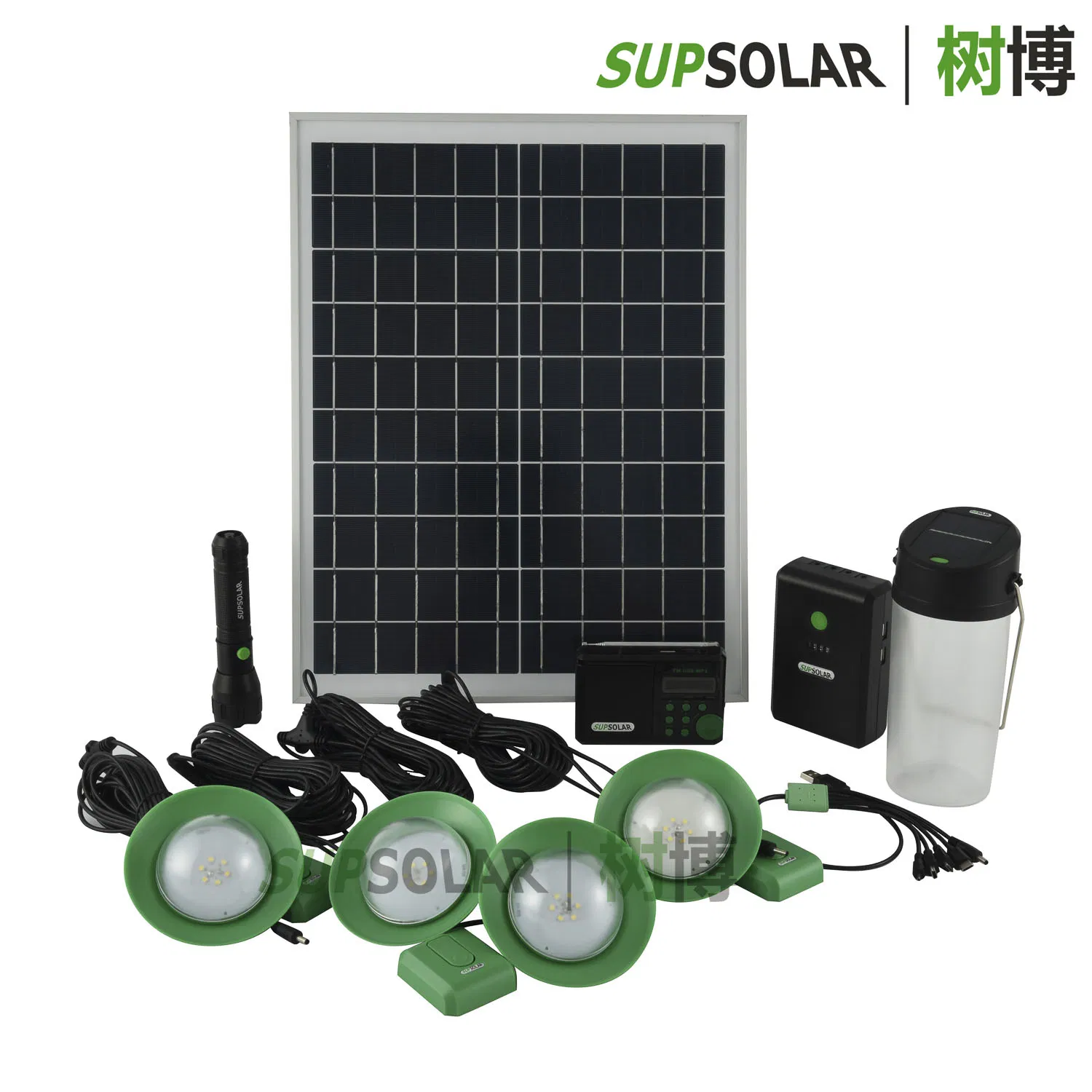

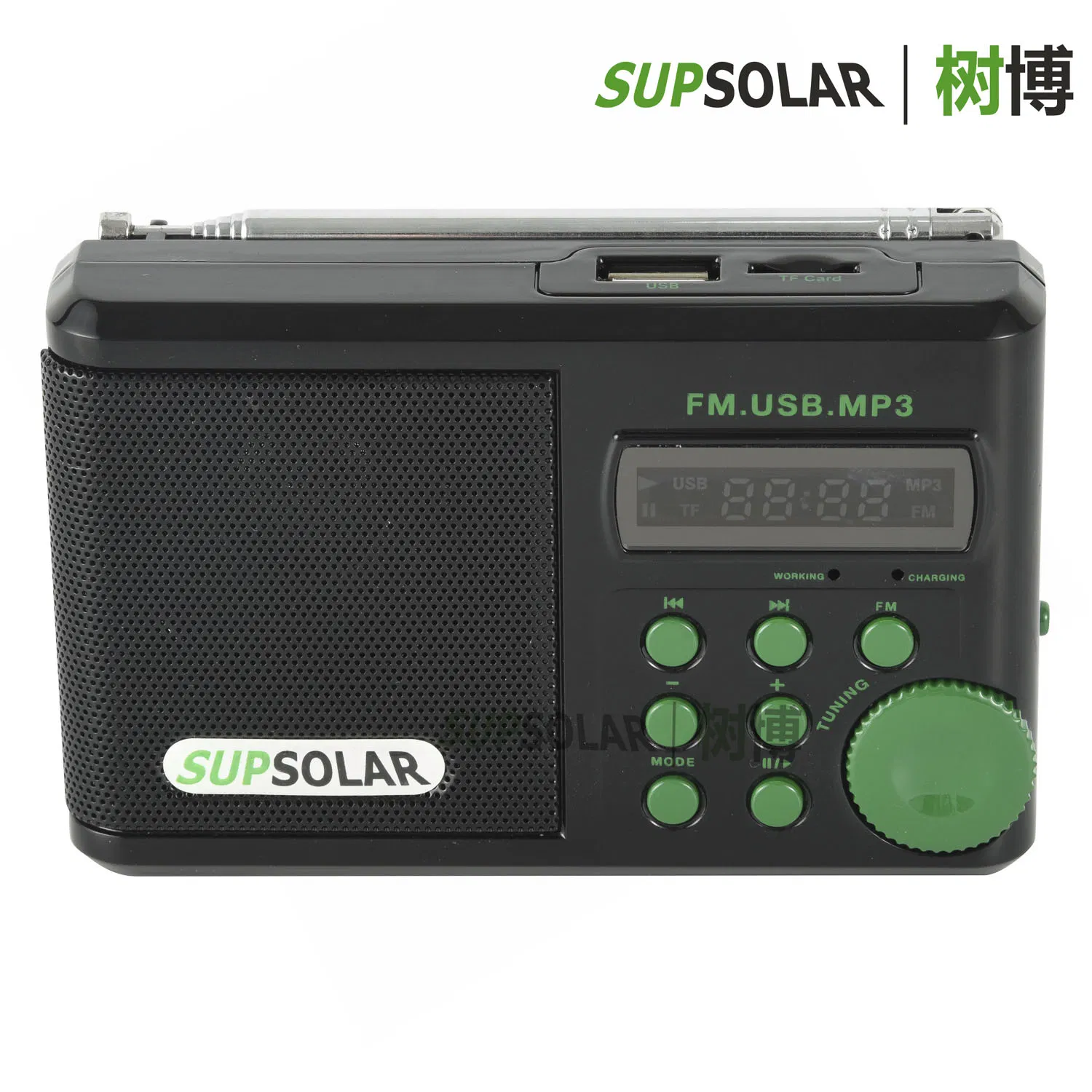

10V 20W Portable Solar Power Lighting System PV Panel for Home & Outdoor Use with FM Radio

Model NO.SS-M04
Solar Panel10V 20W Polycrystalline silicon solar panel with 6m cable
Battery6.4V 6000mAh LiFePO4

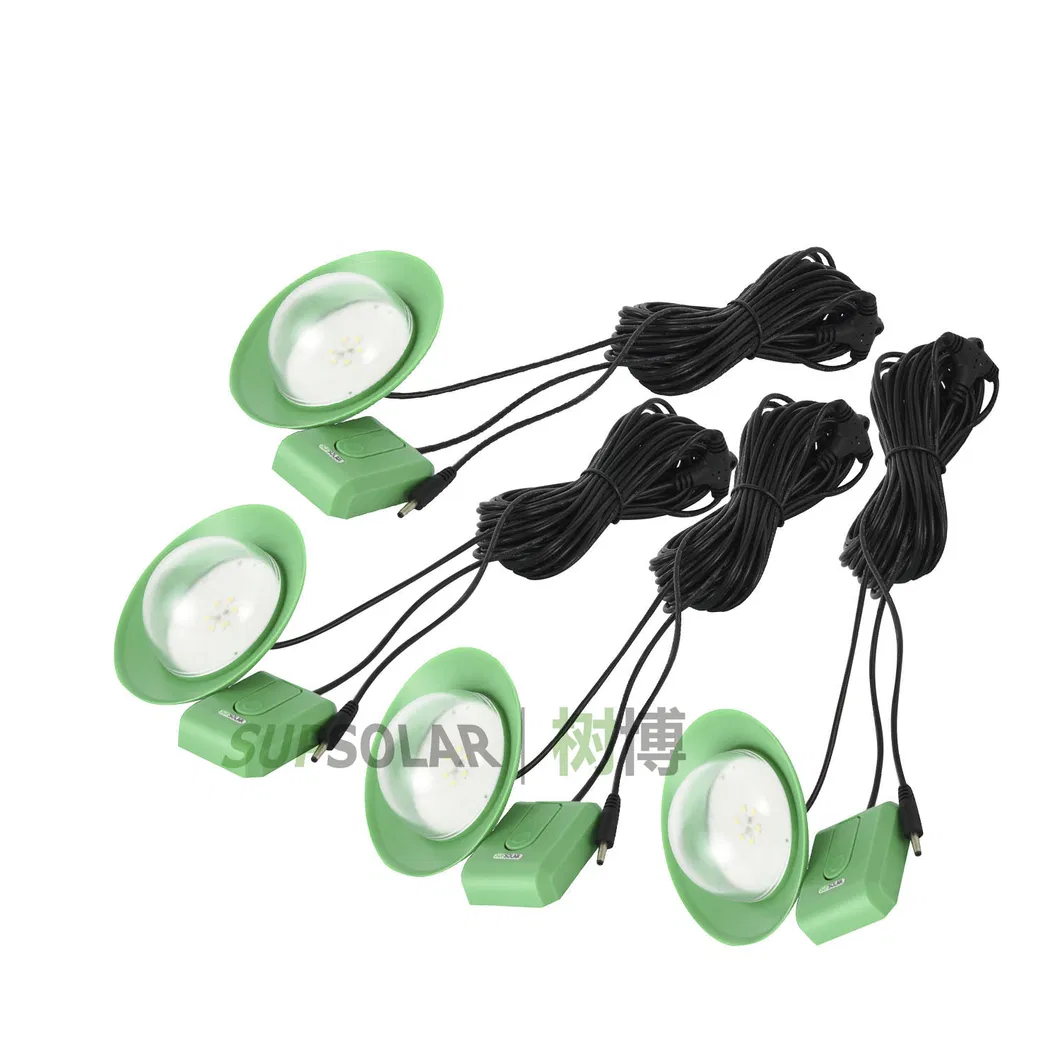

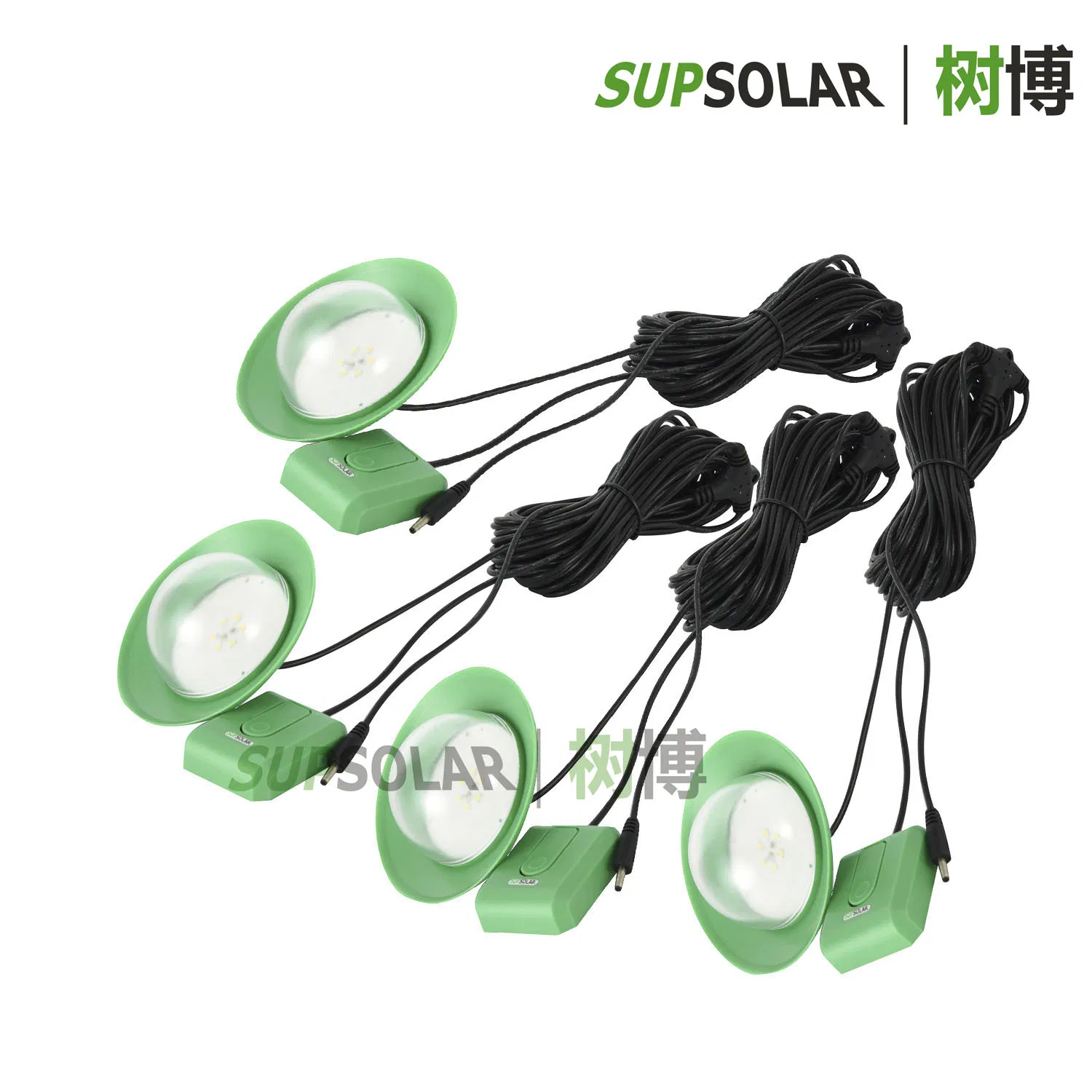

Light Source4pcs * 2W LED Lamp
InputSolar
OutputDC / USB
DC Output4 PCS (DC6.4V 1A = 6.4W)
USB Output2 PCS (5V 1A)
Full-Charged Time5-6 hours
Working Time4.5-9 Hours
Operation Temperature-10°C to 50°C
ProtectionOvercharge and Overdischarge Protection

Key Features

  • Trickle, constant current and constant voltage charging modes for LiFePO4.
  • Complete charge management for single-section battery.
  • Trickling charge for deep discharge batteries.
  • Wide input voltage range: 6.5V to 15V.
  • Maximum power point tracking (MPPT) function.
  • Simple one-button start operation.
  • Prevent false turn-off: 3-second long press to power down.
  • USB output overcurrent protection.
  • LED lamps with overcurrent and short circuit protection.
  • Real-time status display with red light flashing prompts.

Advantages

  • Sustainable and renewable energy source.
  • High safety & Environmental protection with LiFePO4 battery.
  • Highly popular in rural areas without electricity access.
  • OEM customization is available.
