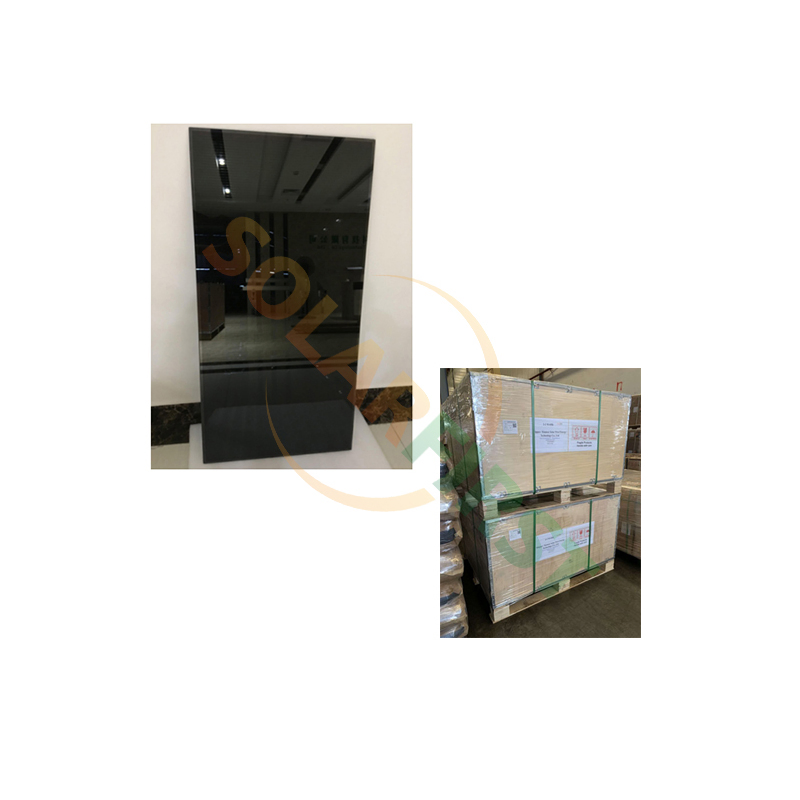

Cdte Price PV 20% 40% Transparent Thin Film Solar Panel for BIPV

Customization: Available
Material: Thin Film, Cdte
Application: Industrial

Product Description

📊
Basic Information
Model NO.:SF-TFSP27
Product Name:Thin Film Solar Panel
Color:Customized Color
Feature:Light Weight
Weight:11.8kg
Frame:None
Cell Type:Cadmium Telluride
Area:0.72m2
Thickness:7mm
OEM Order:Acceptable
Warranty:10 Years
Condition:New
Certification:ISO, CE
Transport Package:Plywood Box
Specification:1200*600*7mm
Capacity:100000 Watts / Per Week
💡
Product Description
Thin Film Solar Panel
Key Features:
  • Generates electricity even at low light levels, featuring second-generation solar technology and superior aesthetics.
  • Available in transparencies up to 50% with an efficiency of up to 12%.
  • Works effectively down to ambient light levels with a highly aesthetic finish.
  • Less position sensitive; bespoke sizing available for single or double glazed panels.
⚙️
Technical Specifications
CDTE Transparent Thin Film Solar Panels
Item Transparency Size (mm) Weight Pmax Voc Isc Vmpp Impp
ST1-15w80%1200*600*712Kg15w111V0.23A85.5V0.18A
ST1-23w70%1200*600*712Kg23w114V0.31A87.8V0.26A
ST1-30w60%1200*600*712Kg30w114V0.41A87.8V0.34A
ST1-34w55%1200*600*712Kg34w114V0.46A87.8V0.39A
ST1-38w50%1200*600*712Kg38w114V0.51A87.8V0.43A
ST1-42w45%1200*600*712Kg42w114V0.56A87.8V0.48A
ST1-46w40%1200*600*712Kg46w114V0.61A87.8V0.52A
ST1-52w30%1200*600*712Kg52w114V0.72A87.8V0.59A
ST1-61w20%1200*600*712Kg61w114V0.82A87.8V0.70A
CDTE Non-Transparent Thin Film Solar Panels
Item Transparency Size (mm) Weight Pmax Voc Isc Vmpp Impp
SF1-85wNo1200*600*6.811.8Kg85w120.5V0.98A96.06V0.88A
SF1-90wNo1200*600*6.811.8Kg90w122.0V1.06A96V0.94A
SF1-94wNo1200*600*6.811.8Kg94w122.5V1.08A96V0.96A
🖼️

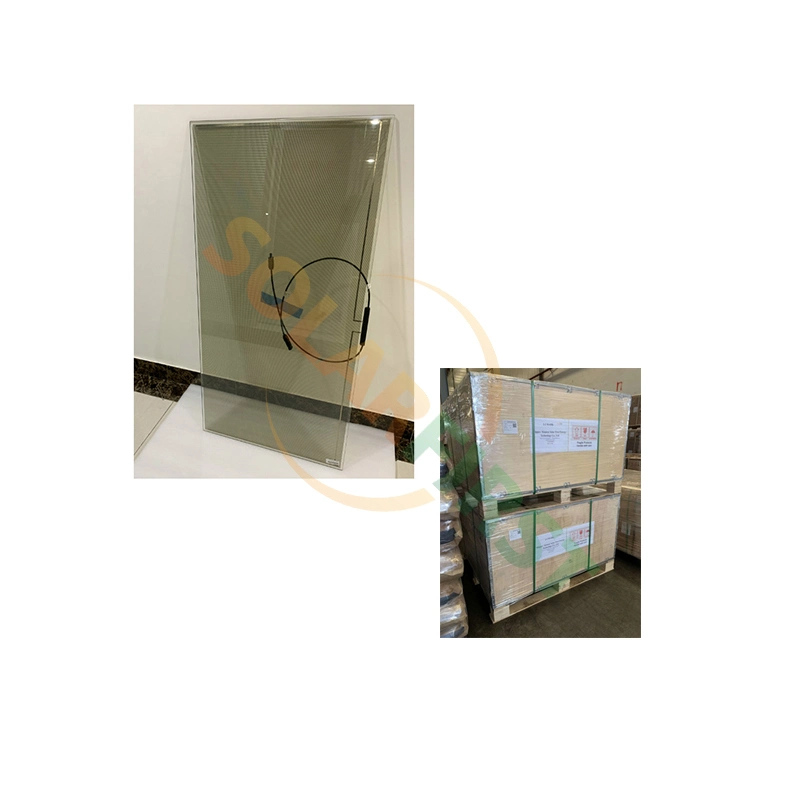

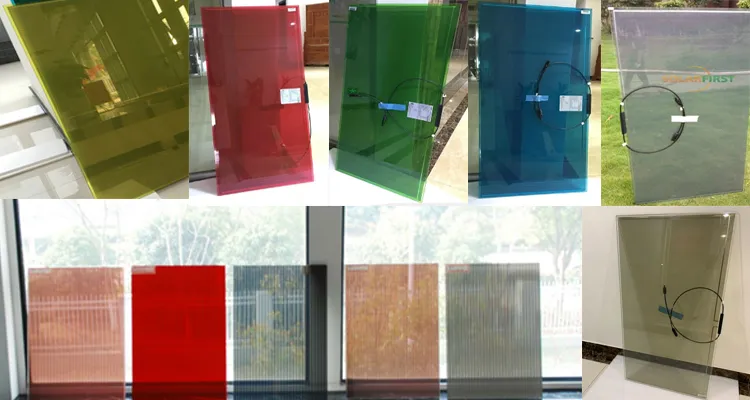

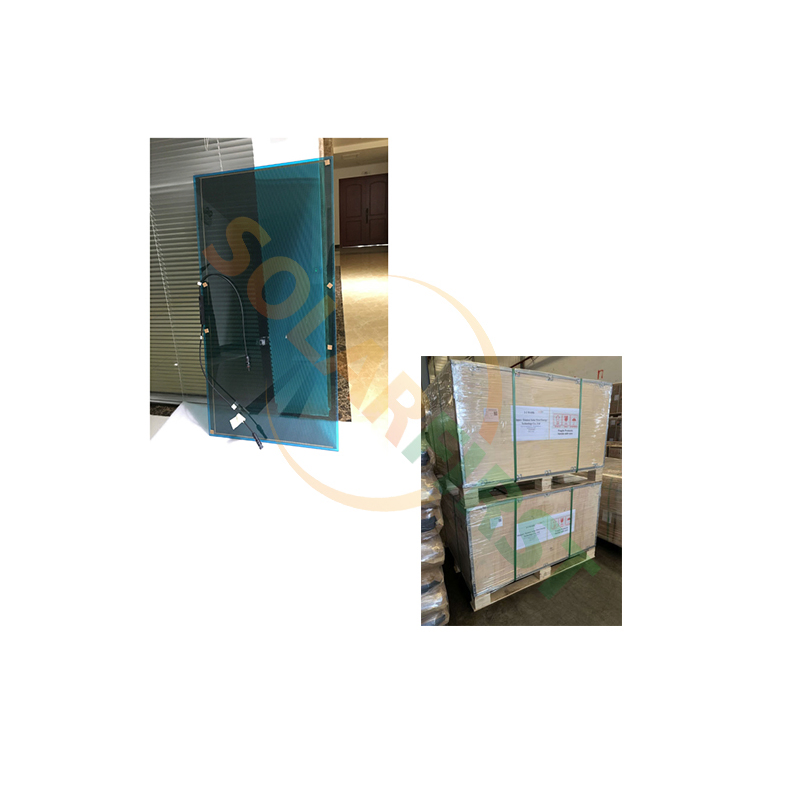

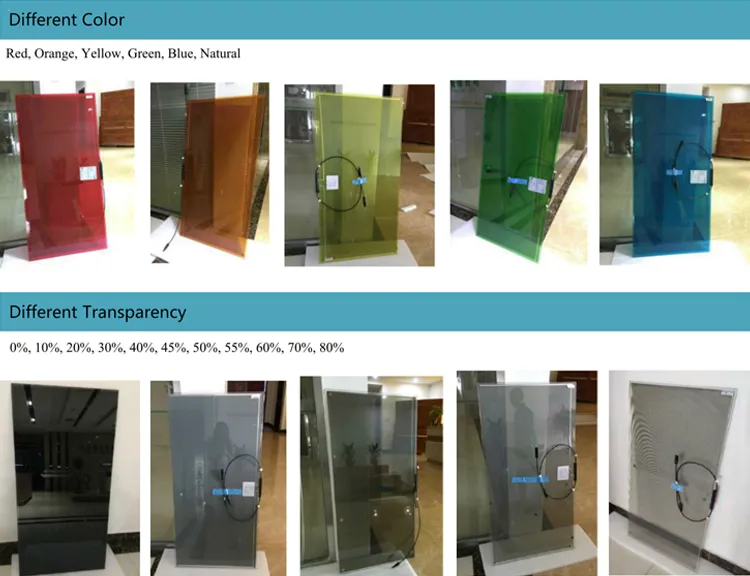

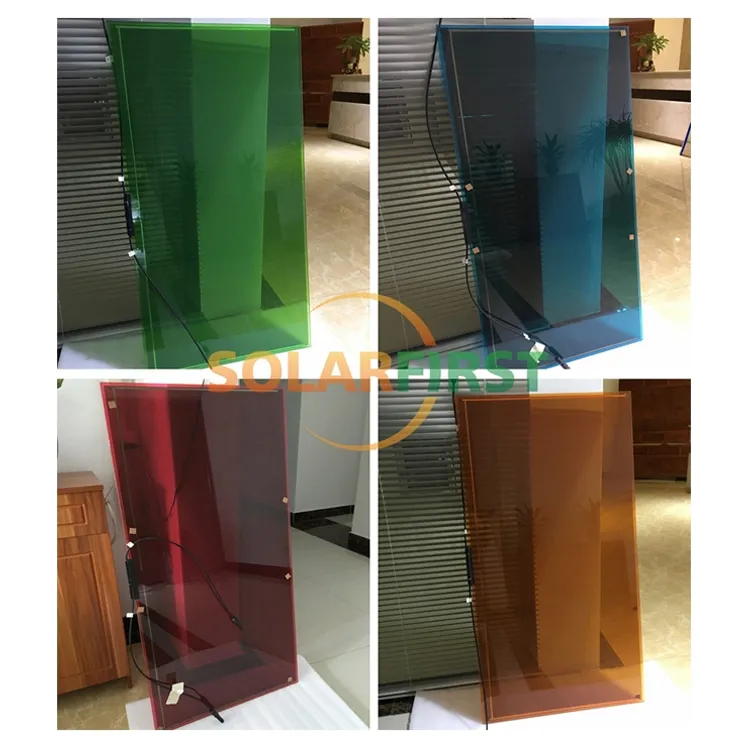

Visual Display
🏭

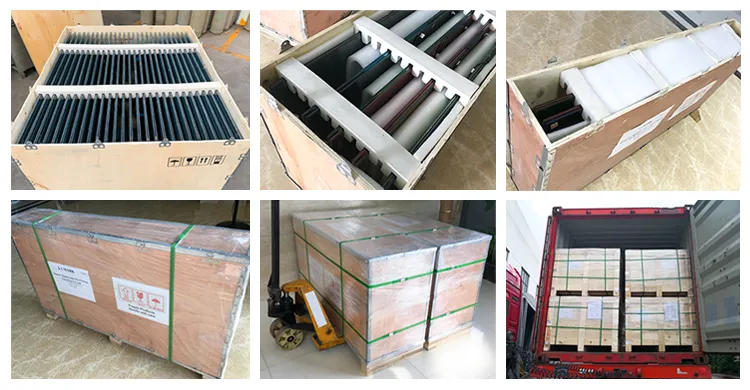

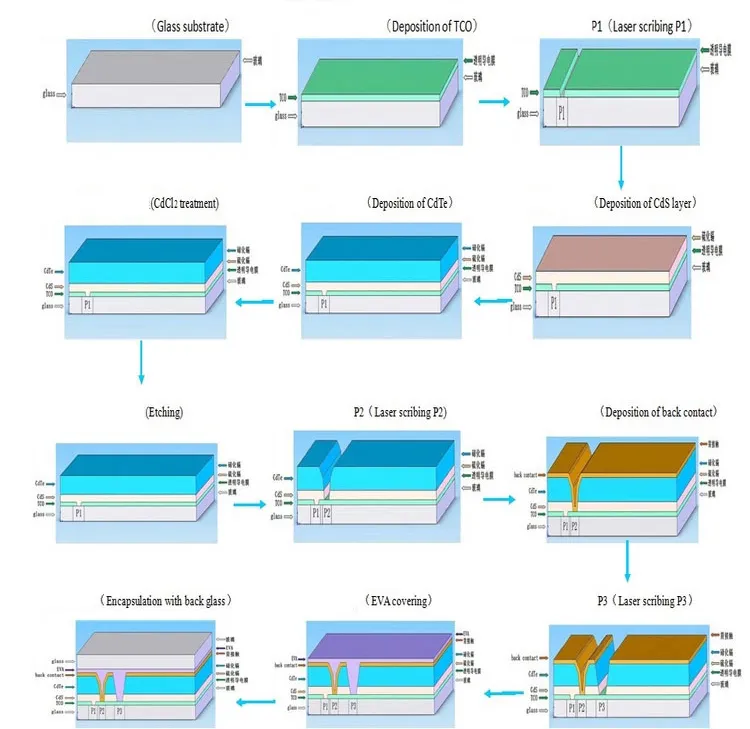

Production & Logistics
🏗️

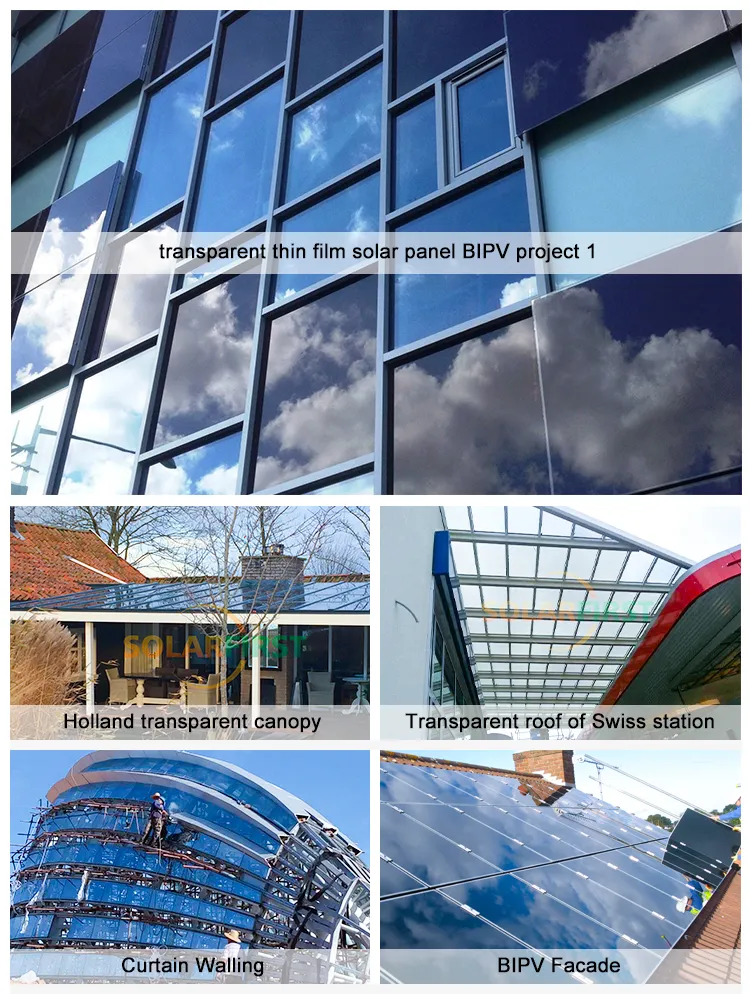

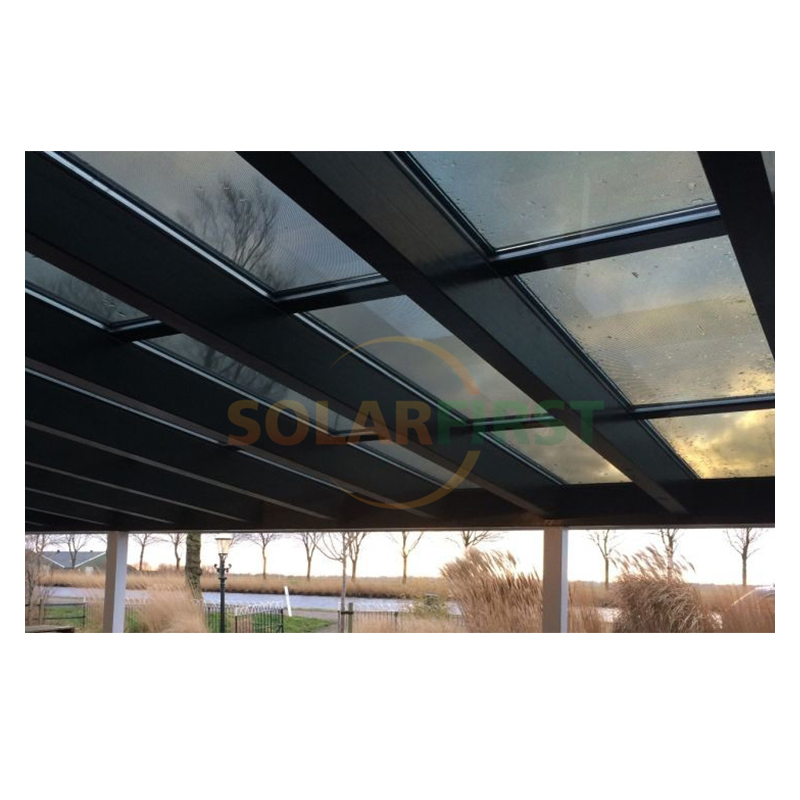

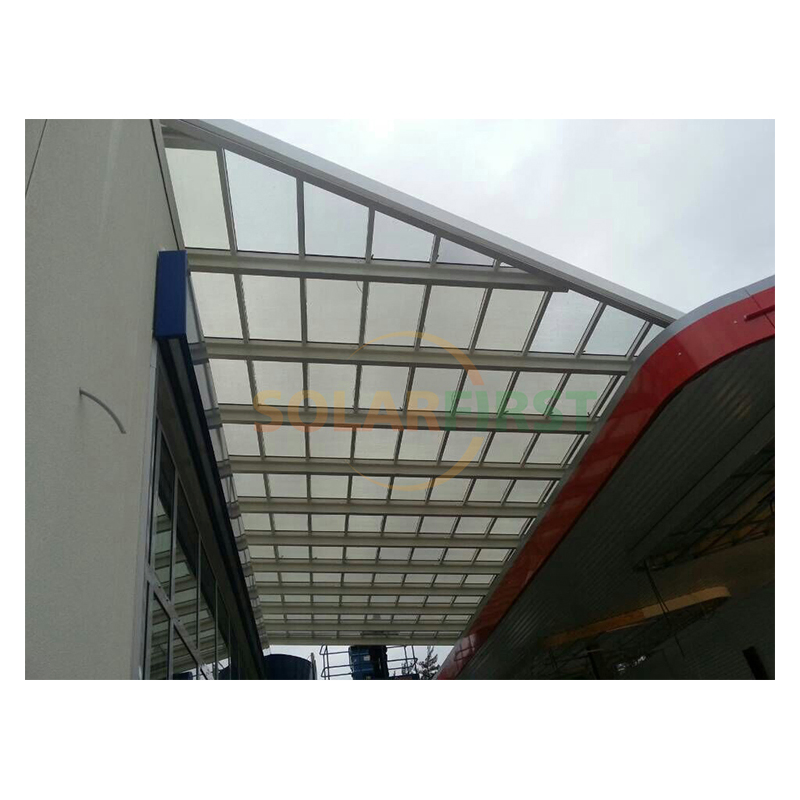

Projects & Exhibition
Frequently Asked Questions
What is the advantage of thin film solar panels?
Thin film solar panels are advanced products compared to traditional crystalline panels, capable of producing electricity even in dim or low-light conditions.
What are the primary applications for these panels?
They are predominantly used in BIPV (Building-Integrated Photovoltaics) projects and specialized roof mounting systems where aesthetics and weight are critical.
Are you a manufacturer?
Yes, we are a professional manufacturer. Customers are welcome to visit our production facilities to see the process firsthand.
Can sizes and colors be customized?
While our standard size is 1200*600*7mm, we can customize dimensions and colors according to specific project demands.
What certifications do the products hold?
Our thin film solar panels are fully certified with ISO and CE standards, ensuring international quality and safety compliance.
What is the warranty period for these panels?
We provide a 10-year warranty on our thin film solar panels, backed by our dedicated after-sales service.
