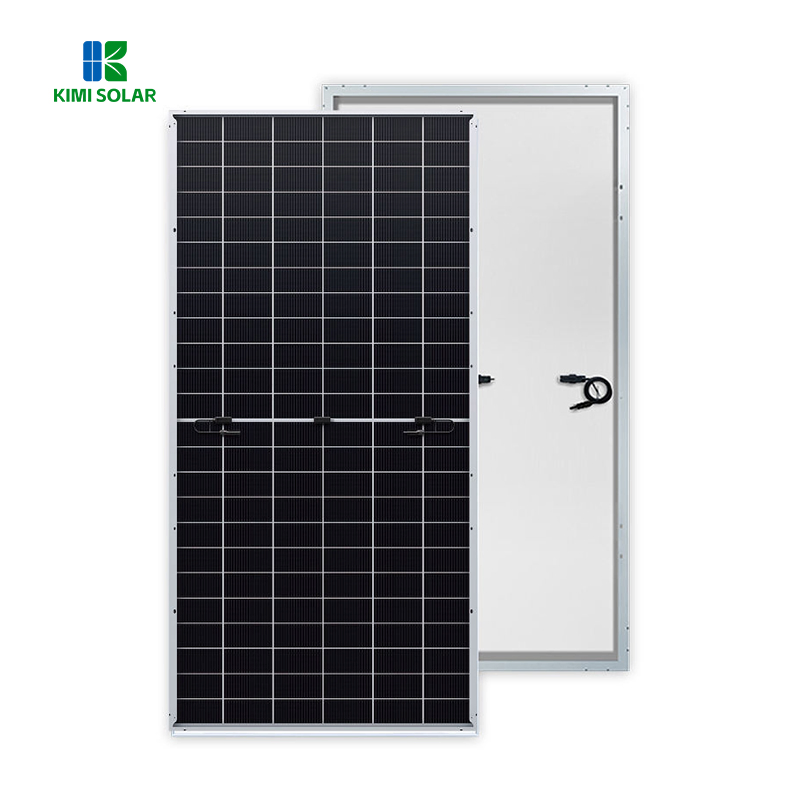

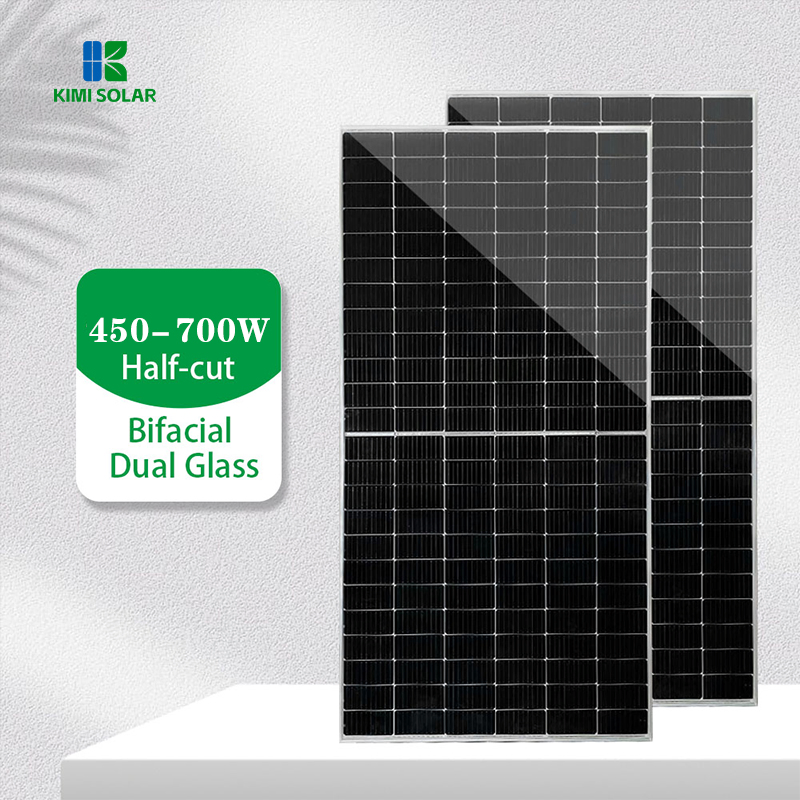

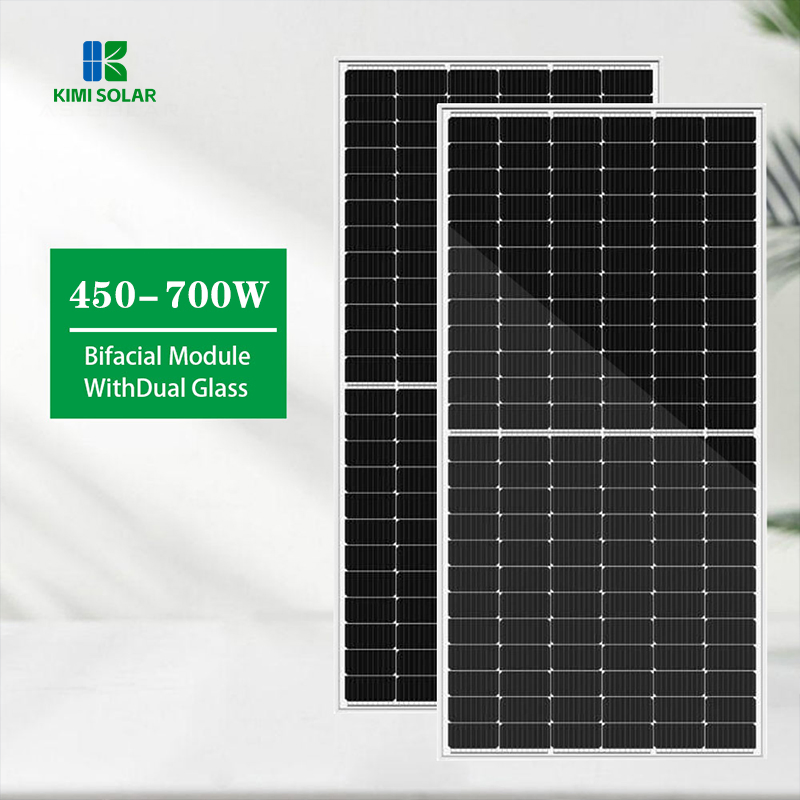

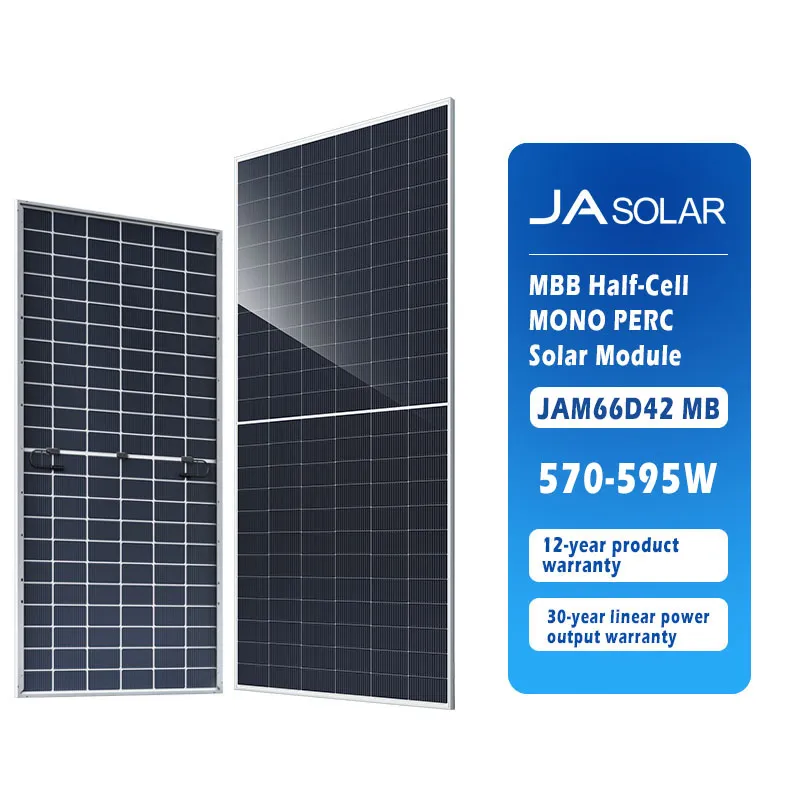

Solar PV Module N Type Bifacial 570W-595W Solar Panel

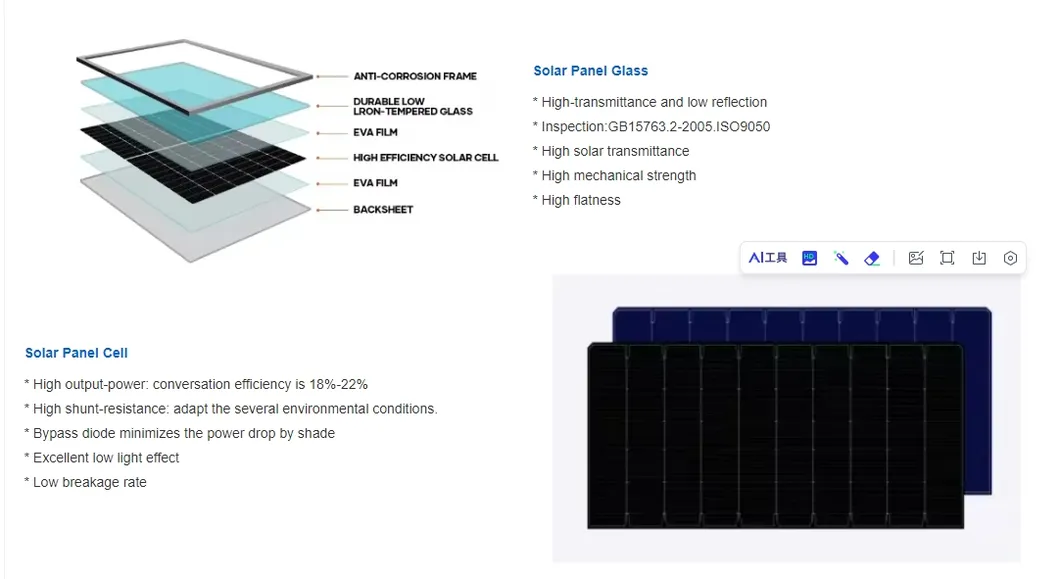

A grade crystalline silicon cells for maximum power conversion.
Guaranteed mechanical resistance to severe weather conditions. Compliant with IEC 61215 and IEC61730.
Guaranteed positive power tolerance from 0-3% ensures output reliability.
Flash report and embedded bar code ID for each module for complete history tracking.
| Component | Specification |
|---|---|
| Cell Type | Mono |
| Weight | 31.8kg |
| Dimensions | 2278±2mm x 1134±2mm x 30±1mm |
| No. of Cells | 144 (6x24) |

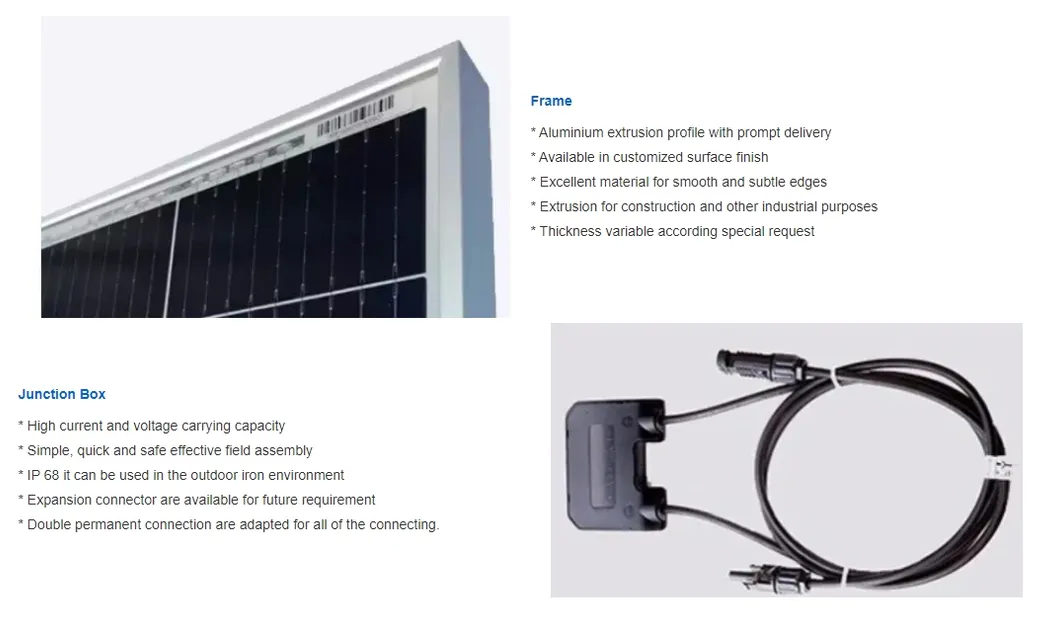

| Junction Box | IP68, 3 diodes |
| Connector | QC 4.10-351 / MC4-EVO2A |
| Front Glass | 3.2mm |

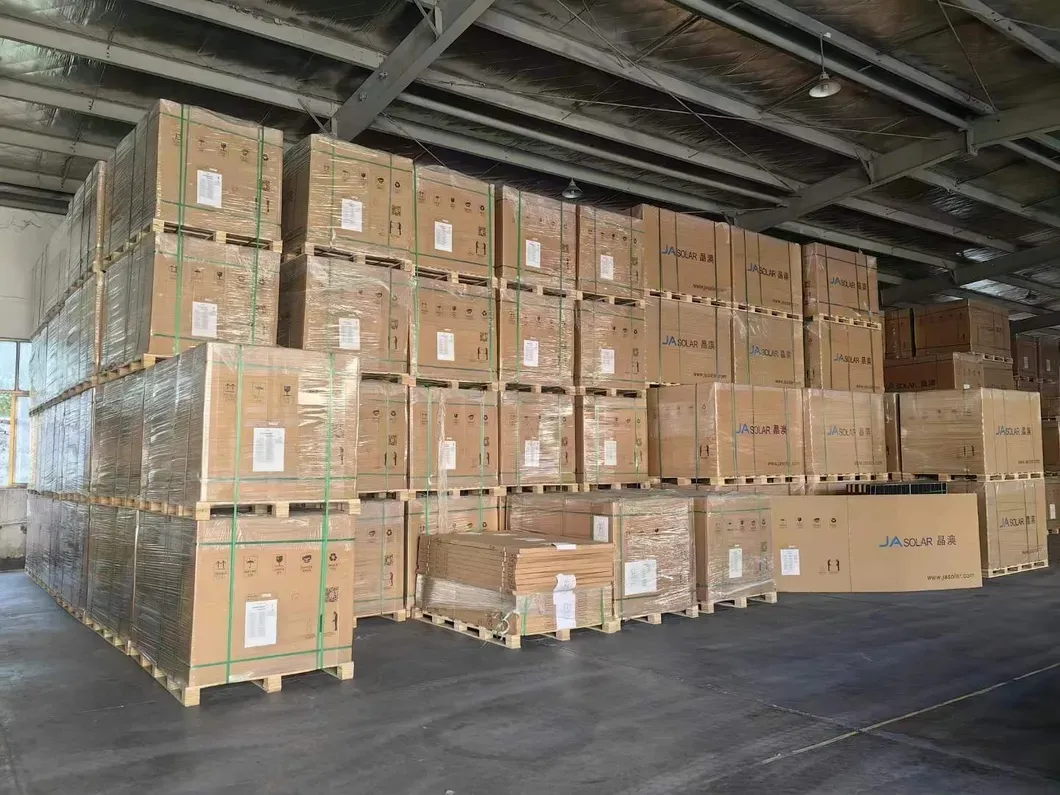

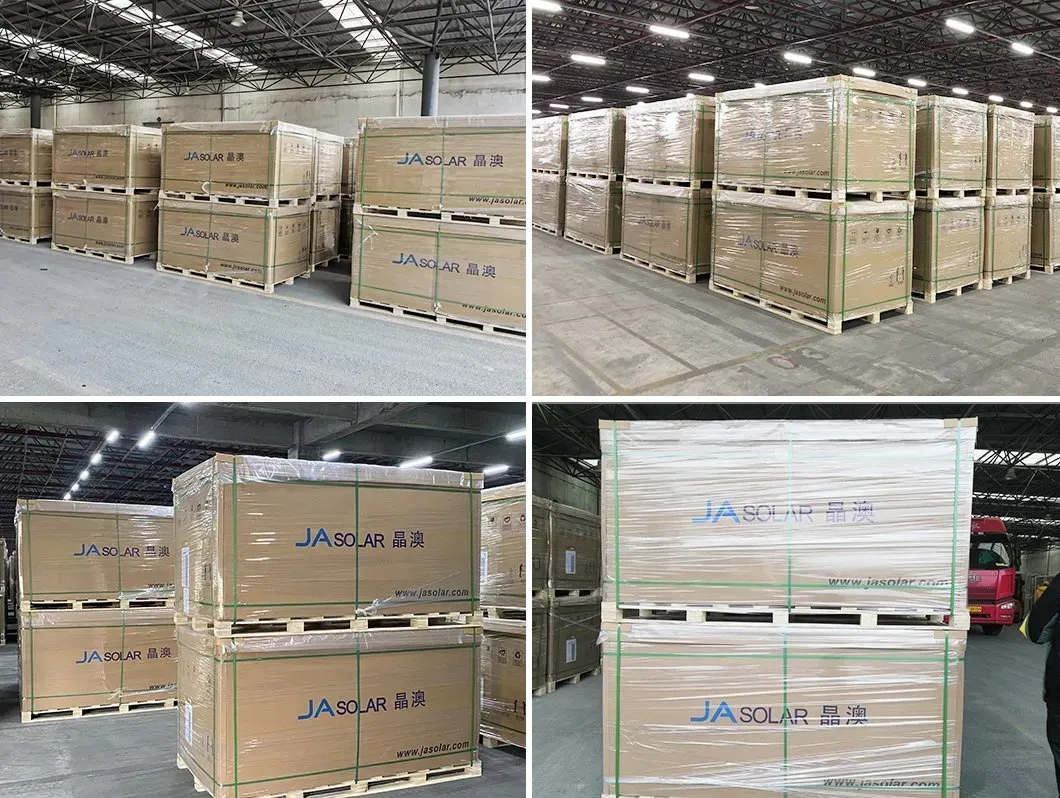

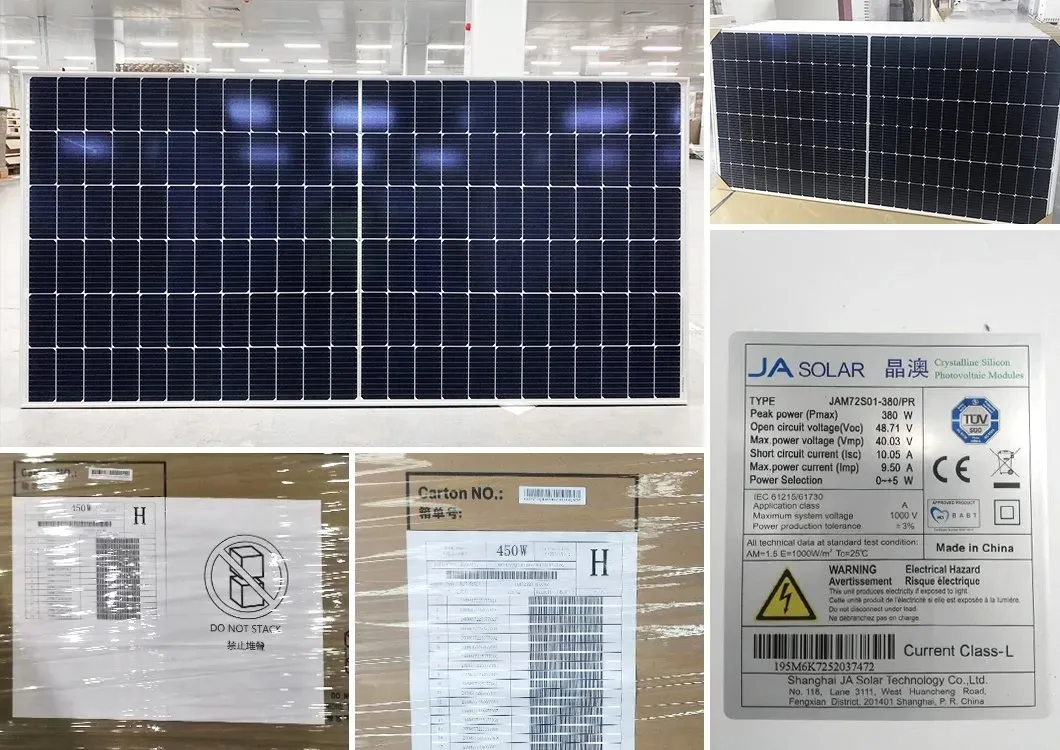

| Packaging | 36pcs/Pallet, 720pcs/40HQ Container |
| TYPE (JAM72S30) | 570/MR | 575/MR | 580/MR | 585/MR | 590/MR | 595/MR |
|---|---|---|---|---|---|---|
| Rated Power (Pmax) [W] | 570 | 575 | 580 | 585 | 590 | 595 |
| Open Circuit Voltage (Voc) [V] | 47.78 | 47.98 | 48.18 | 48.38 | 48.58 | 48.78 |
| Max Power Voltage (Vmp) [V] | 40.00 | 40.21 | 40.42 | 40.63 | 40.84 | 41.03 |
| Short Circuit Current (Isc) [A] | 15.11 | 15.16 | 15.21 | 15.26 | 15.31 | 15.36 |
| Max Power Current (Imp) [A] | 14.25 | 14.30 | 14.35 | 14.40 | 14.45 | 14.50 |
| Module Efficiency [%] | 22.1 | 22.3 | 22.5 | 22.6 | 22.8 | 23.0 |

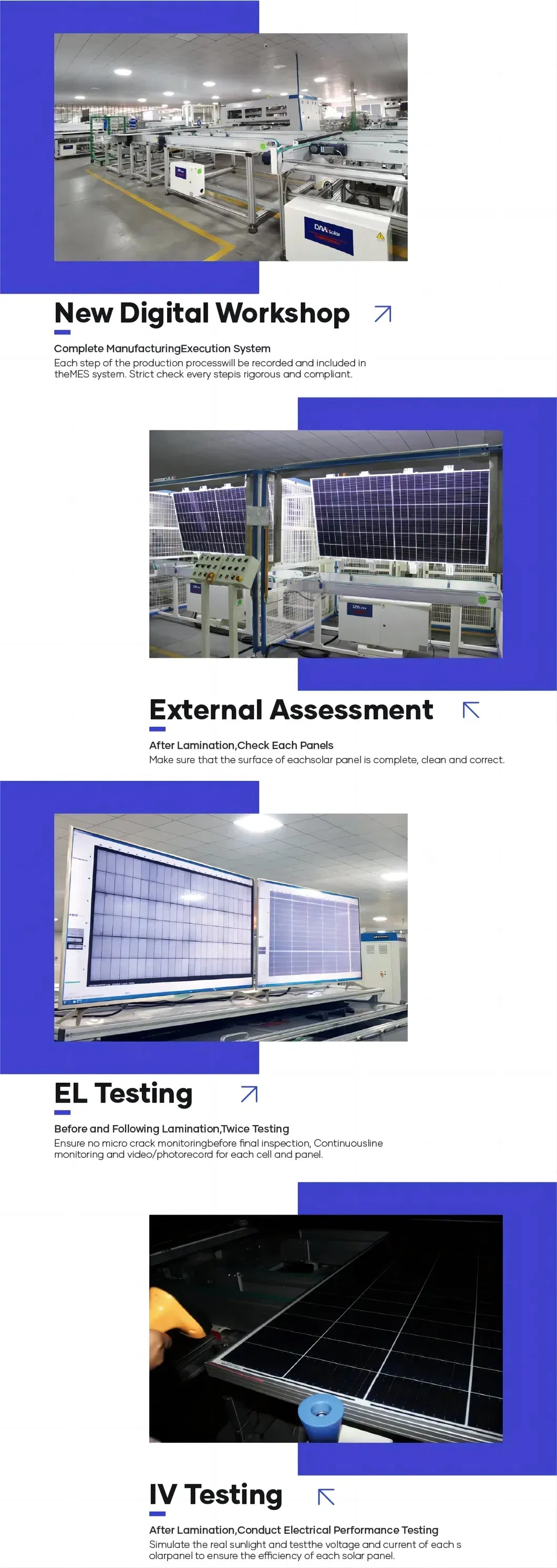

We employ the latest state-of-the-art fully automatic production equipment and a rigorous, step-by-step final inspection system to ensure every product meets the highest standards before shipment.
We provide a comprehensive range of Solar Panels and complete solar system sets tailored to residential, commercial, and industrial needs.
Yes, we are a professional manufacturer with over 15 years of expertise in the Solar Panel industry, focusing on quality and innovation.
We offer FOB, CIF, EXW, and Express Delivery. We accept payments via T/T and Cash in multiple currencies including USD, EUR, HKD, and CNY.
Typically, orders are processed and ready for dispatch within 15 working days following the receipt of advance payment.
Yes, we excel in bespoke solar system solutions and can customize frame colors and cable lengths upon request.
