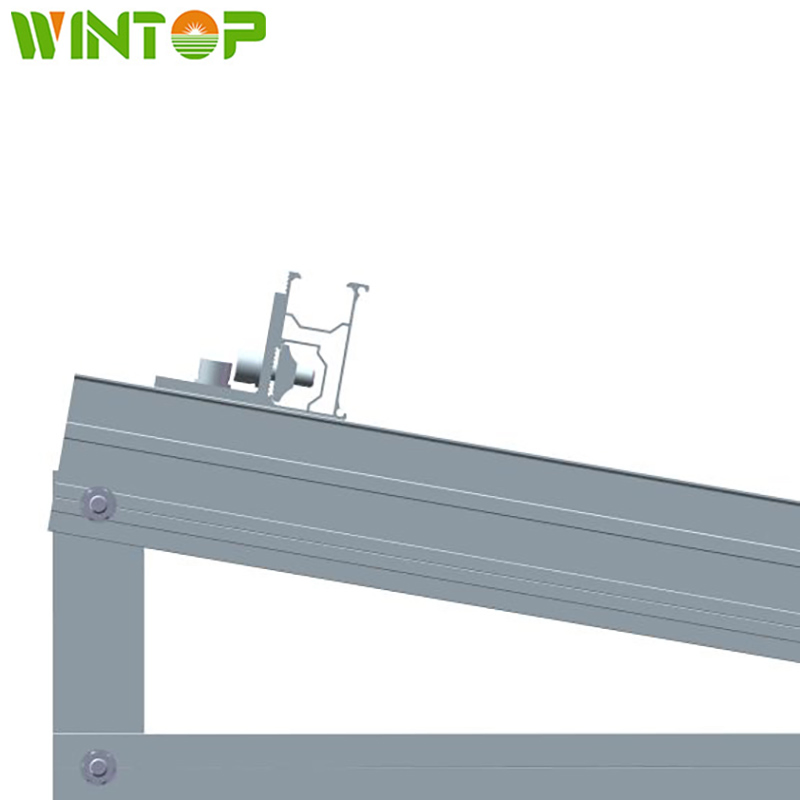

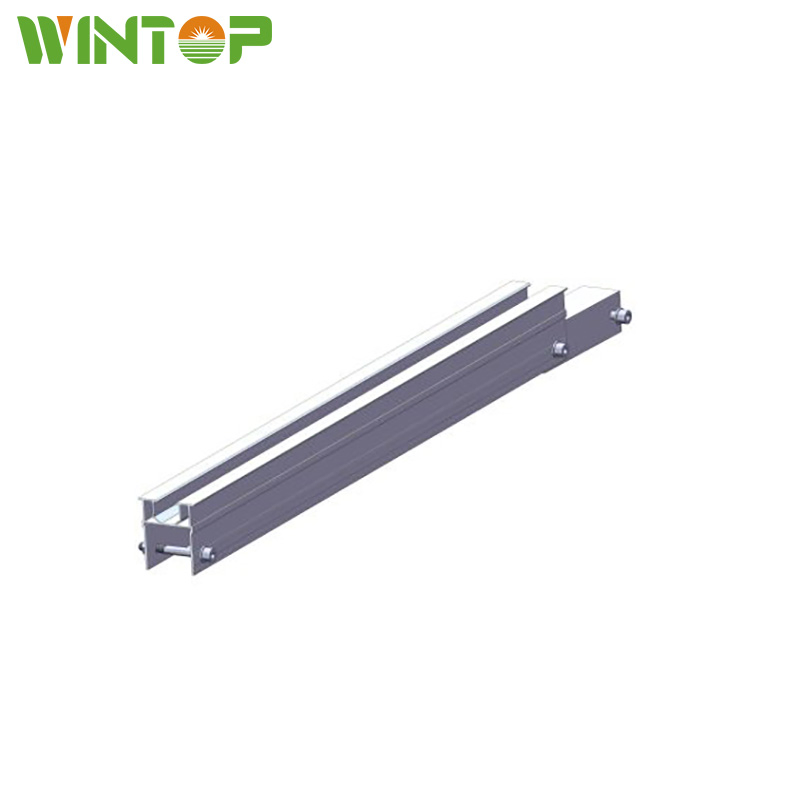

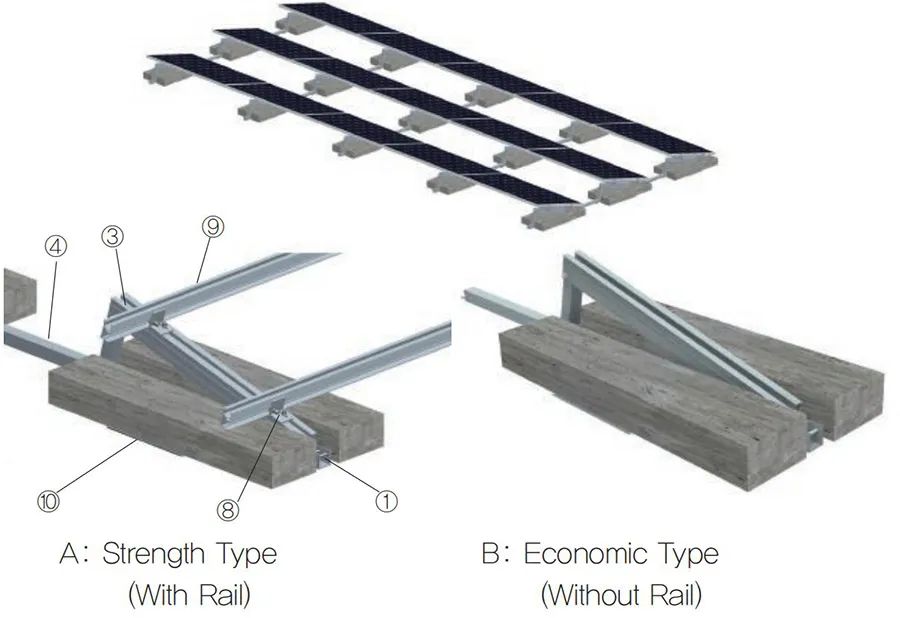

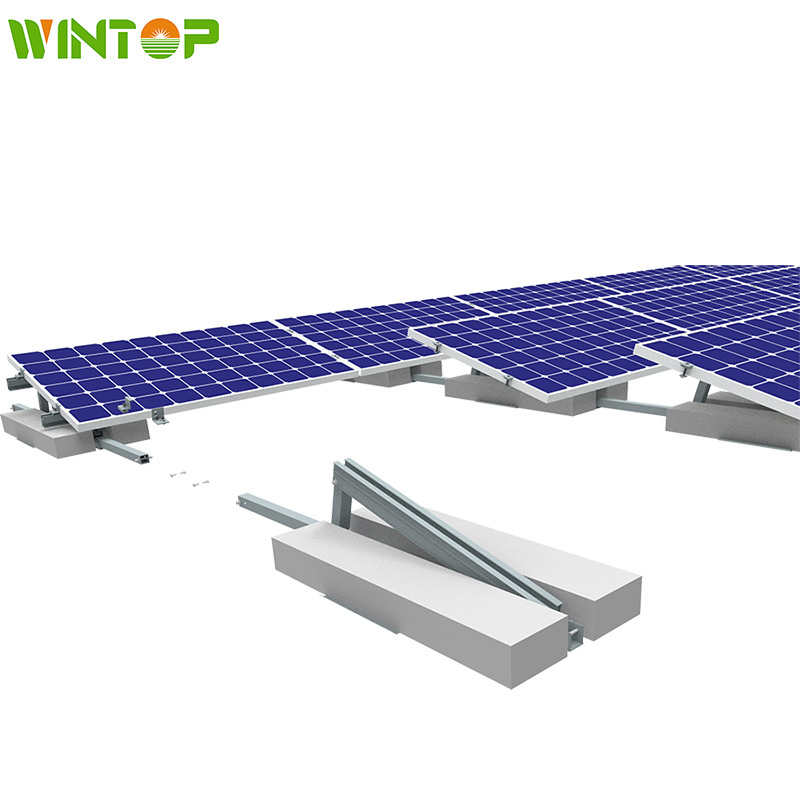

The Ballasted Inclined Roof On-grid Solar Panel Bracket System is a high-performance flat roof racking solution. Designed for versatility, this ballast system can be utilized for installations on pitched roofs or flat ground surfaces. It offers a cost-effective choice with the advantage of convenient and rapid deployment.

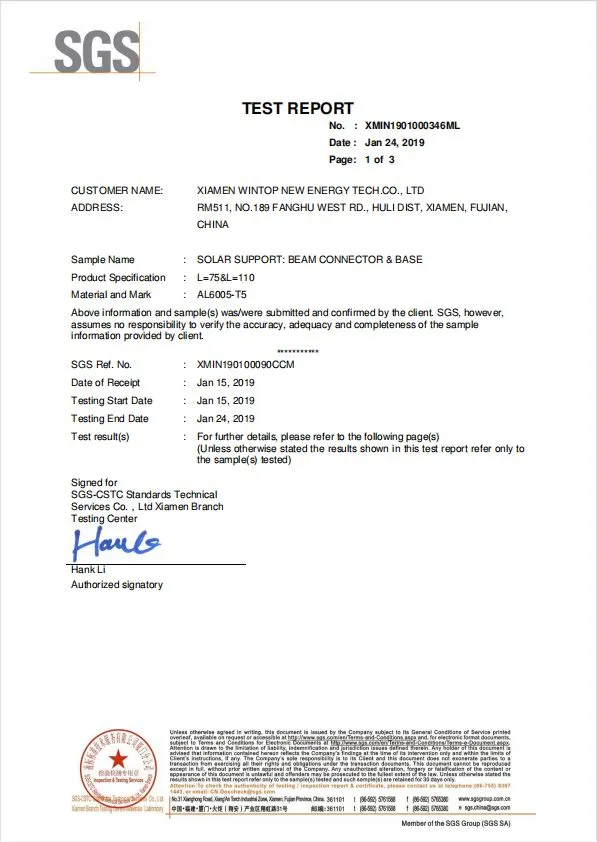

The system is engineered by experts to withstand extreme weather conditions, complying with AS/NZS 1170 and other major international structural standards. Key load-bearing components have undergone rigorous testing to ensure long-term structural integrity and reliability.
| Installation location | Low angle rooftop or outdoor |
| Installation foundation | Concrete foundation |
| Installation angle | 5°-35° |
| Wind load | 60m/s (216kmh/133mph) |
| Snow load | 1.4KN/m² |
| Applicable module type | Mono-crystalline, Poly-crystalline, Double wave and Thin film |
| Module Orientation | Horizontal, Vertical |
| Design standard | AS/NZS1170, JIS C 8955-2017 |
| Bracket material | AL6005-T5 (Anodized) |
| Fastener Material | Stainless steel SUS304 |
| Warranty & Duration | 10 years & More than 20 years |
