12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
1 / 3
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller
12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

Customization: Available
Condition: New
Certification: ISO, CE
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
KT
Application
Solar System, Lighting, Charging Station
Rated Voltage
12V/24V Automatic
Control Mode
PWM (Pulse Width Modulation)
Warranty
18 Months
Approval
CE & RoHS
ODM & OEM
Accepted
Dimension
140*90.5*28.5mm
Weight
210g
Capacity
10000 PCS/Month
⚡

Product Description

12V/24V 5A 10A 15A 20A Automatic PWM Solar Charge Controller

Solar Controller Display 1

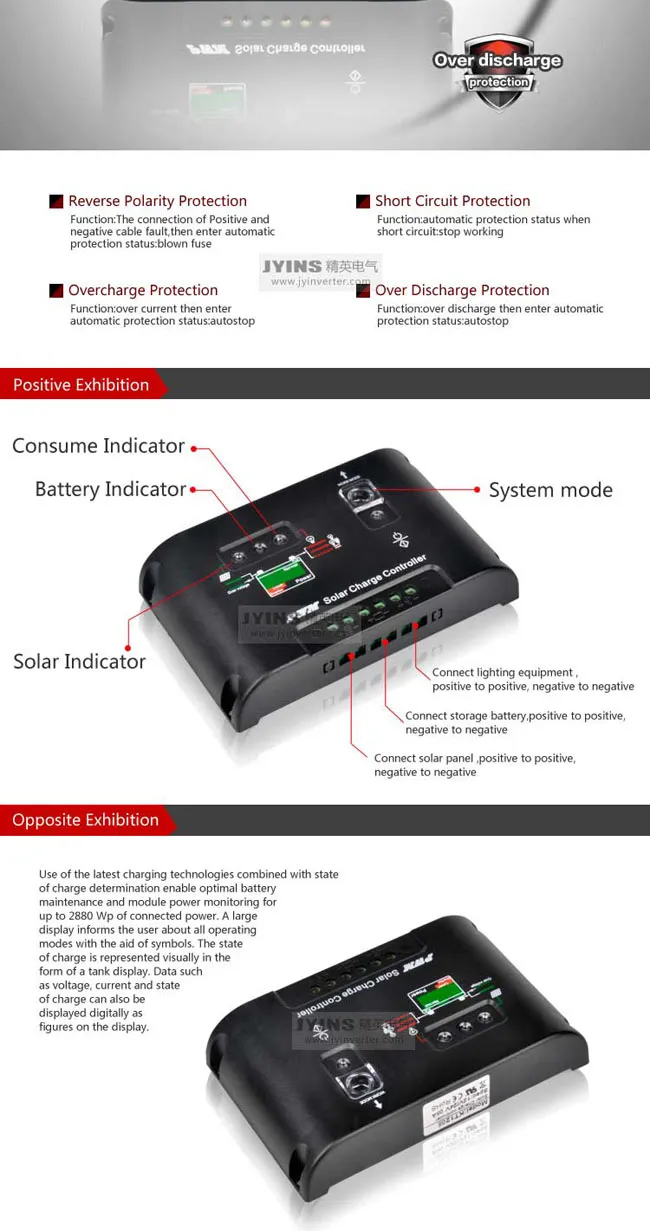

Solar Controller Display 2

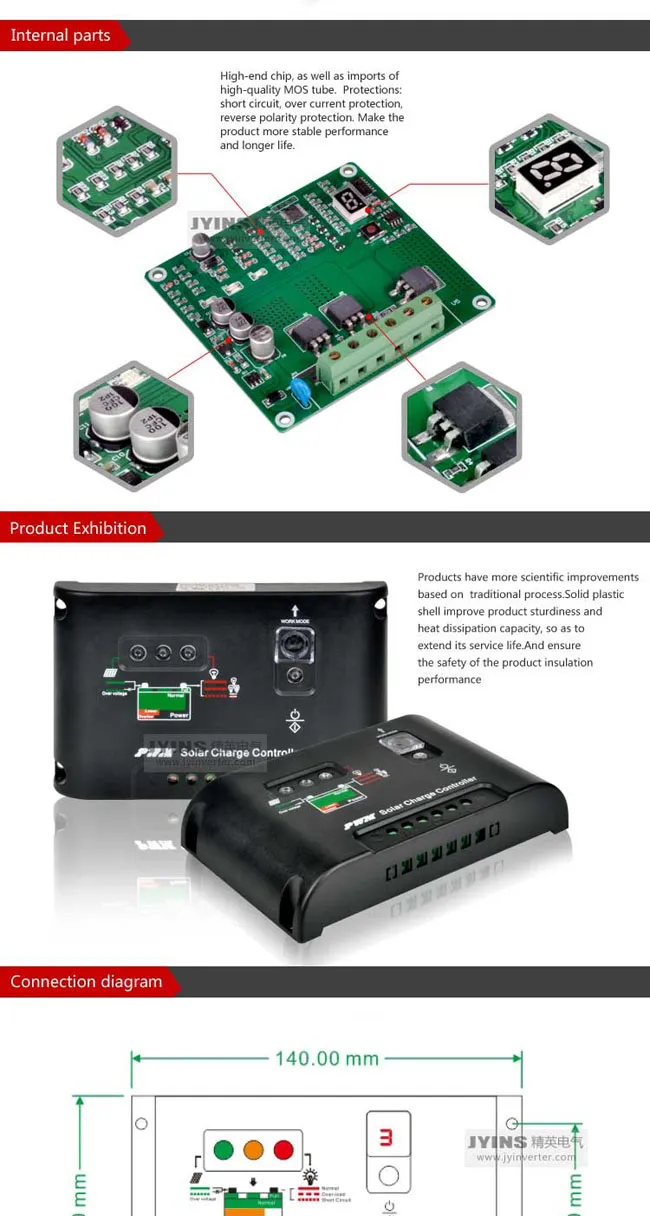

Solar Controller Display 3

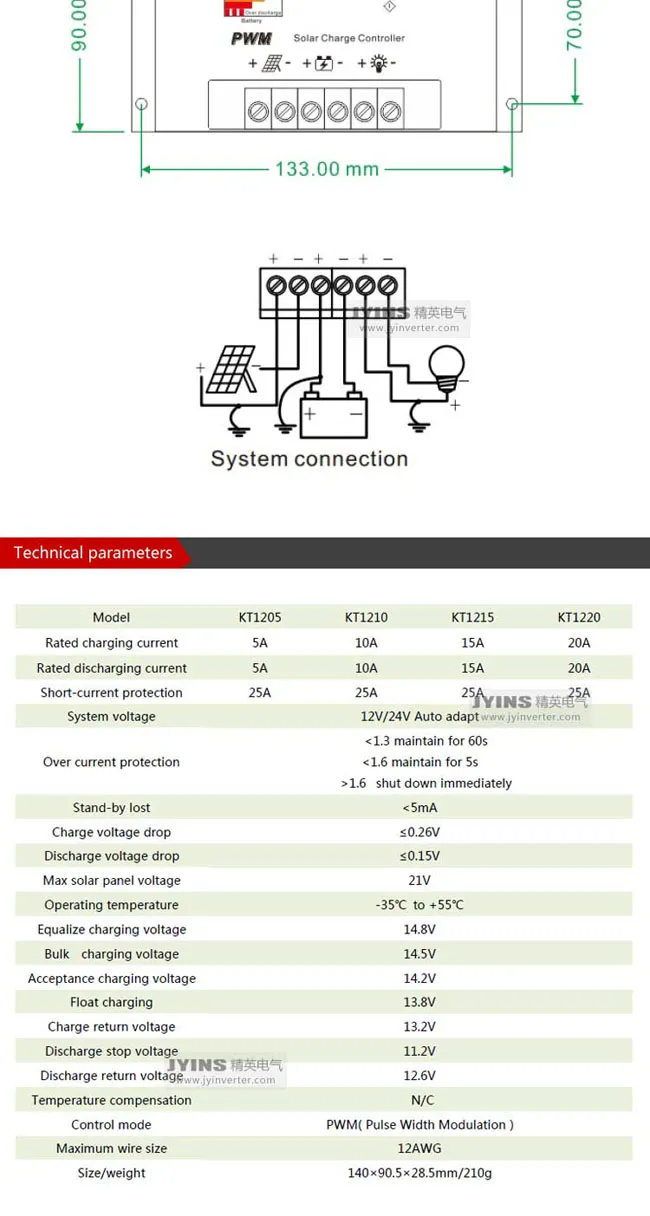

Solar Controller Display 4
📊

Technical Parameters

Model KT1205 KT1210 KT1215 KT1220
Rated charging current5A10A15A20A
Rated discharging current5A10A15A20A
Short-current protection25A
System voltage12V/24V Auto adapt
Stand-by lost<5mA
Max solar panel voltage21V (for 12V system)
Operating temperature-35ºC to +55ºC
Float charging13.8V
Discharge stop voltage11.2V
Discharge return voltage12.6V
Note:
1. All voltage parameters are for 12V systems; please double the values for 24V systems.
2. Voltage tolerance: 1%.
3. Specifications are subject to change for optimization.
🛡️

Why Choose Us

Quality Assurance 1
Quality Assurance 2
❓

Frequently Asked Questions

Do you accept OEM orders or custom logos?
Yes, with a sufficient order quantity, we fully support OEM services and logo customization.
What is your monthly production capacity?
It depends on the model. For smaller capacity controllers, we can reach up to 200,000 pcs per month, and for larger models, approximately 30,000 pcs.
Can this controller be used in a complete solar system?
Yes, it is designed to manage charging and load control within solar systems, and can be used for household items, office equipment, and power tools.
What certifications do your products hold?
Our products have achieved CE and RoHS certifications. We can also apply for other specific certificates upon request.
What is the warranty period for the solar controller?
We provide a standard warranty of 18 months for our solar controllers.
What payment methods are accepted?
We accept T/T, PayPal, and Western Union. We are open to discussing other convenient payment terms as well.
