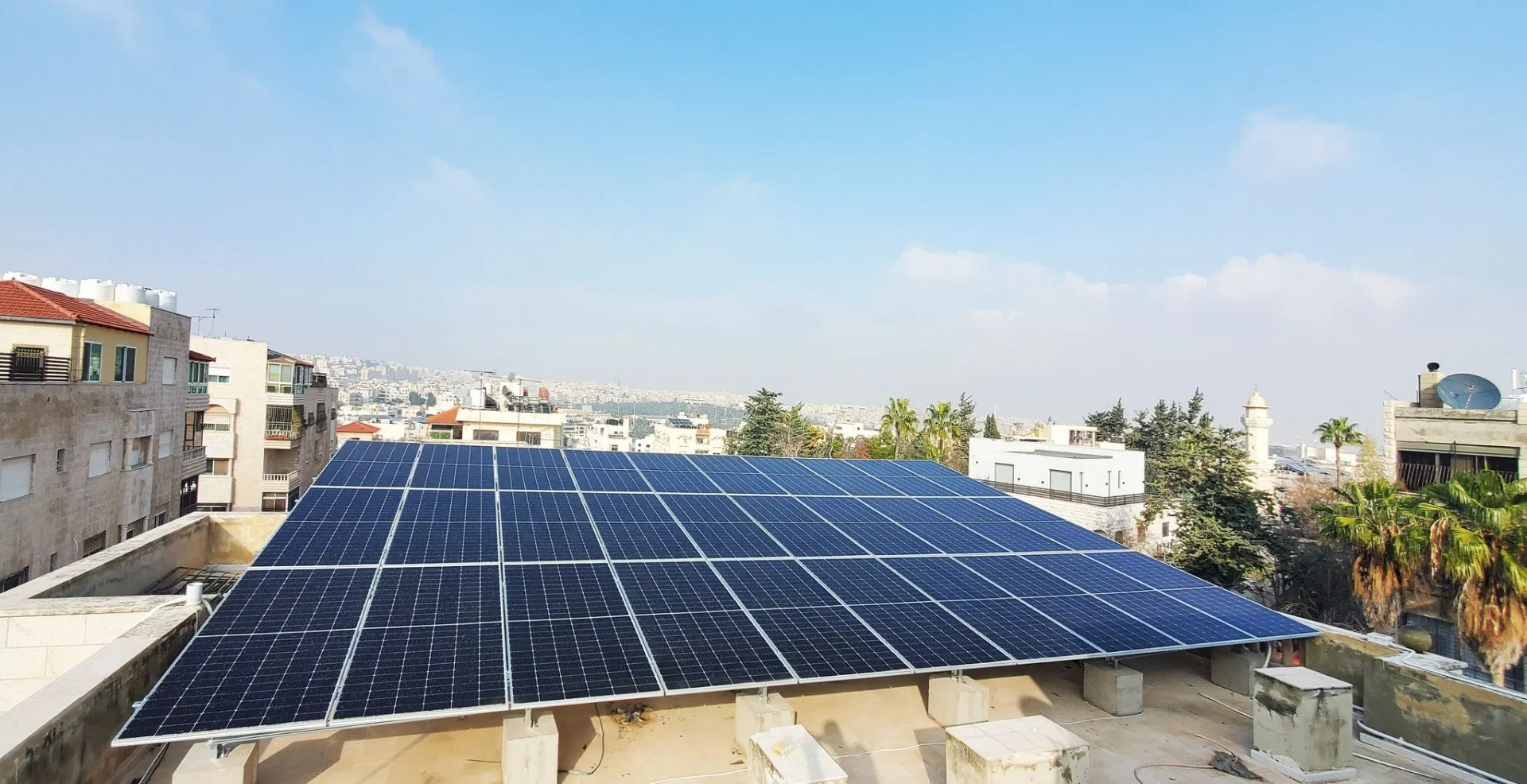

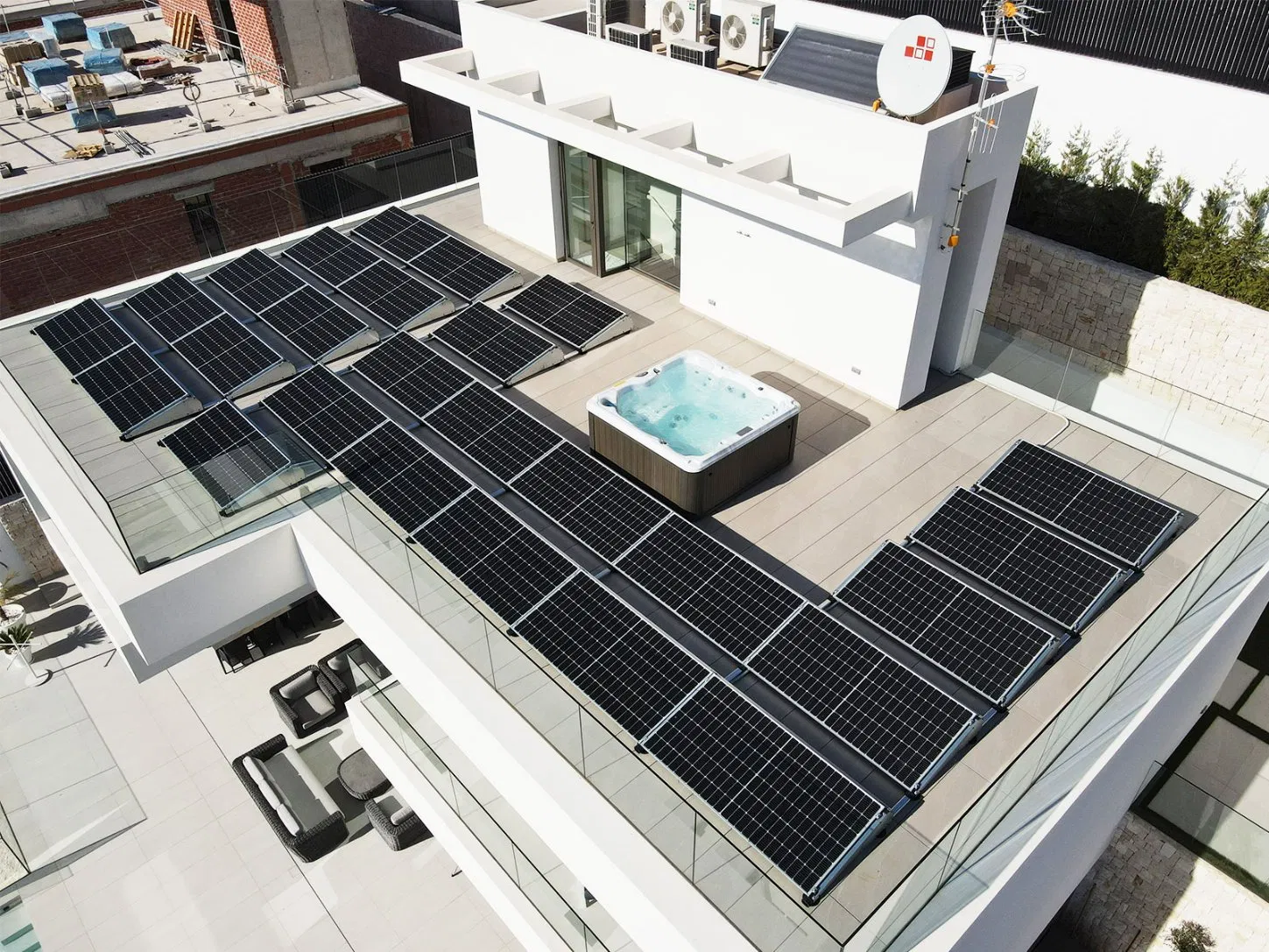

750W Commercial PV Solar Panel N-Type with Bifacial and Half Cell Topcon Type for Enhanced Efficiency.
| Model Type | YS710M-132 | YS720M-132 | YS730M-132 | YS740M-132 | YS750M-132 |
|---|---|---|---|---|---|
| Rated Max Power (STC) | 710W | 720W | 730W | 740W | 750W |
| Power Voltage (Vmp) | 40.48V | 40.86V | 41.04V | 41.34V | 41.52V |
| Power Current (Imp) | 17.54A | 17.62A | 17.78A | 17.9A | 18.06A |
| Open Circuit Voltage (Voc) | 45.55V | 45.85V | 46.15V | 46.45V | 46.75V |
| Short Circuit Current (Isc) | 18.45A | 18.54A | 18.66A | 18.79A | 18.92A |
| Module Efficiency | 22.85% | 23.17% | 23.5% | 23.82% | 24.14% |
The 750W monocrystalline module achieves a high efficiency of up to 24.14% using N-Type Topcon technology.
Yes, they are designed to operate between -40°C to +85°C and feature IP67 waterproof junction boxes and high-transmission tempered glass.
We offer a 10-year warranty on workmanship and materials, with a 25-year linear power output warranty (80% after 25 years).

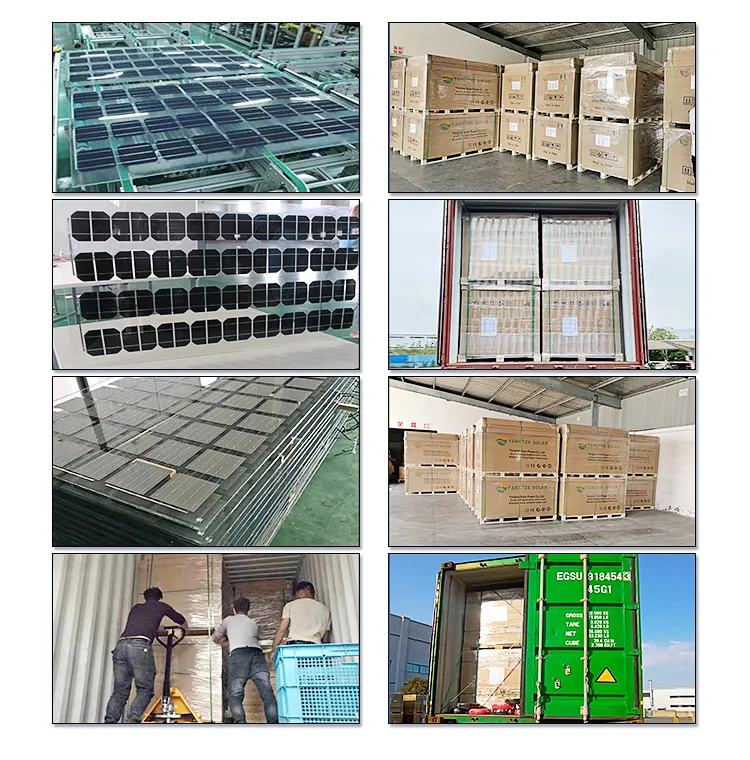

Panels are securely packed using heavy-duty cartons and reinforced pallets to prevent any damage during shipping.
Yes, OEM orders are acceptable, including options for frame colors (silvery or black) and backsheet colors (white, black, or transparent).

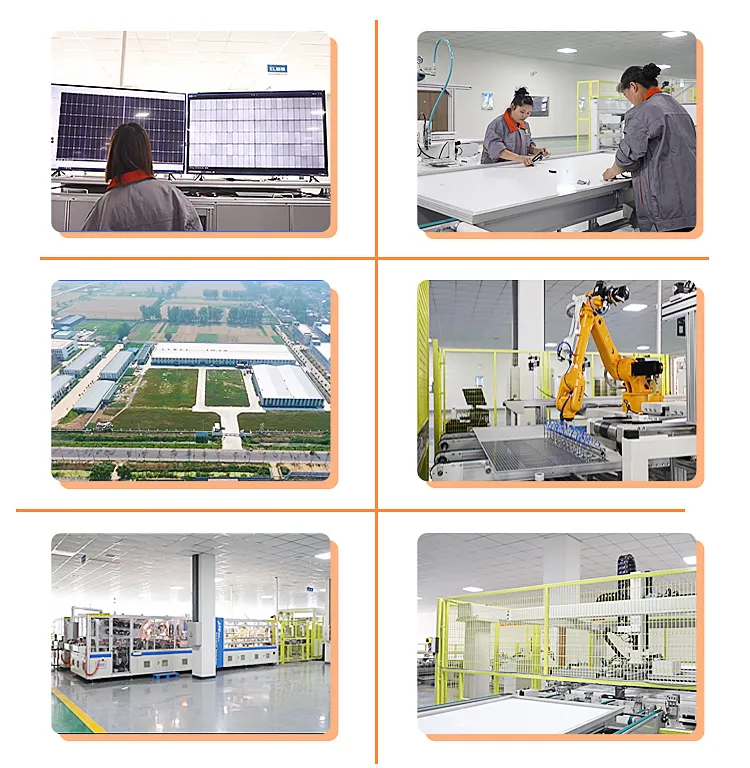

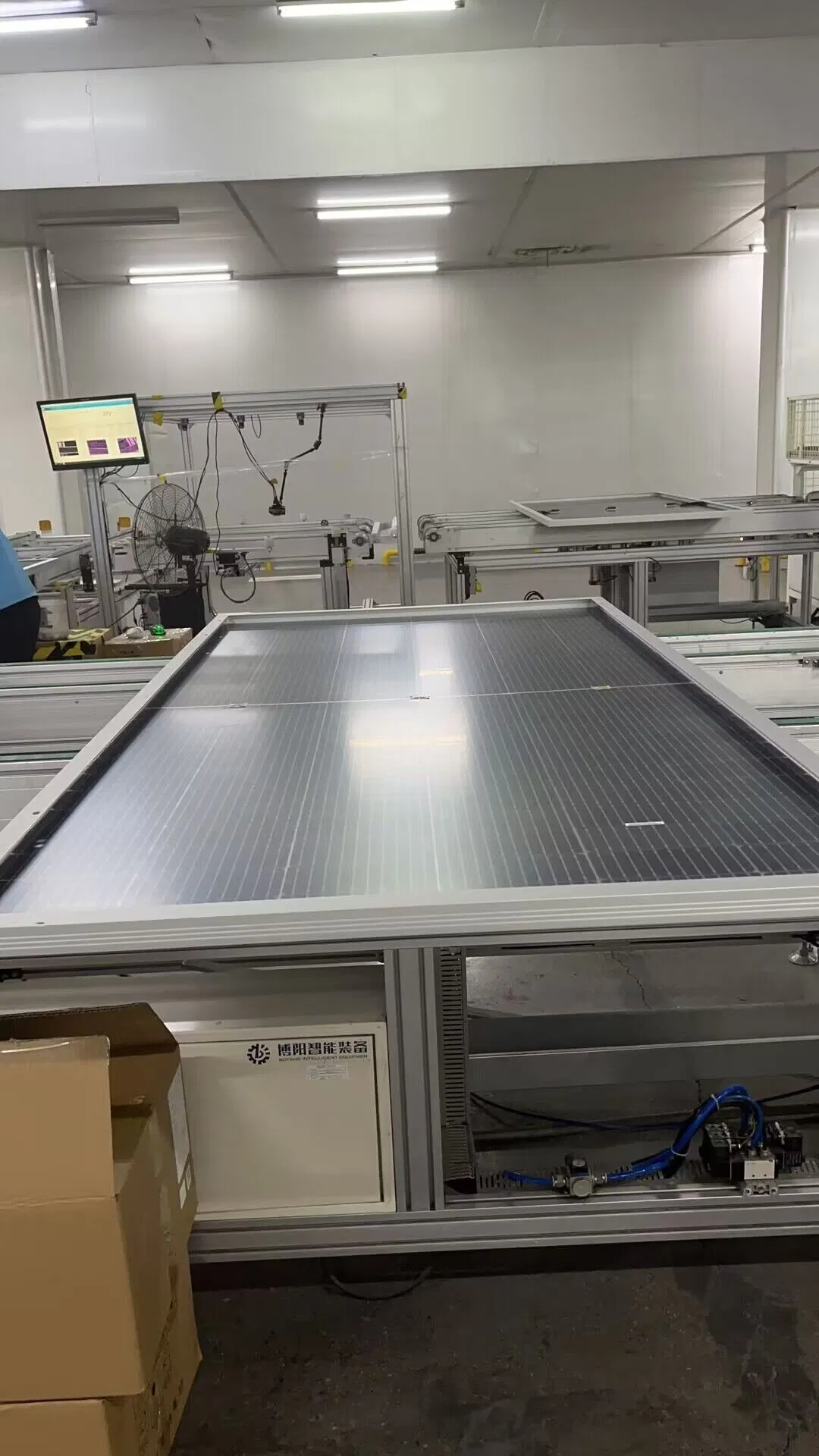

Every single panel undergoes a 100% EL (Electroluminescence) test to ensure there are no micro-cracks or hidden defects before packaging.
