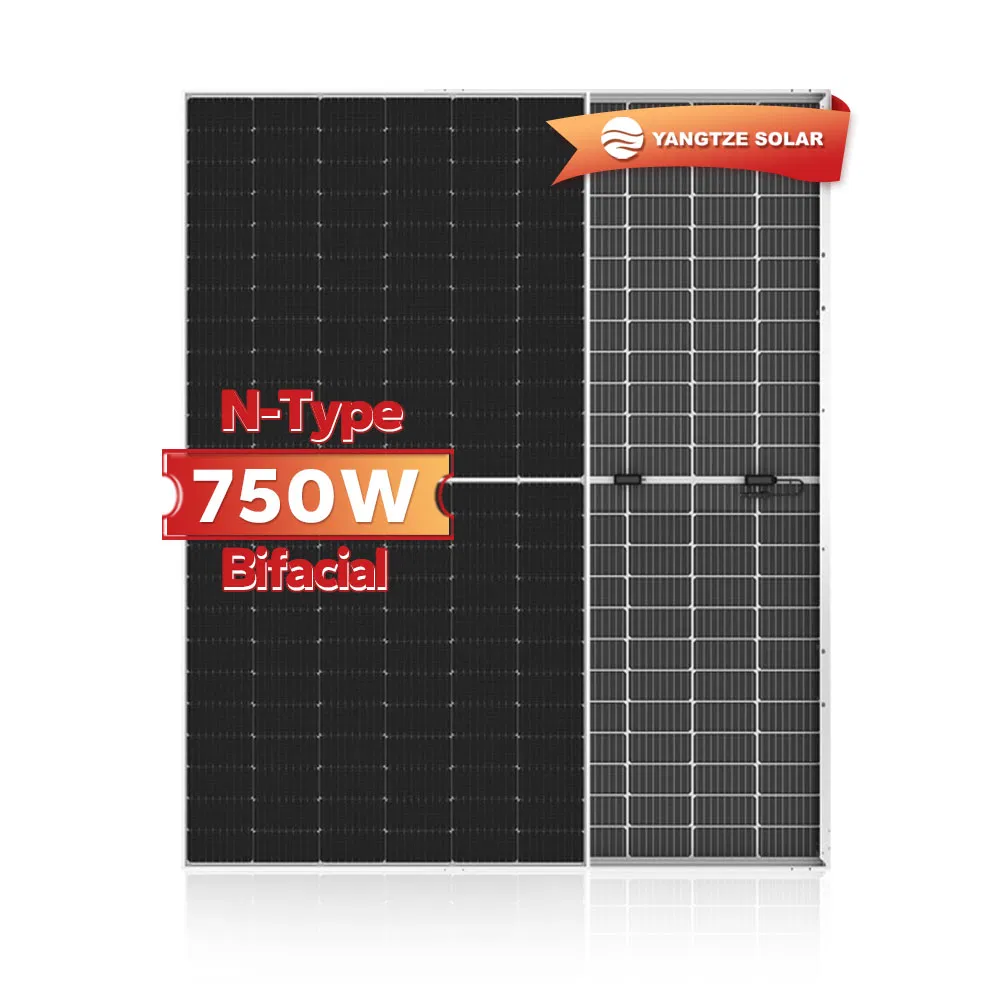

750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
1 / 5
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology
750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology

750W A Grade Bifacial Solar Panel Double Glass Topcon N Type Technology

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.YS750M-132
Number of Cells66
ApplicationIndustrial
MaterialMonocrystalline Silicon
Solar CellMono 210X210 mm Cell
Size2384*1303*35mm
CertificationISO, CE
Weight36kg
Specification750W
Junction BoxIP68 Waterproof
Front Cover3.2mm Tempered Glass
Production Capacity12000 Pieces /Week
✨ Product Description

750W A Grade Bifacial Solar Panel Double Glass Topcon N-Type Technology

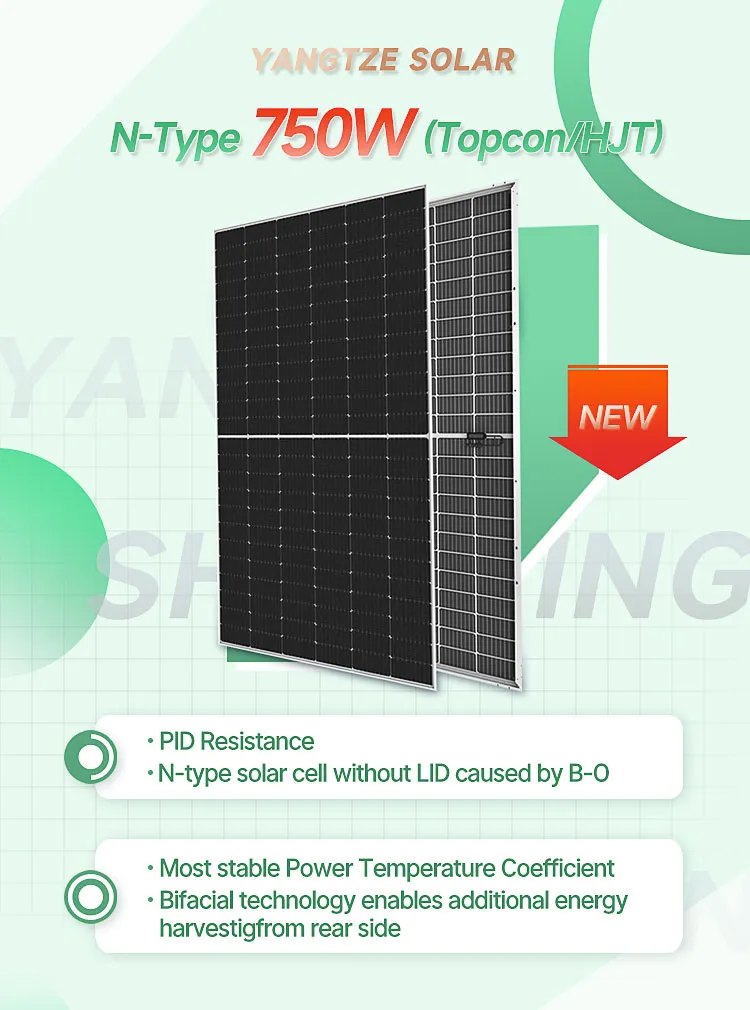

750W Solar Panel Technology
Model Type YS710M-132 YS720M-132 YS730M-132 YS740M-132 YS750M-132
Rated Power (STC) 710W 720W 730W 740W 750W
Max Power Voltage (Vmp) 40.48V 40.86V 41.04V 41.34V 41.52V
Max Power Current (Imp) 17.54A 17.62A 17.78A 17.9A 18.06A
Open Circuit Voltage (Voc) 45.55V 45.85V 46.15V 46.45V 46.75V
Short Circuit Current (Isc) 18.45A 18.54A 18.66A 18.79A 18.92A
Module Efficiency 22.85% 23.17% 23.5% 23.82% 24.14%
Operating Conditions
Operating Temp -40°C ~ +85°C
Max System Voltage DC 1500V (IEC)
Power Tolerance 0 ~ +5W

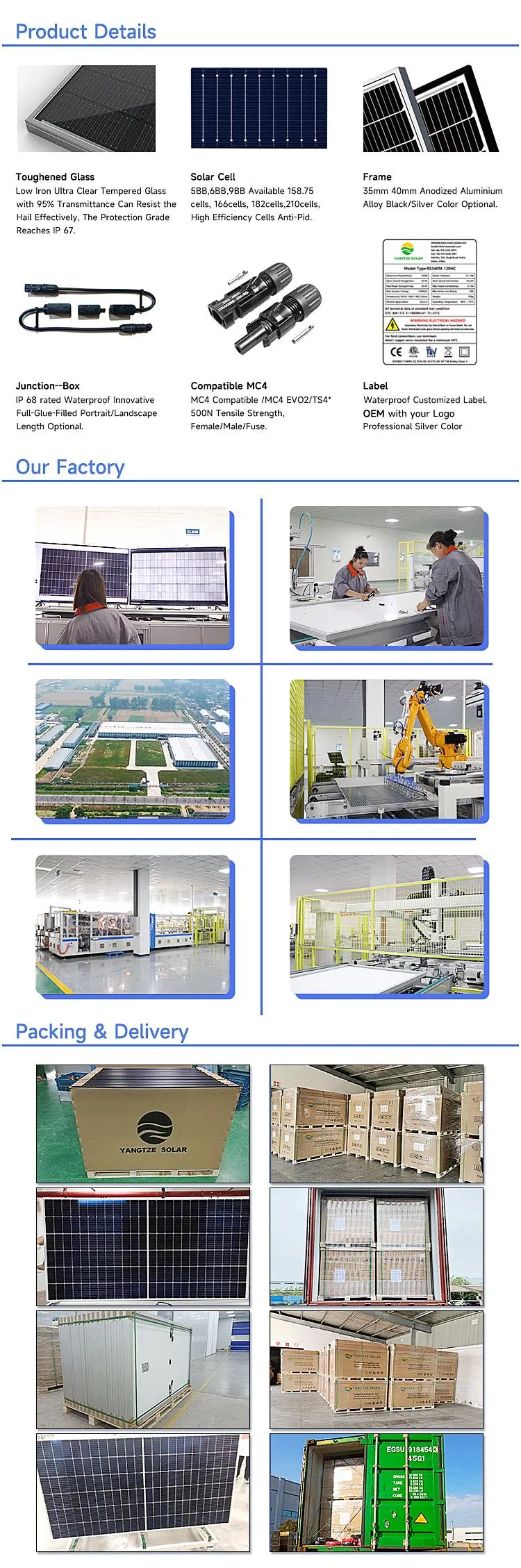

Solar Panel Specifications 1 Solar Panel Specifications 2
🏭 Manufacturing Excellence
✓
Established Expertise: Founded in 1994, featuring a 300MW solar panel production capacity ranging from 3W to 360W and high-power 750W modules.
✓
Premium Warranty: 10 years total workmanship and materials warranty; 25 years linear power output warranty (at least 80%).
✓
Rigorous Quality Control: 100% EL test performed before packaging and shipping to ensure zero defects.
✓
Global Reach: Products exported to more than 150 countries with international certifications including TUV (Germany) and CE.
✓
Full Solutions: Turn-key solar systems offered to save time and costs for global clients.
Factory Production Line
Certification and Quality
❓ Frequently Asked Questions
1. What is the maximum efficiency of the 750W solar panel?
The 750W monocrystalline module achieves a high efficiency of up to 24.14% thanks to the Topcon N-Type technology.
2. Does the module support bifacial energy generation?
Yes, these are bifacial solar panels with double glass construction, allowing for energy absorption from both the front and back sides.
3. What are the durability ratings for these panels?
The panels feature an IP68 waterproof junction box, 3.2mm high-transmission tempered glass, and an anodized aluminium alloy frame, designed to operate between -40°C and +85°C.
4. What type of warranty is provided with the product?
We offer a 10-year workmanship and materials warranty, along with a 25-year linear power output warranty ensuring at least 80% performance.
5. Are the solar panels tested before shipment?
Yes, all modules undergo a 100% EL (Electroluminescence) test before packaging to ensure there are no micro-cracks or defects.
6. What certifications do these solar panels hold?
The products are fully certified by TUV (Germany), CE, and ISO standards, meeting international requirements for safety and performance.
