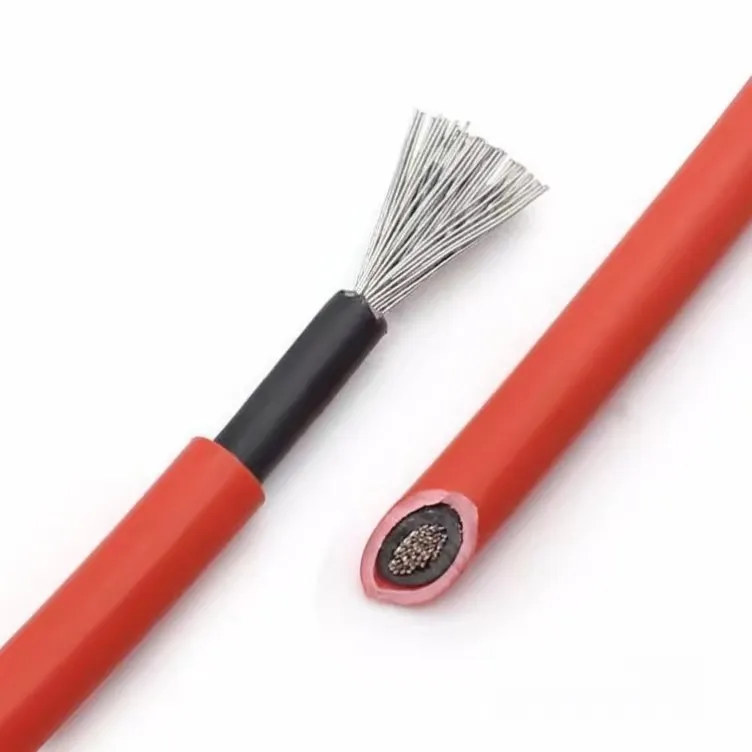

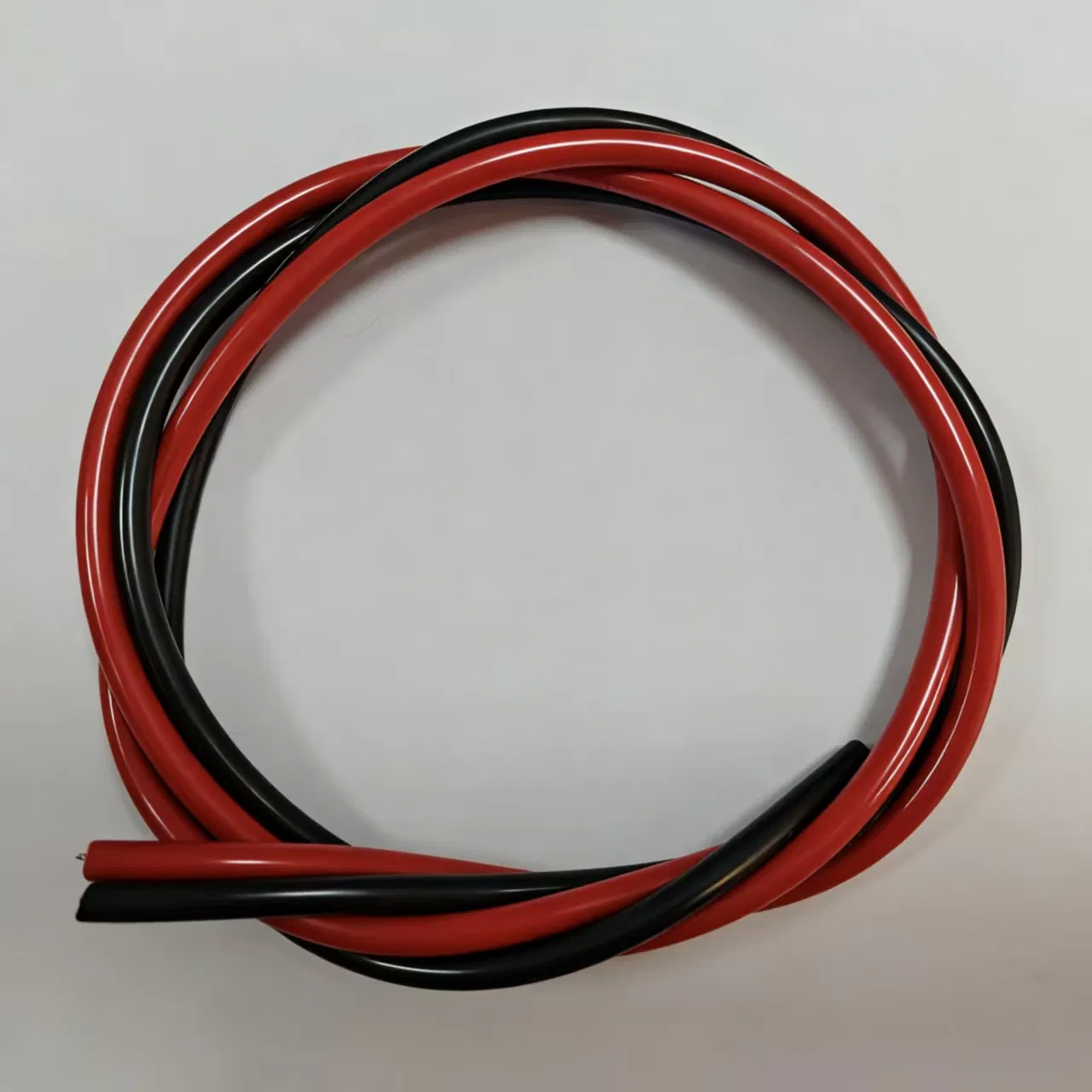

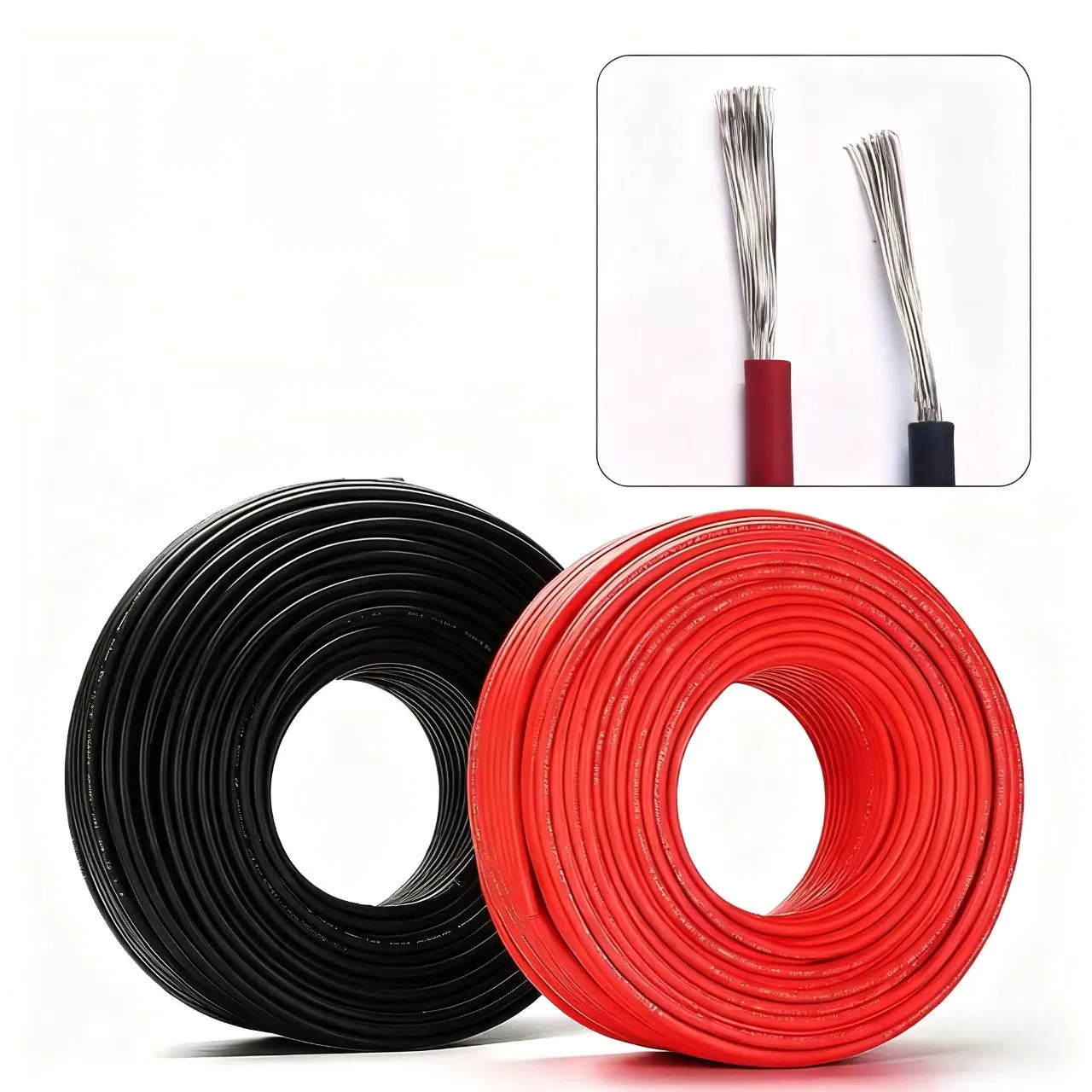

New Energy Cable 6mm² Solar DC PV Cable Weatherproof for Photovoltaic Systems

ℹ️ Basic Information

Model NO.

pv1-f/H1Z2Z2-K

Sheath Material

Crosslinking

Insulating Material

XLPE

Conductor Type

Stranded

Certification

TUV

Wire Core Material

Tinned Wire

Rated Voltage

DC 1500V

Temperature

-40 ~ +90

Production Capacity

100000m/Day

☀️ Product Description

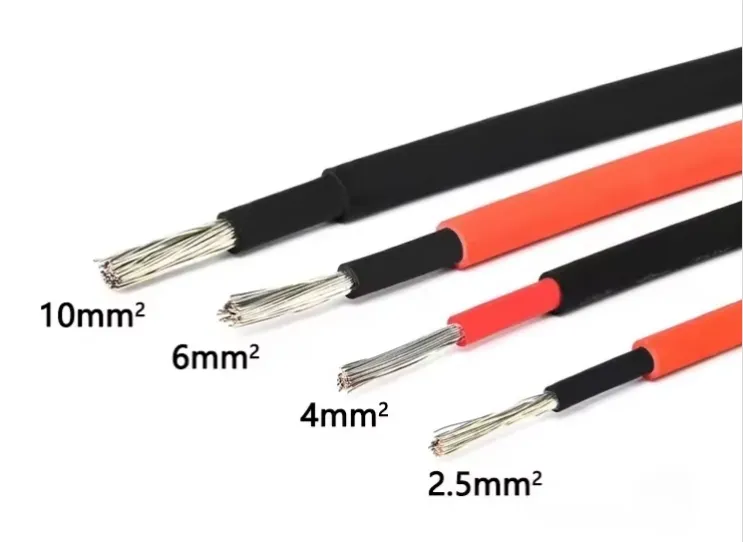

DC1500V H1Z2Z2-K Solar Cable is designed for photovoltaic systems with cross-sections of 1.5mm², 2.5mm², 4mm² (12AWG), 6mm², and 10mm².

✓ Superior weather resistance: UV-stabilized and weather-resistant.
✓ Customizable Material: Tinned copper (anti-corrosion) or aluminum alloy options.
✓ Reliable Insulation: High-performance XLPE insulation for extreme environments.
✓ High Voltage: Fully compatible with DC 600V, 1000V, and 1500V systems.

🛠️ Technical Specifications

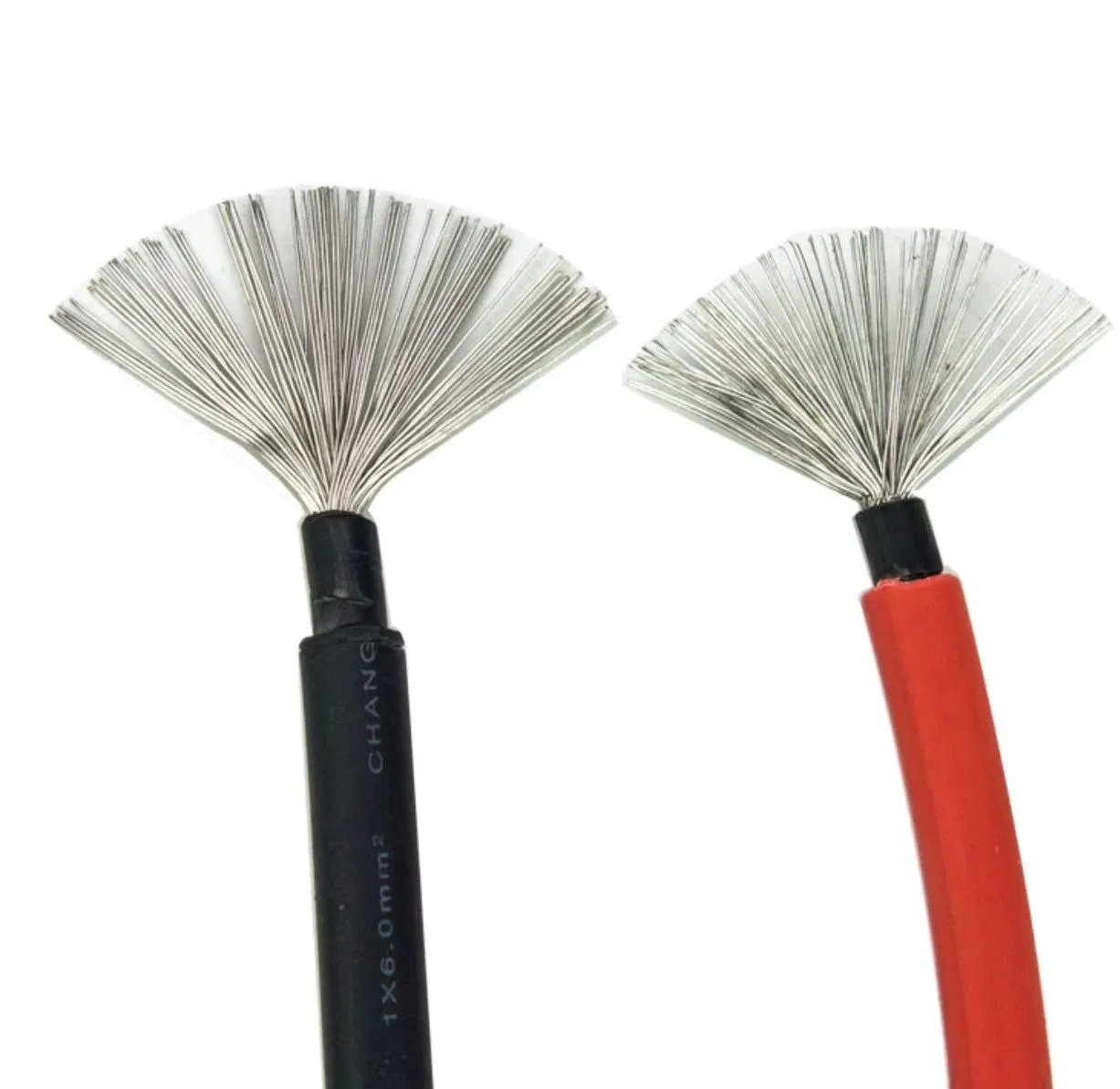

Conductor: Tin-plated oxygen-free copper for low electrical resistance and stable conductivity.

Insulation: Irradiation cross-linked low-smoke, halogen-free (LSZH), flame-retardant polyolefin.

Sheath: Environmentally friendly polyolefin with double insulation for UV protection.

Model Number	Nominal Area (mm²)	Conductor Structure (mm)	Insulation Thickness (mm)	Cable Diameter (mm)	Resistance 20℃ (Ω/km)
PV1-F	1.5	30/0.2	1.0	5.2	12.2
PV1-F	2.5	50/0.2	1.0	5.6	7.56
PV1-F	4	56/0.3	1.0	6.4	4.7
PV1-F	6	84/0.3	1.0	7.0	3.11
PV1-F	10	142/0.41	1.0	8.2	1.84

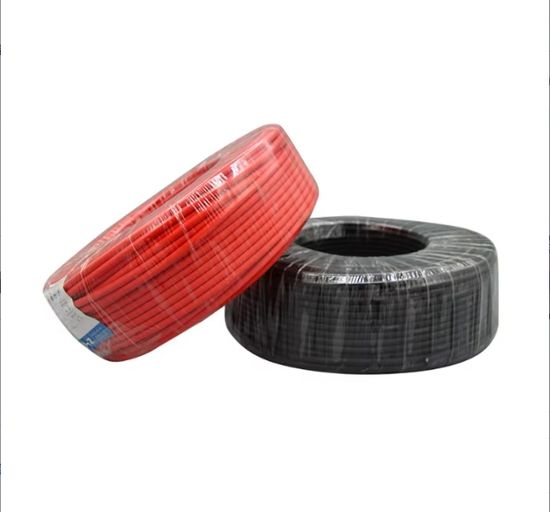

🎥 Production Video

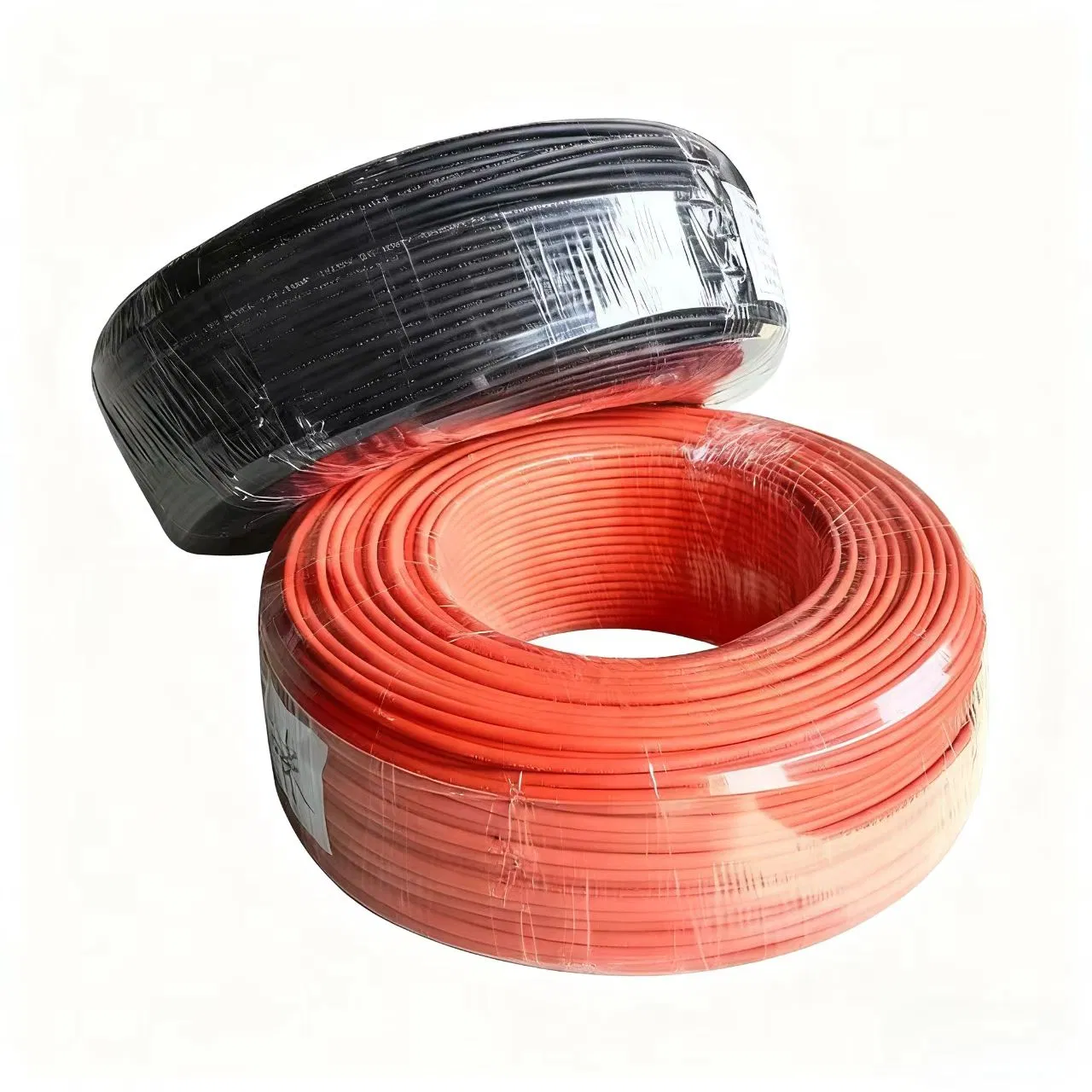

📦 Packing & Delivery

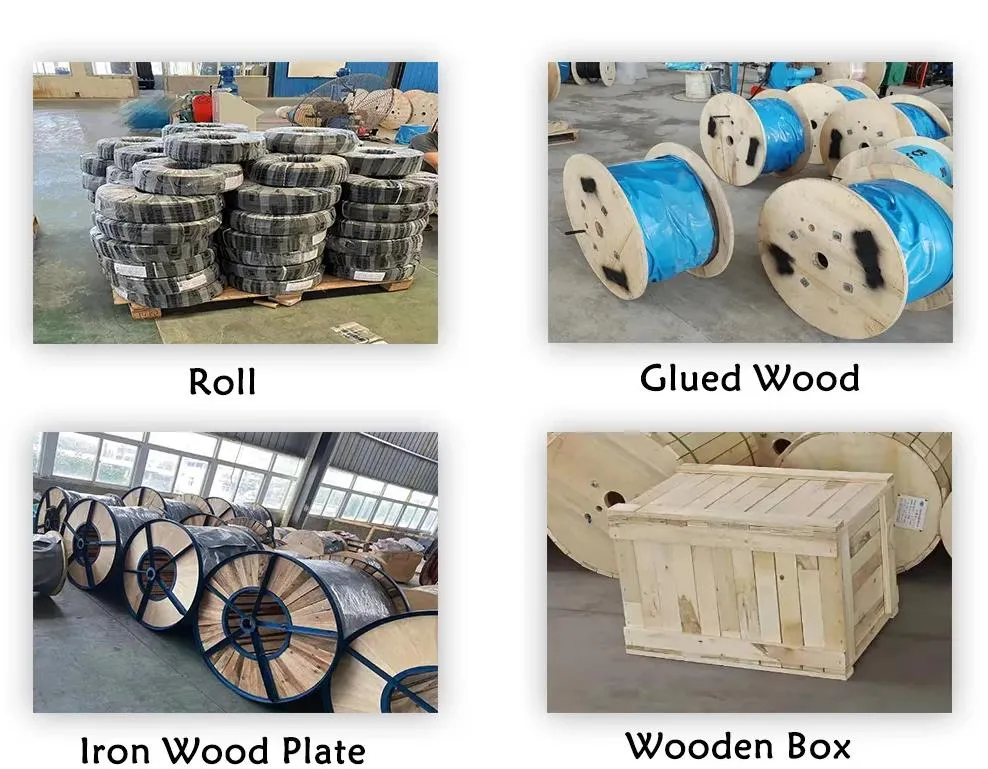

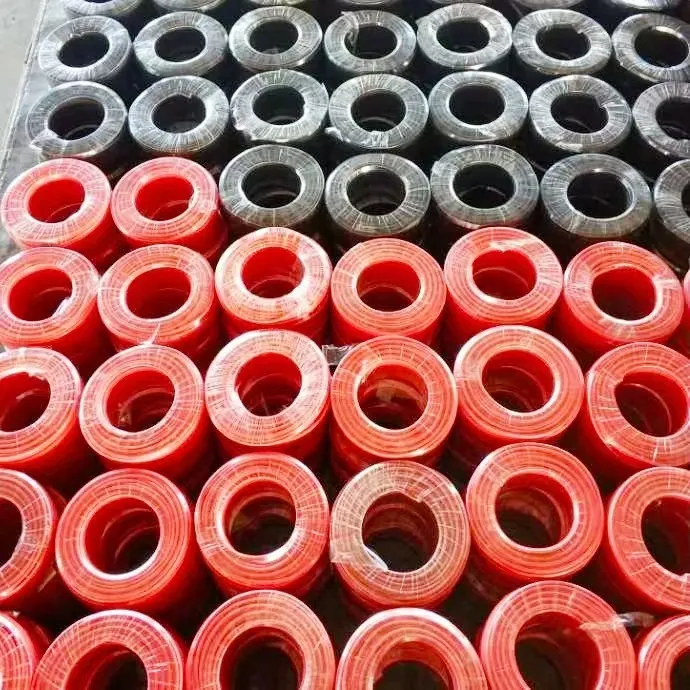

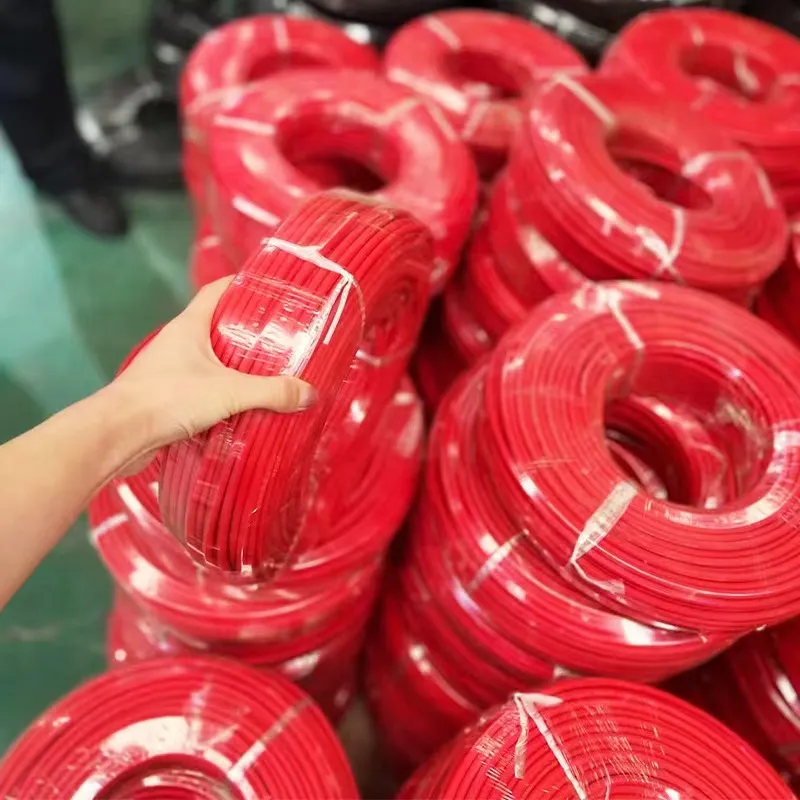

Standard export packing using wooden drums and high-strength cartons to ensure safe delivery of the cables.

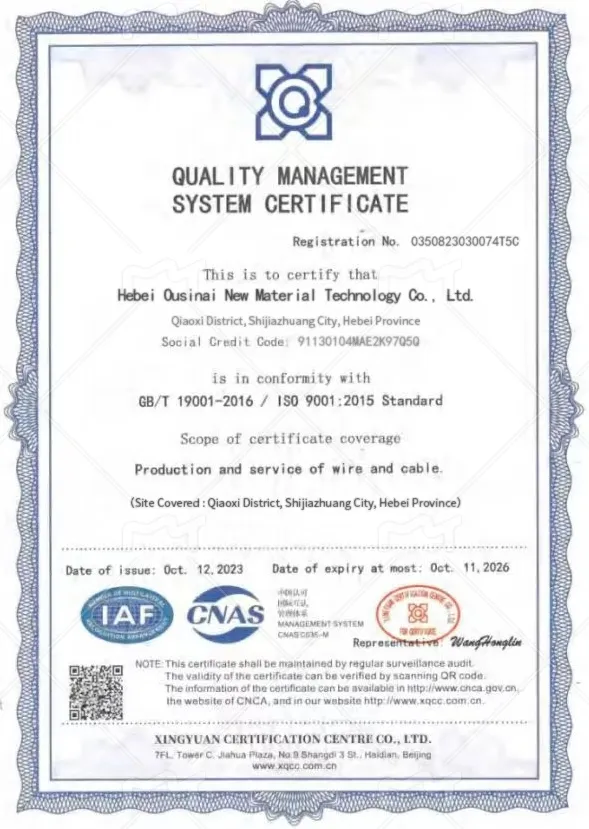

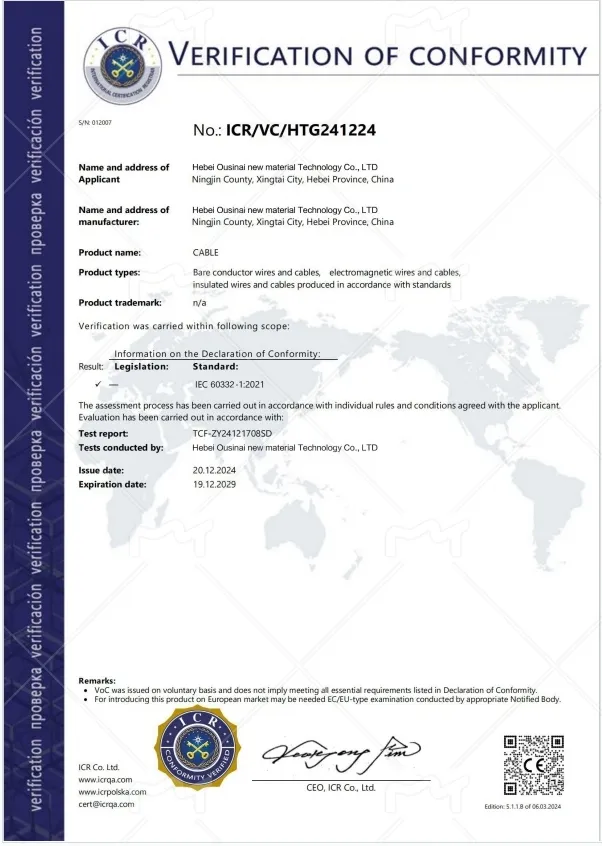

📜 Certifications

❓ Frequently Asked Questions

1. Are you a factory or a trading company?

We are a professional factory specializing in solar (PV) cables and various industrial wires.

2. How do you control product quality?

Quality is our priority. We follow the ISO9001 QC system, conducting strict quality tests from production to delivery to ensure 100% qualified products.

3. What is the typical lead time for mass production?

The lead time is generally between 10 to 20 days, depending on your order quantity.

4. Can I get a sample before ordering?

Yes, samples are available with a lead time of 7-10 days. Sample fees can be credited back for large volume orders.

5. What is your Minimum Order Quantity (MOQ)?

Our standard MOQ is 100 meters, making it accessible for projects of various scales.

6. Do you support OEM services?

Yes, we have rich experience in OEM design and can manufacture products based on your specific requirements.
