60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
1 / 5
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent
60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent

60W Portable Thin Film Light Weight High Efficient Solar Panels with Transparent

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Info.

Model NO.
60W
Number of Cells
36pcs
Application
Solar Energy System Projects
Condition
New
Certification
EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Material
Monocrystalline Silicon
Cells Size
210/182/166/158.75mm
Back Sheet
Black/White Backsheet
System Voltage
1000V/1500VDC
Junction Box
IP68 Rated, 3 Diodes
Frame
Silver/Black Anodized Aluminium Alloy
Specification
67X51X0.3 cm

Product Description

60W Portable Thin Film Light Weight 9BB High Efficient Solar Panels

Featuring a transparent backsheet and 9BB high-efficiency technology, this panel is designed for maximum performance in a lightweight, portable form factor.

60W Mono Solar Panel Features:

  • High efficiency solar cells with positive tolerance only.
  • International quality management with 100% panel power and EL test.
  • Fire test, Ammonia corrosion test, and Salt mist corrosion resistance approved.
  • Flexible design suitable for versatile installations.
Electrical Characteristics (STC)
Module No.FSP-060W
Maximum Power (Pmax)60W
Optimum Operating Voltage (Vmp)18.41V
Optimum Operating Current (Imp)3.26A
Open-Circuit Voltage (Voc)22.473V
Short-Circuit Current (Isc)3.449A
Module Efficiency16.58%
Power Tolerance0~+3%
Maximum System Voltage1000VDC
Mechanical Characteristics
Dimensions670*510*3mm
Weight2.05KG
Solar CellsPerc, All Black, Flexible
Junction BoxIP67 Rated Waterproof
Cable4mm², 90cm
ConnectorMC4
Application ClassClass C
Temperature Characteristics
Nominal Operating Cell Temp (NOCT)46ºC ± 2 ºC
Operating Temperature-40ºC to +85ºC
Temp Coefficient of Pmax- 0.45 %/ºC
Temp Coefficient of Voc- 0.35 %/ºC
Temp Coefficient of Isc0.065±0.015 %/ºC

Module Warranty:

  • 25 Years: Limited warranty for 80% power output.
  • 10 Years: Limited warranty for 90% power output.
  • 5 Years: Limited warranty on materials and workmanship.

Detailed Photos

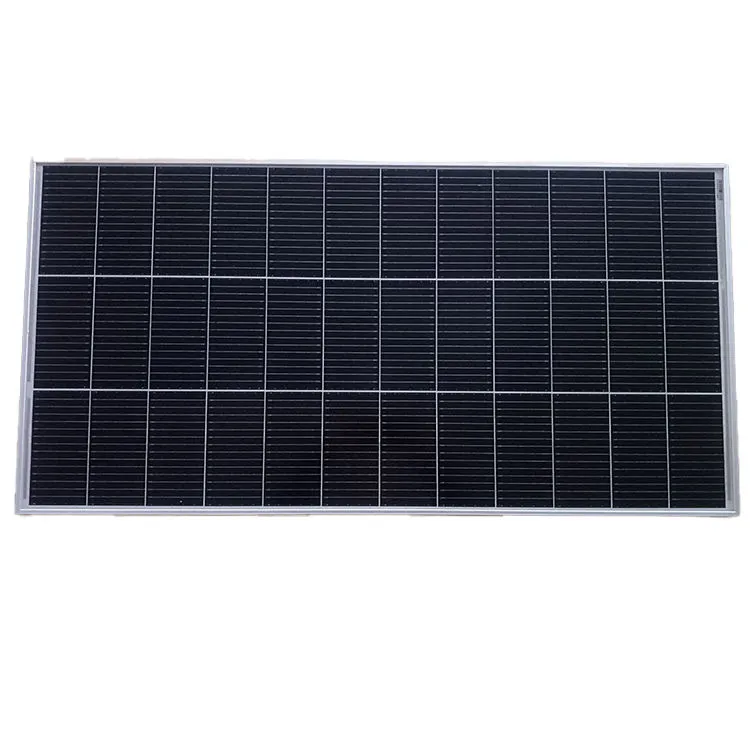

60W Solar Panel Front View

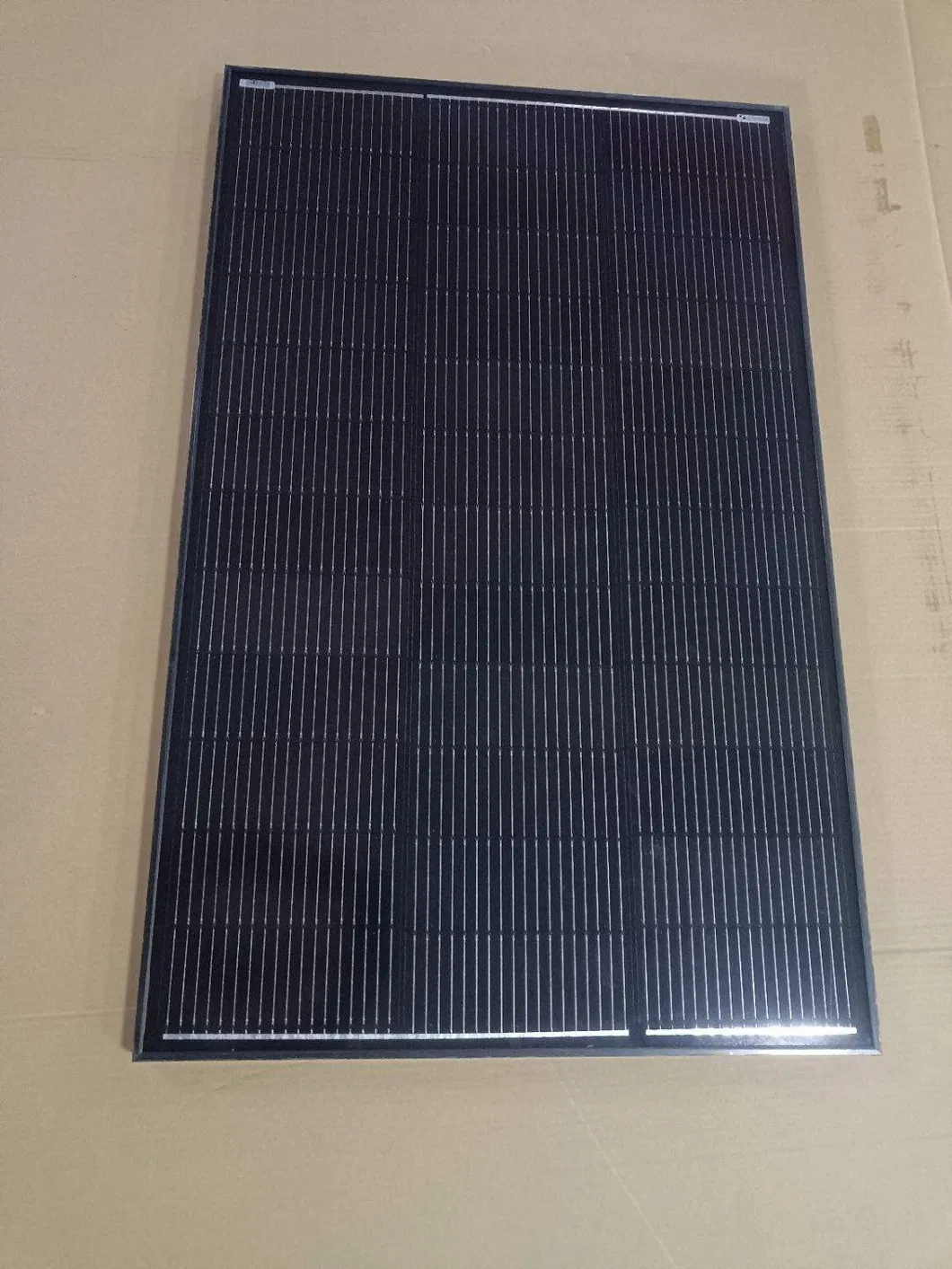

60W Solar Panel Detailed Specs

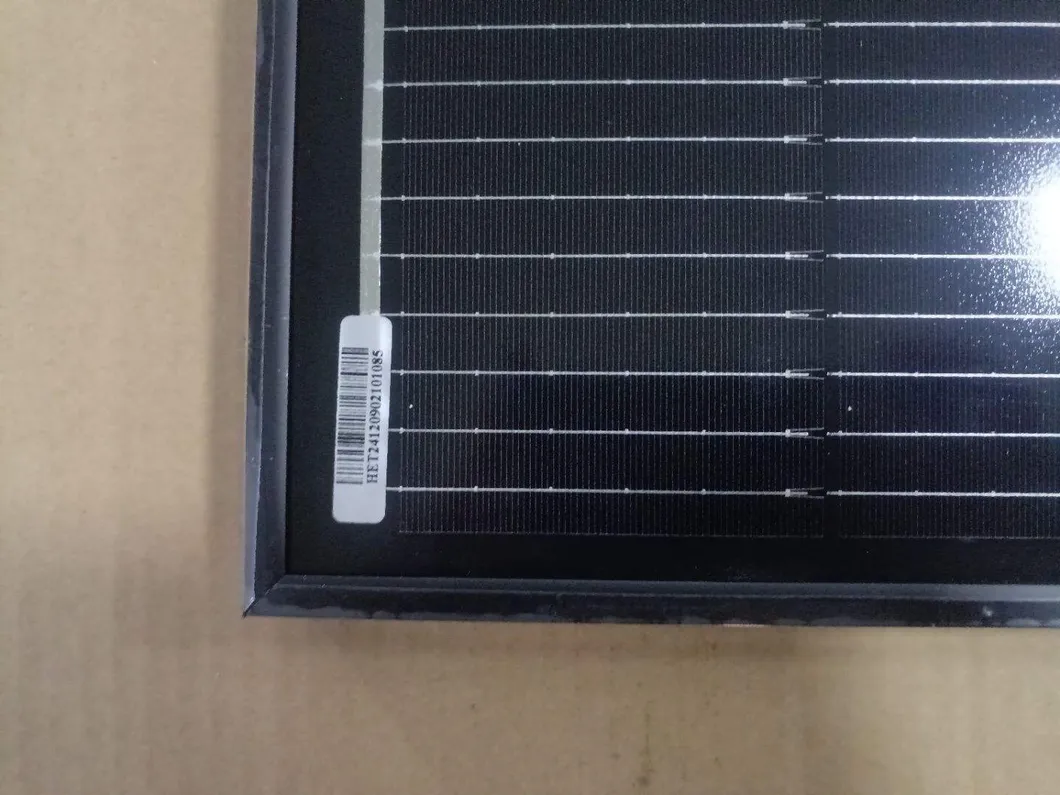

60W Solar Panel Application

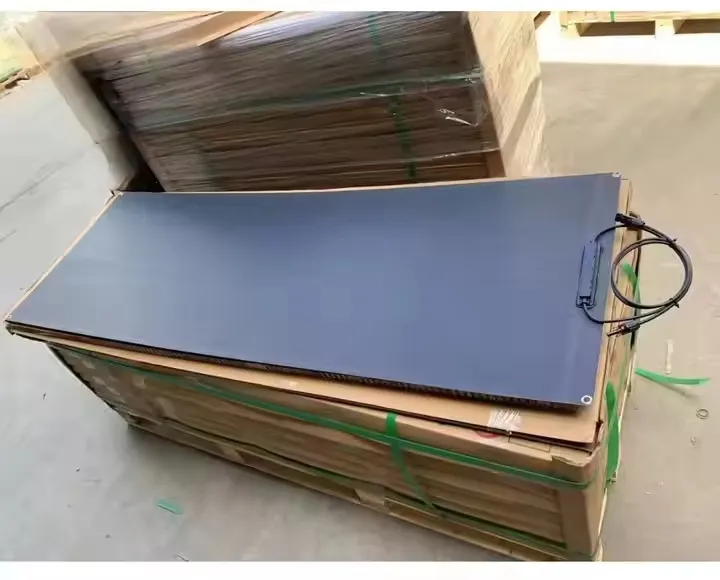

Solar Panel Connector Detail

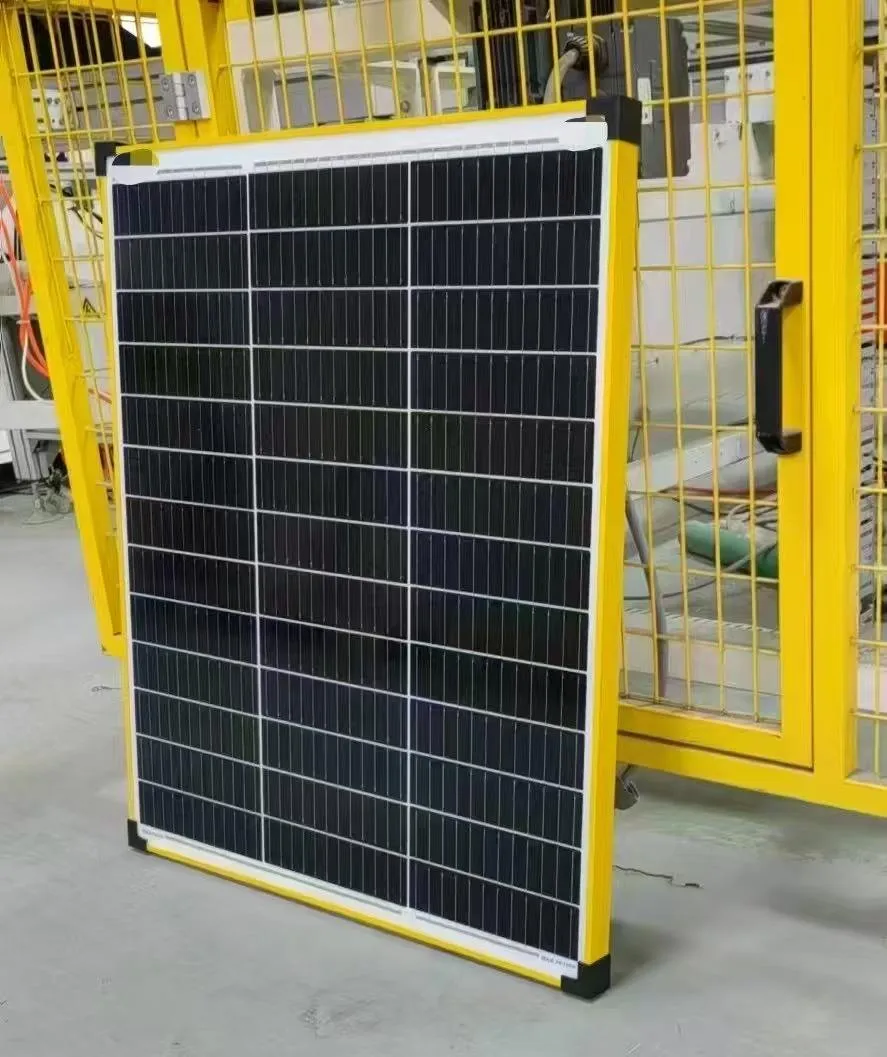

Solar Panel Backsheet Detail

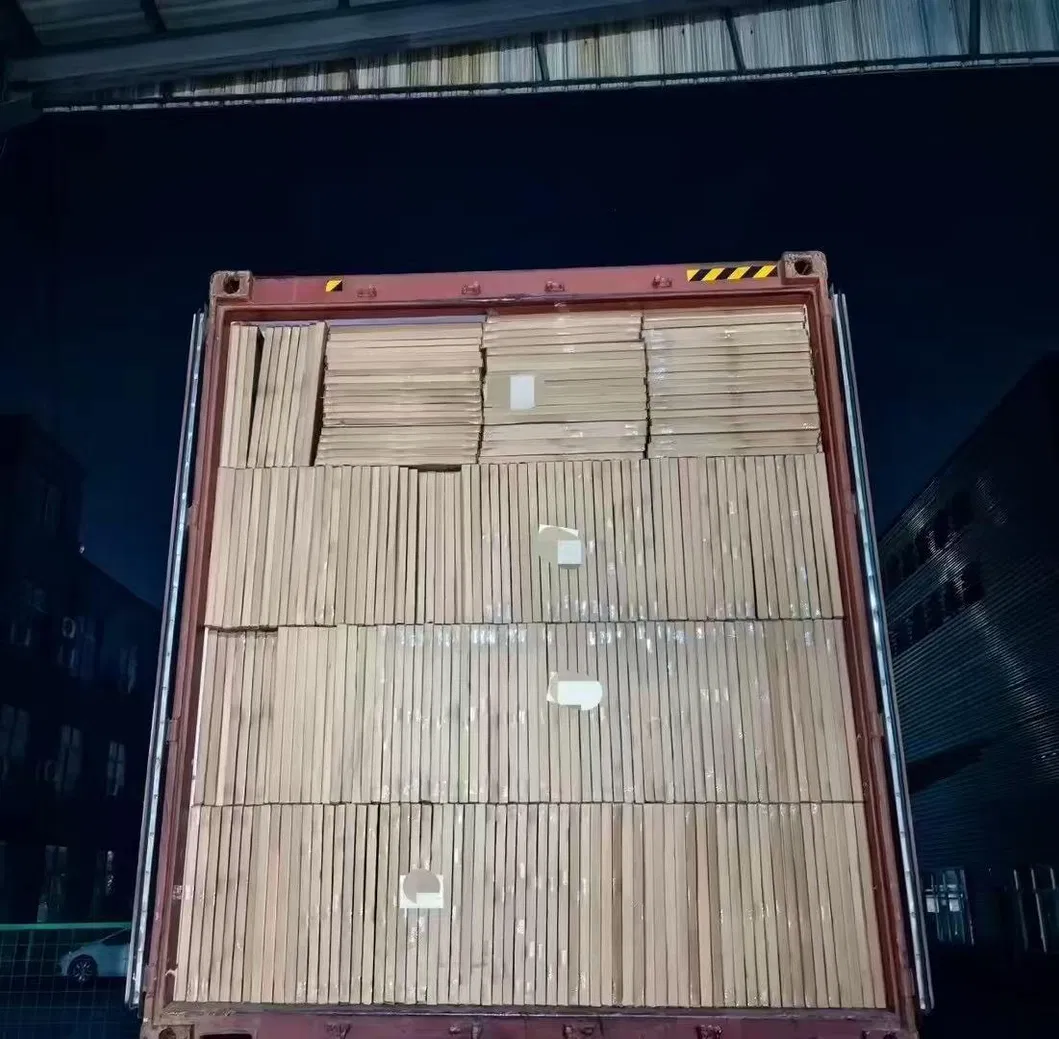

Solar Panel Texture

Frequently Asked Questions

What is the energy efficiency of this 60W solar panel?
The module features a high efficiency of 16.58% utilizing Monocrystalline Silicon and 9BB technology.
Is the panel suitable for outdoor marine or coastal use?
Yes, it has passed Salt mist corrosion resistance and Ammonia corrosion tests, making it durable for harsh environments.
How portable is this solar panel for traveling?
It is extremely portable, weighing only 2.05KG with a thin profile of 3mm, ideal for mobile solar energy projects.

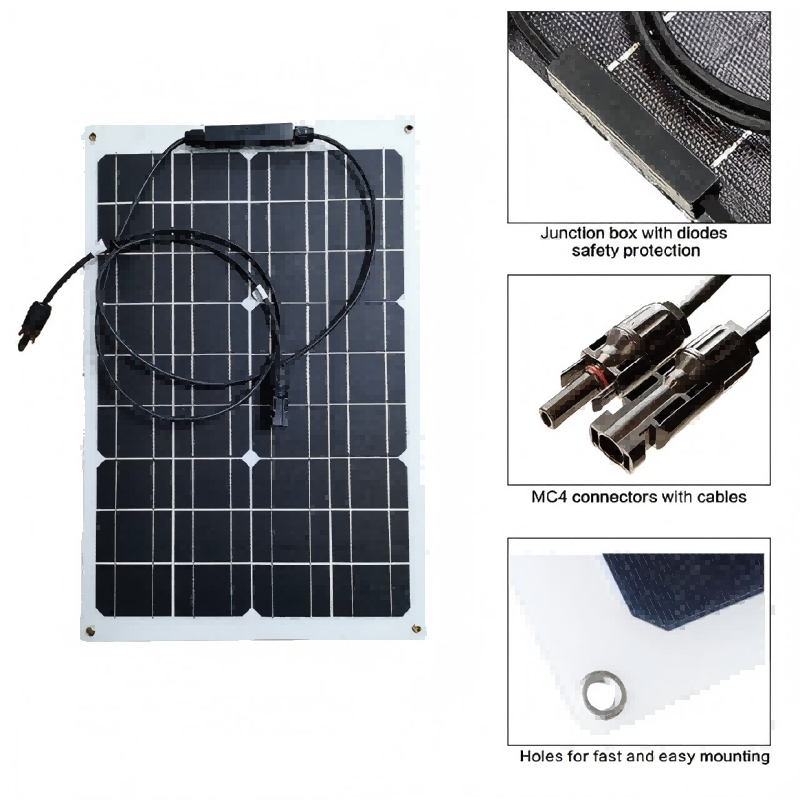

What kind of junction box and connectors are included?
The panel is equipped with an IP67 rated waterproof junction box and standard MC4 connectors with a 90cm cable.
What are the operating temperature limits?
The panel is designed to operate reliably in temperatures ranging from -40ºC to +85ºC.
What does the 25-year warranty cover?
The 25-year limited warranty guarantees that the panel will maintain at least 80% of its original power output.
