5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
1 / 5
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set
5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set

5kw Advanced off-Grid Wind Generator and Solar Panels Hybrid Charge Controller Set

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
FKJ-B 10KW48V
Output Type
DC
Number of Blade
Three Blade
Rotating Shaft
Horizontal/Vertical Axis
Power
＞100kW
Phase
3 Phase
Wind Turbine Rated Power
5kw
Wind Turbine Max Power
10kw
Solar Panel Power
5kw
Efficiency
More Than 92%
Communication
RS485, WiFi, GPRS, RJ45
Display Mode
LCD

PWM Wind Solar Hybrid Charge Controller

PWM Wind Solar Hybrid Charge Controller

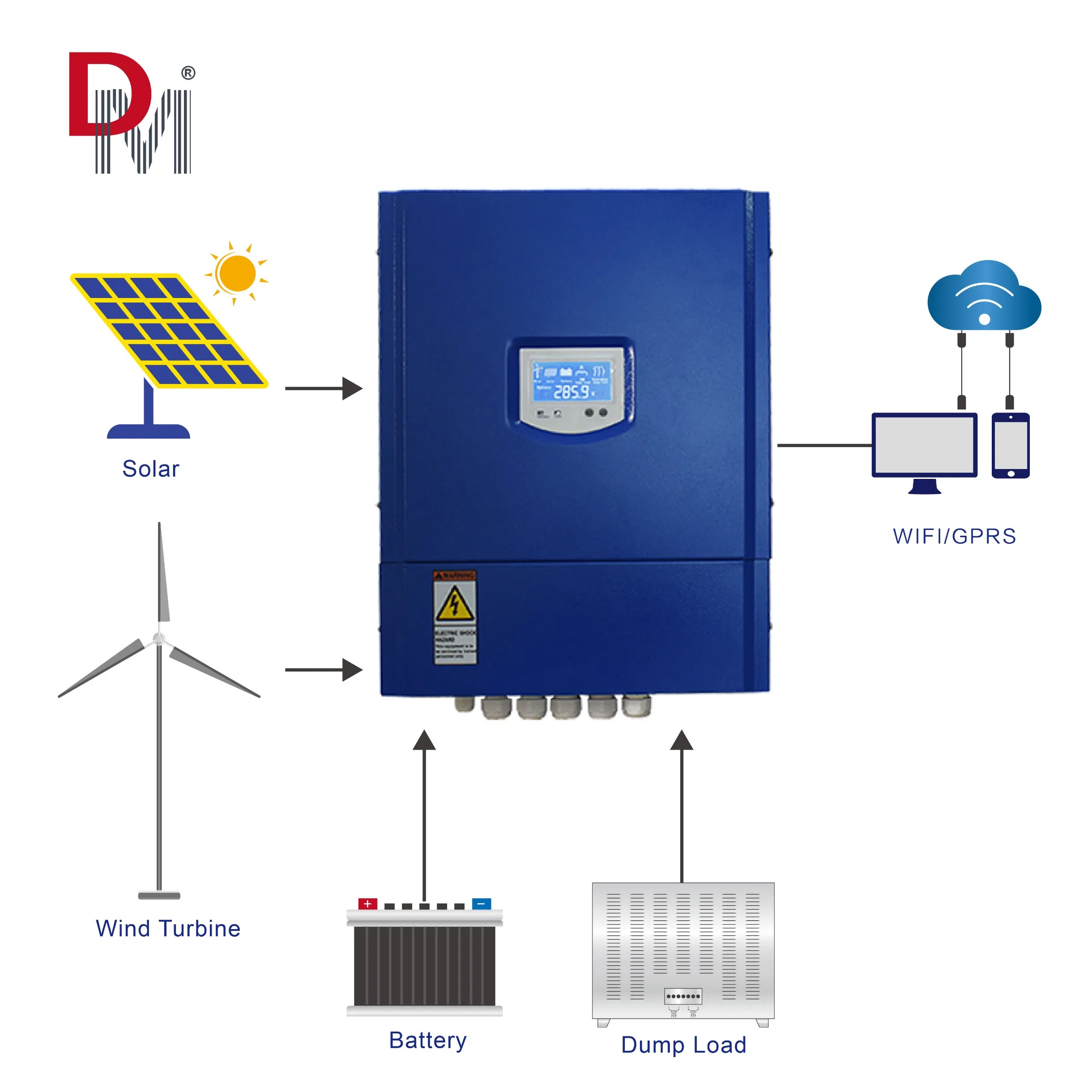

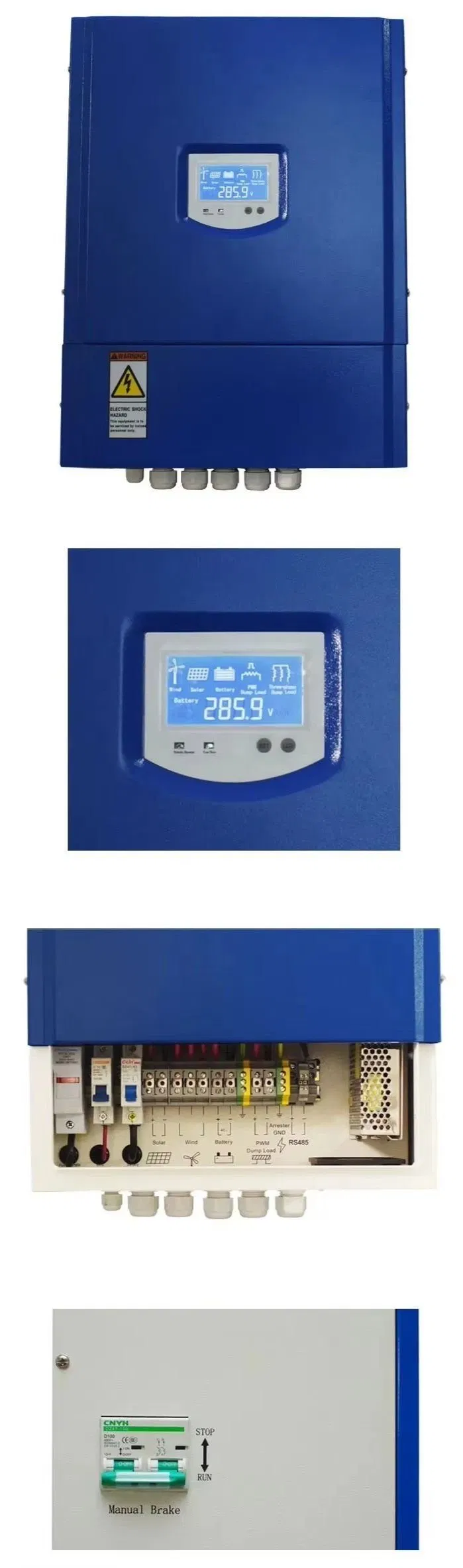

Charge Controller Set Detail

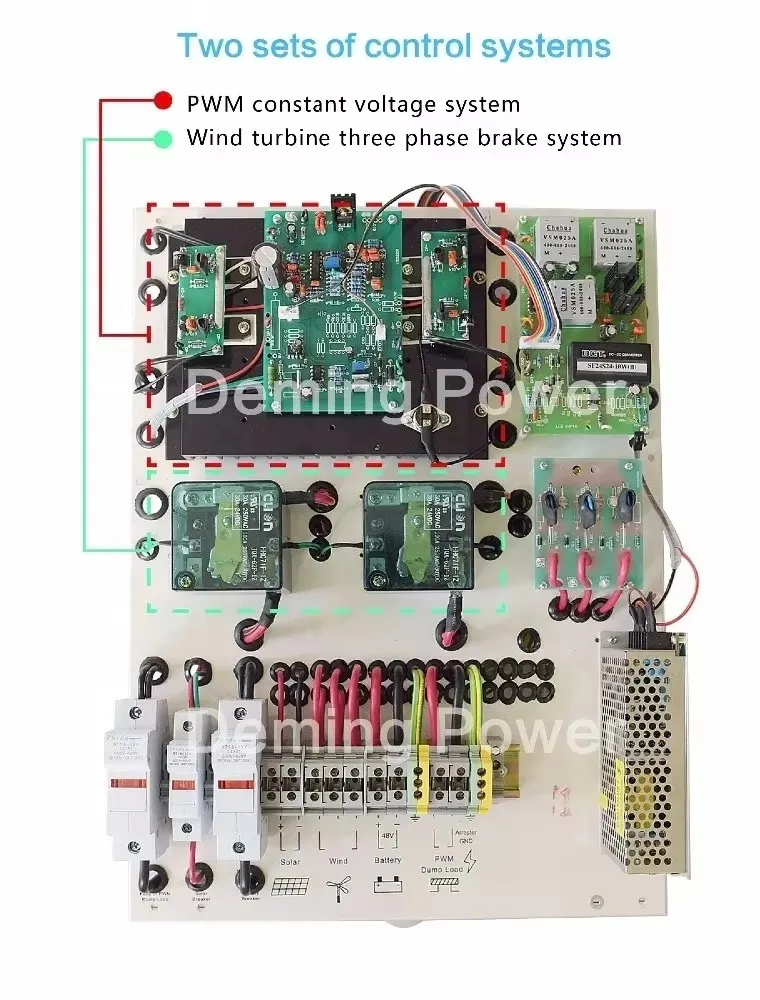

Advanced Control System Dual control systems: PWM constant voltage and three-phase dump load protection.
Real-time Monitoring Large LCD display shows wind turbine/solar voltage, current, power, and battery status.
Comprehensive Battery Protection Features include polarity reverse protection, disconnection protection, and over-charging brake functions.
Intelligent Safety Equipped with surge arrester to conduct lightning current to earth and manual brake switch for forced dump load.

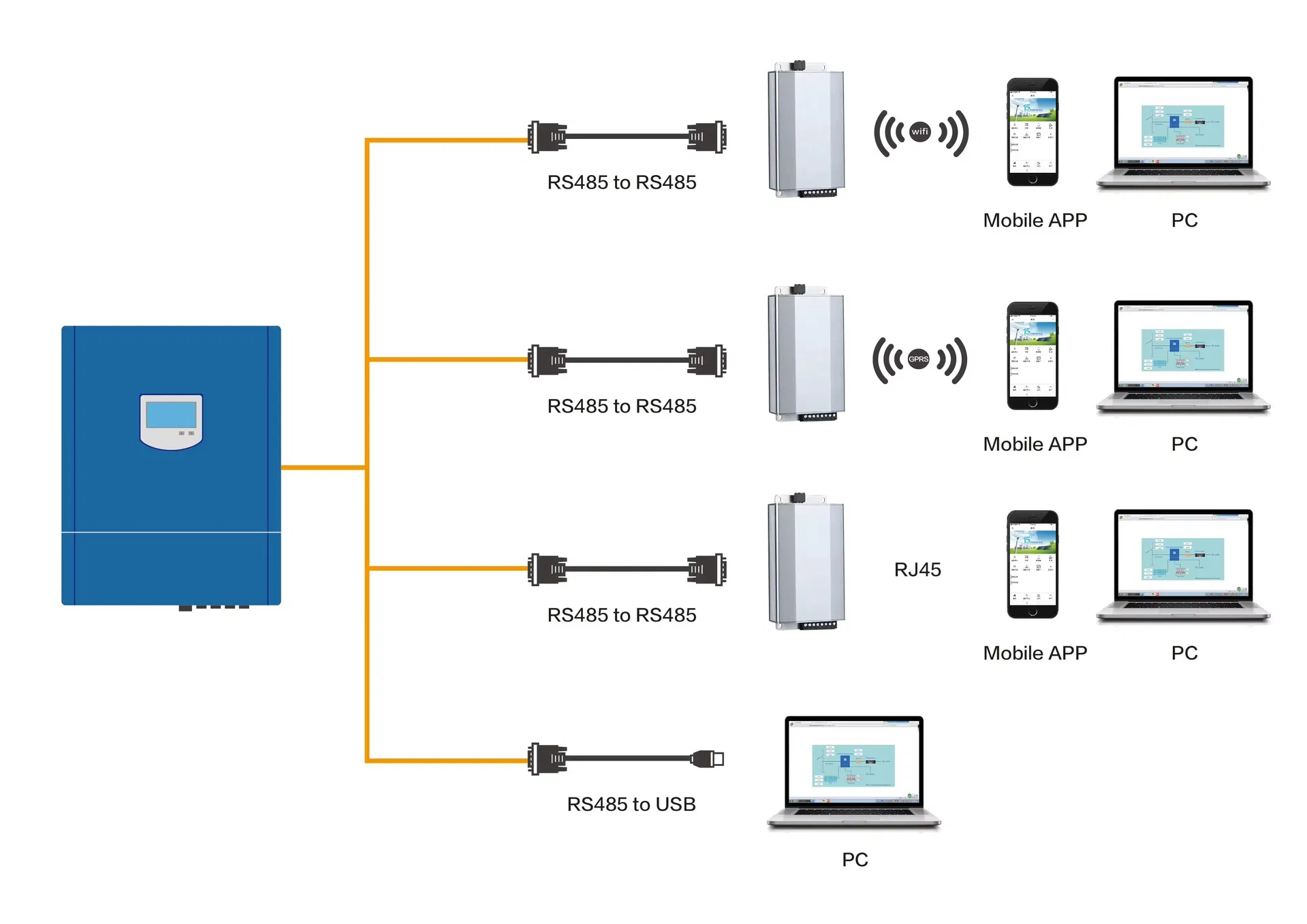

Smart Communication Supports Modbus protocol, RS485 adjustment, and remote monitoring via WiFi/GPRS on PC or Mobile (Android/iOS).

Technical Parameters (3KW Model)

Type3KW-24Vdc3KW-48Vdc3KW-96Vdc
Wind Turbine Rated Power3KW3KW3KW
Wind Turbine Max Power6KW6KW6KW
Solar Panel900W900W900W
Battery Voltage24Vdc48Vdc96Vdc
PWM Constant Pressure>28Vdc>56Vdc>110Vdc
Recovery Charging Voltage27±1Vdc54±1Vdc108±2Vdc
Work Temperature-30 to 60°C
Degree of ProtectionIP20 (Indoor)
Cooling MethodForced air cooling

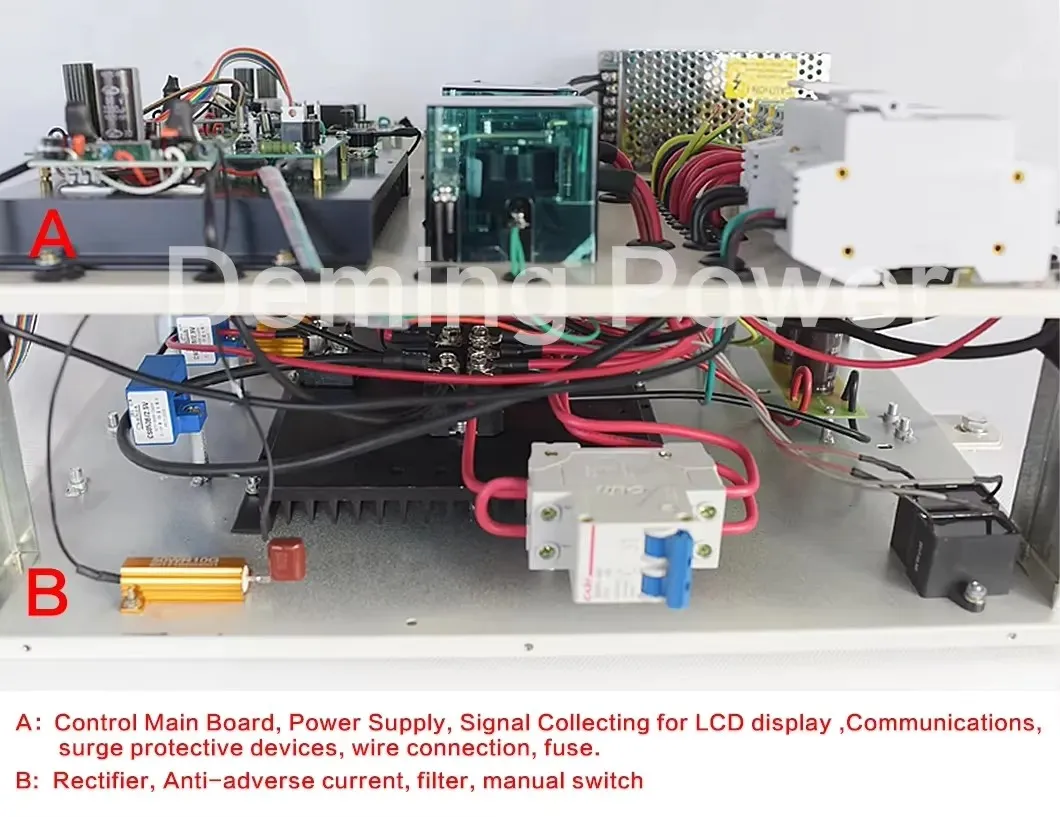

Controller Interface
Technical Layout

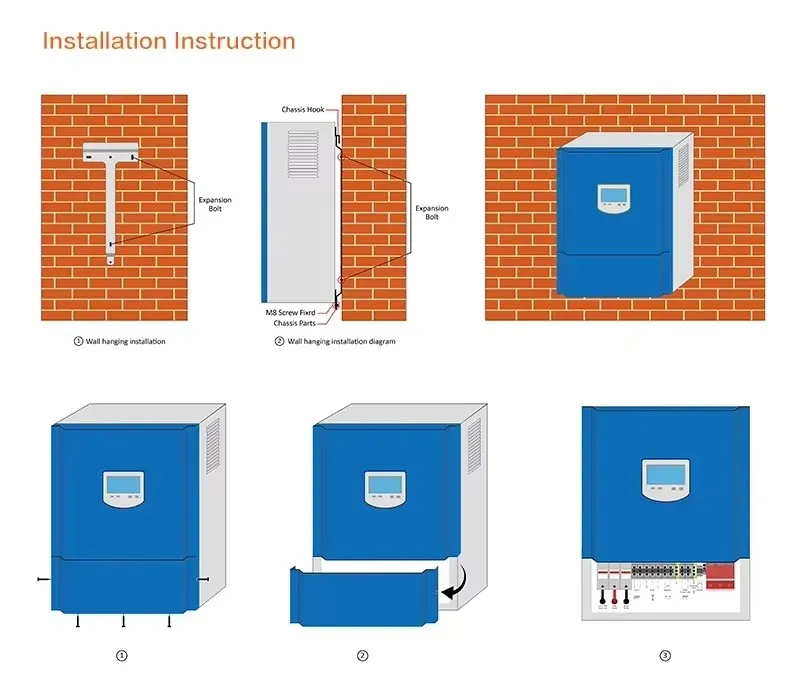

Controller Design

Packaging & Performance

Unit Assembly
Product Casing
Package Size
560cm * 430cm * 320cm
Gross Weight
60.00kg
Transport Package
Wooden Case
Buyer Feedback

Frequently Asked Questions

Can you provide OEM service?
Yes, we provide professional OEM services to meet your specific branding and production needs.
Can you design a complete solar wind power system?
Yes, we can design the entire system according to your specific power requirements and environmental conditions.
Are you a manufacturer or a trading company?
We are a dedicated manufacturer of wind turbine solar controllers and various high-performance inverters.
Is product customization acceptable?
Yes, we can customize technical specifications and features based on customer requirements.
Can you provide samples for testing?
Yes, we provide samples for performance testing and quality verification purposes.
Can I visit the production facility?
Yes, we welcome professional visitors to tour our factory and see our manufacturing process.
