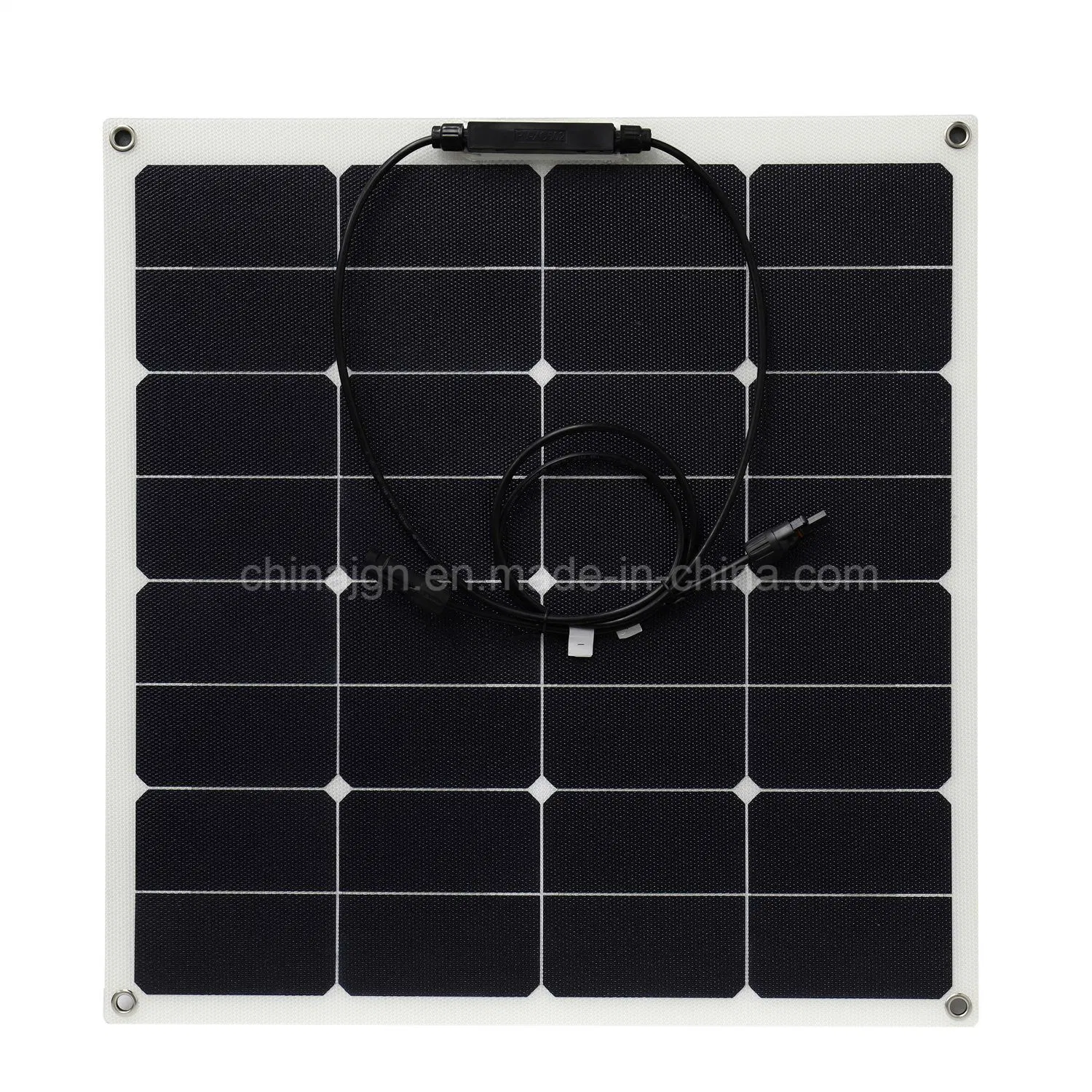

50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
1 / 5
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)
50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)

50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Info

Model NO.
JGN-50W-SPFE
Application
Solar Boats, Solar Rvs, Solar Golf Carts
Condition
New
Certification
ISO, CE, RoHS
Material
Sunpower Solar Cell
Weight
Light & Semi-Flexible
Solar Cell
Sunpower/Mono
Color
White/Black Optional
Specification
560mm*540mm*3mm
Production Capacity
50MW/Year
Package Size
105.00cm * 70.00cm * 3.00cm
Gross Weight
2.500kg
💡

Product Description

50W Semi-Flexible Sunpower ETFE Solar Panel (JGN-50W-SPFE)

Description:

  • Semi-flexible solar panel is used widely on yacht, boat, RV, golf carts etc.
  • Revolution on producing technology of solar panel cutting 70% weight from standard rigid solar panel.
  • High efficiency Sunpower® Solar cells, 22%-25% efficiency.

Features:

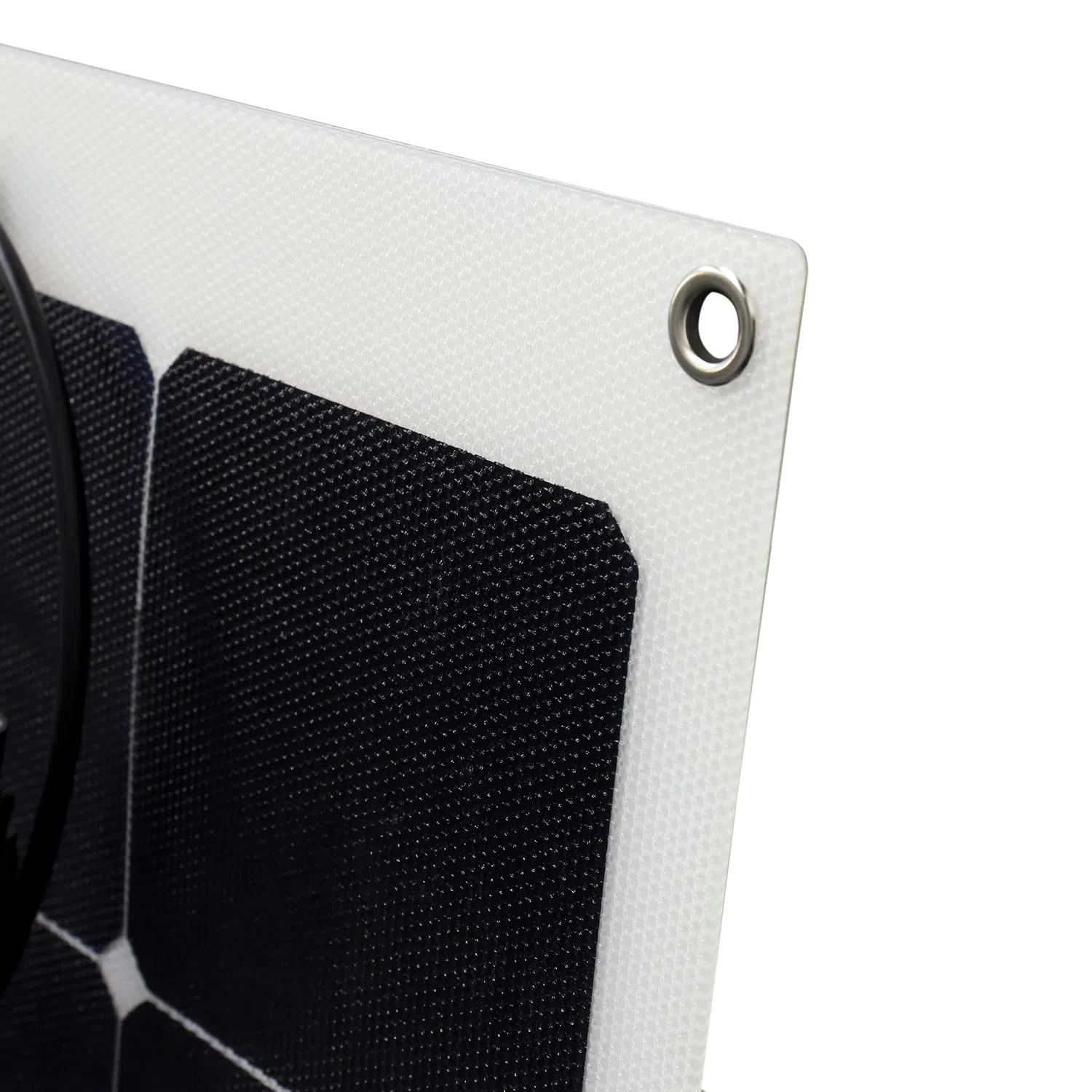

  • Stainless grommets on the corners for easy installation.

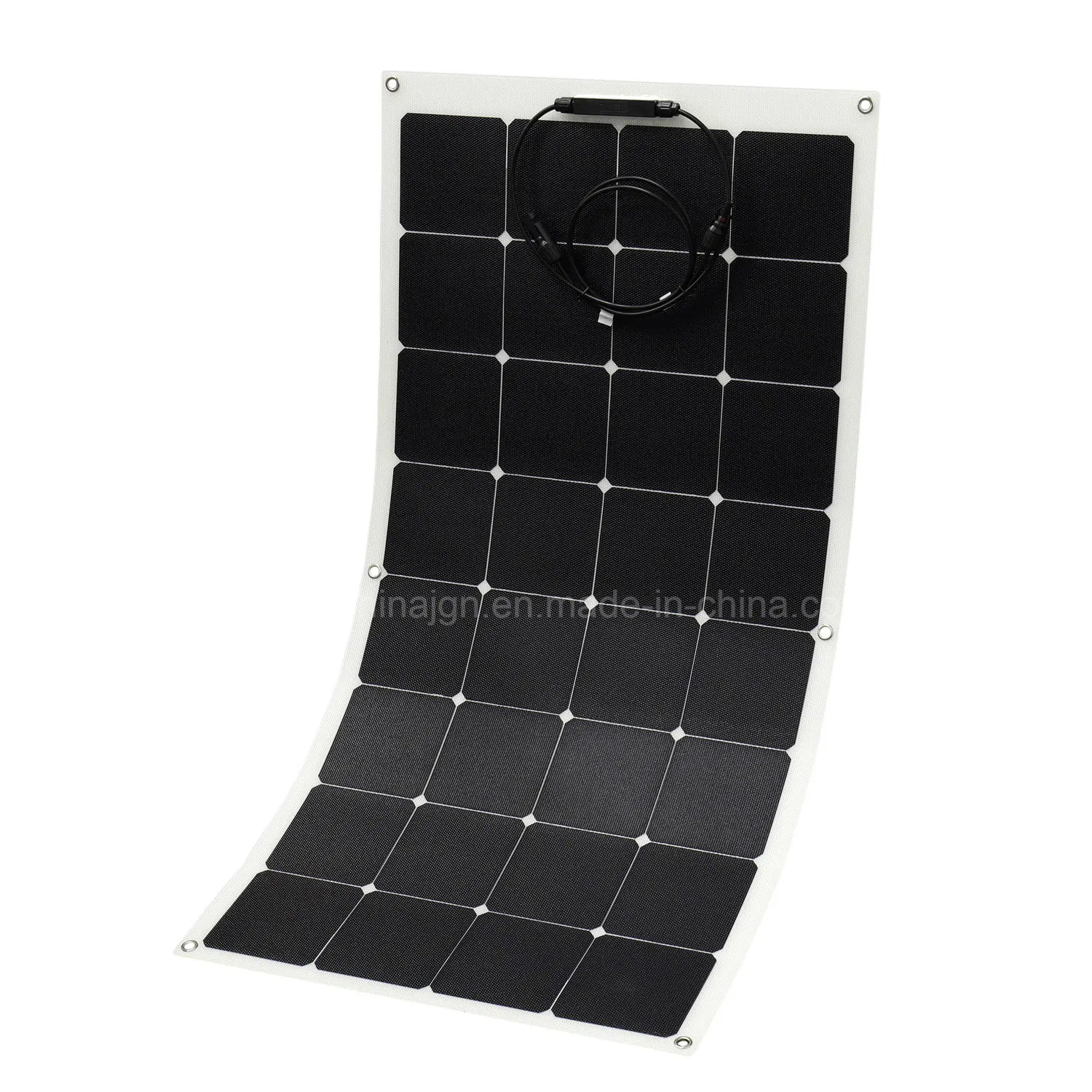

  • Semi flexible and the bedding angle up to 30 degrees.
  • Light weight and thin for easier carry, contain no glass or aluminum.
  • Thickness only 2.5~3mm so easy joint to your yacht or RV roof.

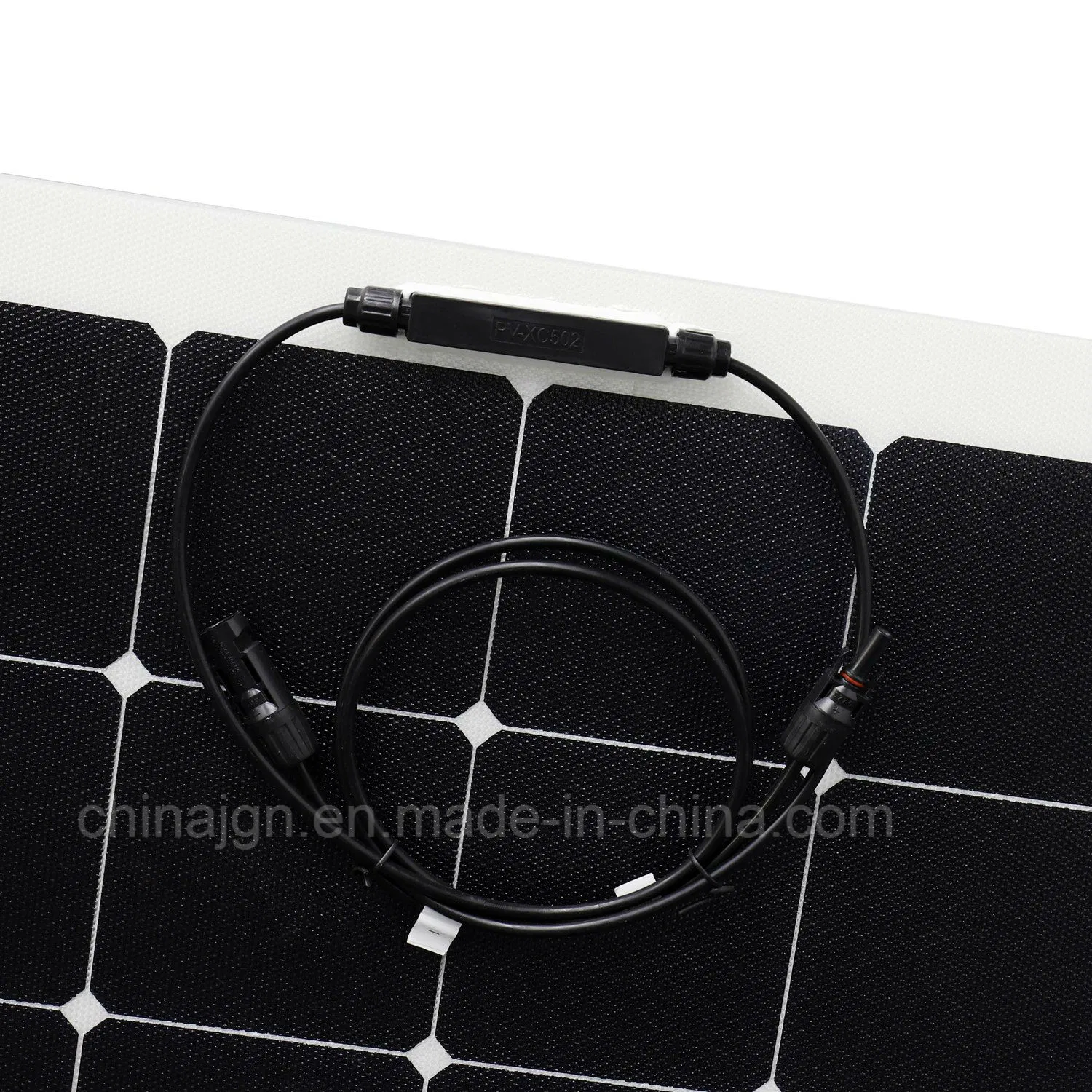

  • Pencil type junction box(IP65) with built-in diode.
📊

Product Parameters

Model numberJGN-50W-SPFE
Peak power / Pm(W)50±5%
Max. power voltage / Vmp(V)16.7
Max. power current / Imp(A)3.00
Open circuit voltage / Voc(V)20.8
Short circuit current / Isc(A)3.23
Solar cell efficiency22.00% around.
Dimensions(L*W*T)560*540*3.0mm.
Solar cell connectionSunpower solar cells, 32-cell in series.
Encapsulation methodETFE laminated
Junction boxOptional
Testing ConditionsIrradiance:1000W/m2, Cell:25ºC, AM:1.5.
LifespanOver 8 years.

Product Images:

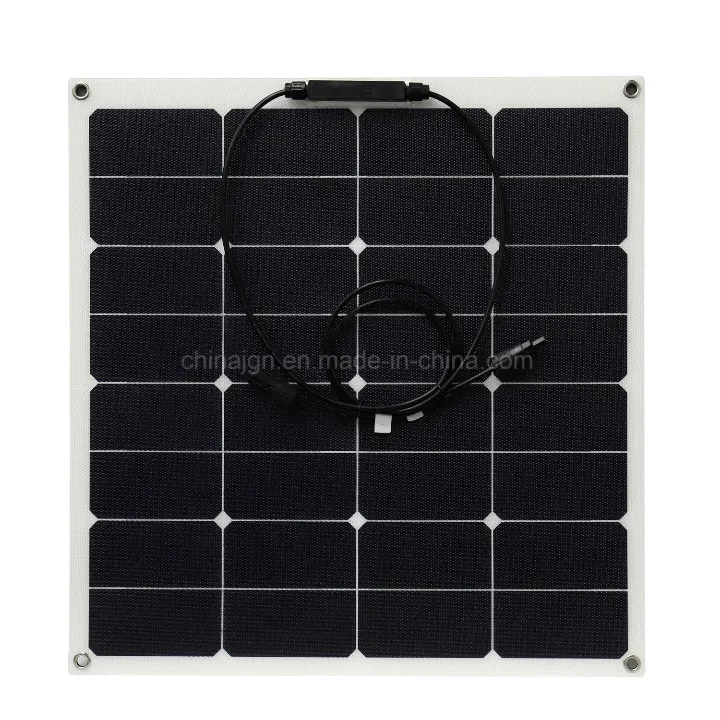

50W Solar Panel View 1

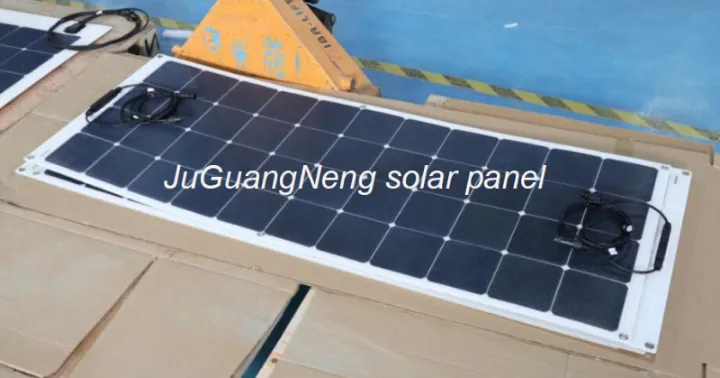

50W Solar Panel View 2

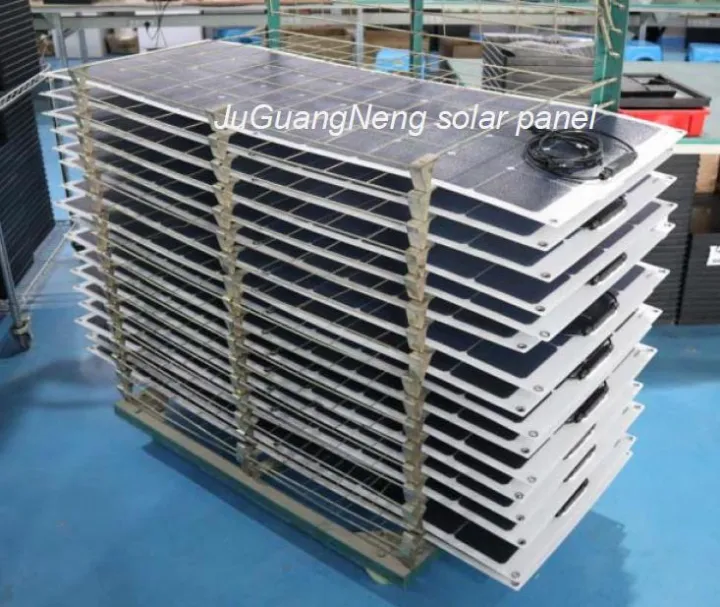

50W Solar Panel View 3

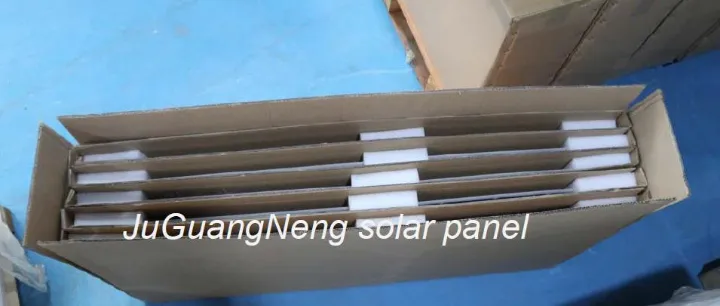

50W Solar Panel View 4
🏆

Our Advantages

A professional manufacturer specialized in various solar panels from 0.1W to 400W+ with 30-year production experiences.

Qualified products cover small watt solar panels (PET/PCB laminated and Epoxy resin), tempered glass solar panels (0.1W-400W+), semi-flexible panels (5W-400W+) with Sunpower/mono cells, and portable foldable solar panels.

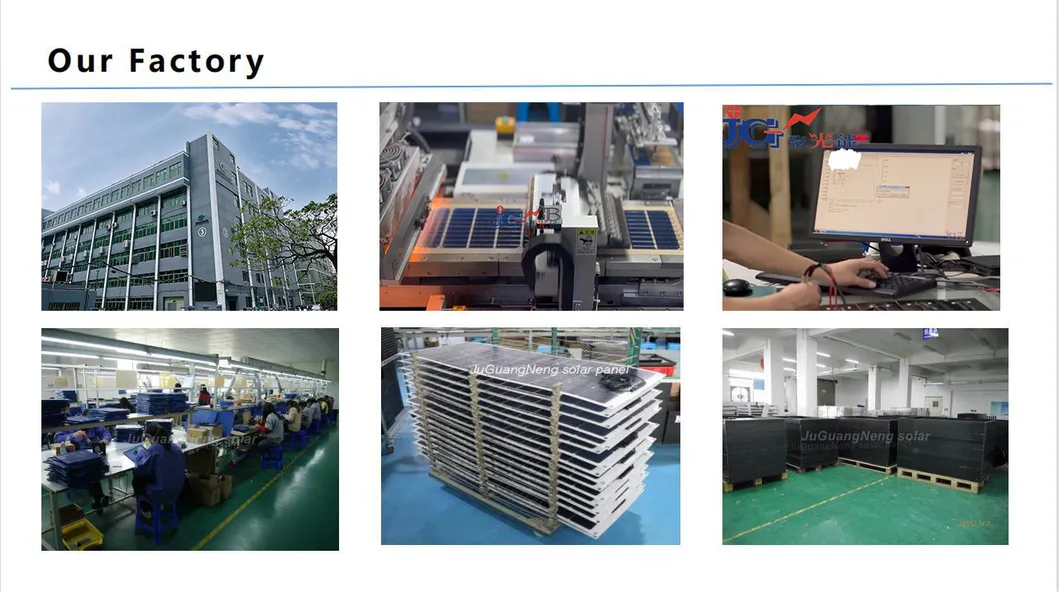

Production Facility
📜

Certifications

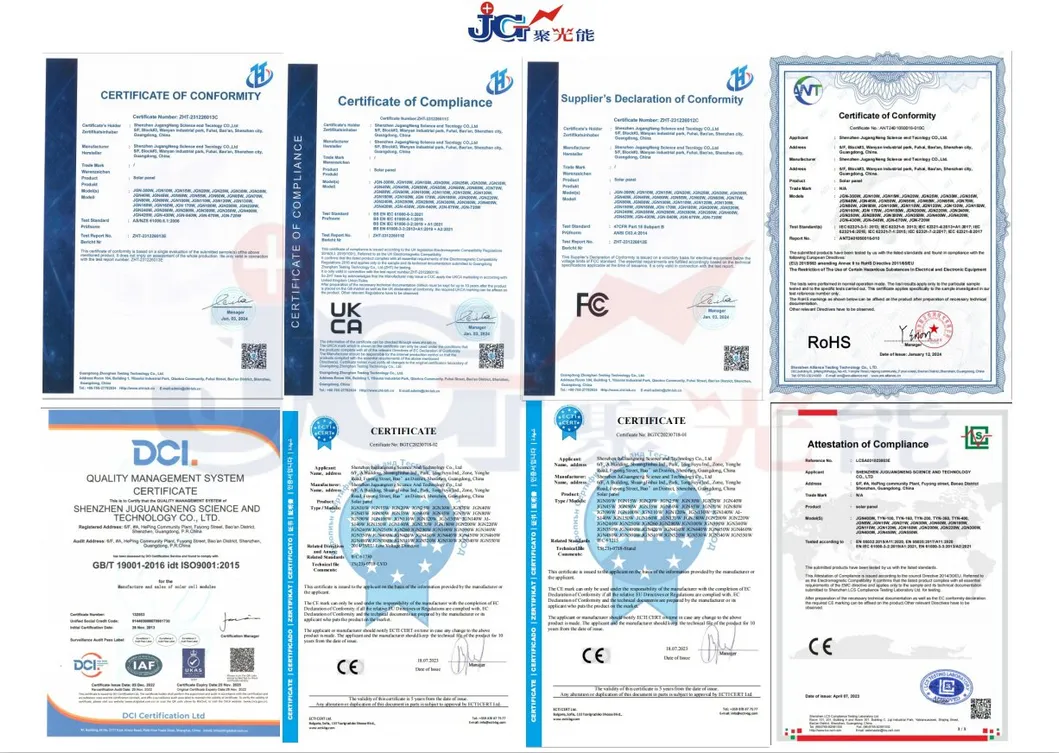

Certifications Display
📦

Packaging & Shipping

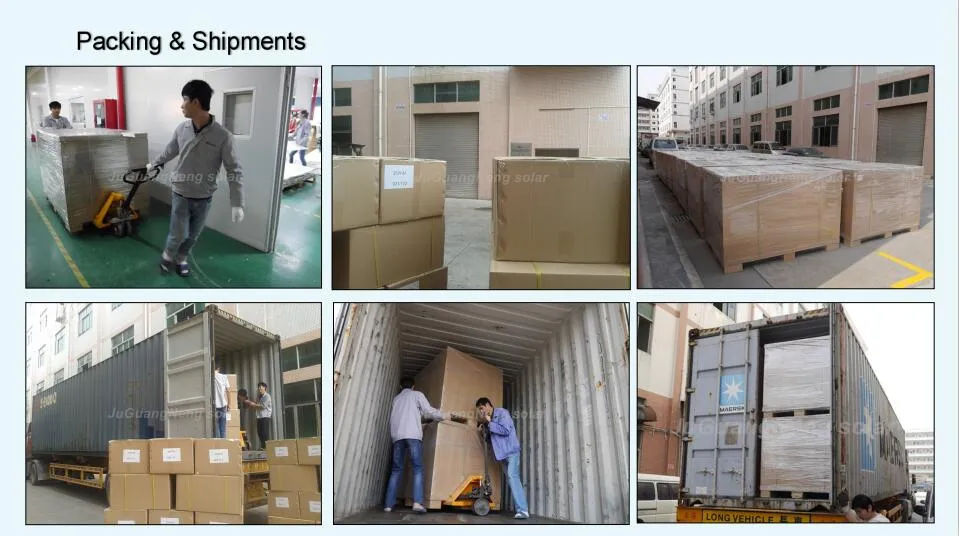

Packaging Process

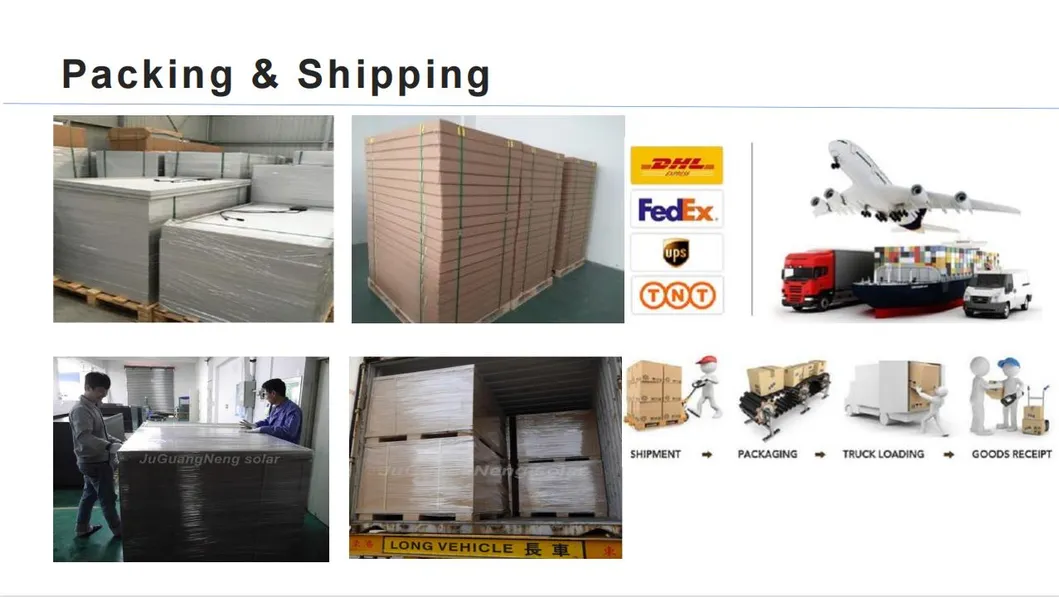

Shipping Logistics
Frequently Asked Questions
What are the primary applications for this semi-flexible solar panel?
It is ideal for curved surfaces such as yacht decks, boat roofs, RVs, and golf carts due to its flexible nature.
How much can the solar panel actually bend?
The panel is designed to have a bedding angle of up to 30 degrees, allowing it to conform to most curved surfaces.
What is the advantage of using Sunpower cells?
Sunpower cells provide higher efficiency (between 22%-25%) compared to standard monocrystalline cells, meaning more power in a smaller footprint.
Is the panel heavy or difficult to install?
No, it is 70% lighter than standard rigid panels and only 3mm thick. It includes stainless grommets on the corners for quick and easy mounting.
Does it withstand wet environments?
Yes, it features an IP65 rated junction box with a built-in diode, making it suitable for marine and outdoor environments.
What is the expected lifespan of the JGN-50W-SPFE?
With proper care and installation, these panels have a lifespan of over 8 years.
