344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
1 / 5
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost
344kwh Battery Energy Storage System Bess Solar Energy System Save Cost

344kwh Battery Energy Storage System Bess Solar Energy System Save Cost

Customization: Available
Rated capacity: 344KWh
Cooling method: liquid cooling
Send Inquiry

Product Description

Hot Sale High Voltage Liquid ESS Cooled Outdoor Energy Storage Container

Basic Info
Model NO.SET-ESS-MAT344Y
Size1300*1325*2200mm
Rated Voltage1228.8Vdc
Weight3500kg
OriginChina
Packaging & Delivery
Package Size1250cm * 1300cm * 2400cm
Package Gross Weight2500.000kg
Transport Packageas Per Our Request

Product Description

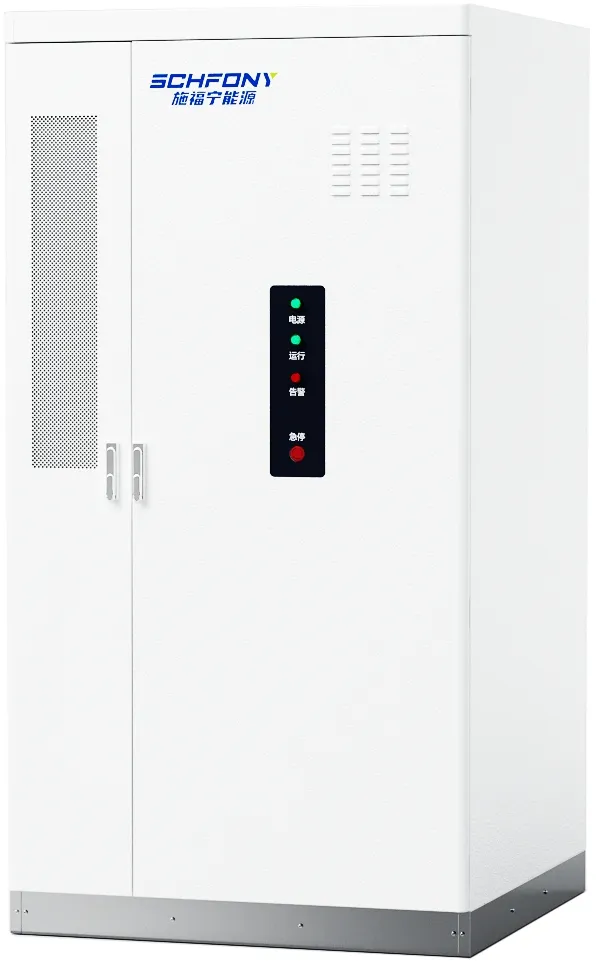

344kwh Battery Energy Storage System

Model: SET-ESS-MAT344Y

Rated capacity: 344kWh
Rated voltage: 1228.8Vdc

Safety Design: Perfluorohexanone + water full immersion fire fighting for enhanced safety and protection.

Cooling Mode: Liquid cooling, ensuring optimal temperature control and system longevity.

Technical Points

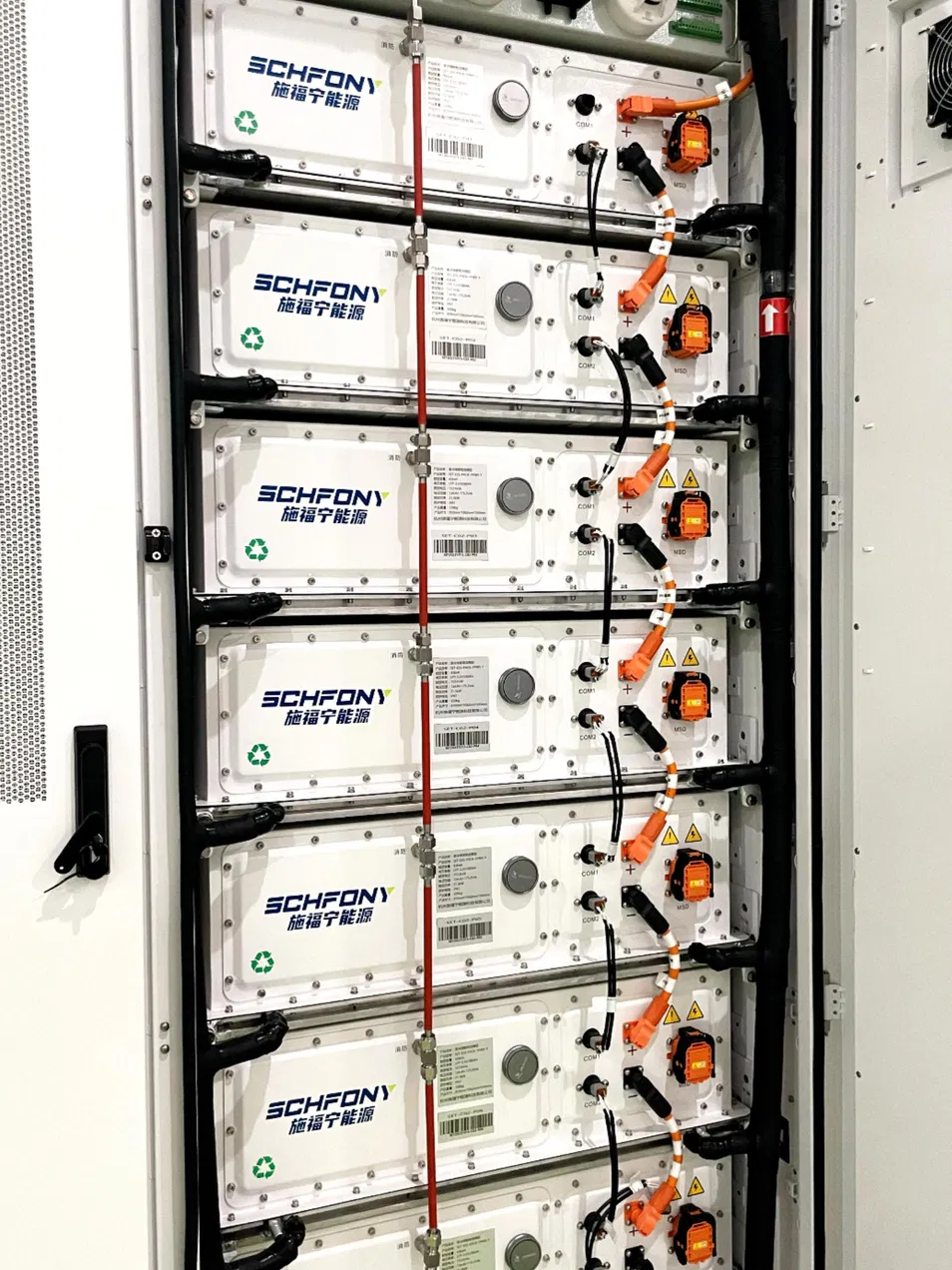

BESS Technical Details
Contains 8 PACK Battery Modules
Internal core contains 8 PACK level battery modules.
High Voltage Box
Consists of Battery Units (BU) and Disconnect Assemblies.
Advanced BMS
Responsible for information acquisition, communication, and cell management.

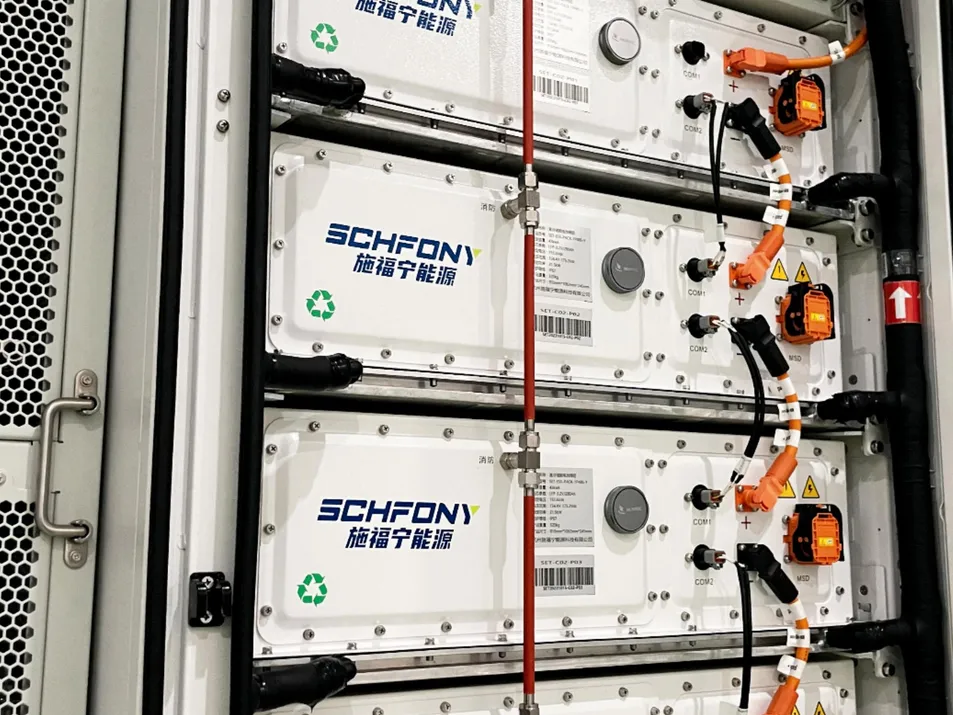

Energy Storage System Interior

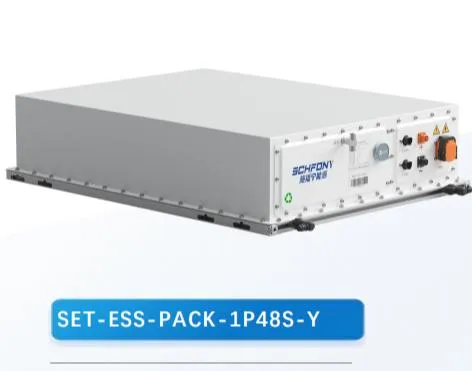

Energy Storage Control

Technical Specifications

ModelSET-ESS-MAT344Y
DC Side Parameters
Core parametersLFP-3.2V/280AhBattery typeLithium Iron Phosphate
Rated capacity344 KWHGrouping method1P48S*8
Charge/discharge ratio0.5CRated voltage1228.8Vdc
Rated current140AdcCooling methodLiquid Cooling
Sensor detectionTemp, Smoke, GasFire protectionPerfluorohexanone + Water
Whole Machine Parameters
Protection levelIP54CommunicationCAN/RS485
Overall dimensions1300*1325*2200mmWeight3500kg

Key Advantages

More Safer

Innovative research in perfluorohexanone + water firefighting. Three-level circuit breaker protection barriers.

More Economic

High efficiency intelligent thermal management. Integrated modular design improves system economy.

More Convenient

Plug and play deployment. Minimalist operation and maintenance for the full life cycle.

Project & Factory Gallery

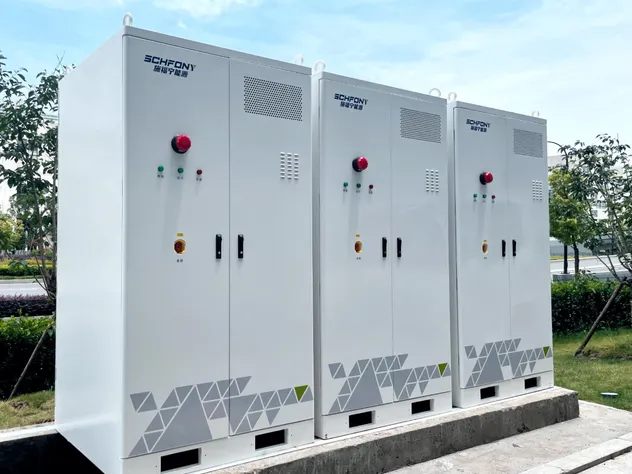

Project Site 1

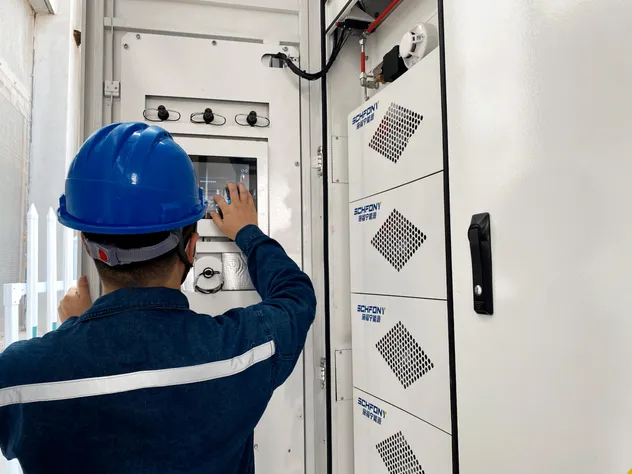

Project Site 2

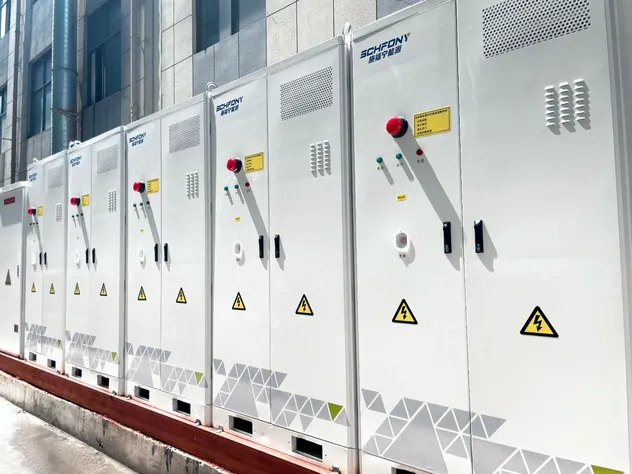

Project Site 3

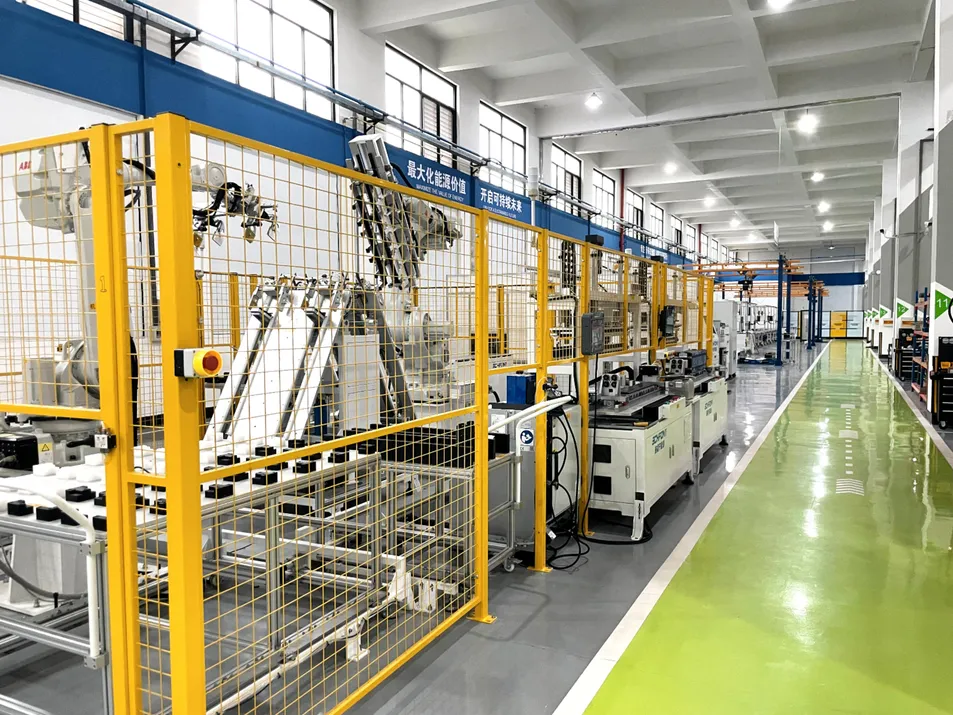

Factory Production 1

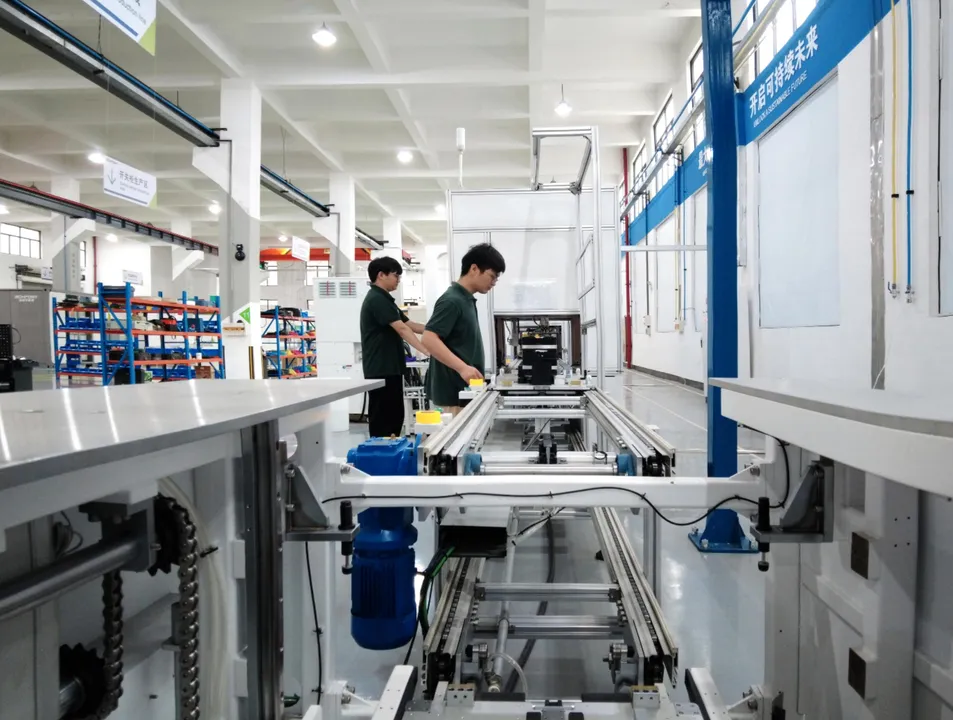

Factory Production 2

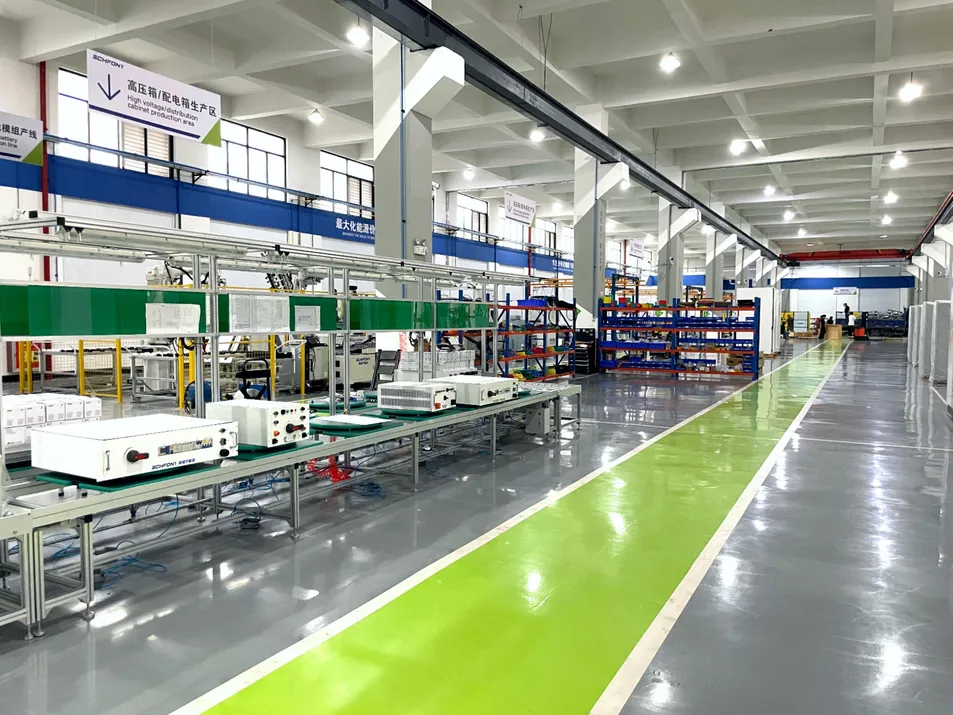

Manufacturing

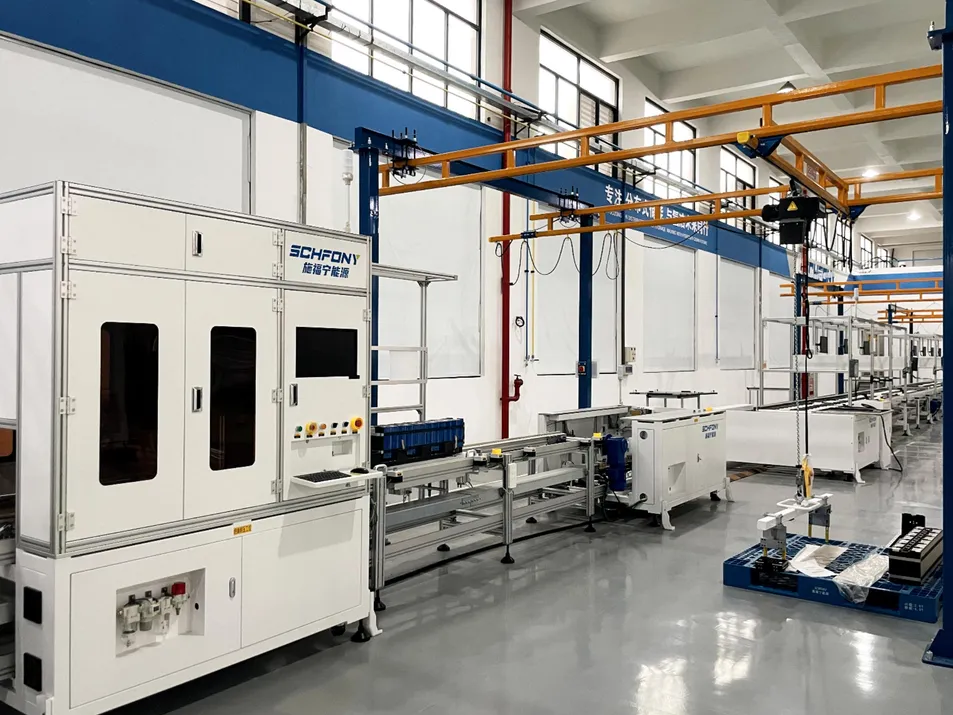

Quality Control

Frequently Asked Questions

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 30–45 days.
Q: Can I request a customized bucket or cabinet size?
A: Absolutely! We offer tailored configurations and attachments upon request.
Q: What is the fire protection system used?
A: The system uses a high-safety perfluorohexanone and water full immersion fire fighting integrated system.
Q: How is the system cooled?
A: It uses an advanced liquid cooling mode to ensure optimal temperature control and longevity of the battery modules.
Q: What documents do you provide for export?
A: We provide a full export package including Commercial Invoice, Packing List, Bill of Lading, and COC.
Q: How do I place an order?
A: Contact us via our official channels for a detailed quote, and then confirm with a formal Purchase Order.
