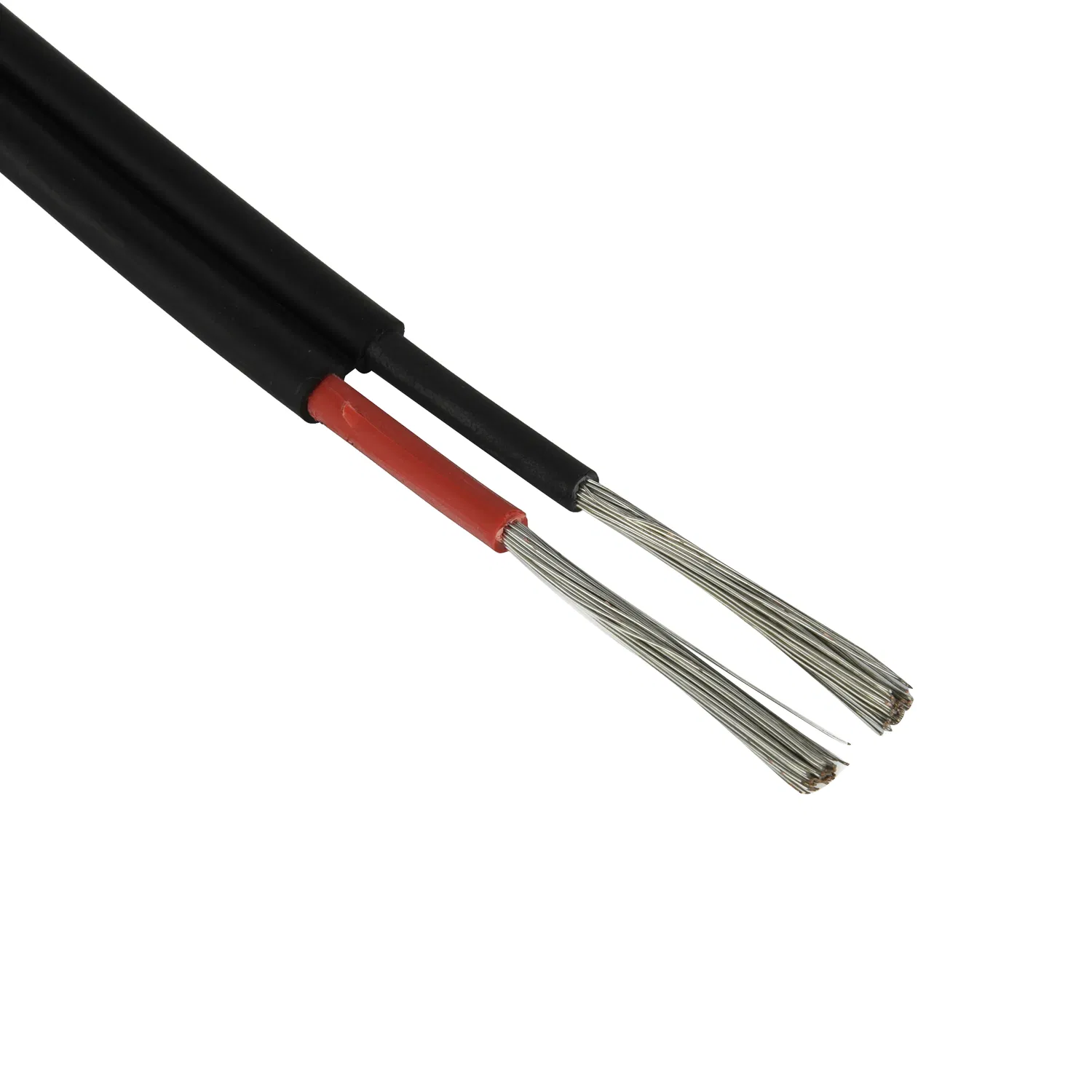

Wing Solar
Wing Solar

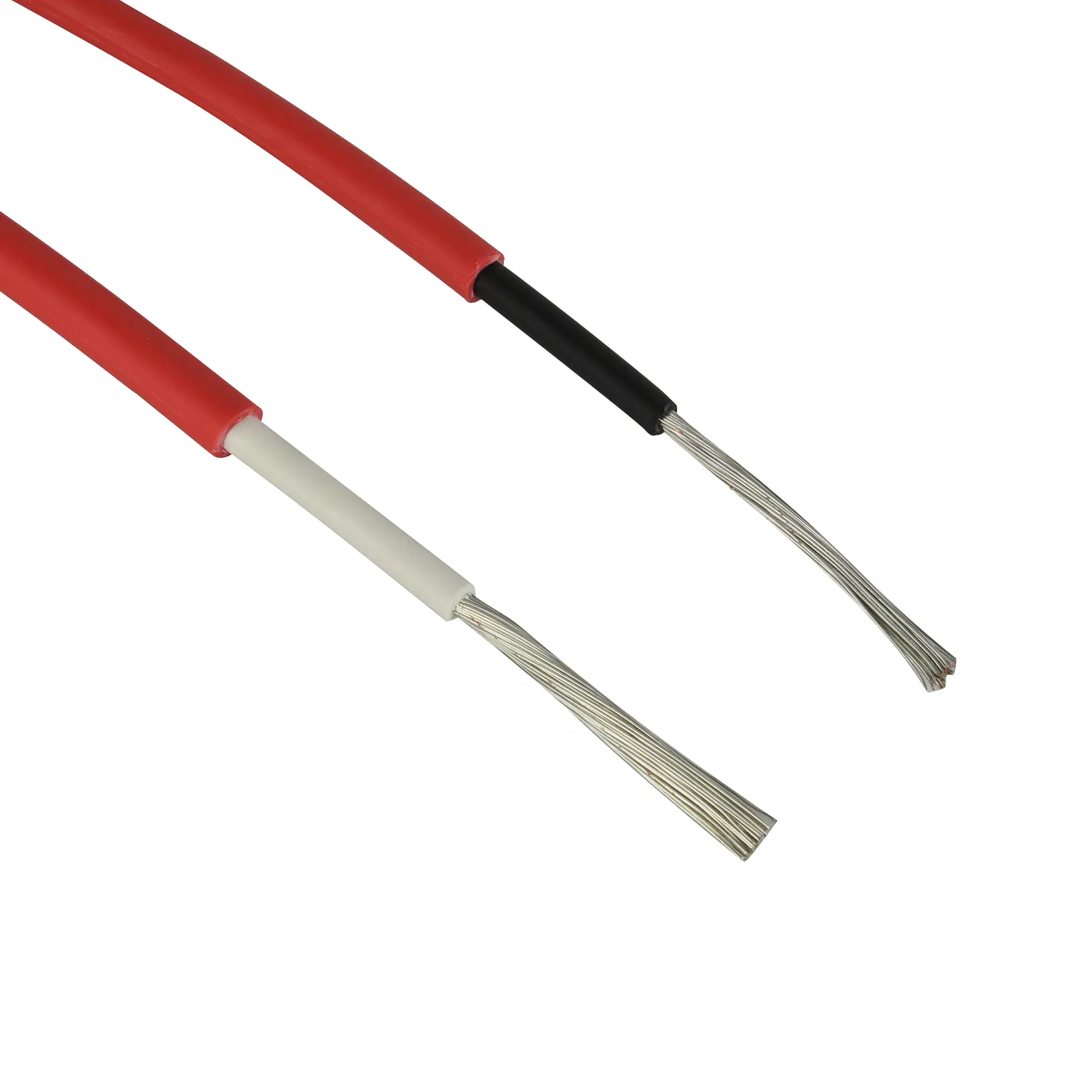

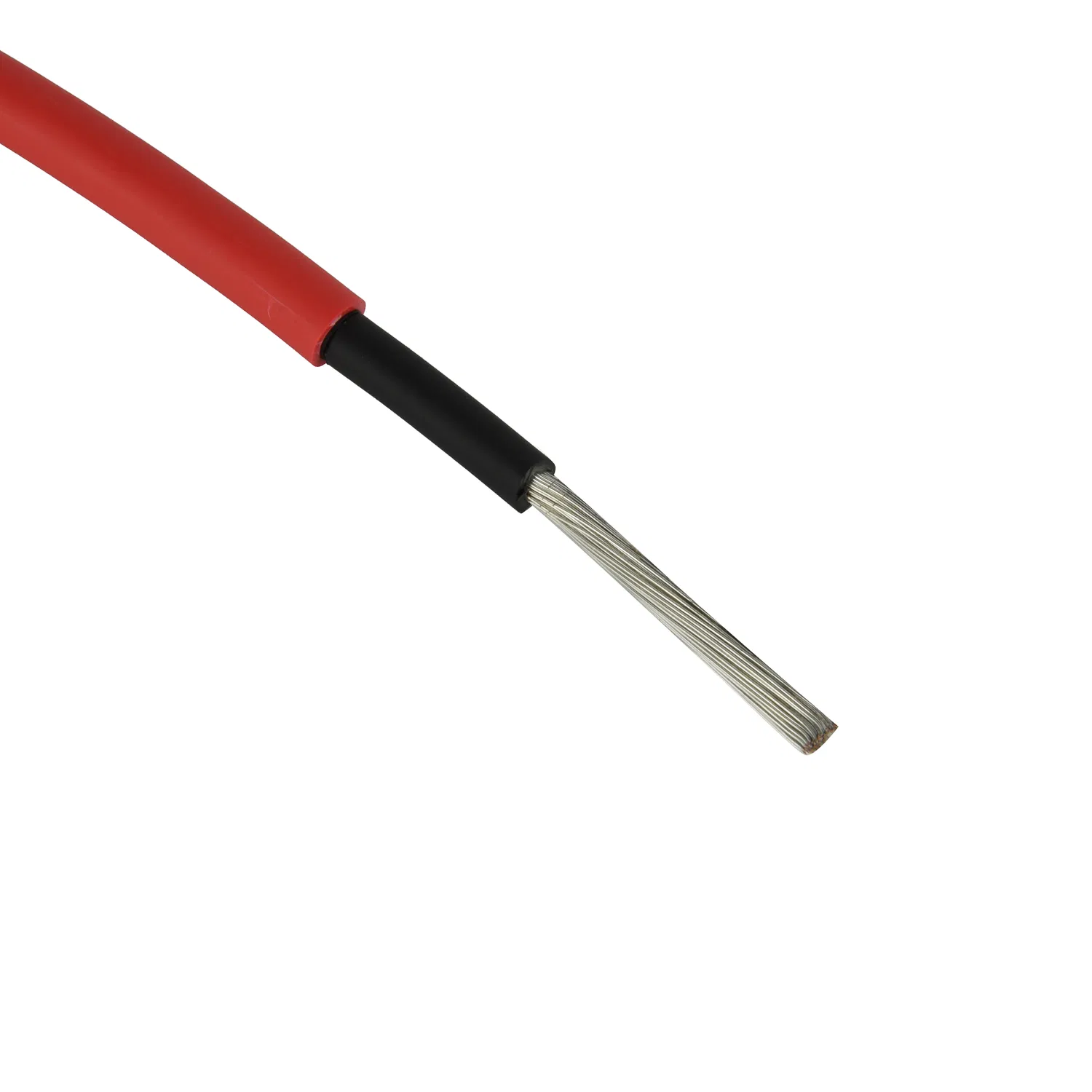

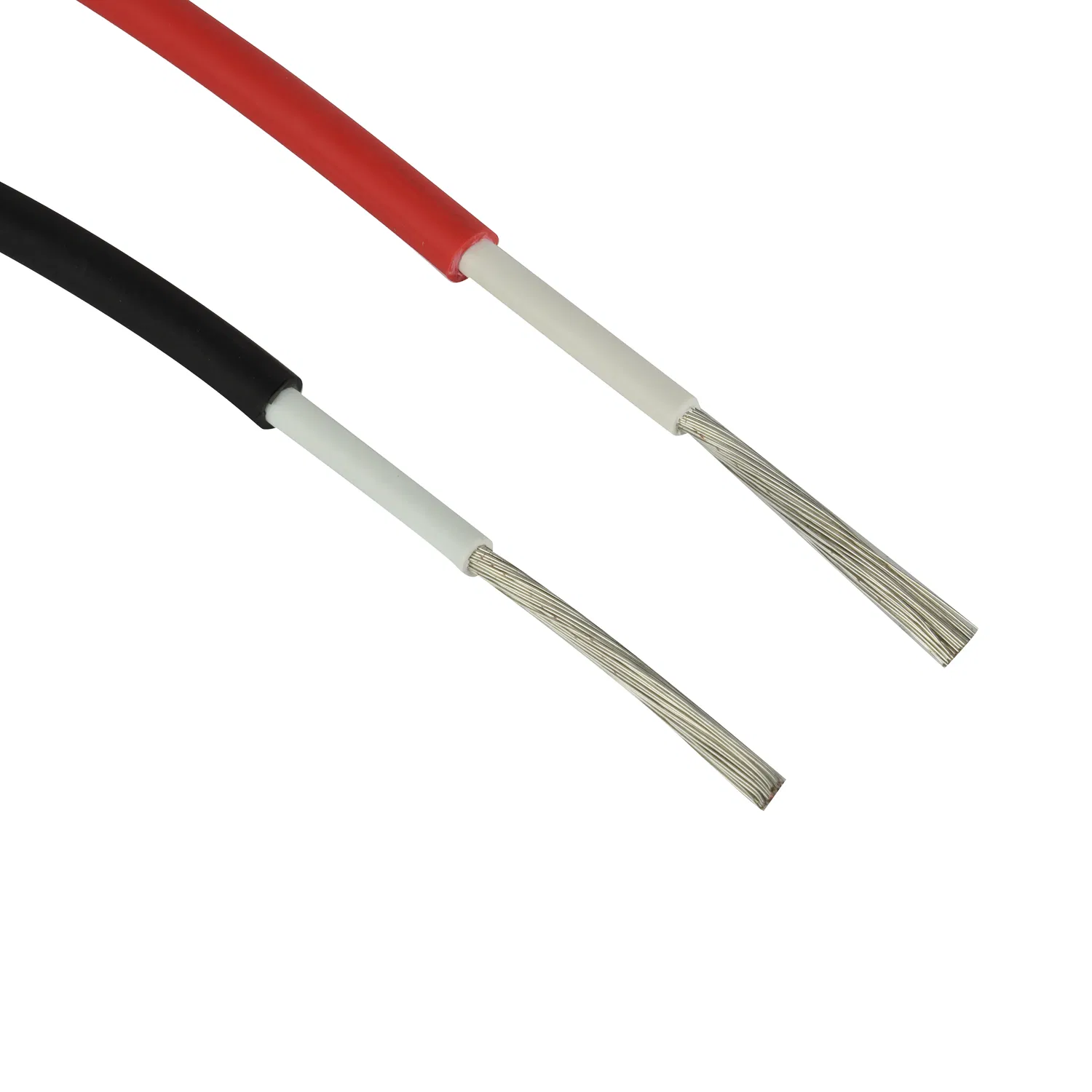

Specifically designed for connecting photovoltaic system components inside and outside of buildings and equipment. It meets high mechanical requirements and withstands extreme weather conditions for permanent installations.
| No. of Cores x Section | Conductor Construction | Insulation Thickness | Sheath Thickness | Overall Diameter | Cable Weight | Max Resistance (20ºC) | Current Capacity |
|---|---|---|---|---|---|---|---|
| 1 x 1.5 mm² | 30 x 0.25 mm | 0.8 mm | 0.8 mm | 4.8 mm | 38 kg/km | 13.7 Ω/km | 30 A |
| 1 x 2.5 mm² | 50 x 0.25 mm | 0.85 mm | 0.9 mm | 5.4 mm | 46 kg/km | 8.21 Ω/km | 41 A |
| 1 x 4 mm² | 56 x 0.30 mm | 0.85 mm | 1.0 mm | 6.1 mm | 61 kg/km | 5.09 Ω/km | 55 A |
| 1 x 6 mm² | 84 x 0.30 mm | 0.9 mm | 1.1 mm | 7.0 mm | 90 kg/km | 3.39 Ω/km | 70 A |
| 1 x 10 mm² | 80 x 0.40 mm | 0.9 mm | 1.2 mm | 8.2 mm | 131 kg/km | 1.95 Ω/km | 98 A |
| 1 x 16 mm² | 128 x 0.40 mm | 0.9 mm | 1.2 mm | 9.3 mm | 187 kg/km | 1.24 Ω/km | 132 A |
| 1 x 25 mm² | 200 x 0.40 mm | 0.9 mm | 1.2 mm | 10.7 mm | 278 kg/km | 0.795 Ω/km | 176 A |
| 1 x 35 mm² | 280 x 0.40 mm | 0.9 mm | 1.2 mm | 12.4 mm | 374 kg/km | 0.565 Ω/km | 218 A |
