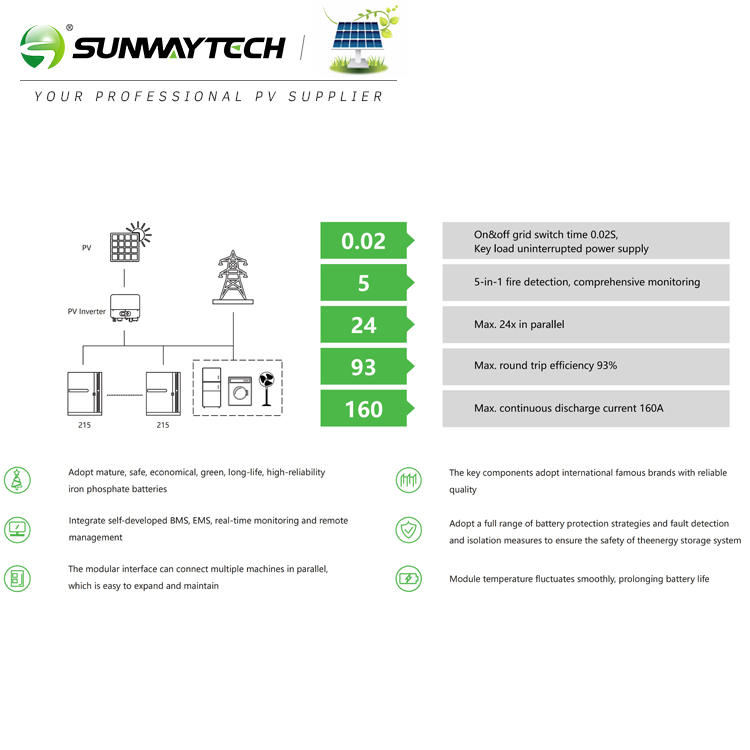

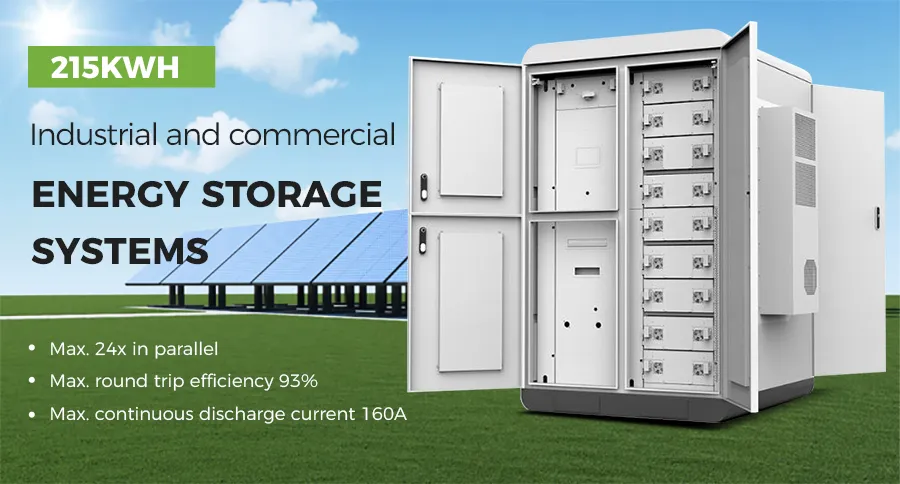

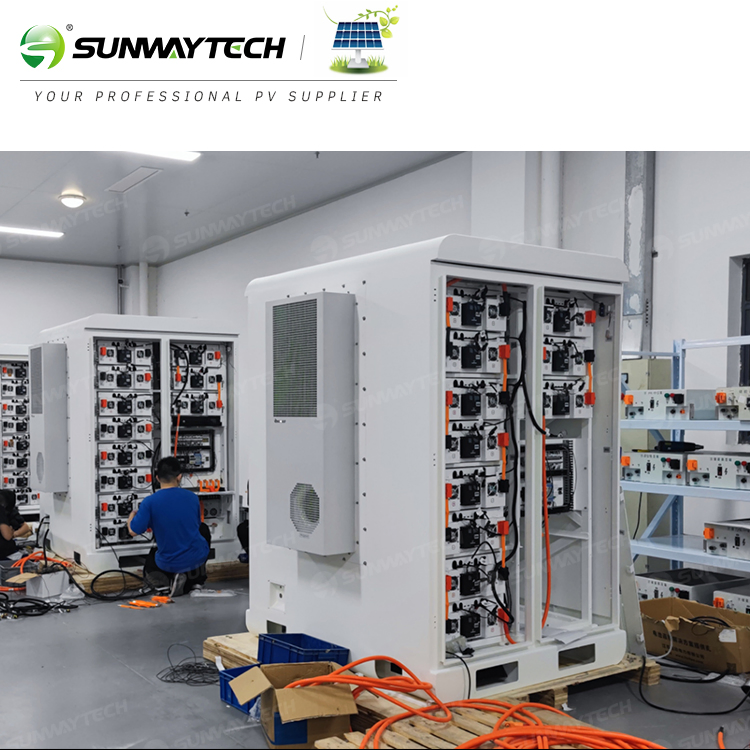

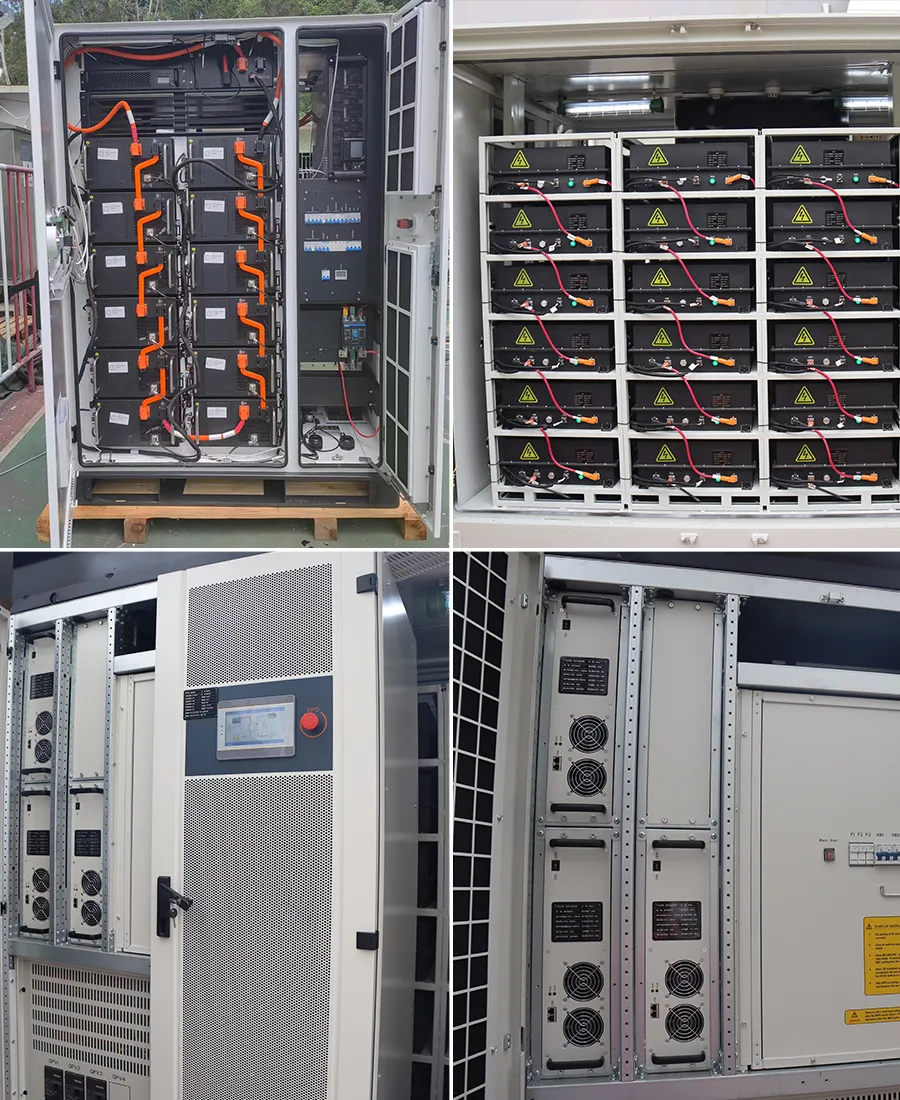

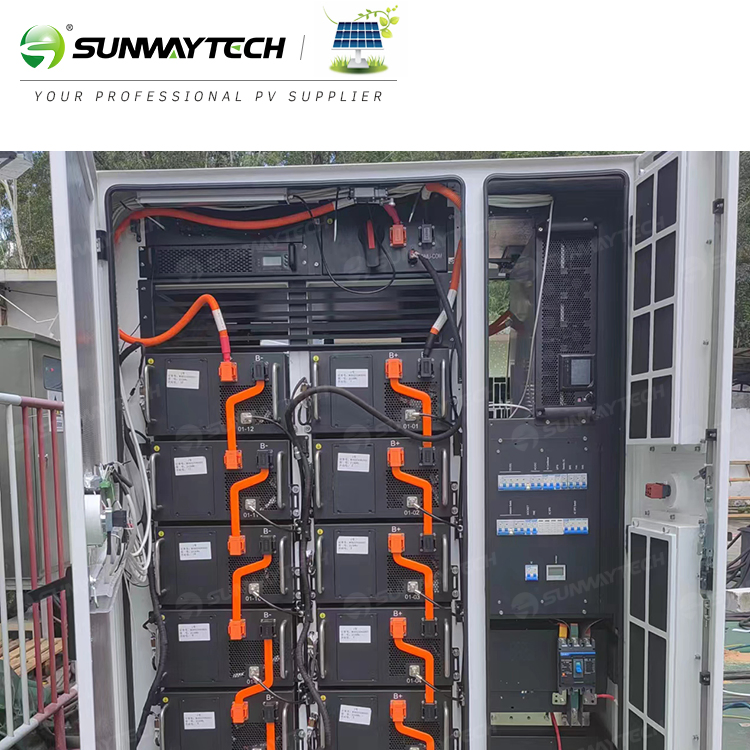

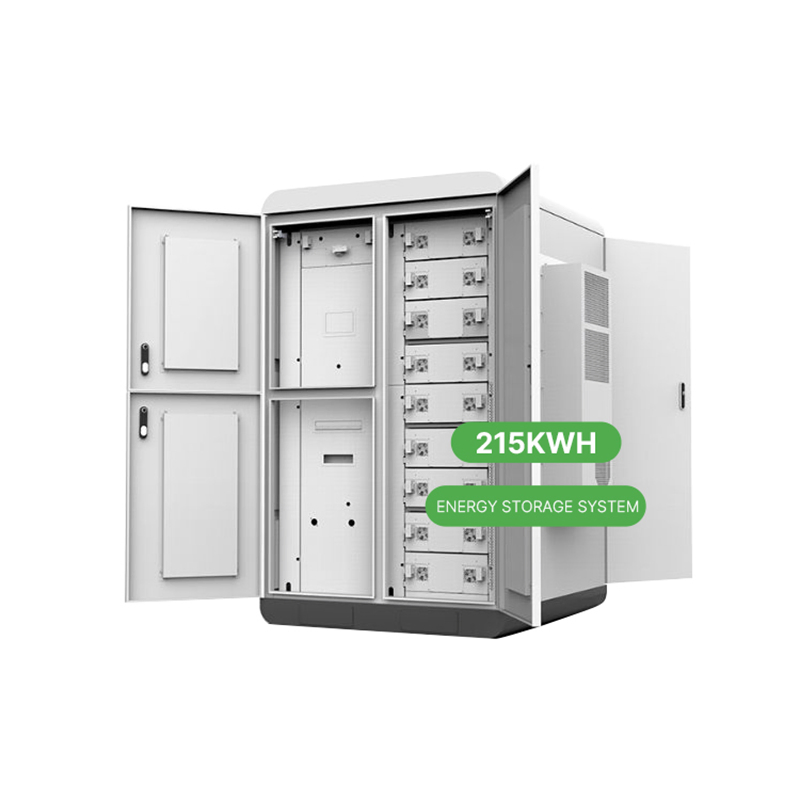

The 215 commercial & industrial energy storage system adopts the all-in-one design concept. The cabinet is integrated with a battery management system (BMS), energy management system (EMS), modular power conversion system (PCS), and fire protection system.

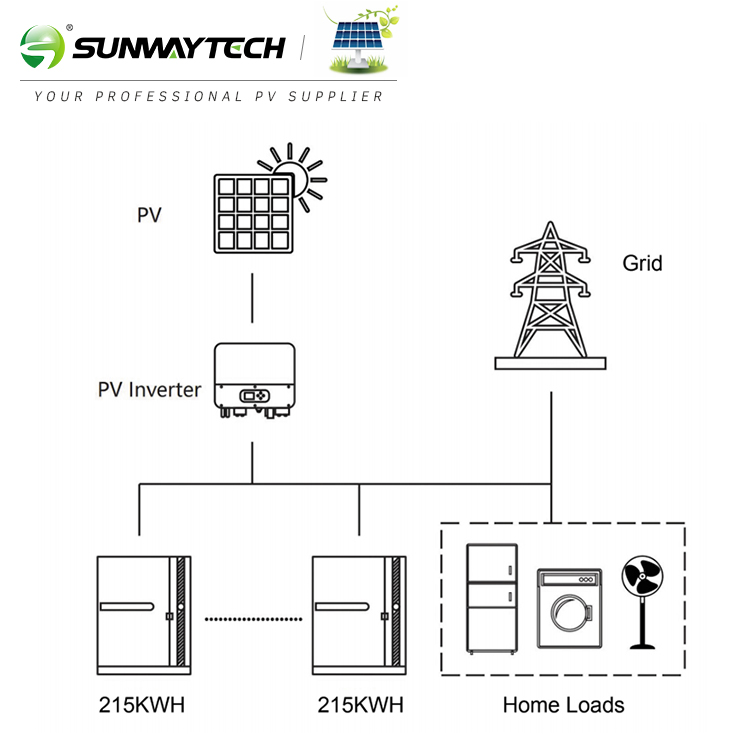

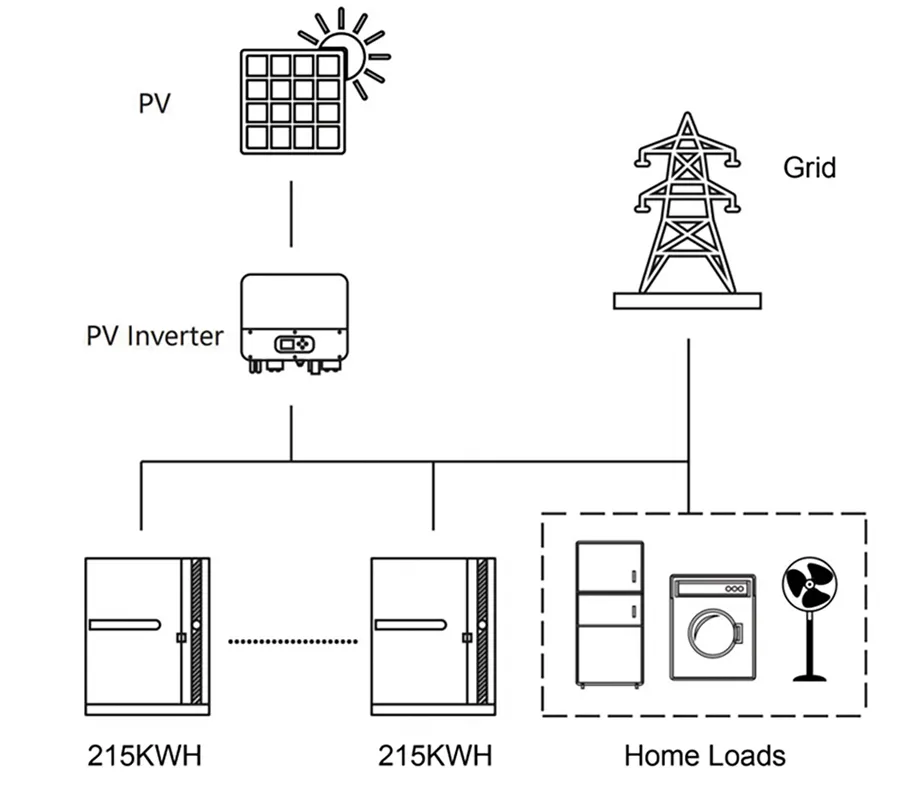

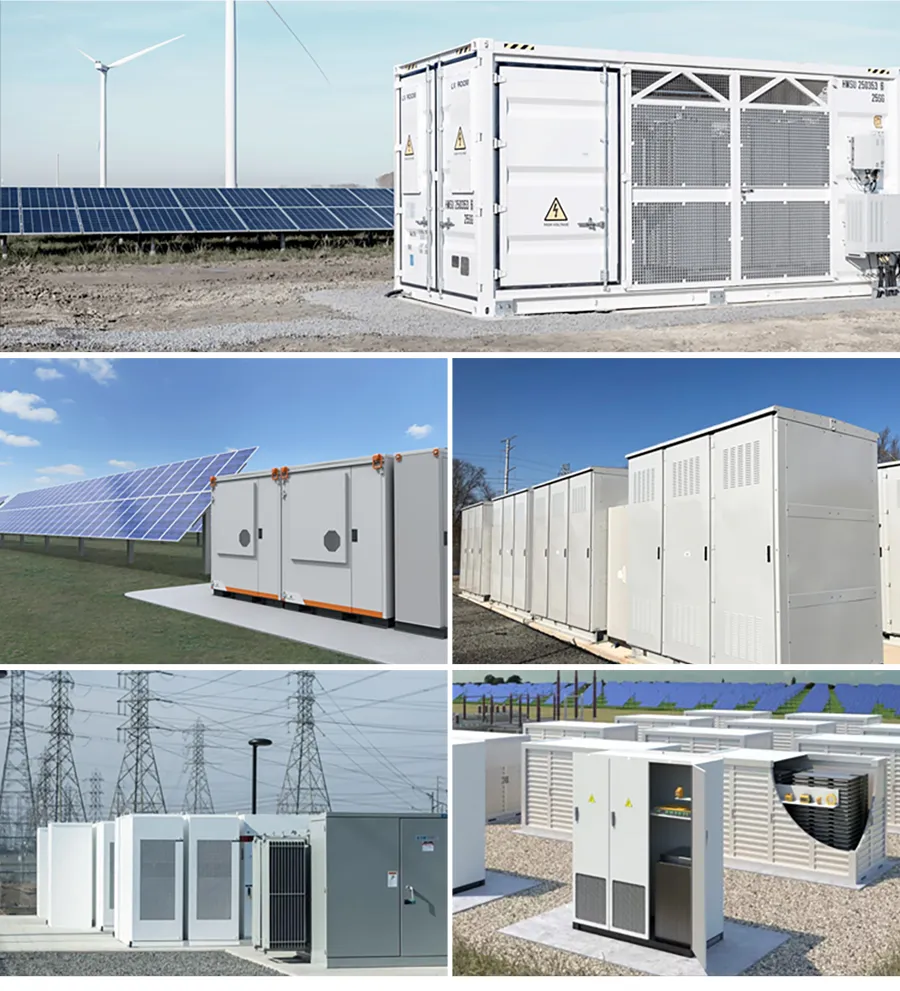

The system's capacity is up to 215 kWh and the power is up to 100 kW. The modular design allows for flexible expansion, adapting to various scenarios such as power expansion, backup power supply, and black start (The ability to restore power without relying on the help of other networks after the power system is out of service due to a fault).
| Rated Battery Capacity(kWh) | 215kWh |
| Rated Voltage(V) | 768V |
| Voltage Range(Vdc) | 720-840V |
| Charge and Discharge Rate(P) | ≤0.5 |
| Max. Round Trip Efficiency | 93% |
| DOD | 95% |
| Cooling Strategy | Industrial Air Conditioning |
| Cycle Lifetime at EOL 80% | ≥8000cycles |
| Fire Fighting System | Perfluorohexanone |
| Rated Power(kW) | 100 |
| Rated AC Voltage(Vac) | 380/400 |
| AC Voltage Range | -15%~+10% |
| Size(W*D*H mm) | 1520*1270*2117 |
| Weight(T) | 2.6 |
| Enclosure Protection Rating | IP55 |
| Operating Temperature Range(°C) | -20-+55 (>45 drop) |
| Operating Humidity Range | 0-95% |
| Maximum Working Altitude(m) | ≤4000 (>2000 drop) |
| Communication Interface | RS485, Ethernet |
| Protocol | Modbus RTU, Modbus TCP, IEC 104 |

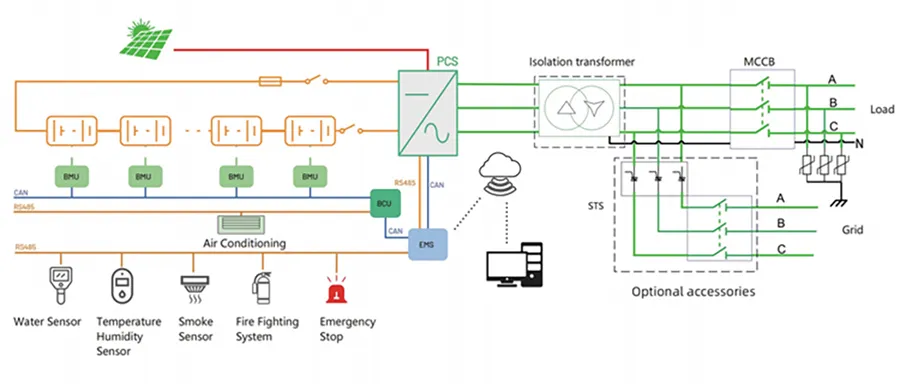

A commercial energy storage system works by storing excess energy generated by solar panels during the day. This stored energy can be used when solar generation is unavailable, such as at night. The power conditioning system (PCS) converts direct current (DC) from the panels into alternating current (AC) for industrial and commercial use. The system includes isolation transformers for safety and MCBs for grid connection.
