Wing Solar
Wing Solar

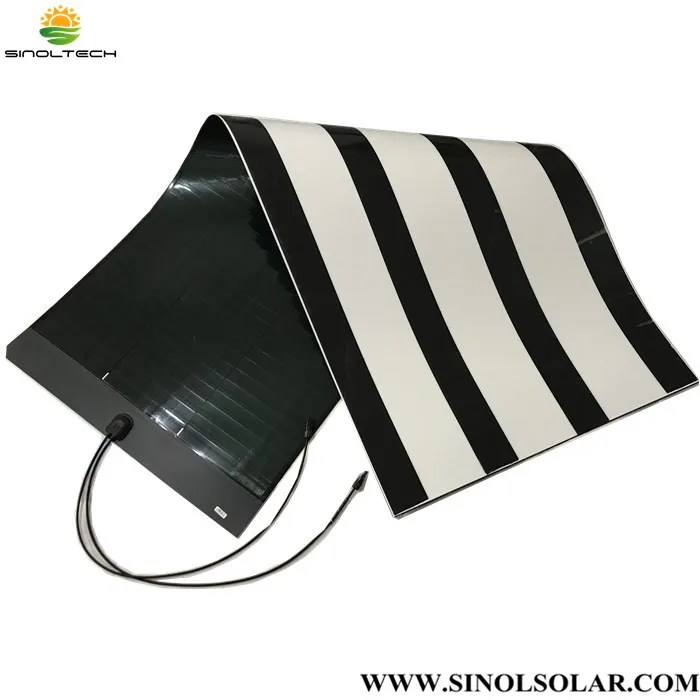

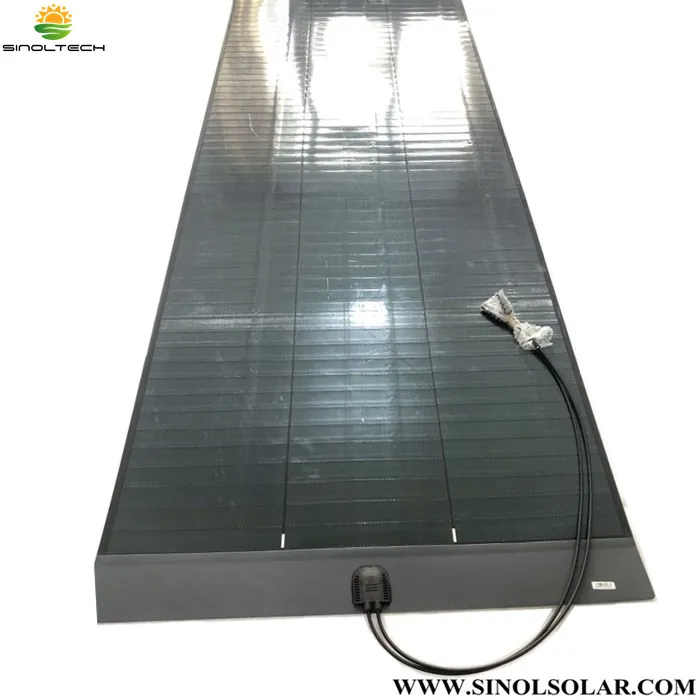

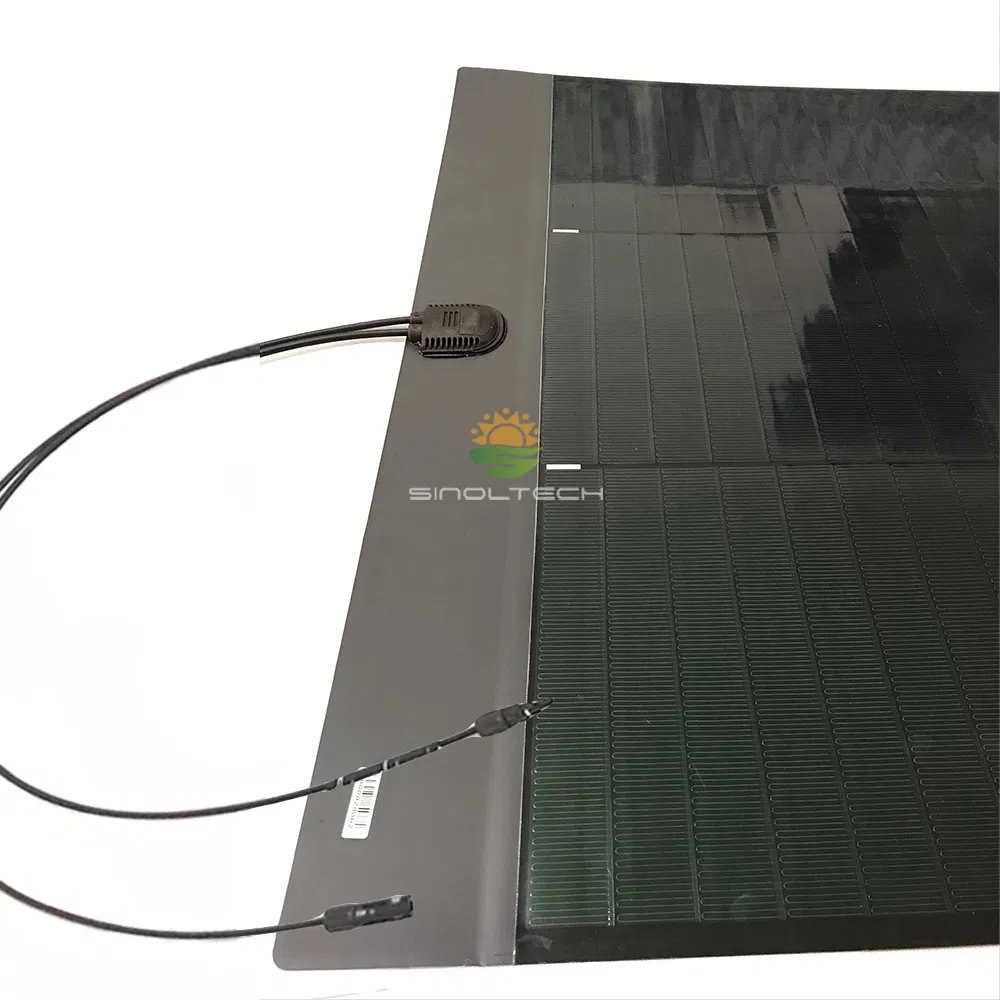

The flexible solar panel series utilizes advanced CIGS (Copper Indium Gallium Diselenide) technology, offering an aperture efficiency that rivals traditional rigid glass panels. Constructed on high-grade stainless steel foil using a PVD semiconductor deposition process, these modules are designed for stability and high power output.

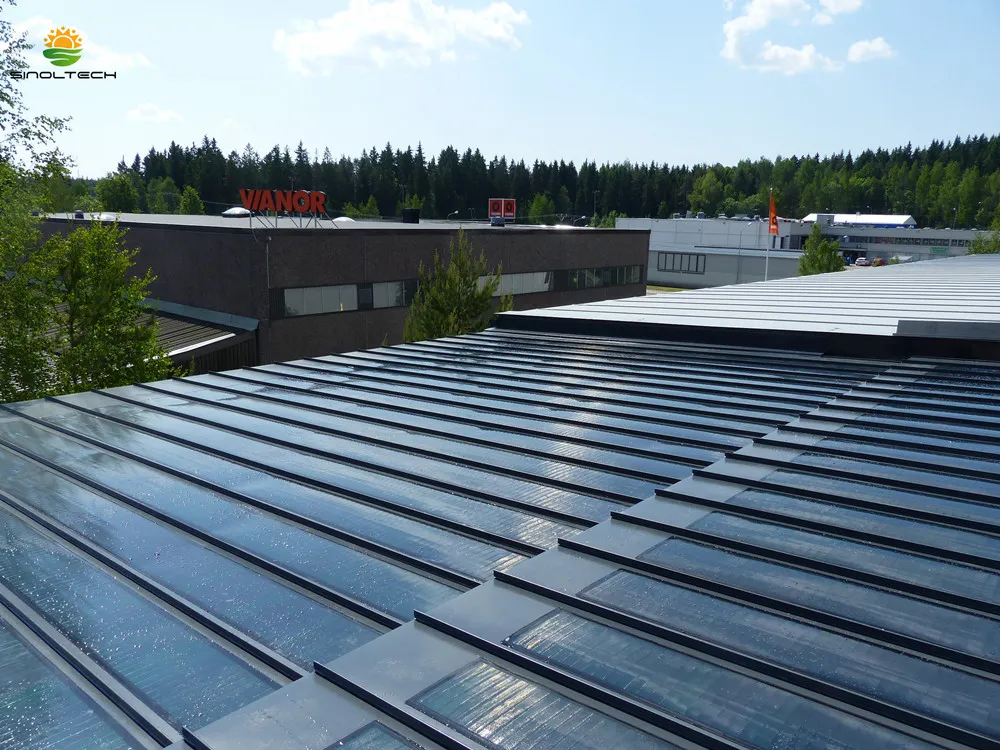

Less than 2.4 kg/m². Ideal for structures with low load limitations such as RVs, trucks, and rooftops with snow load concerns.

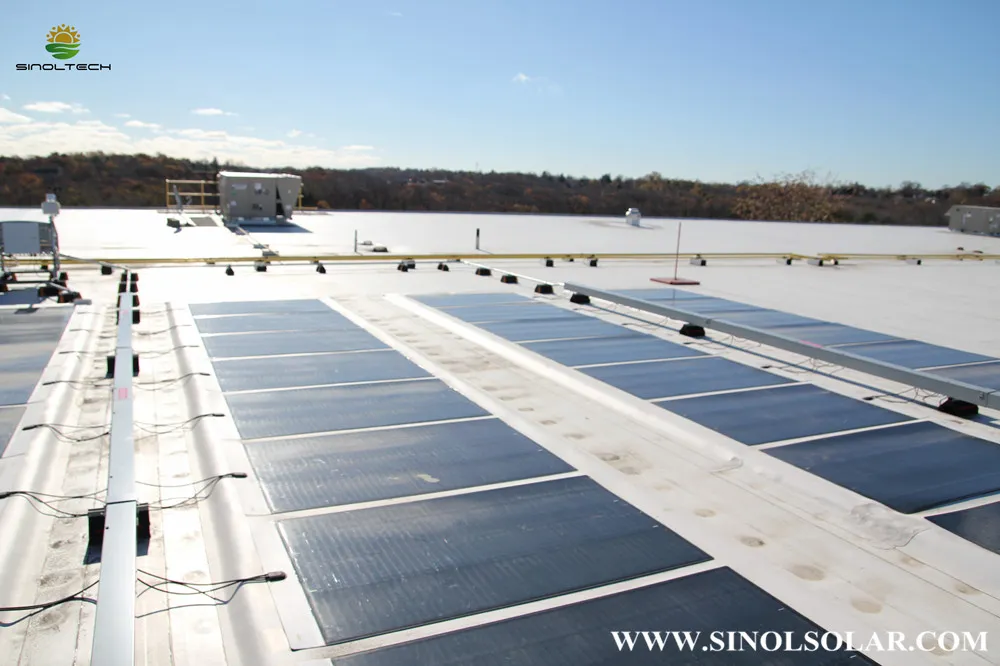

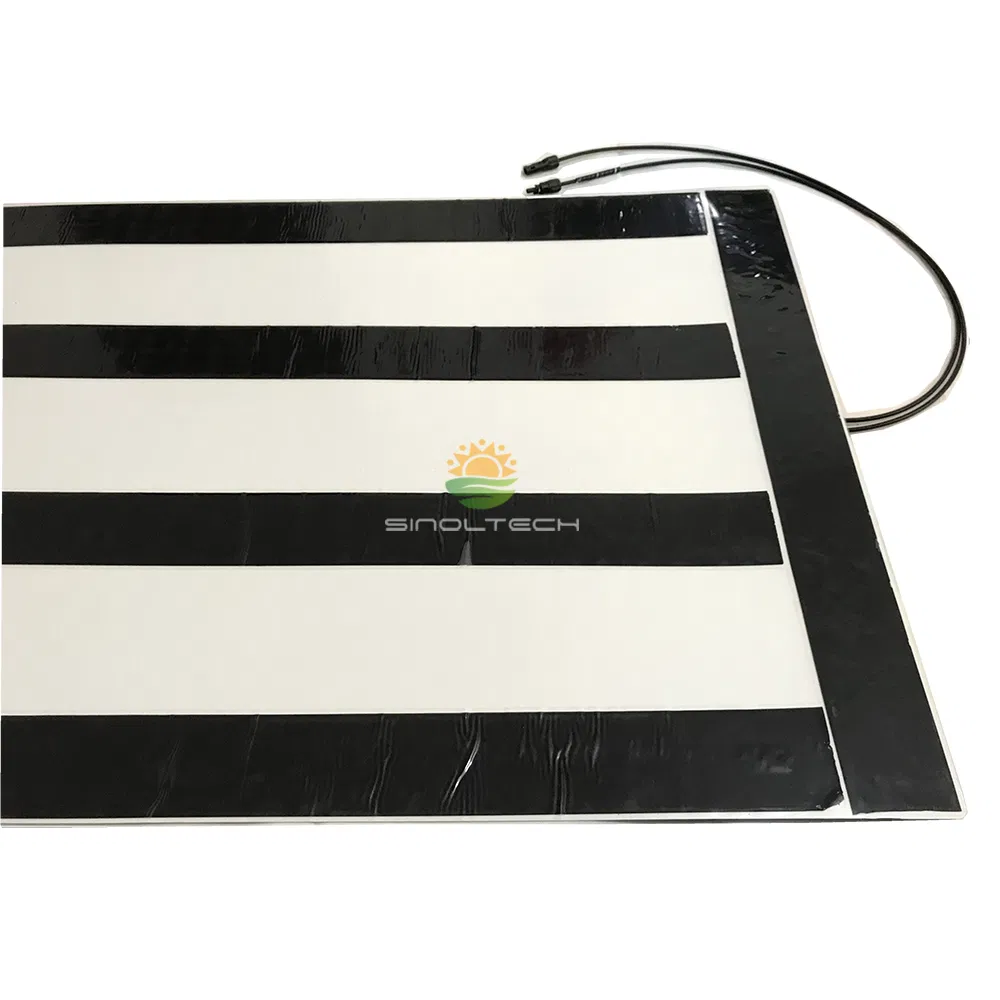

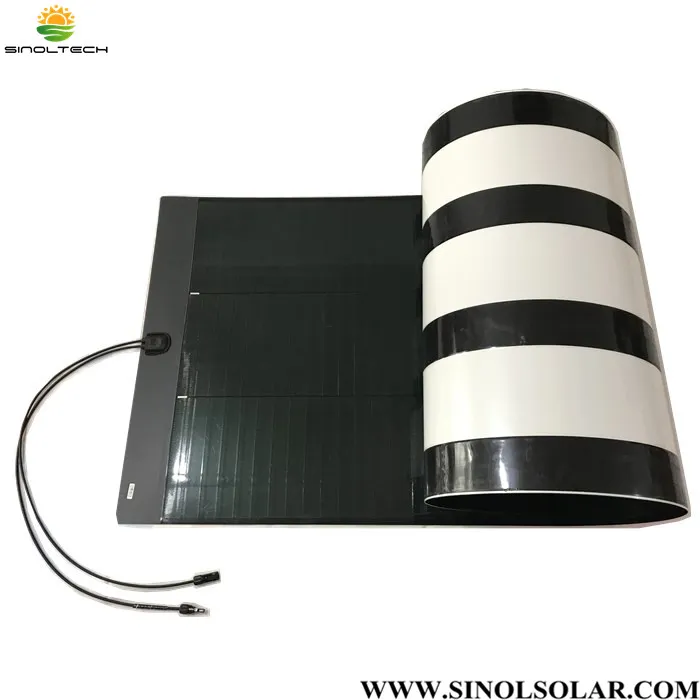

Peel-and-stick application eliminates the need for structural penetrations, reducing leak risks and BOS costs.

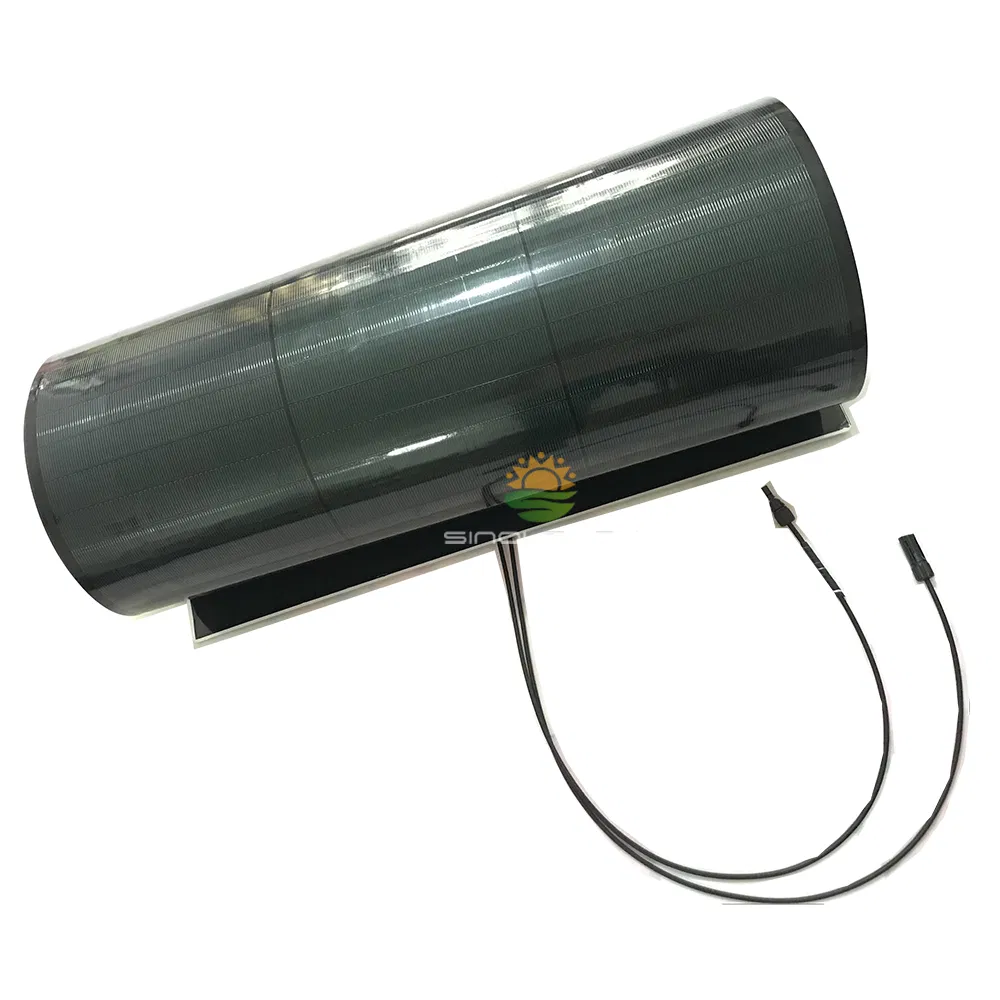

Conforms to curved surfaces and is shatterproof. Adheres directly to provide wind and seismic resistance.
Features a unique redundant interconnect design and bypass diodes to minimize shading losses.

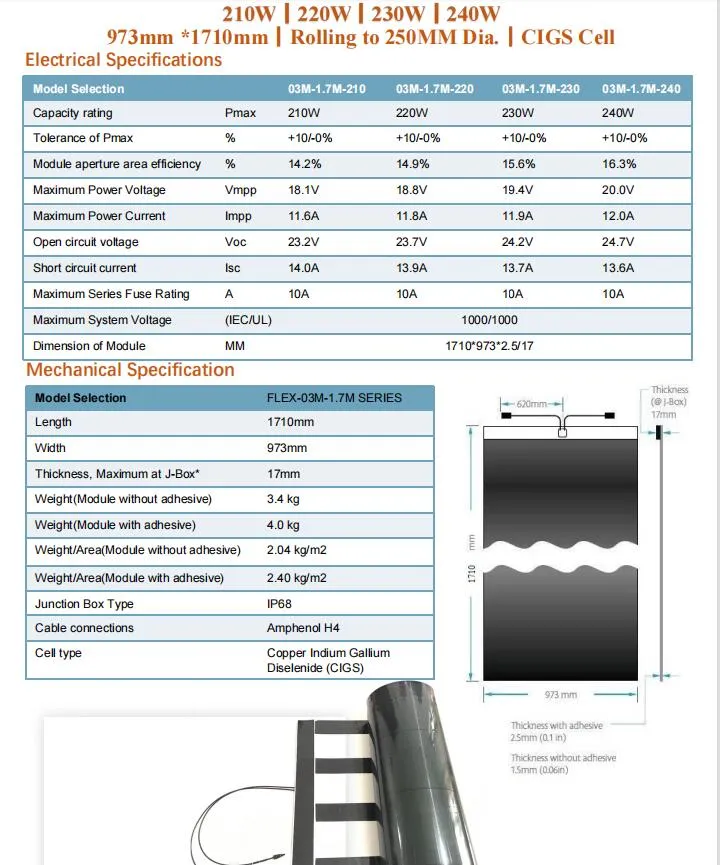

| Capacity rating (Pmax) | 210W | 220W | 230W | 240W |
|---|---|---|---|---|
| Module aperture area efficiency (%) | 14.2% | 14.9% | 15.6% | 16.3% |
| Maximum Power Voltage (Vmpp) | 18.1V | 18.8V | 19.4V | 20.0V |
| Maximum Power Current (Impp) | 11.6A | 11.8A | 11.9A | 12.0A |
| Open circuit voltage (Voc) | 23.2V | 23.7V | 24.2V | 24.7V |
| Short circuit current (Isc) | 14.0A | 13.9A | 13.7A | 13.6A |
| Mechanical Specifications | Details |
|---|---|
| Length x Width | 1710mm x 973mm |
| Weight (with adhesive) | 4.0 kg |

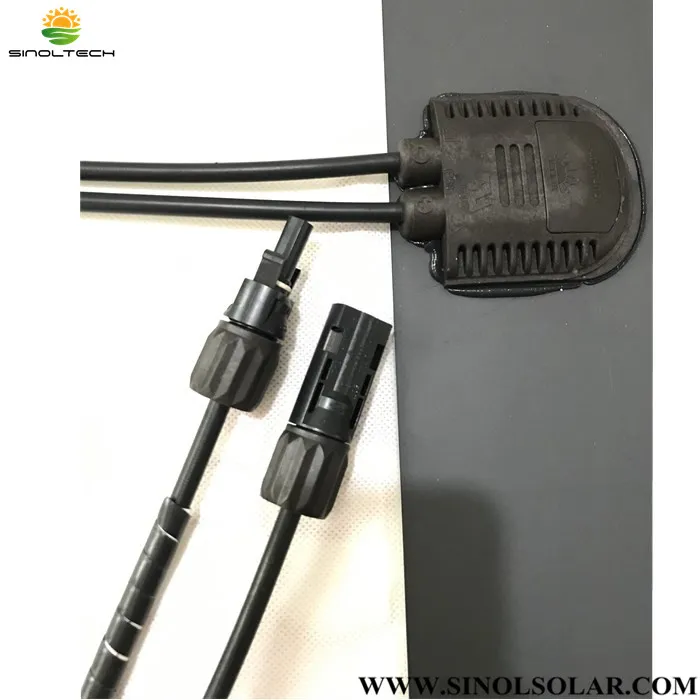

| Junction Box Type | IP68 |
| Cell Type | Copper Indium Gallium Diselenide (CIGS) |
| Cable Connections | Amphenol H4 |
A: CIGS (Copper Indium Gallium Diselenide) is a thin-film technology that allows for high efficiency (up to 17%) in a flexible form factor, making it more powerful per kilogram than traditional silicon panels.
A: These modules feature a peel-and-stick application. They bond directly to approved surfaces without the need for racking, ballast, or roof penetrations.
A: Yes, they are thin (2.5mm module thickness), shatterproof, and provide excellent resistance to high wind loads and seismic activities.
A: Absolutely. Their lightweight and flexible nature make them ideal for curved surfaces on autos, trucks, and RVs that cannot support heavy glass panels.
A: The product comes with a 5-year workmanship warranty and a 10 to 25-year warranty against significant power loss.
A: They include integrated bypass diodes which help reduce power losses caused by PV system shading.
