🔹 APPLICATIONS
THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.
Compliance Standards:

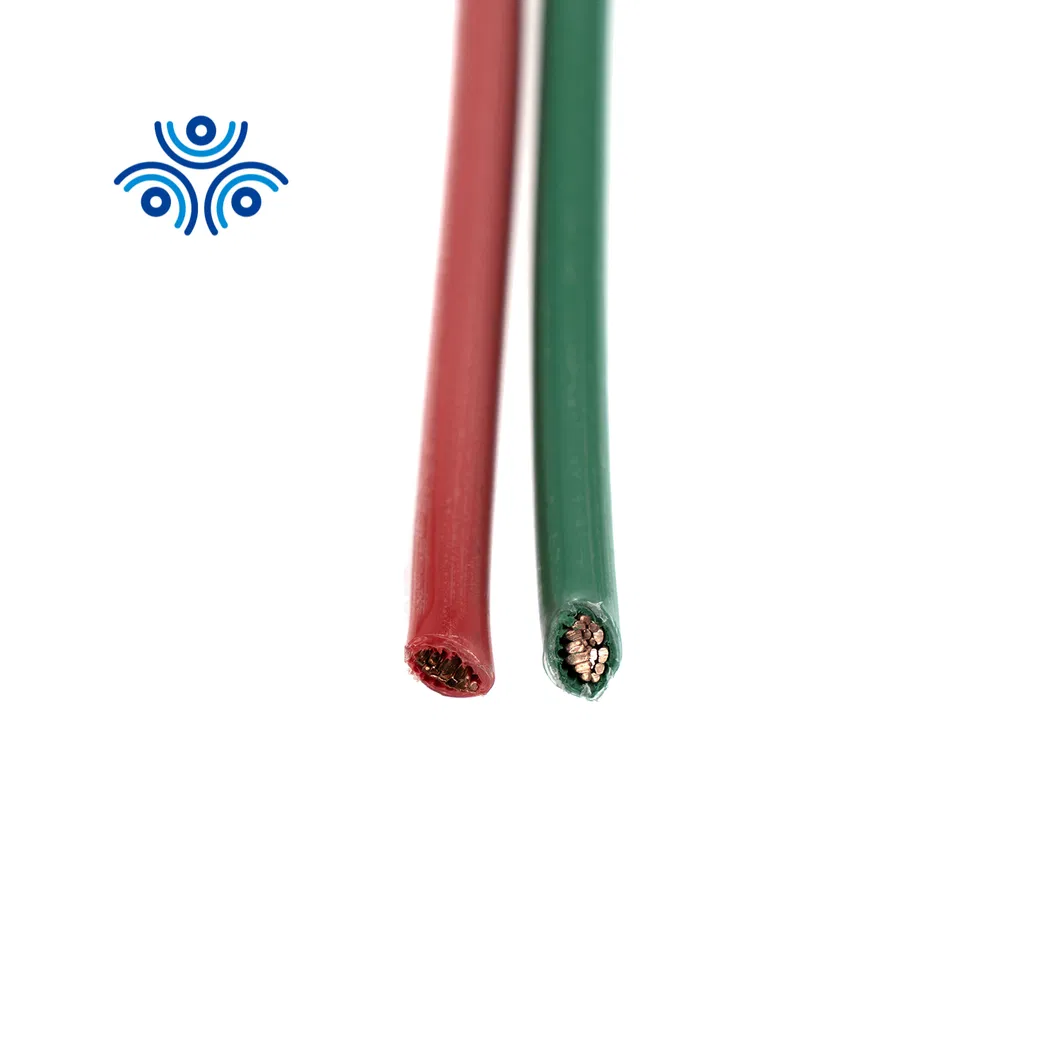

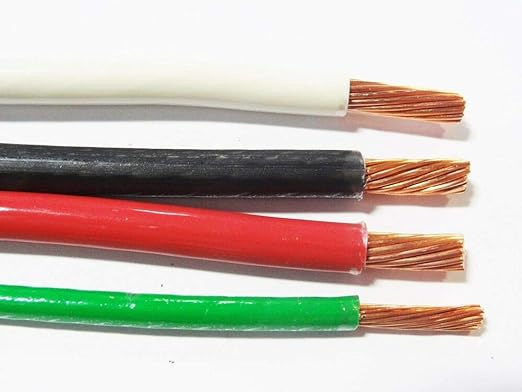

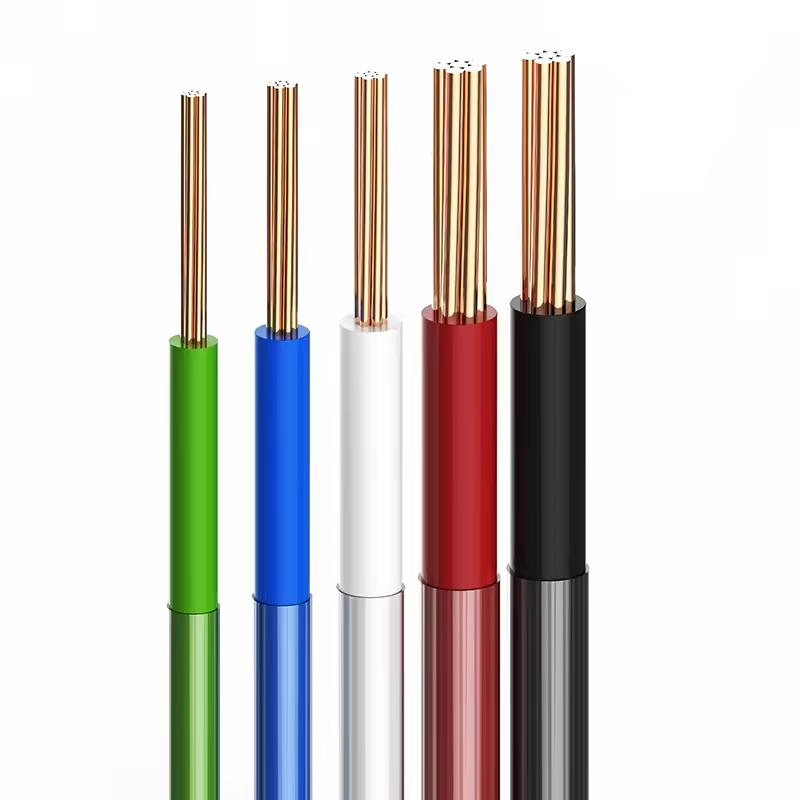

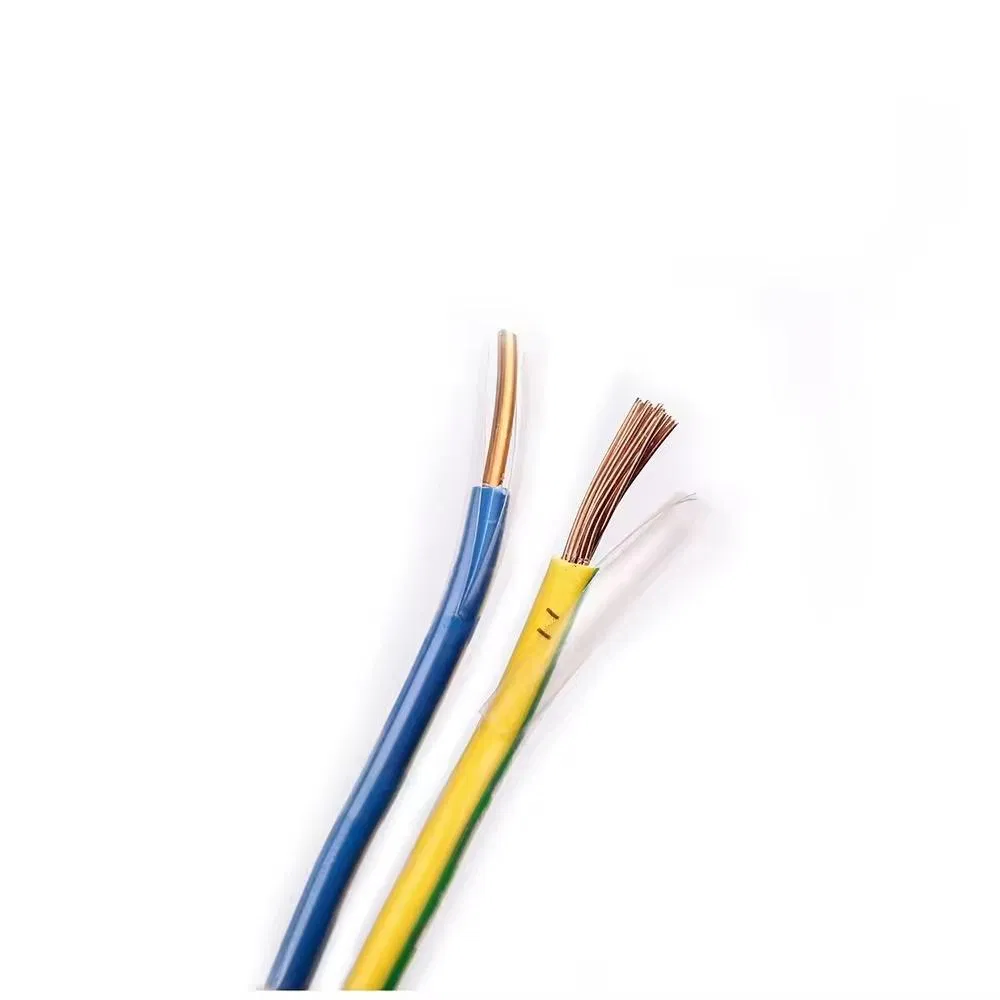

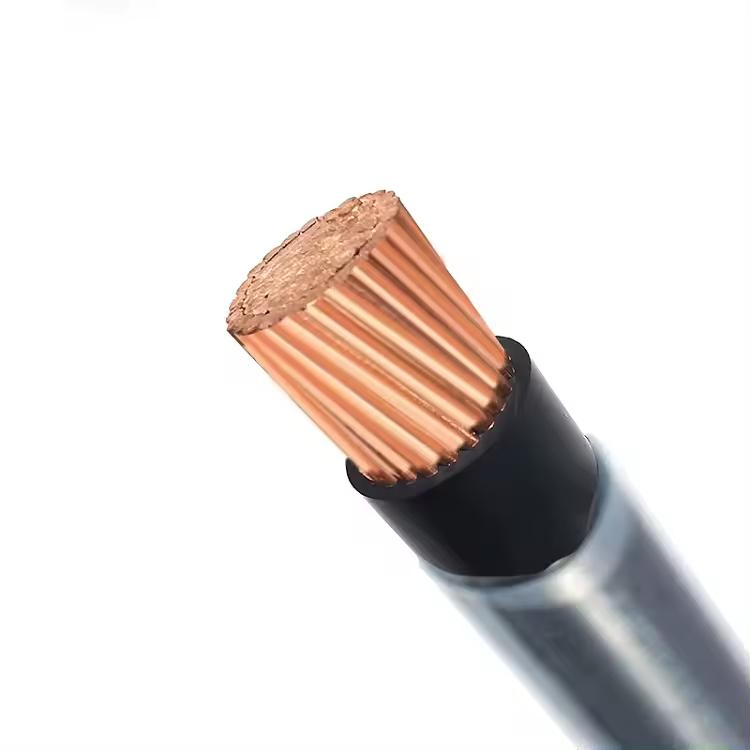

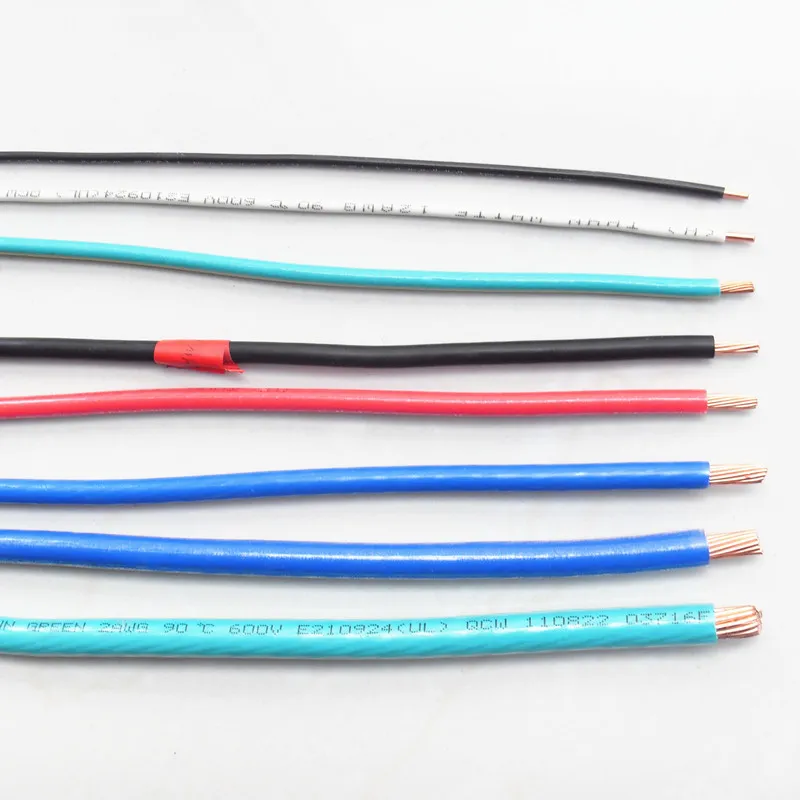

🔹 Cable Construction
Conductor: Soft annealed bare copper, Class B stranding per ASTM B8.
Insulation: Tough, heat and moisture resistant Polyvinyl chloride (PVC) insulation with a protective nylon jacket.
Color: Optional based on requirements.
| Size AWG/Kcmil | Number of Strands | Insulation Thickness (mm) | Jacket Thickness (mm) | Overall Diameter (mm) | Approx. Wt. (lbs/1000ft) |
|---|---|---|---|---|---|
| 14 | 1 | 0.38 | 0.1 | 2.8 | 15 |
| 12 | 1 | 0.38 | 0.1 | 3.3 | 23 |
| 10 | 1 | 0.51 | 0.1 | 4.2 | 37 |
| 14 | 19 | 0.38 | 0.1 | 2.8 | 17 |
| 12 | 19 | 0.38 | 0.1 | 3.3 | 25 |
| 8 | 19 | 0.76 | 0.13 | 5.5 | 64 |
| 2 | 19 | 1.02 | 0.15 | 9.8 | 235 |
| 1/0 | 19 | 1.27 | 0.18 | 12.4 | 372 |
| 4/0 | 19 | 1.27 | 0.18 | 16.3 | 710 |
| 500 | 37 | 1.52 | 0.2 | 24.1 | 1637 |
| 1000 | 61 | 1.78 | 0.23 | 33.3 | 3233 |

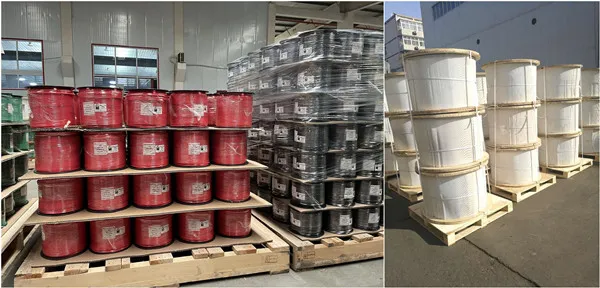

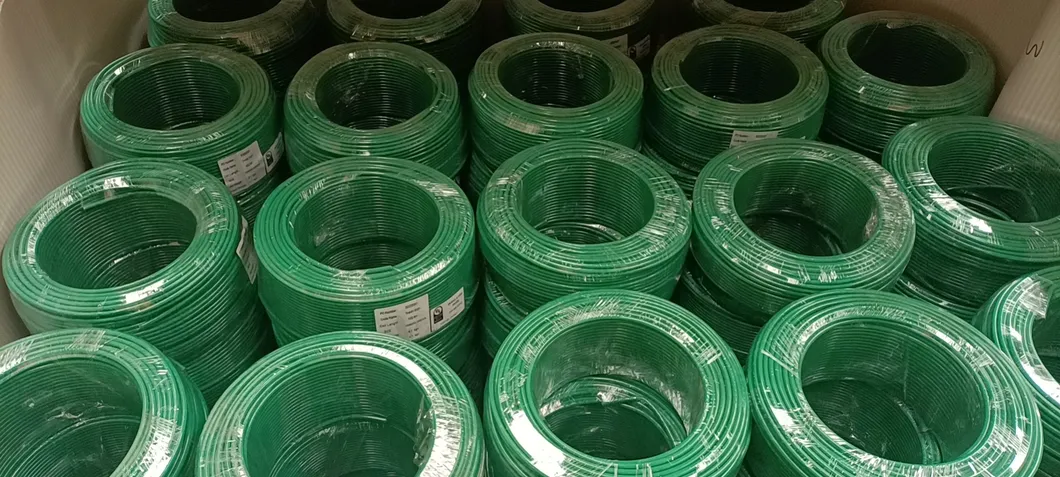

Standard Export Packing is provided based on sizes, lengths, and specific client requirements.
