Factory Price 12V/24V/48V DC to AC 110V/120V/220V/230V/240V Car Inverters Converters 1000W/1500W/2000W/3000W/4000W/5000W Pure Sine Wave Solar Power Inverter

Customization: Available
Nature of Source Flow: DC/AC Inverter
Certification: ISO9001, RoHS, CE

Product Description

Basic Information

Model NO.GY-E1000
Output Power1000W
Grid TypeOff-Grid Inverter
Output TypeDual
Circuit TopologiesFull-Bridge Type
Nature of Wave StringPure Sine Wave Inverter
Input Voltage12V/24V
Output Voltage220V/230V/240V
Peak Power2000W
Efficiency92%
Frequency50/60Hz
Cooling MethodIntelligent Fan Cooling

Product Highlights

Pure Sine Wave Solar Power Inverter

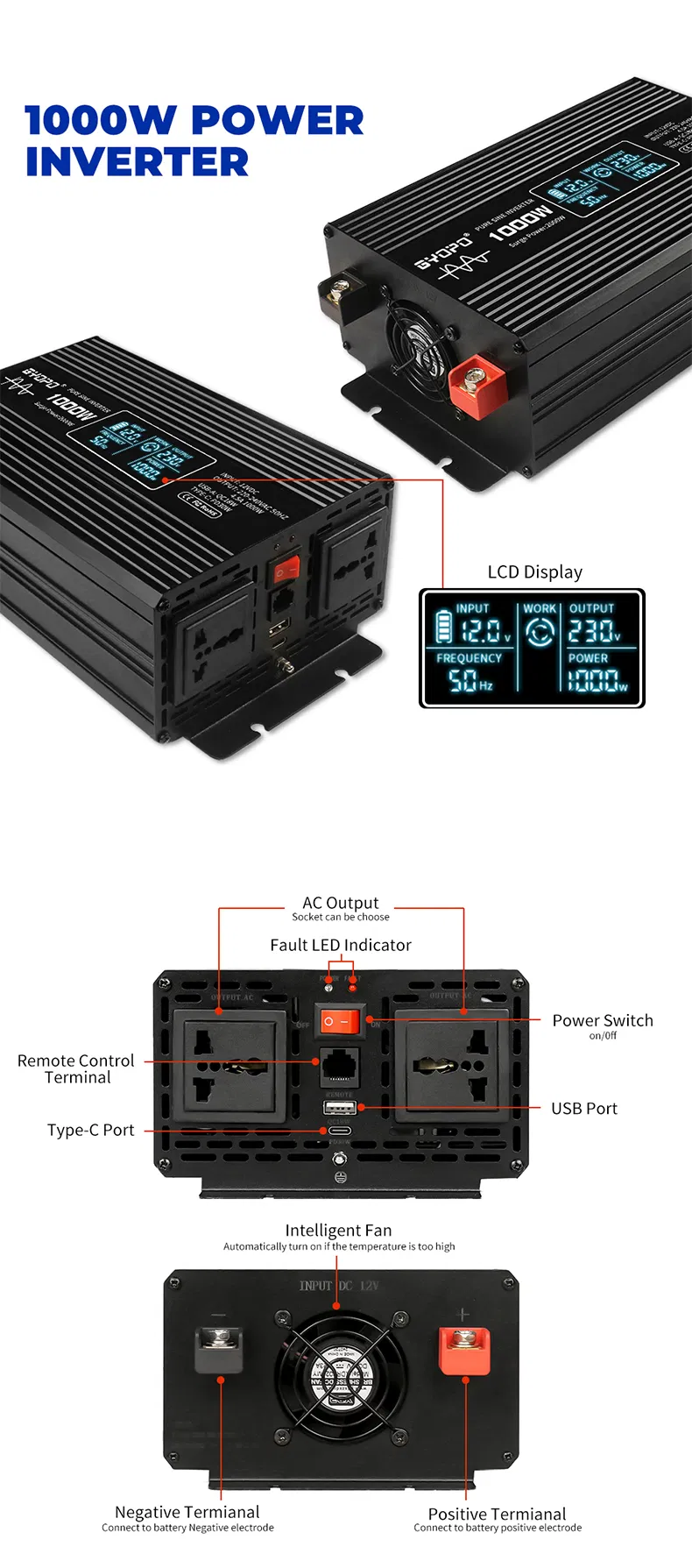

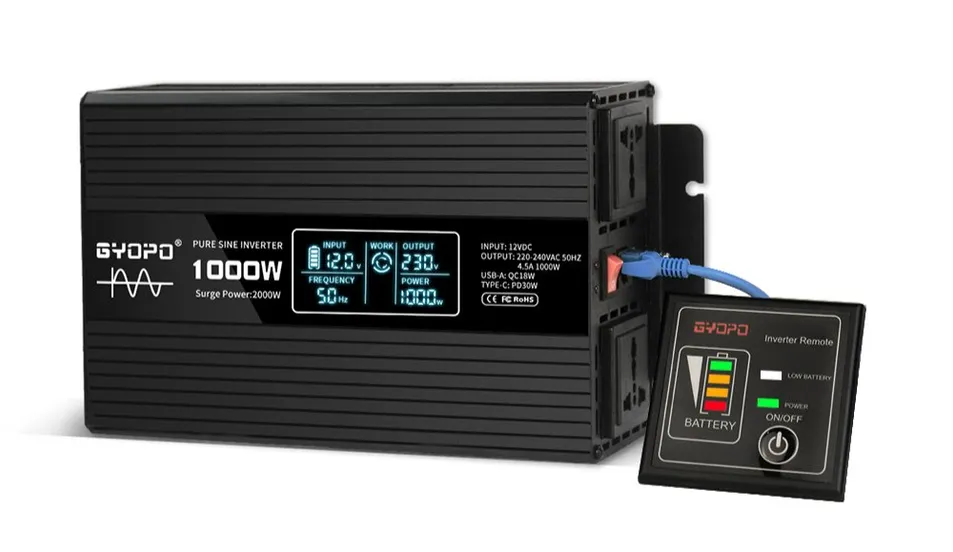

GY-E1000 Details

GY-E1000 1000W Power Inverter

  • Pure sine wave output for sensitive electronics
  • High surge power (2000W peak)
  • Real-time LCD monitoring display
  • Smart cooling fan & soft start technology
  • Comprehensive protection system

Technical Specifications

Battery TypesLead-acid / Lithium / Gel / Water battery
DC OutputUSB-A (QC18W), USB-C (PD30W)
WaveformPure Sine Wave (THD < 3%)
Protection FunctionsUnder Voltage, Over Voltage, Overload, Short Circuit, Overheating, Reverse Connection
Fan ControlFront-stage starts at 45°C; Rear-stage starts at 60°C
Display ContentVoltage, Power, Frequency, Fault Codes
Dimensions252 × 150 × 90MM
Net Weight1.55KG
CertificationsCE, ROHS, ISO9001, ISO14001, ISO45001

Product Detail Display

Inverter Features
True Power Output Continuous 1000W output with no false ratings, ensuring safe operation for all compatible appliances.

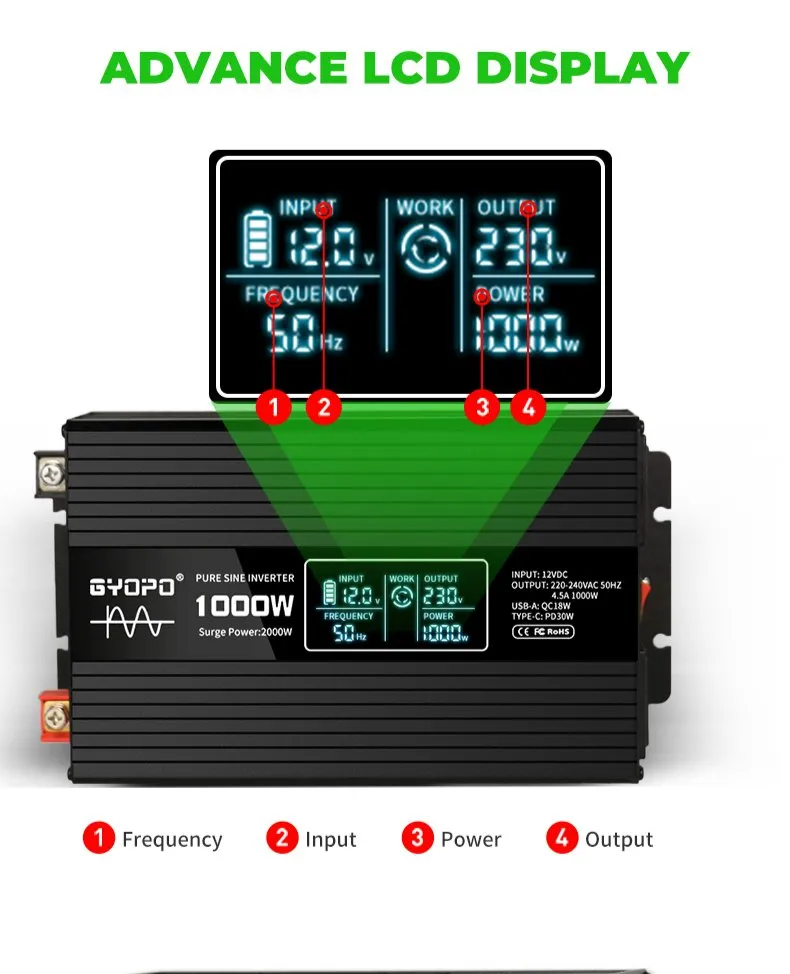

Intelligent LCD Clear visualization of input/output metrics and diagnostic fault codes (E1–E4).
Dual USB Charging Integrated QC18W and PD30W ports for high-speed mobile device charging.
Remote Operation Equipped with a wired remote controller for convenient management from a distance.
Application 1 Application 2

Quality Assurance

Quality Control
Production Line Testing Lab

Frequently Asked Questions

1. What devices can I run with this 1000W Pure Sine Wave inverter?
The pure sine wave output makes it compatible with sensitive electronics like laptops, refrigerators, power tools, and medical equipment, as long as the continuous power draw is under 1000W.
2. What types of batteries are supported?
This inverter supports a wide range of batteries, including Lead-acid, Lithium (LiFePO4), Gel, and Flooded batteries with 12V or 24V DC input.
3. Does it provide protection against overheating?
Yes. It features intelligent dual-fan cooling. The system triggers an overheat trip at 80°C and automatically recovers once the temperature drops to 60°C.
4. What is the benefit of the Pure Sine Wave over a Modified Sine Wave?
Pure Sine Wave provides cleaner power with less harmonic distortion (THD < 3%), which prevents overheating in motors, reduces noise in audio/visual equipment, and extends the lifespan of your appliances.
5. Is the remote control wireless or wired?
The GY-E1000 includes a standard wired remote controller, allowing you to switch the unit on or off from a convenient location.
6. What certifications does this product hold?
Our inverters are fully certified with CE, ROHS, and comply with ISO9001, ISO14001, and ISO45001 international standards for safety and quality management.
