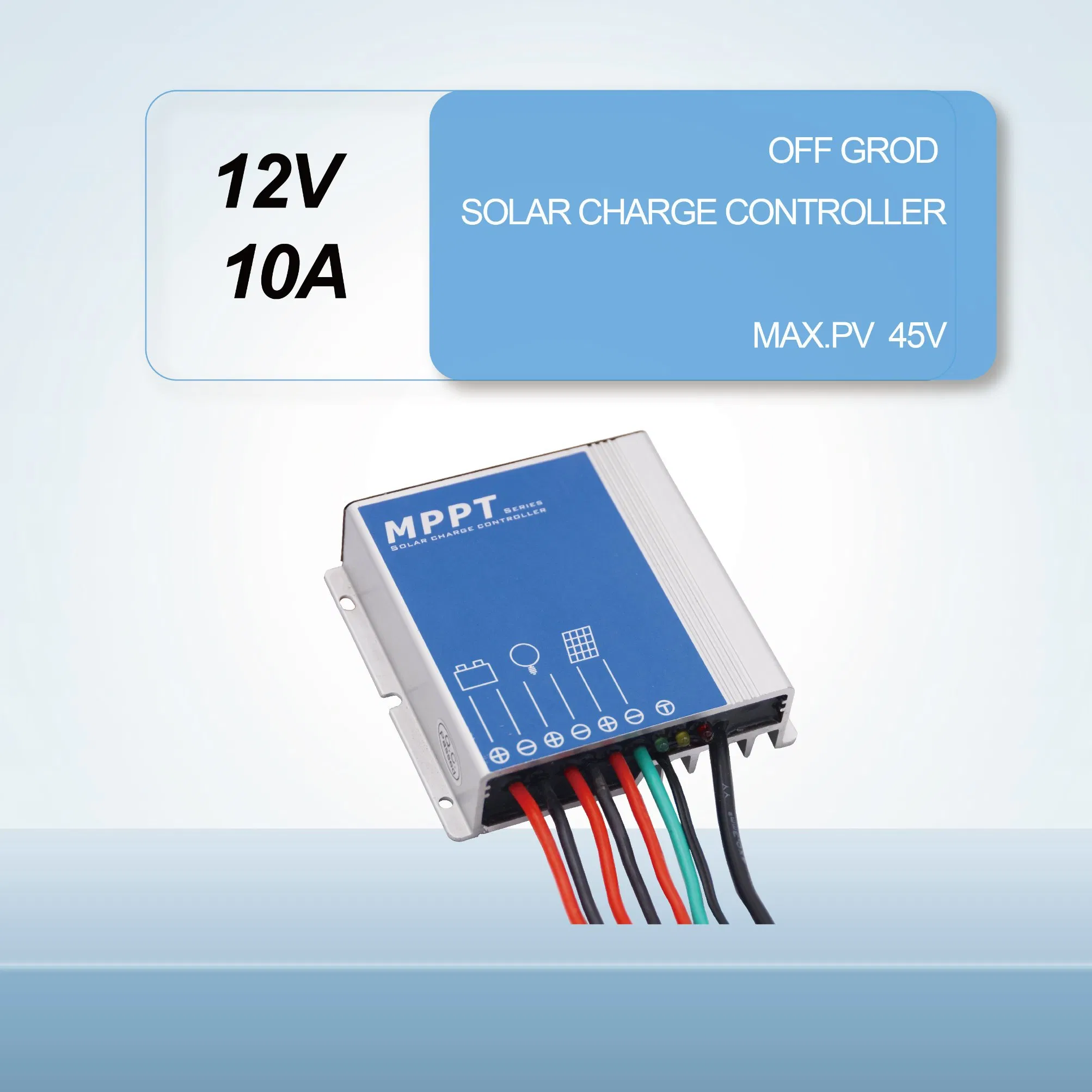

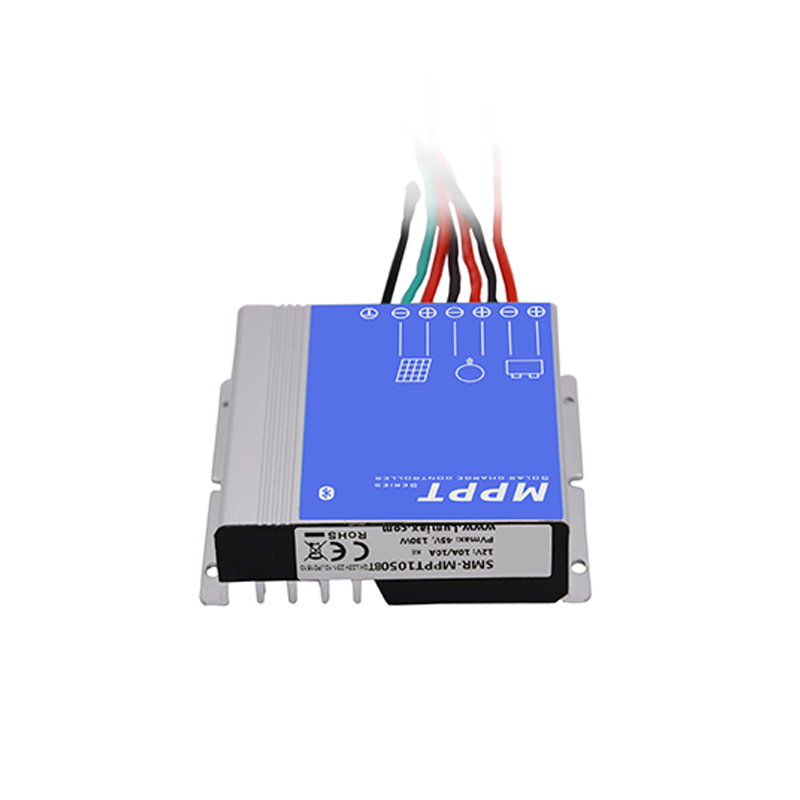

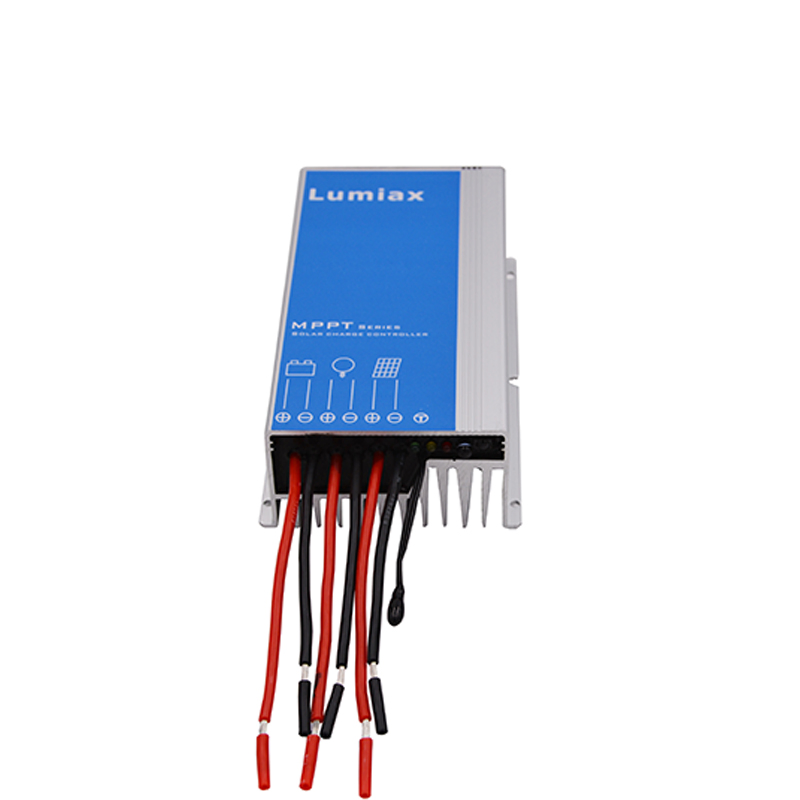

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

1 / 5

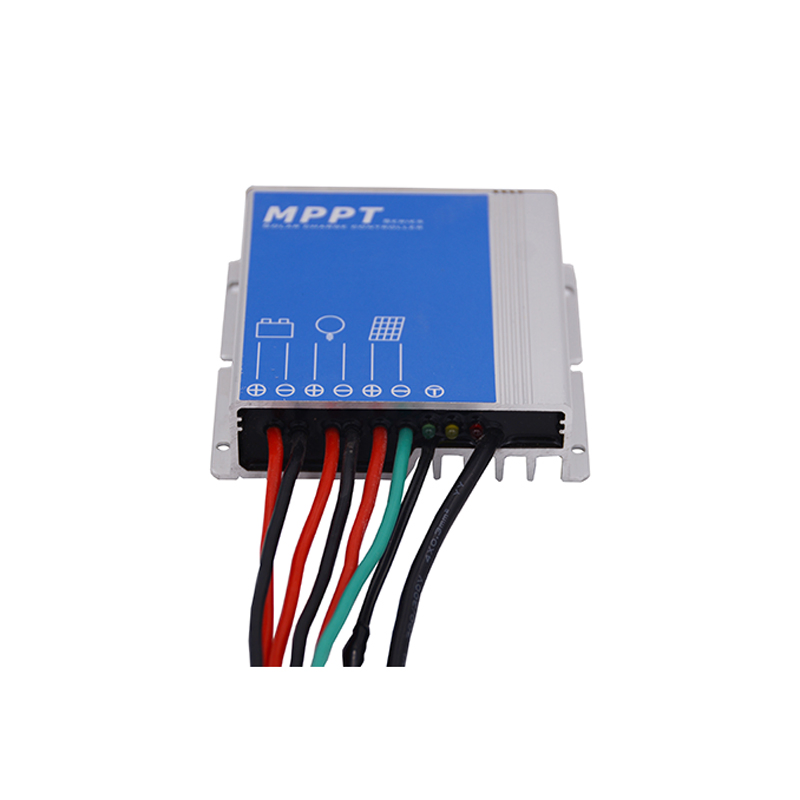

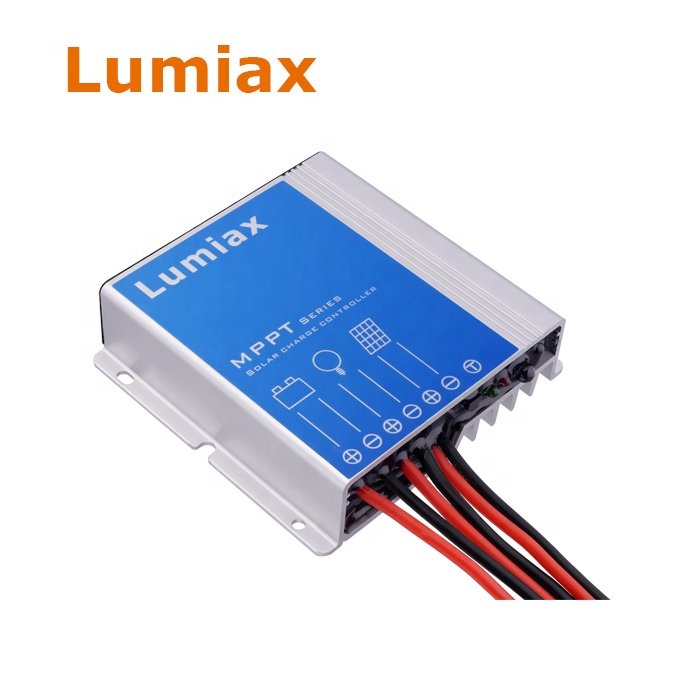

12V 24V 10A 15A 20A Solar Charge Controller for LiFePO4 Remote Controller MPPT

Customization:	Available
After-sales Service:	Installation and Debugging Guide
Warranty:	1

Send Inquiry

Product Description

Basic Information

Model NO. SMR-MPPT Series

Rated Voltage 12V/24V

Max Efficiency 99.9%

Protection Degree IP67

Certification ISO, CE, RoHS, FCC

Charging Current 10A; 15A; 20A

Battery Type Lithium, Liquid, Gel, AGM

Application Solar System Controller

Technical Parameters

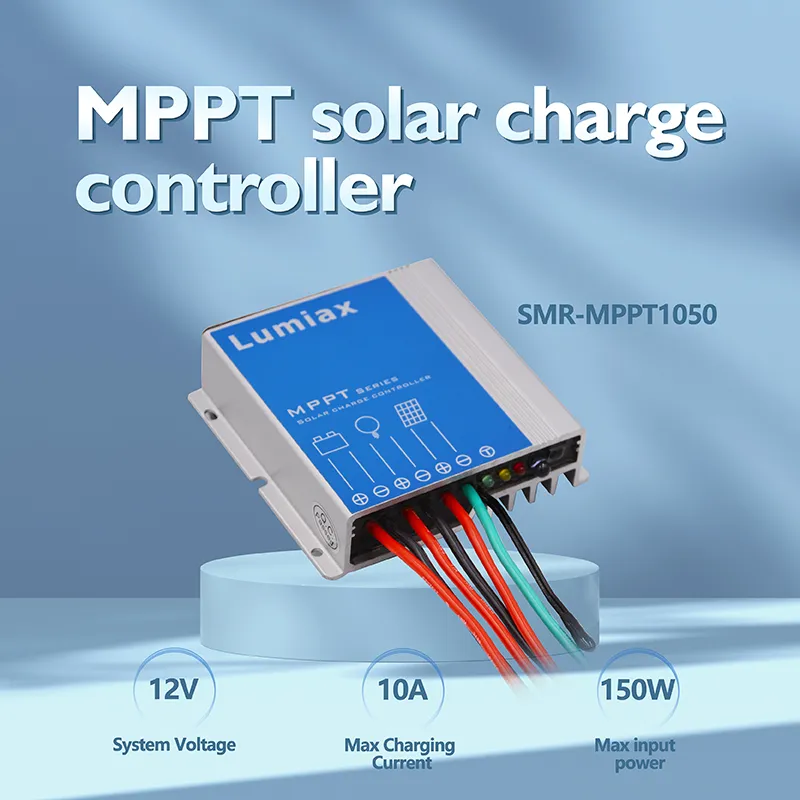

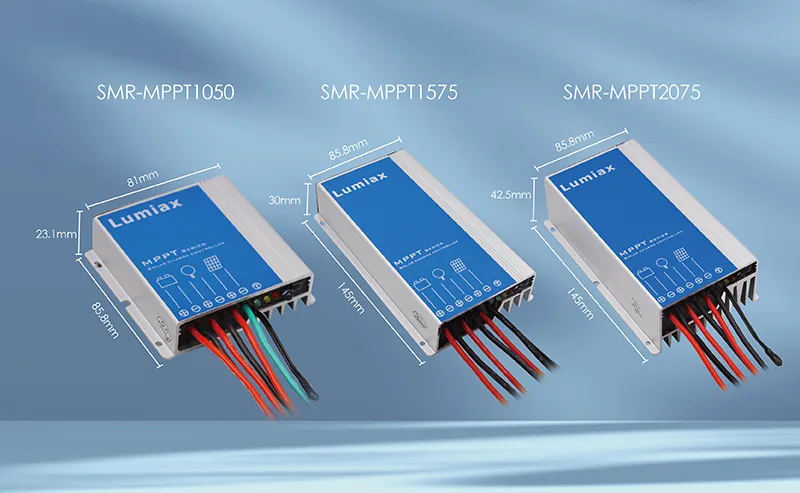

Item	SMR-MPPT1050	SMR-MPPT1575	SMR-MPPT2075
Max Charging Current	10A	15A	20A
System Voltage	12V	12V/24V Auto Recognition
Max Input Power	130W	200W/400W	260W/520W
Max Volt on PV Terminal	45V	55V
Max Tracking Efficiency	>99.9%
Self Consumption	6~8mA

Product Details

Our Advantages & Certifications

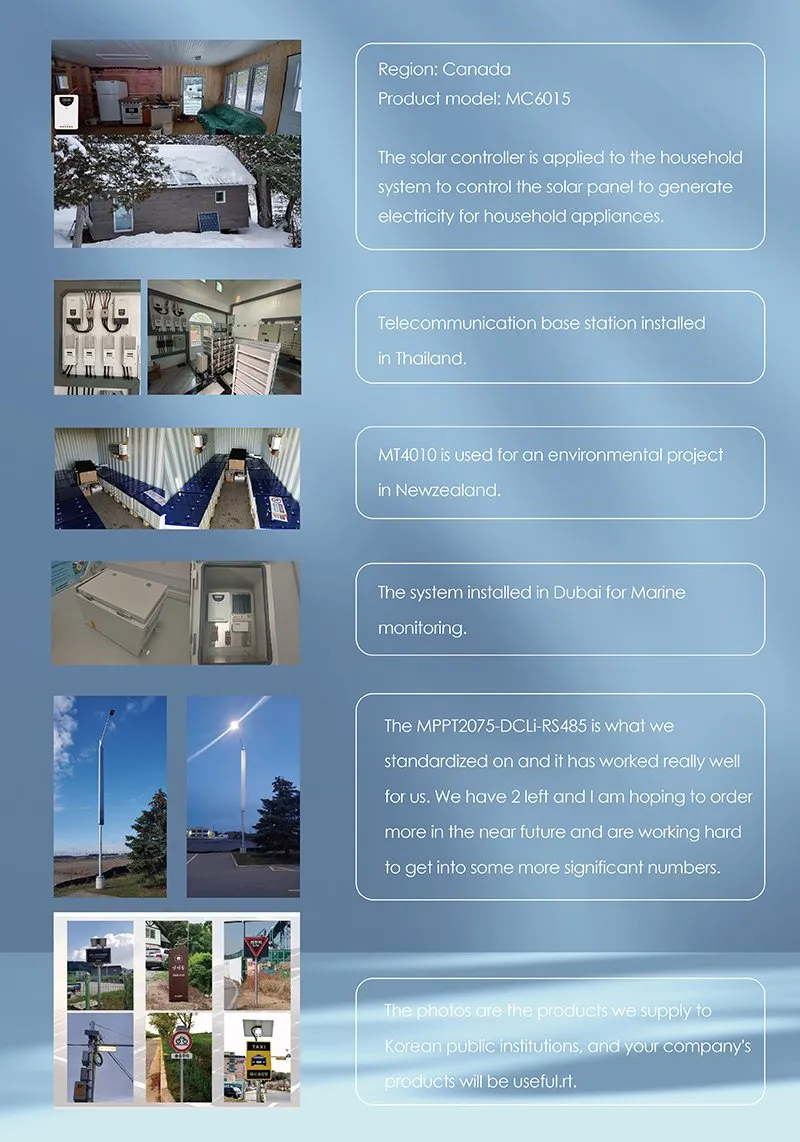

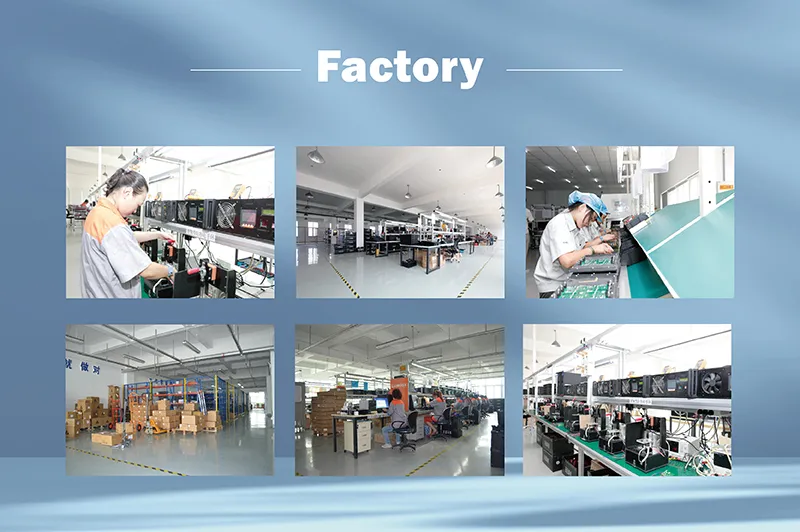

Production & Logistics

Frequently Asked Questions

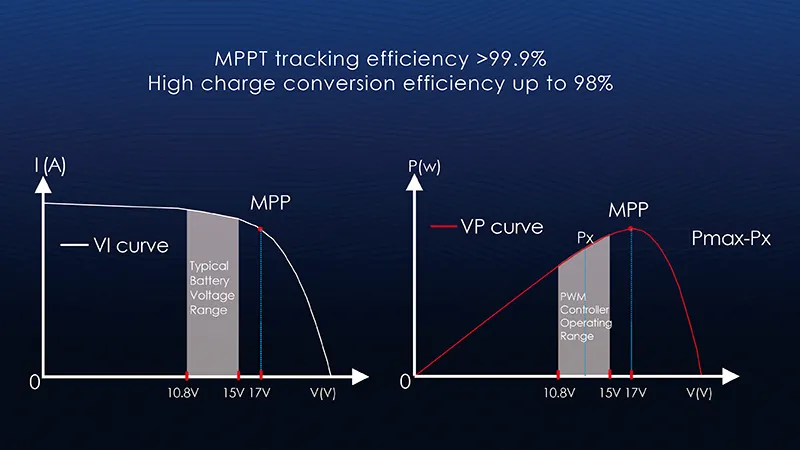

1. What is the maximum tracking efficiency of the SMR-MPPT series? The controller achieves a maximum tracking efficiency of over 99.9%, ensuring optimal energy harvest from your solar panels.

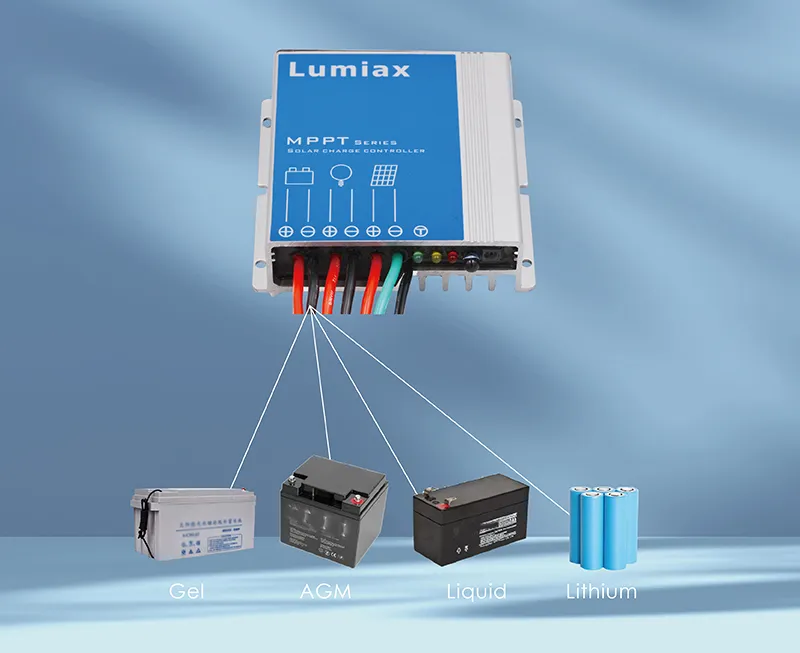

2. Which battery types are compatible with this solar controller? It is programmable and supports Lithium, Liquid, Gel, and AGM batteries (default setting is Gel).

3. Is the controller suitable for outdoor use? Yes, the unit features an IP67 protection degree, making it highly resistant to dust and water.

4. Does it support both 12V and 24V systems? The SMR-MPPT1575 and 2075 models feature automatic recognition for 12V and 24V systems. The 1050 model is designed for 12V systems.

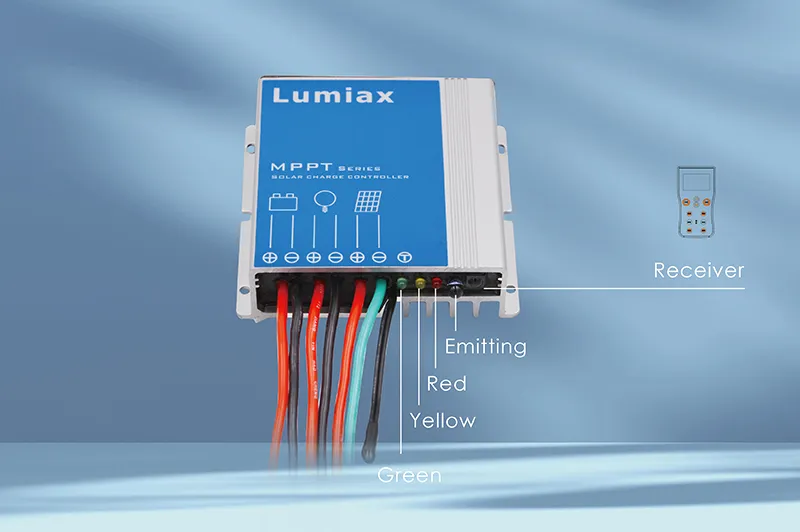

5. What communication methods does the device support? The series supports multiple communication interfaces including Infrared, RS485, and Bluetooth (BT) depending on the specific model.

6. What is the operating temperature range for these controllers? The controllers are designed to operate reliably in ambient temperatures ranging from -35ºC to +60ºC.
