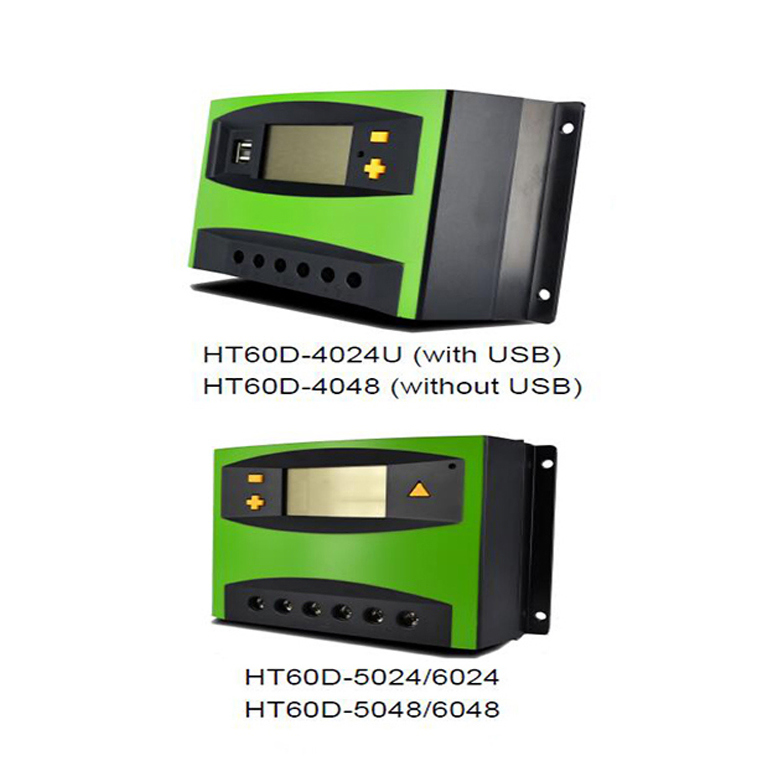

12/24/48VDC 30-60A Solar Charge Controller PWM Controller for Solar Power System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Condition

New

Certification

ISO, CB, CE

Rated Voltage

12/24/48V

Origin

China

HS Code

9032899090

Capacity

50000PCS/Year

Package Size

535.00cm * 415.00cm * 19.00cm

Application

Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller

PWM Solar Charge Controller

LCD HT Series

Key Features

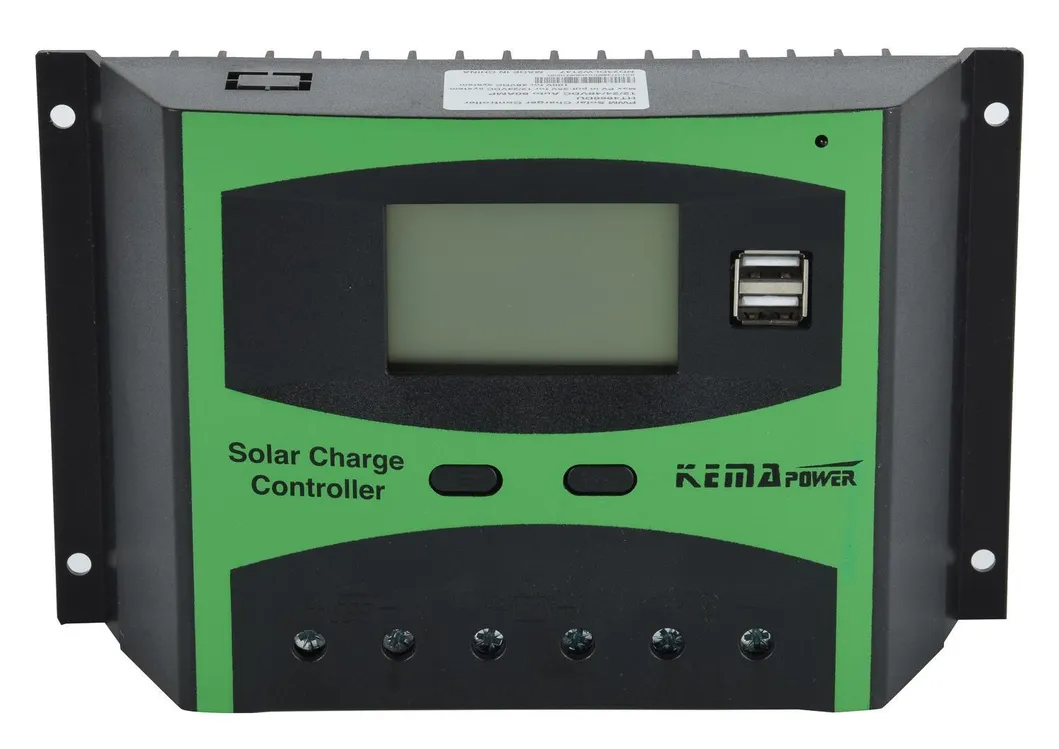

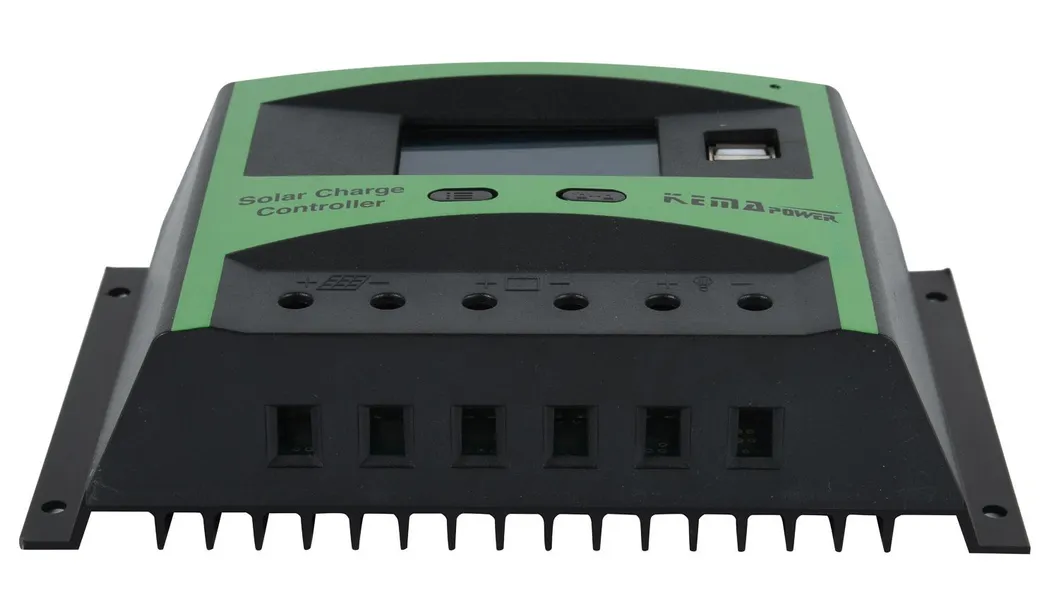

LCD PWM Solar Charge Controller HT series 12/24/48V, 30/40/50/60A
12/24V automatic recognition or 48VDC
Built-in 2*1A USB Charger
Charging and discharging parameters adjustable
Time and Light Control function selectable for street light systems
Preset charging parameters for three battery types
Integrated Temperature compensation function

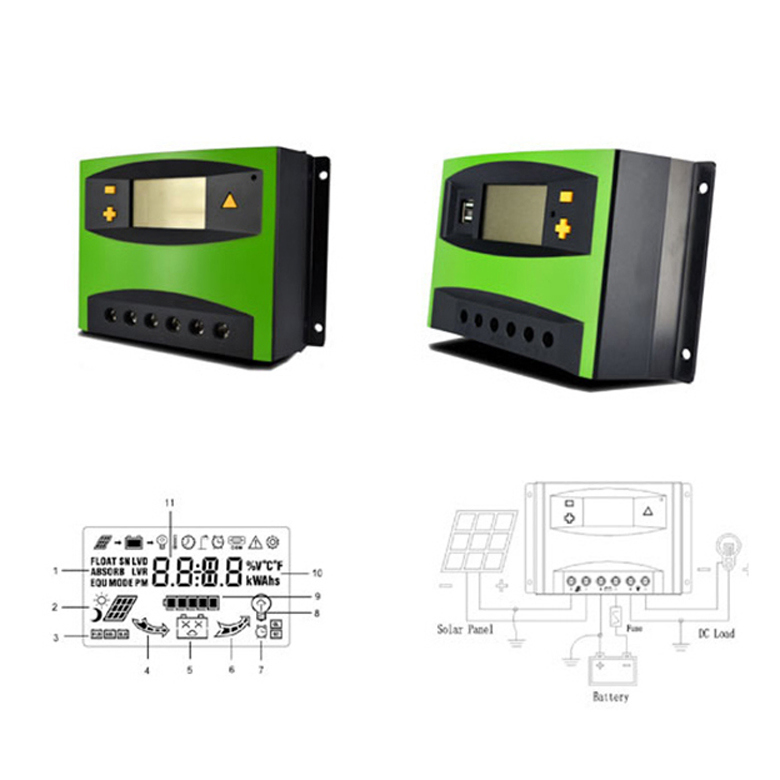

LCD display for energy capacity, fault codes, battery, PV, and Load details

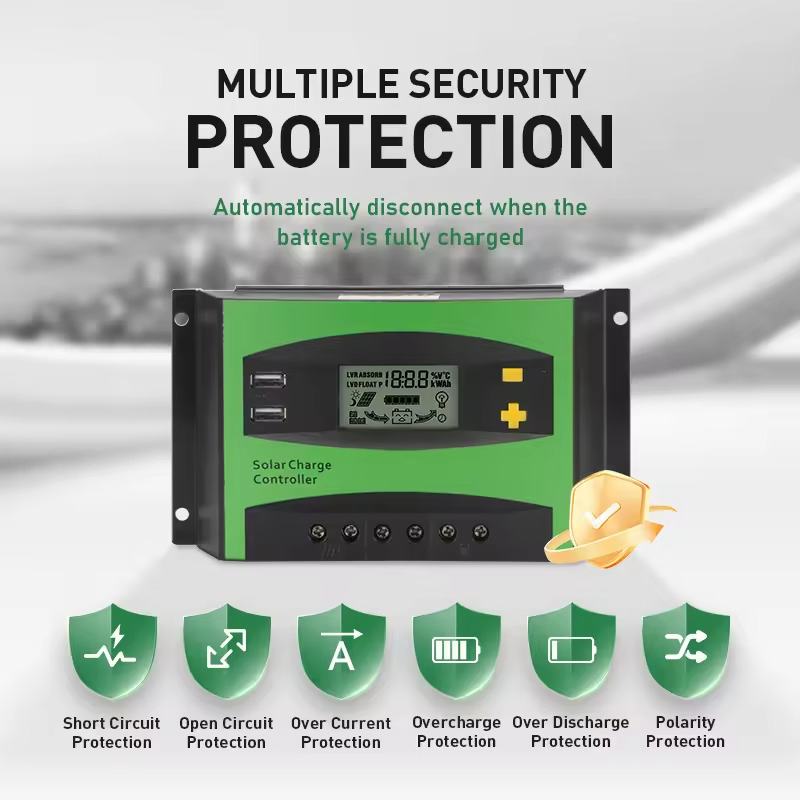

Comprehensive protection: PV over-current, reverse polarity, battery over-charge/discharge, load overload, and short circuit
RJ45 communication option for computer connection

Technical Specifications

USB Charge

MODEL	HT4830DU	HT4840DU	HT4850DU	HT4860DU	HT2450DU	HT2460DU
Rated charge current	30A	40A	50A	60A	50A	60A
Rated load current	30A	40A	50A	60A	50A	60A
System voltage	12/24/48V AUTO work				12/24V AUTO work
Over Load Protection	≥120%, 60s; ≥150%, 10s; ≥180%, 0.2s
LVD / LVR	LVD: 11V \| LVR: 12.6V (for 12VDC, others multiple)

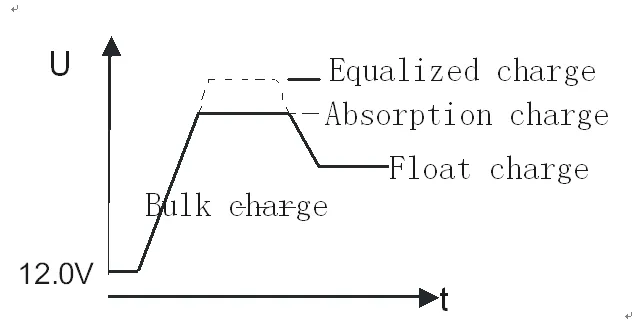

Charging Mode	PWM 4-stage (bulk, absorption, float, equalized)
Battery type	Sealed, GEL, Flood and Usr (default)
2*5V 1.0A
Protection Class	IP32
Case material	ABS

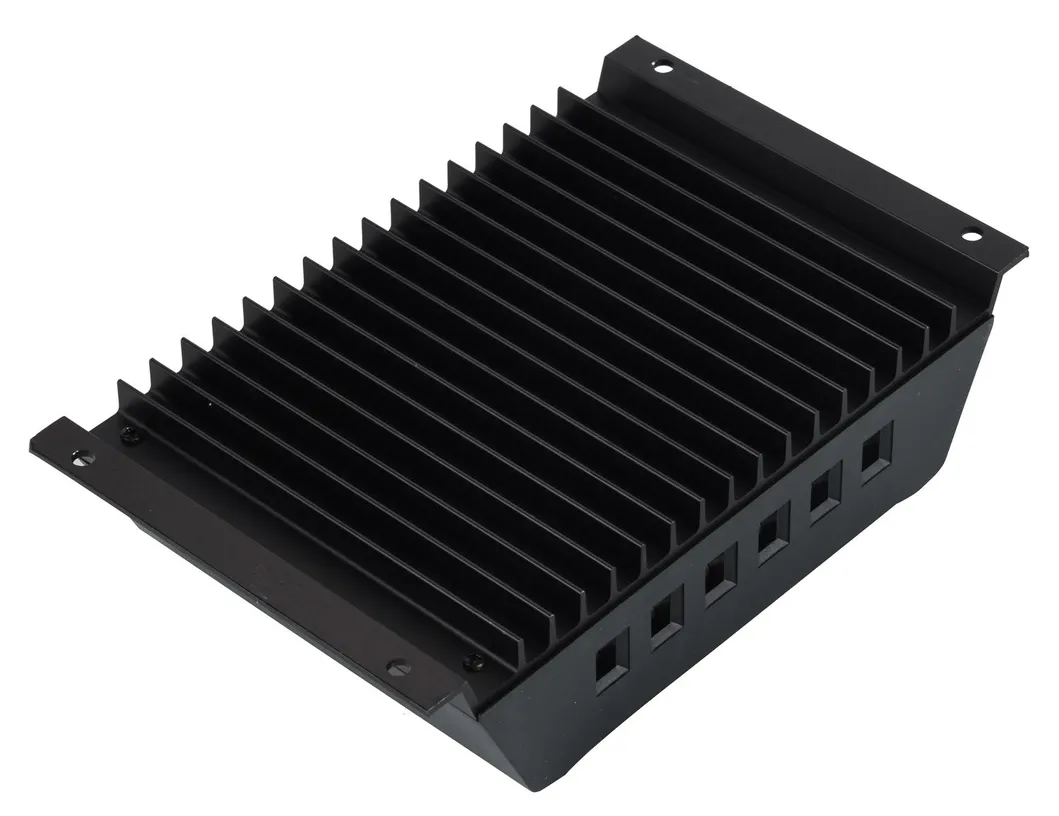

Product Display

Frequently Asked Questions

What battery types is this PWM controller compatible with? The HT series supports Sealed, GEL, Flooded, and User-defined (Usr) battery types with preset parameters.

Does the controller support automatic voltage recognition? Yes, it features 12V/24V automatic recognition for most models, with specific models supporting 48VDC systems.

Can I charge my mobile phone directly from the controller? Absolutely. The controller includes two 5V/1A USB ports specifically for charging mobile devices and small electronics.

What kind of protective functions are built-in? It includes protection for PV reverse polarity, battery over-charge and over-discharge, load overload, short circuits, and controller over-temperature.

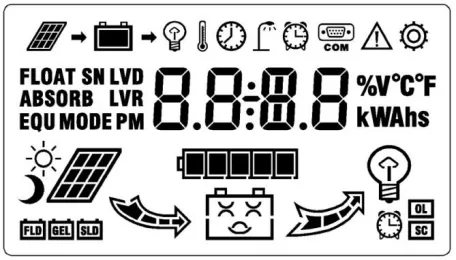

What information is displayed on the LCD screen? The LCD provides details on energy capacity, fault codes, battery voltage, PV output, charging/discharging current (Amps), and temperature status.

Is this controller suitable for solar street lights? Yes, it features selectable Light Control and Time Control modes, making it ideal for solar street light applications.
