Technical Specifications & Basic Info
Model:THON-10
Nature of Source Flow:Active Inverter
Phase:Single
Output Power:>1000W
Certification:SAA, CE, ROHS, ISO9001, CCC
Type:DC/AC Inverters
Power Source:Solar Power, Wind Power
Wave String:Pure Sine Wave
Rated Power:4.2kw/6.2kw
Operating Voltage:240VDC
PV Input Range:60-450VDC
Mounting Type:Roof Mounting
💡
Product Description

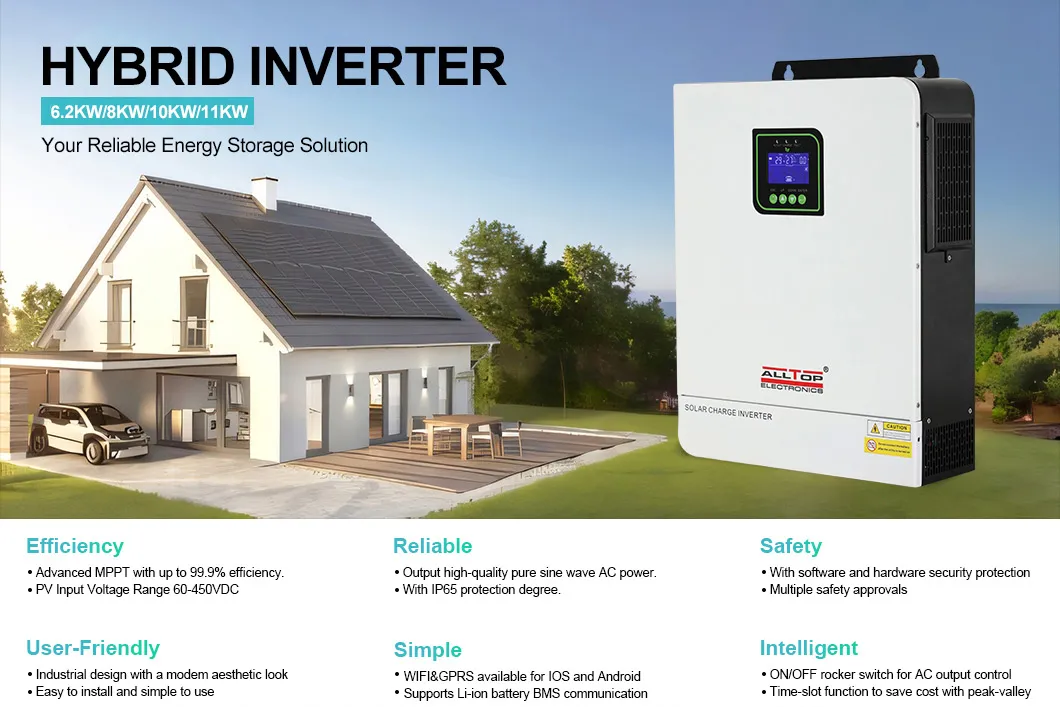

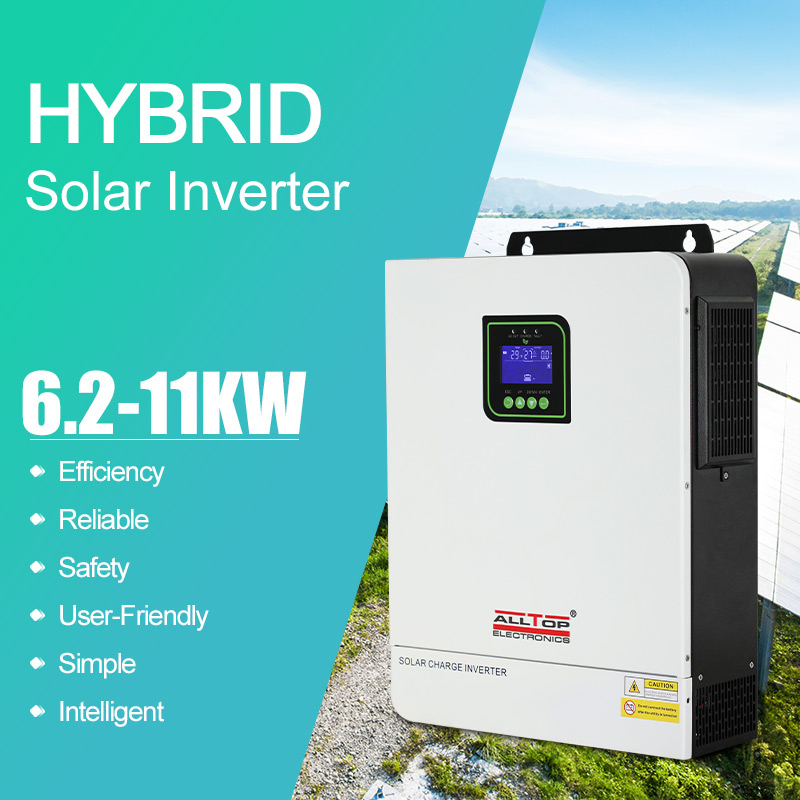

Smart Energy Solutions - High Performance PV Inverters
Providing residential, commercial, and utility-scale PV inverters. Our solutions are designed for flexible supply and full compliance, ensuring fast and reliable energy conversion.
| Model |
THON-6.2KW-10P |
THON-8KW-10P |
THON-10KW-10P |
THON-11KW-10P |
| Battery Voltage | 51.2VDC | 51.2VDC | 51.2VDC | 51.2VDC |
| Rated Power | 6200W | 8000W | 10000W | 11000W |
| Output Voltage | 230VAC | 230VAC | 230VAC | 230VAC |
| Max Battery Current | 135A | 183A | 230A | 250A |
| MPPT Range | 120-450VDC | 120-450VDC | 120-450VDC | 120-450VDC |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
Key Features
- Sectional charge and discharge functionality.

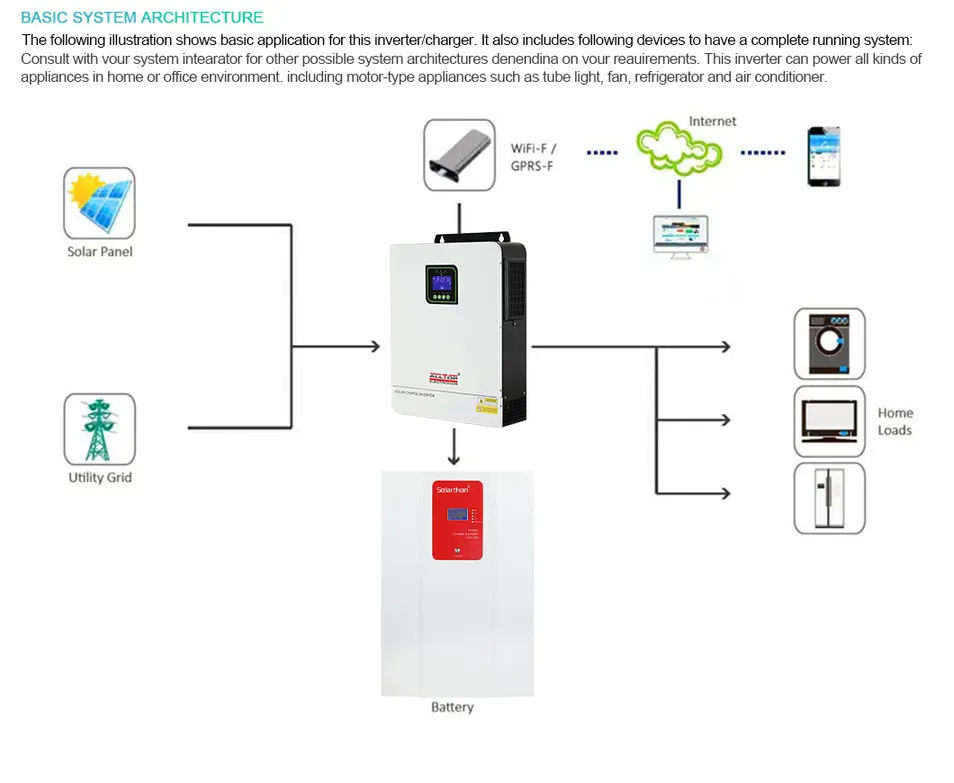

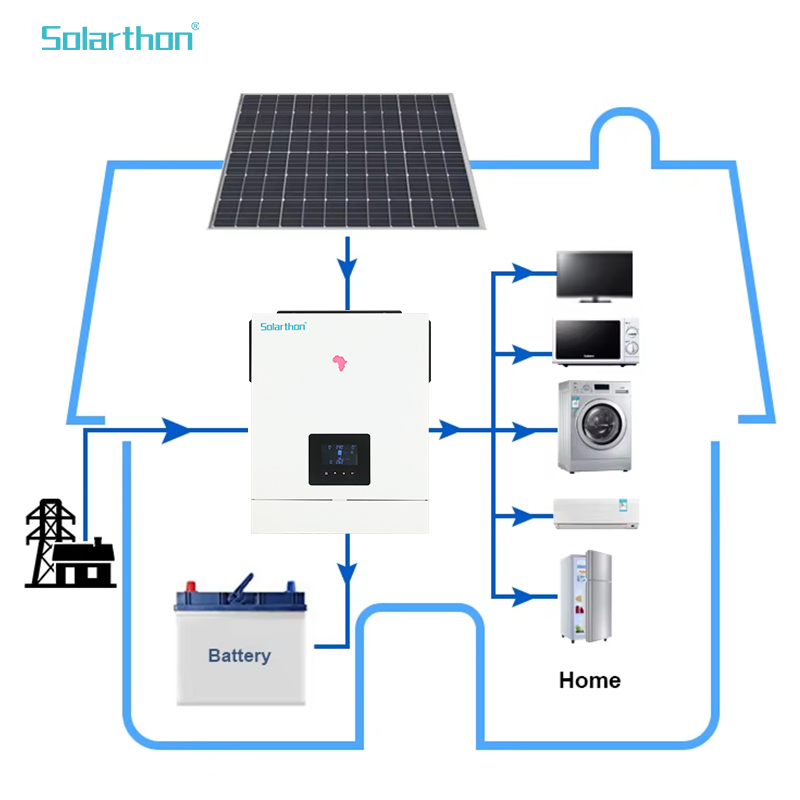

- Operation available without battery; supports simultaneous solar and utility grid power.
- Dual activation for lithium batteries via mains or photovoltaic supply.
- Pure sine wave output via advanced SPWM technology.
- 360° all-round protection (over/under voltage, overload, reverse protection).
- Intelligent variable speed fan for efficient heat dissipation.
❓
Frequently Asked Questions
Q: Are your inverters pure sine wave output?
A: Yes, all our inverters provide a true pure sine wave output, ensuring compatibility and safety for sensitive electronics.
Q: What kind of output voltage and frequency can you provide?
A: We produce inverters for 110V, 115V, 120V, 220V, 230V, and 240V with self-adapting frequencies of 50/60Hz. Special requirements can be customized.
Q: What's the difference between low frequency and high frequency inverters?
A: Low frequency inverters provide superior protection, strong environmental adaptability, and high reliability with built-in voltage regulation.

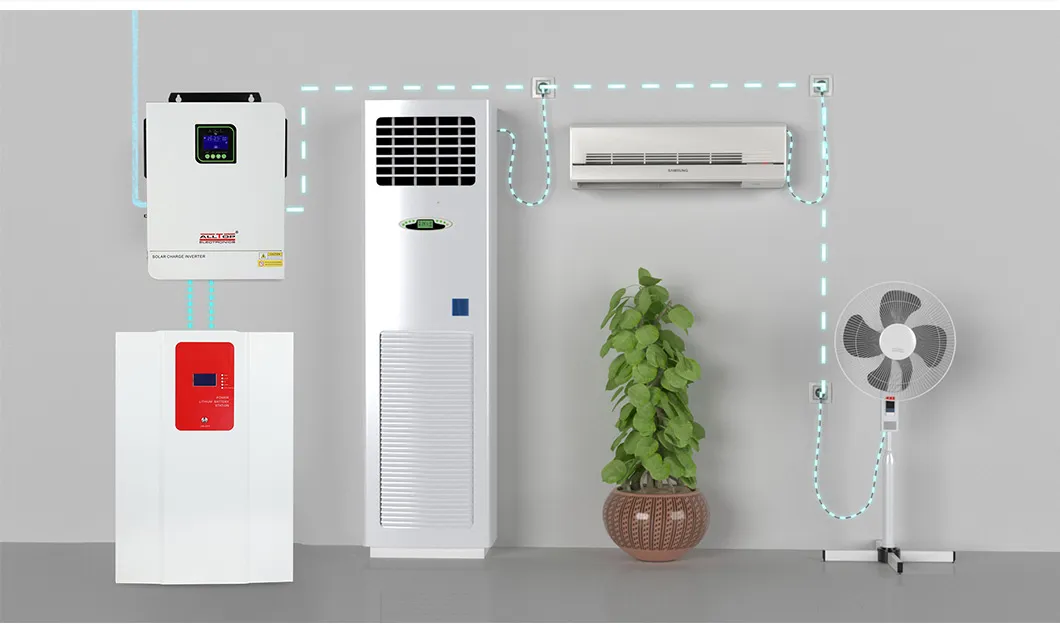

Q: What appliances can your inverters handle?
A: Our inverters are suitable for household, office, and agricultural use, including inductive loads like air conditioners, refrigerators, and water pumps.
Q: How do you handle technical issues or broken products?
A: We offer 24-hour after-service consultancy. If a product is faulty, simply provide photos or videos, and we will provide free spare parts for the PCB board.
Q: Is a power inverter absolutely necessary for a solar system?
A: While not strictly mandatory for DC-only setups, an inverter is essential if you want to run standard AC appliances (220/230V) from your battery system.
